8C-SHEDA1 51307186-175 | connector motherboard
PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs
Overview

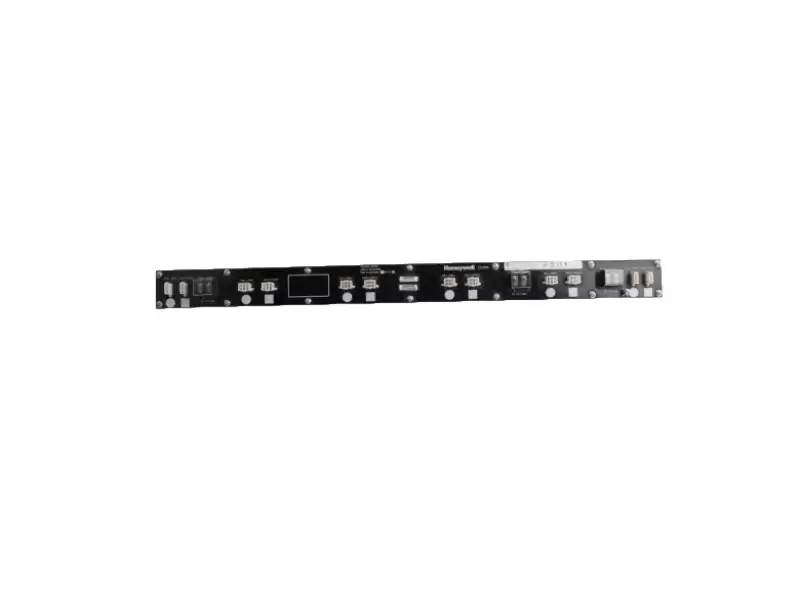

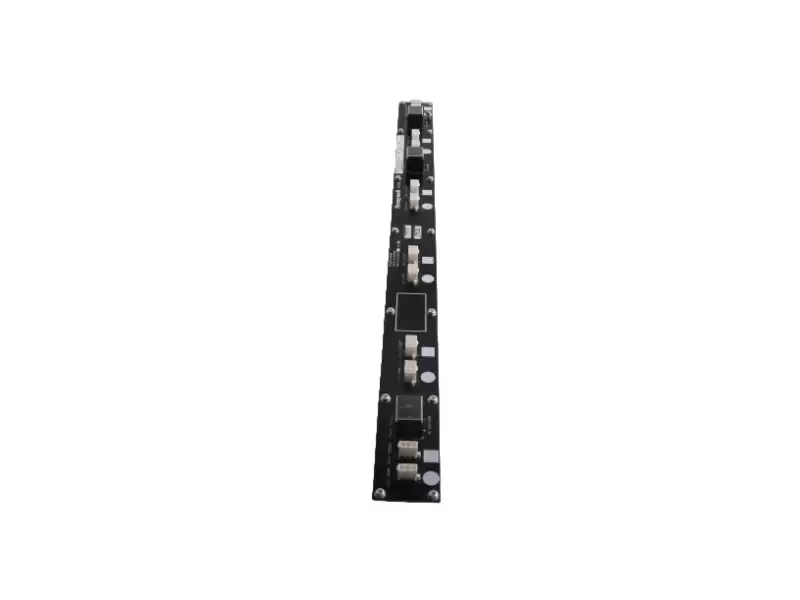

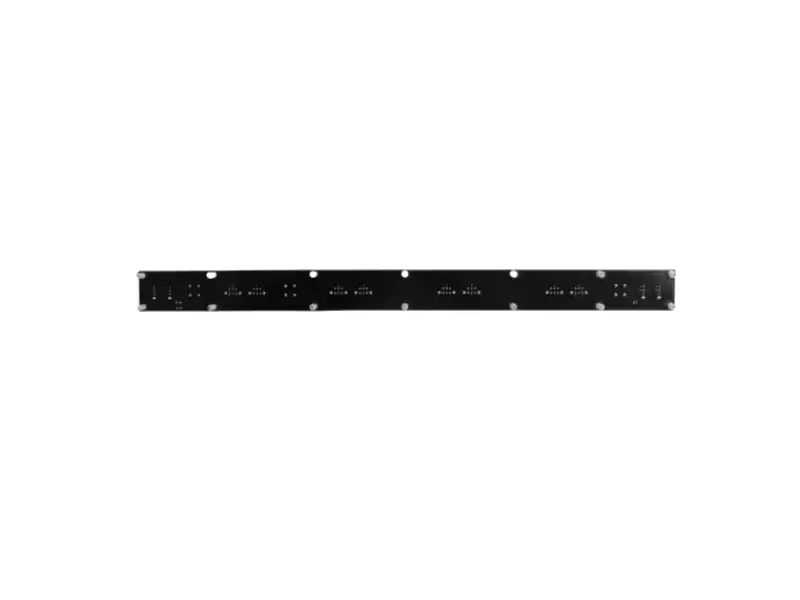

Model 8C-SHEDA1, order number 51307186-175, is a HeaderBoard (connector motherboard) in the Honeywell Series-8 I/O architecture. This module connects I/O modules to the control platform and is a key interface component in the I/O architecture. Its main responsibilities include power distribution, backplane bus connection, and module address jumper settings, providing a solid foundation for stable I/O module operation and system integration.
Core Specifications
|
Electrical
|
Value
|
|
Module Type:
|
Motherboard Interface Connector
|
|
Order Number:
|
51307186-175
|
|
Functions:
|
Supports I/O module slots, backplane bus communication, power distribution, and module jumper configuration
|
|
Input Voltage:
|
110VAC or 220VAC
|
|
Output Voltage:
|
24VDC
|
|
Number of Slots:
|
Supports 8 I/O module slots
|
|
Operating Temperature Range:
|
-40°C to +85°C
|
Product Advantages
Key Interface Components: Serving as a bridge between I/O modules and the control system, the 8C-SHEDA1 provides standardized slots and backplane bus interfaces, significantly simplifying system design and maintenance.
High Compatibility: Compatible with Honeywell Series-8 architecture, ensuring strong compatibility and easy replacement when used with I/O modules from the same series.
Industrial-Grade Design: Supports wide temperature environments, strong anti-interference capabilities, and a robust structure, suitable for long-term operation in harsh environments.
Comprehensive Service Support: Leveraging 20 years of experience with PLC Autocontroller, comprehensive support is provided from selection and supply to technical support and after-sales service.
System Optimization: Simplified installation process, reduced downtime, and lower maintenance costs through standardized interfaces and configuration jumpers.
Contact us
Sales Manager May – PLC Autocontroller (20 years of experience in supplying superior industrial automation parts)
E-mail: ab@mooreplc.com | Phone: +86-18106909650 (WhatsApp) | WeChat: dcsfcs
PLC Autocontrolle
Ø All products are brand new and original,with a 12-month warranty.
Ø Authenticity Guarantee: All products are genuine, ensuring reliable quality.
Ø Technical Support: Module datasheets, wiring diagrams, and commissioning instructions are provided.
Ø Spare Parts Inventory Support: A long-term spare parts inventory ensures continuous equipment operation.
