ACX633 51196655-100 | power module
PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs
monitoring and control module

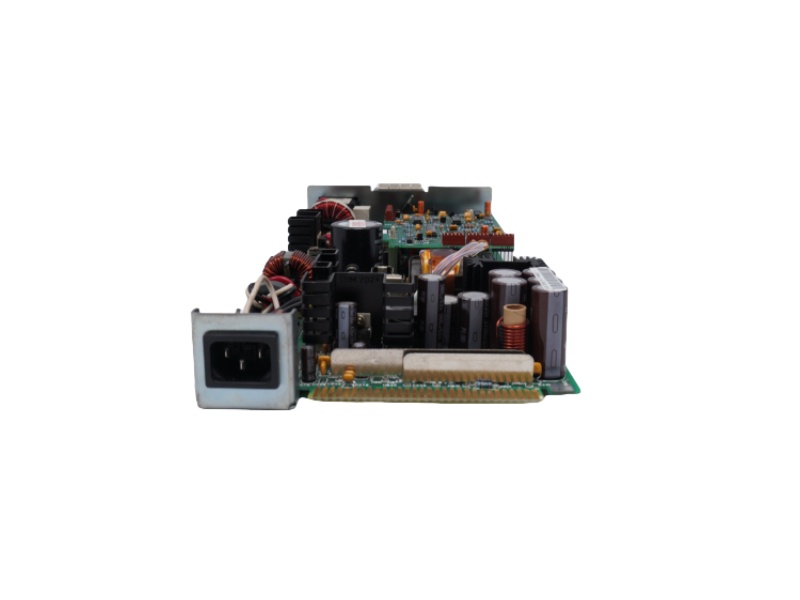

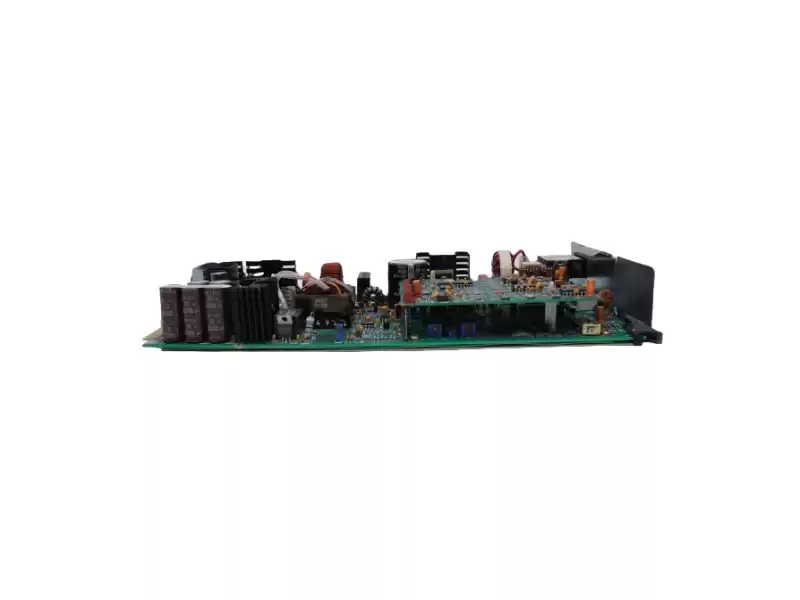

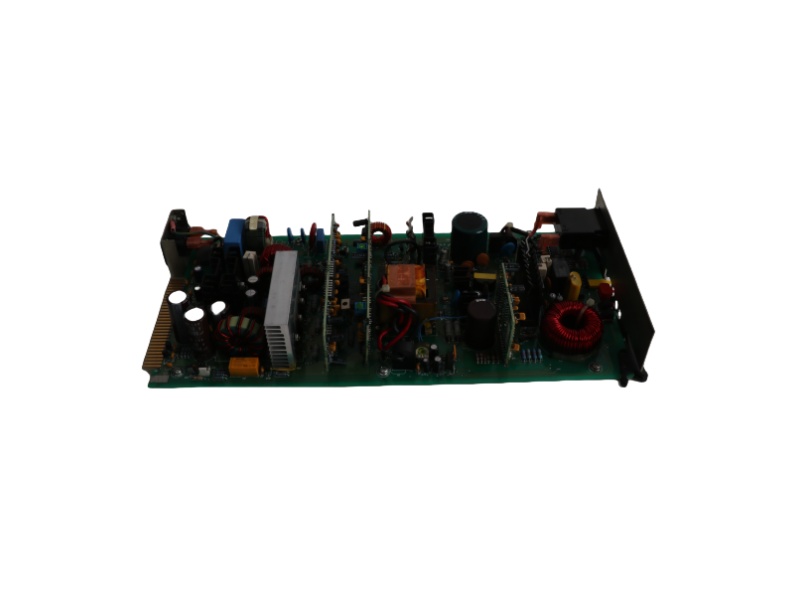

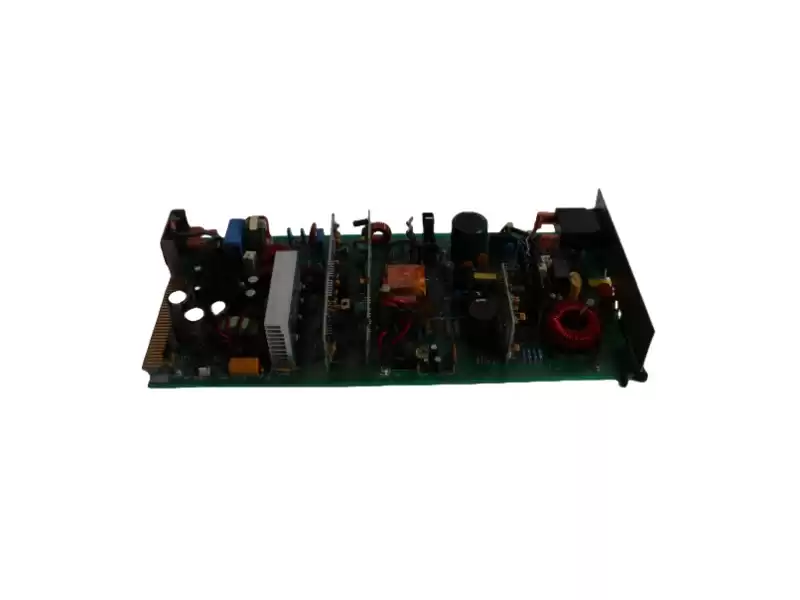

Model ACX633, order number 51196655-100, is a dual-node power module manufactured by Honeywell. This module
provides multiple voltage outputs for TDC 3000 / Experion systems, supporting inputs of 120V or 240V AC, and outputs
including 5V, 12V, -12V, and 27V, with a maximum power of approximately 165W..
Key Technical Specifications
Model/Order Number: ACX633 / 51196655-100
Input Voltage: 120VAC @4A or 240VAC @3A, 50/60Hz
Output Voltage/Current: 5VDC @20A; 12VDC @3A; -12VDC @1A; 27VDC @0.6A (Typical)
Power: 165W Total Output Power Rating
Module Application: Dual-node power supply module for power architectures in TDC/Experion control systems.
Compatible modules and accessories
|
Compatible with Honeywell TDC 3000 / Experion control systems, serving as the core power module in the control cabinet
|
|
Can be used in conjunction with other I/O modules (analog/digital inputs/outputs) within the control system rack.
|
|
Recommended for power redundancy configuration, together with a backup power module and busbar in the same system.
|
