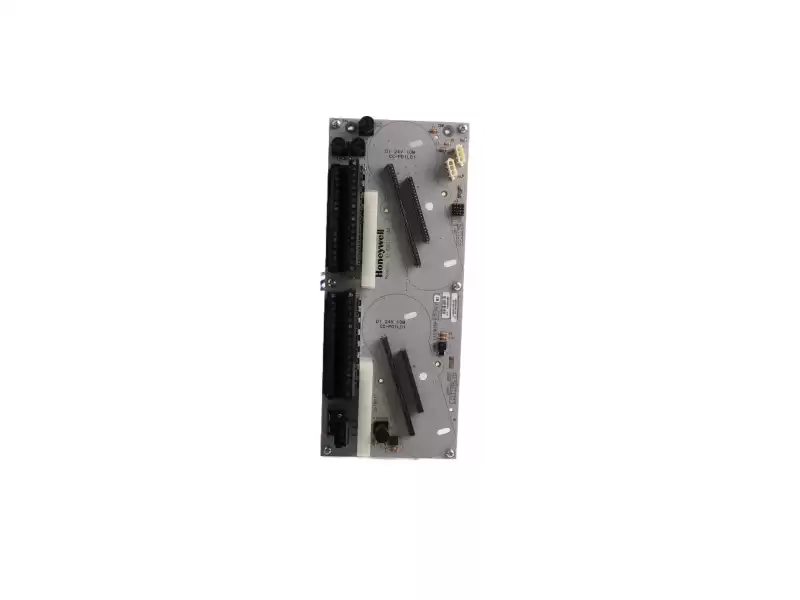

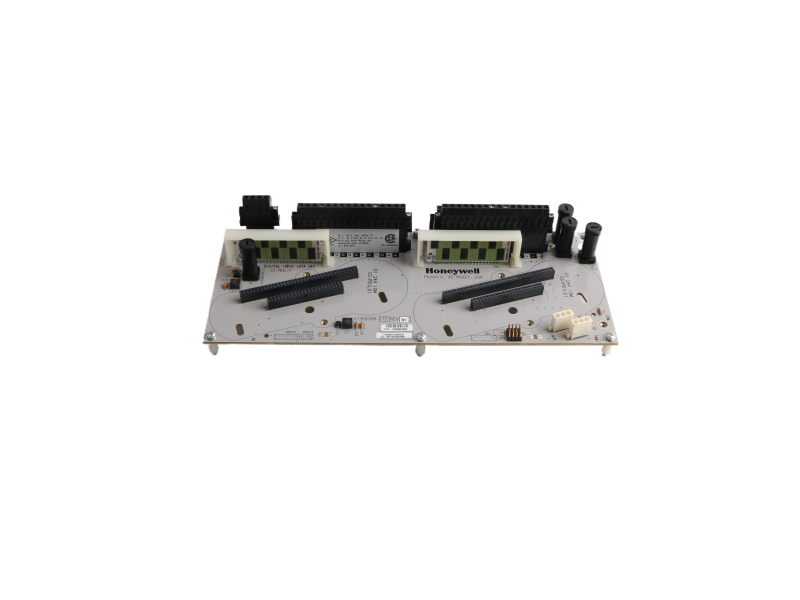

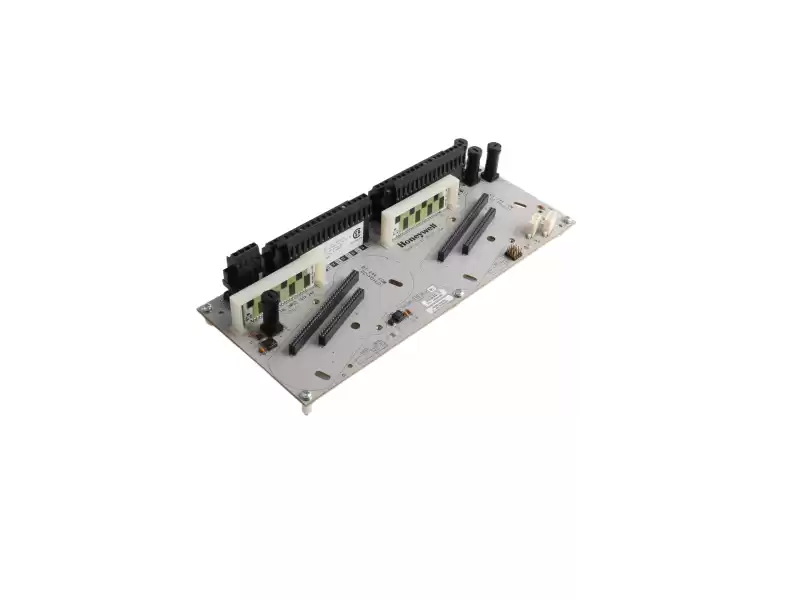

Digital Input—Low Voltage, 32-Channel, 24 Vdc Sink/Source, C300-Series IOTA Plug-in
Xiamen PLC Autocontroller, two decades of moving genuine spares.
Talk to May: ab@mooreplc.com | +86-18106909650 (WhatsApp) | WeChat: dcsfcs
CC-TDIL11 is the narrow 32-point DI slice that slides straight onto the Series-C IOTA board—no extra arm or extender needed. Each channel accepts wet-contact signals from 15 V up to 30 V, sink or source selectable by jumper, and reports open-wire or short-circuit health bits back to the C300 controller. The on-board noise filter (2 ms fixed) kills relay bounce without touching the code, a favorite trick among OEMs building packaged skids.
The module ships with a transparent safety cover; terminals are visible for loop-check without removing the lid, so technicians no longer need hot-work permits just to read a meter. At 28 mm wide, three TDIL11 units fit side-by-side in a 150 mm cabinet, freeing valuable rail space for future expansion.
All 512 indicator LEDs are dimmable. In a darkened compressor shelter you can drop brightness to 10 % and still see channel state—no more black tape over flashing lights. If a point is forced in the debugger, the LED turns steady orange, a visual warning that the interlock is temporarily bypassed.
Environmental extras: conformal-coated version available for offshore humidity, and a conformal-plus-heat-sink variant for desert sites where cabinet temperature can kiss 70 °C. Both carry the same part number root; the suffix “-CC” or “-HS” is added during final QC, so your CMMS stays clean.
Hot-Selling Honeywell C300 I/O Family – One-Stop Pick List
|
Series-C Module
|
Description
|
Popular Pairing
|
Notes
|
|
CC-TDIL11 51308388-175
|
32 DI 24 Vdc sink/source
|
CC-TAIL01 IOTA
|
Bounce-free, open-wire diag.
|
|
CC-TDOB11 51405043-177
|
32 DO 24 Vdc source
|
CC-TAIL02
|
0.5 A/ch, short-circuit proof
|
|
CC-UAIX01 51308154-175
|
16 AI universal
|
CC-TAIX01
|
TC/RTD/mA/V all in one
|
|
CC-UAOX01 51308590-175
|
16 AO 4–20 mA
|
CC-TAOX01
|
Redundant enabled
|
|
CC-PDIL01 51405044-175
|
32 DI 125 Vdc
|
CC-PAIL01
|
Utility-grade, wide voltage
|
|
CC-PUIO31 51309218-175
|
32 UIO software-defined
|
CC-TUIO31
|
Future-proof spare
|
PLC Autocontroller — keep your C300 digital front-end alive, accurate and always in stock.
