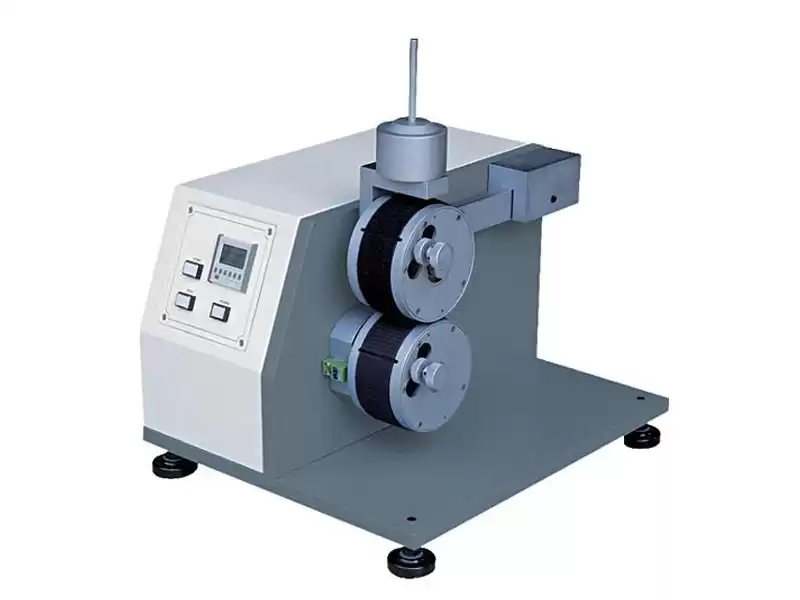

Hook-And-Loop Fastener Fatigue Tester

Hook-And-Loop Fastener Fatigue Tester is used to determine the peel strength, shear strength, closure strength of touch and close fastener after being repeatedly opened and closed under controlled conditions.

Test Standards

DIN 3415, BS EN ISO 22776, BS EN ISO 22777, SATRA TM123, etc.

Parameters

Model AT-F3004
Control method Touch screen controlled or LCD digital controller
Upper idling drum Diameter 162.5±0.5mm
Lower driven drum Diameter 160±0.5mm
Drum width 70mm
Clamp slot Width: 4mm, Length: 55±2mm
Test speed 60±5rpm/min or 72rpm/min
Reversal intervals 30±5S
Sample pressure 1.0±0.1N/mm
Counter LCD display, 0~999,999
