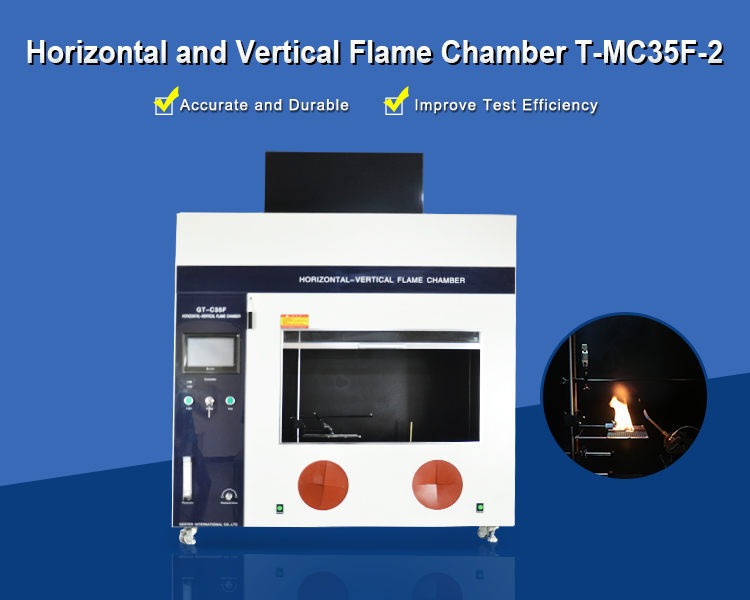

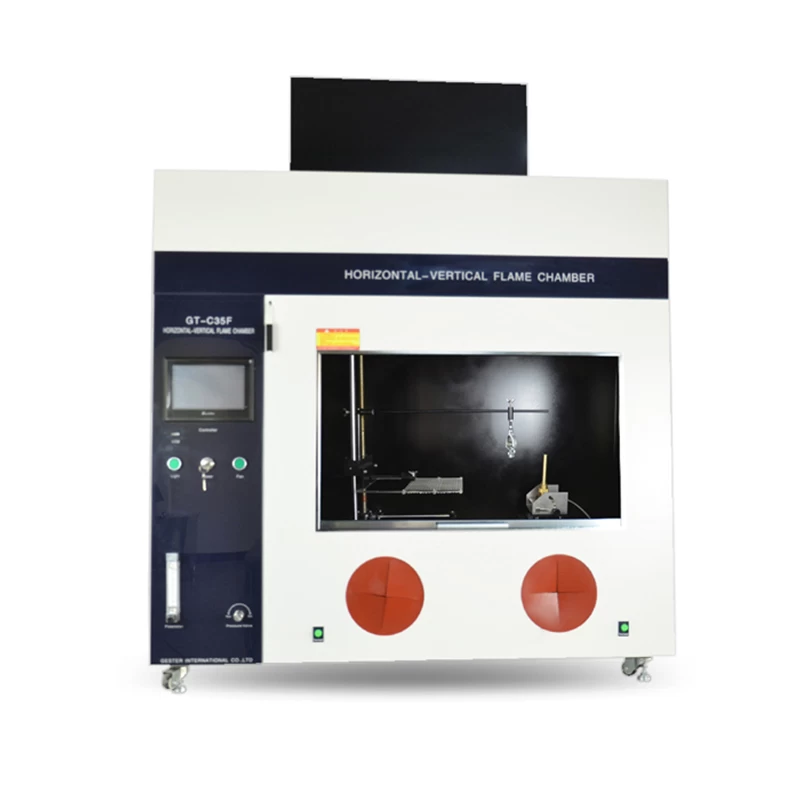

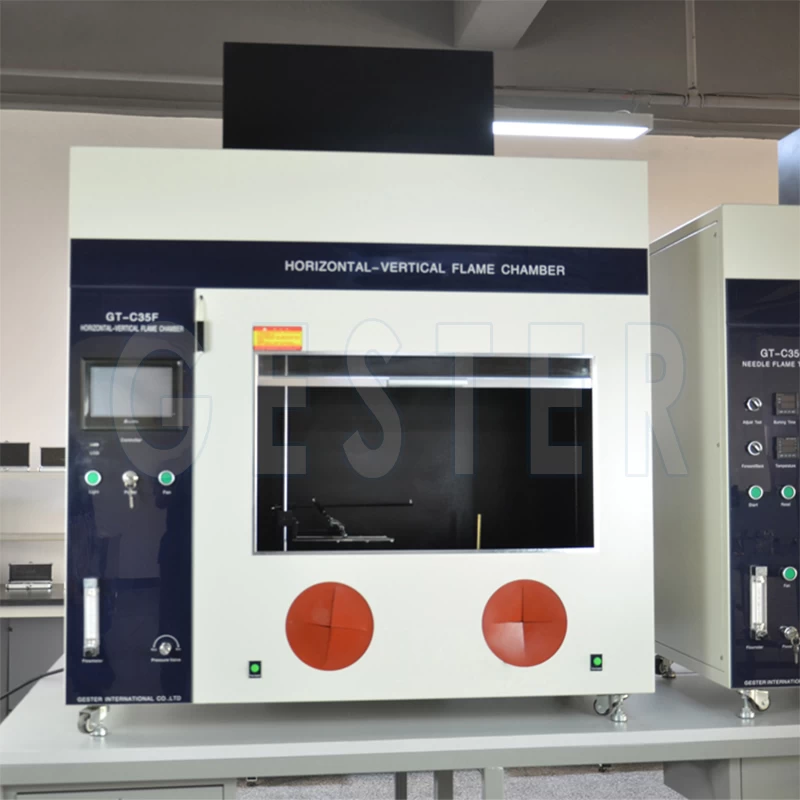

Horizontal and Vertical Flame Chamber GT-MC35F

Horizontal and Vertical Flame Chamber is the latest release of the flame test equipment, flame chamber with imports of touch-screen controller and instrument.


  • standardUL 94, IEC 60695-11-3, IEC 60695-11-4, ISO 9772.3, ASTM D635/3801/4804/4986,
  • certificateISO 9001, UKAS, CE

Applications:

Horizontal and Vertical Flammability Tester is the latest release of the flaming test equipment, with imports of touch-screen controller and instrument.

New test circuit, stable performance, reliable, simple and easy to operate. wide range of parameter adjustment.

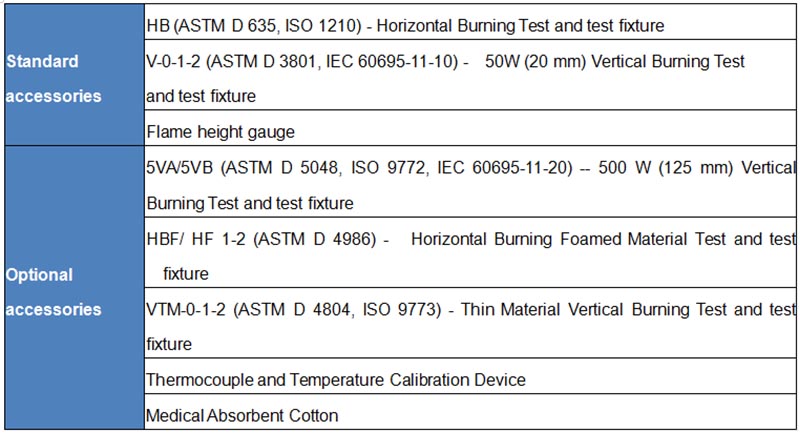

Standards:

UL 94

IEC 60695-11-3

IEC 60695-11-4

ISO 9772.3/6722

ASTM D635/3801/4804/4986


Feature

1. It is using of automobile manufacturing using CNC machining centers 2mm cold plate shape, good looks, high-grade.

2. Outdoor grade powder coating technology, high texture, no discoloration.

3. Import control components, safe and reliable.

4. It is according for ASTM D5025 dedicated burner , Easy for adjust flame height and with stable.


Control System:

Time controller

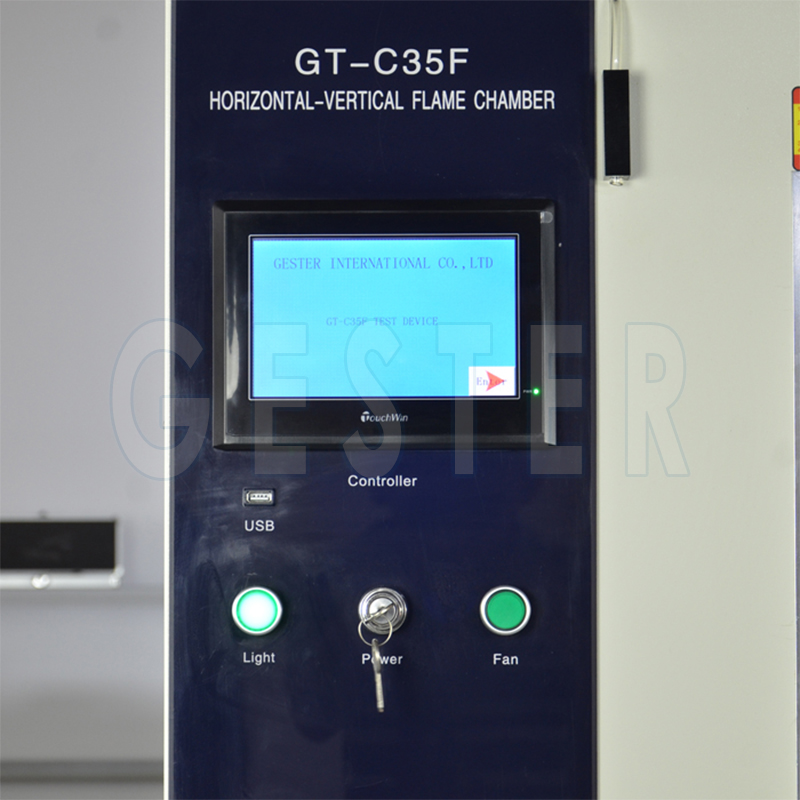

Touch Screen Control

Differential gauge

U-pressure direct-reading meter

Flow meter

Specific methane flow






Key Specifications

Internal dimensions

120 x 60 x 112cm (WxDxH)

External dimensions

120 x 65 x 150cm (WxDxH)

Inside cubage

0.8m3

Flame height:

15-175mm/min (can be adjustment)

Gas flowmeter

20-200ml/min (can be adjustment)

Gas press

5-200mm (can be adjustment)

Flame angle

0-45degree (can be adjustment)

Burner height adjust

50mm

Sample vertical move distance

450mm

Sample horizontal move distance

180mm

Burn time

0-99.99s (can be adjustment)

After flame time / after glow time

0.1s-99.99s (can be adjustment)

Precision

0.01s



Applications Industry

Below materials can be tested on the GT-MC35F Horizontal and Vertical Flame Chamber

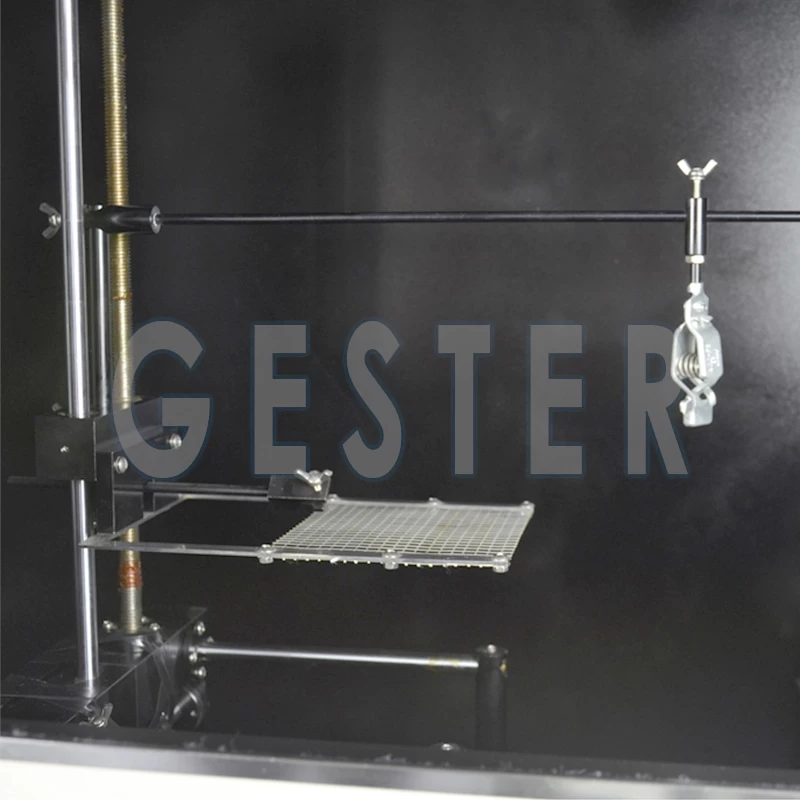

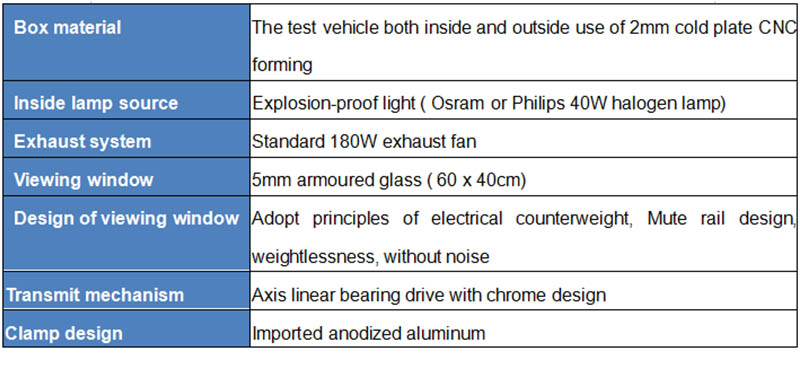

Main Body Assembly
