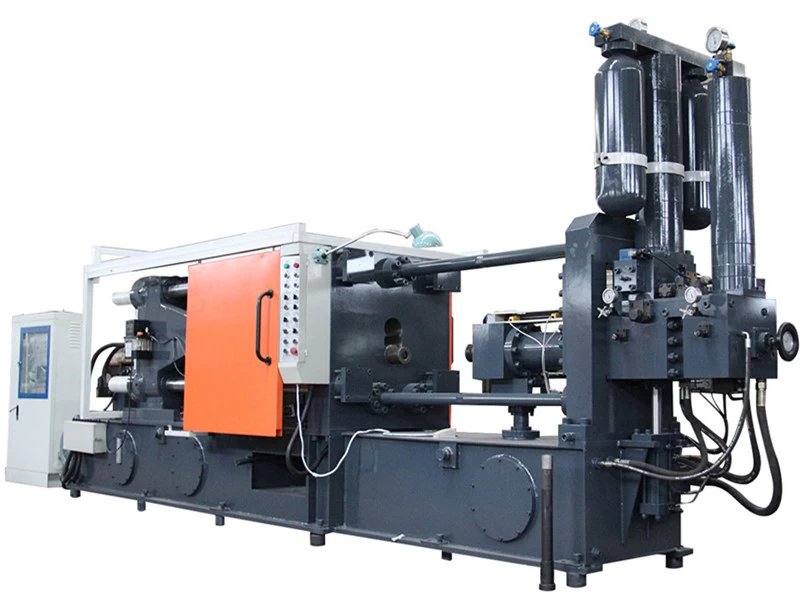

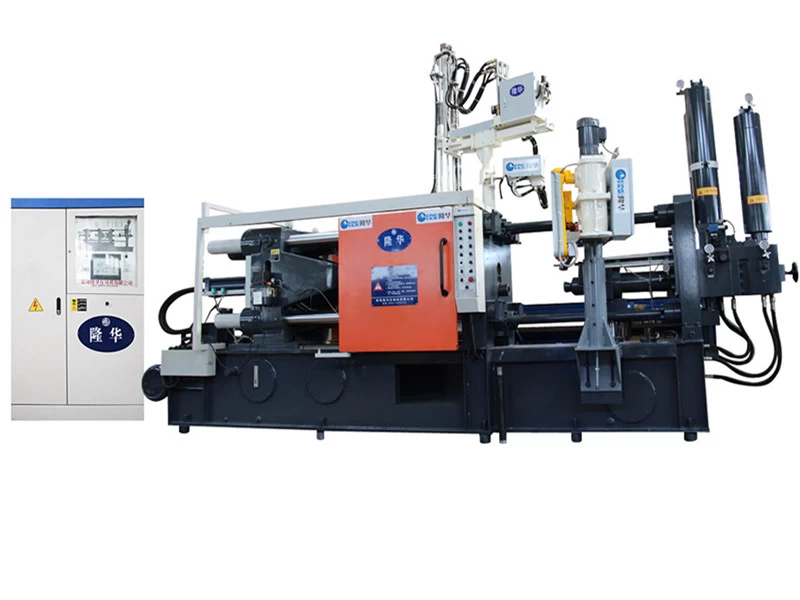

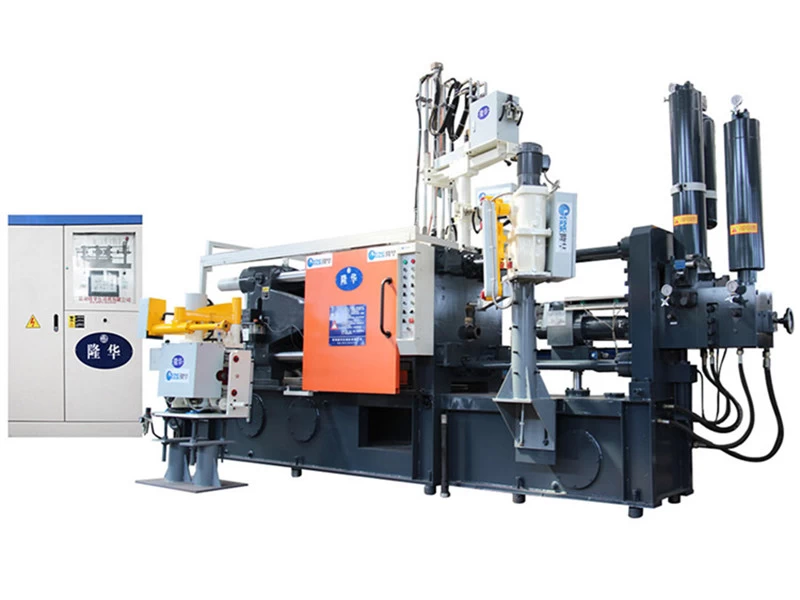

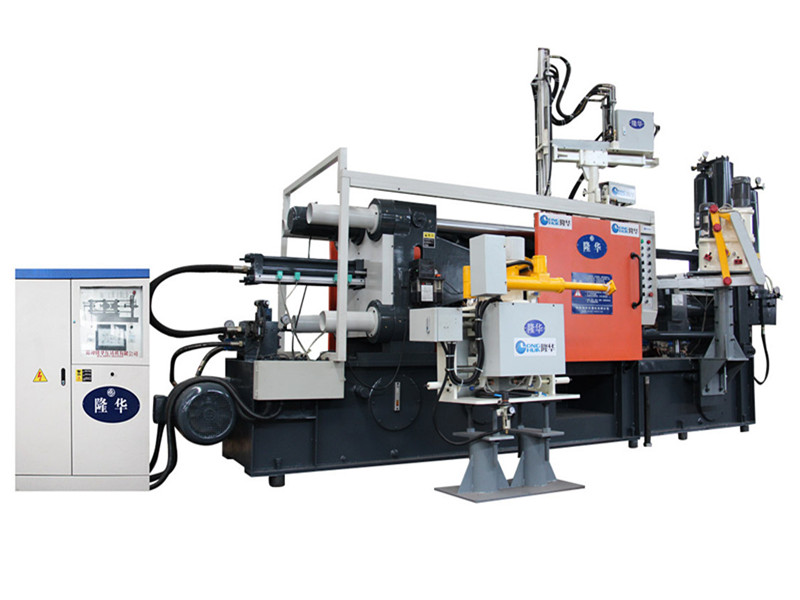

Horizontal Cold Chamber Die Casting Machine

Die Casting machines are applicable to manufacture of automobile and motorcycle parts,electric escalator handrail/steps, industrial/road/railway/air/agricultural machinery, streetlights shells,pot light shells, building material parts, furniture, aluminum arts, copper arts, magnesium alloy products.



The product description

The die casting machine is superior in performance high in productivity and smooth in operation.


Small or large casting clusters

- Non-ferrous metals including zinc, aluminium, bronze and brass alloys

- Moulding chamber easily adaptable for shell-, sand- and block moulds


Save energy and raw materials die casting machine

Product parameters

LH series of standard parameter table (300T)

ITEMS

Unit

Specification

HYDRAULIC WORKING PRESSURE

MPa

14

 CLAMPING FORCE

KN

3000

 SPACE BETWEEN TIE BARS

mm

560*560

Tie Bar Diameter

mm

¢110

 DIE OPENING STROKE

mm

420

INJECTION FORCE(intensify)

KN

240

Plunger launch distance

mm

140

Injection position

mm

0  --  160

 PLUNGER DIAMETER

mm

¢50----¢70

INJECTION STROKE

mm

420

Casting pressure (intensify)

MPa

143/99/73


Casting Fiange Protrusion

mm

12


Casting Fiange Diameter

mm

110

 MAX CASTING AREA UNDER 40Mpa


CM2


700

lnjection Weight(Al)

Kg

3.5

Die Height(Min--Max)

mm

250~650

 EJECTOR FORCE

KN

150

 EJECTOR STROKE

mm

120

Motor Capacity

Kw

15

Machine Dimensions  (L*W*H)

m

6.4*1.7*2.8

Referential Machine Weight For Uplifting

T

12.5

Oil Tank Capacity

L

750

WE reserve the right to make any technical improvement without further notice


Worldwide distribution of our die casting machines


Our Service:

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
