Horizontal Flammability Tester AG32

Horizontal Flammability Tester is designed for determining the horizontal combustion performance of textiles, widely use in automotive interior material.

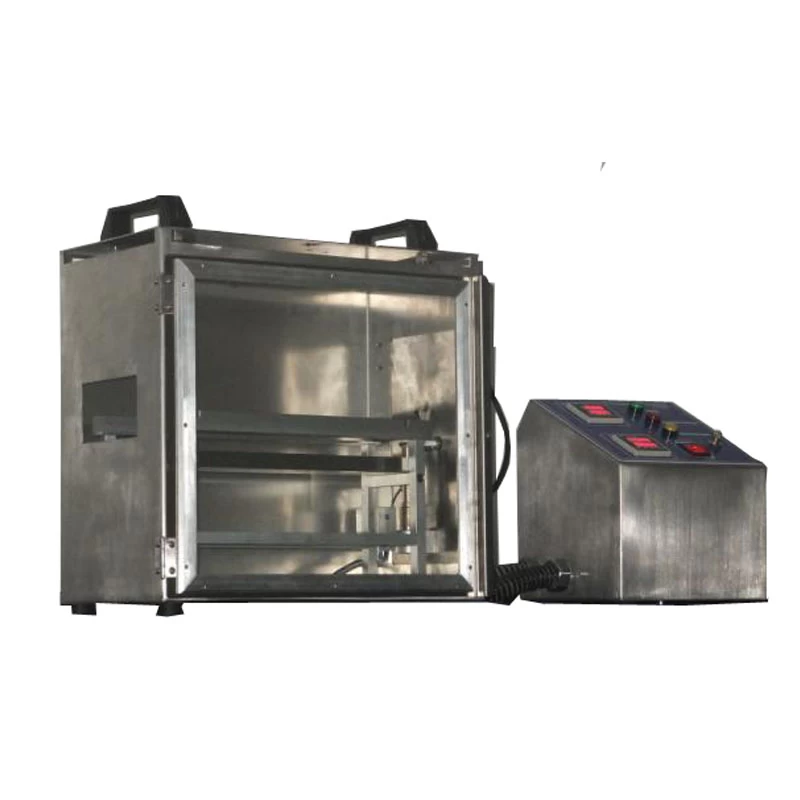

AG32-Horizontal Flammability Tester

Application Of Horizontal Flammability Tester

Horizontal Flammability Tester is designed for determining the horizontal combustion performance of textiles, widely use in automotive interior material.


Feature Of Horizontal Flammability Tester

1. Test chamber and fixture use SUS304 stainless steel, with toughened glass transparent window, neat and convenient to observe the sample changes during testing.

2. Ignition device with position induction, automatic sensing sample position then start the test.

3. Automatic timing, when burning reach mark line, automatic stop time recording by sensor, exclude errors caused by human observation.

4. Circulation ventilation system for long-term cooling of the instrument to ensure stable internal environment


Standards Of Horizontal Flammability Tester

ISO 3795, ASTM D5153, JIS D1201, FZ/T 01028, GB 8410, GB/T 20953, FMVSS 302, SAE J369, GMW 3232.


Key Specification Of Horizontal Flammability Tester

Model

AG32 Horizontal Flammability Tester

Test chamber dimension

381*203*356mm

(with 10 bottom vent, φ19mm)

Sample fixture

U sharp, inner size 330*50mm

Sample size

356*100mm, thickness 13mm

Ignition height

19mm

Nozzle internal diameter

9.5mm

Nozzle angle

Vertical

Flame height

38mm

Marking line distance

254mm

Power supply

AC220V, 50/60HZ

Dimension

57*26*37cm

Weight

28kg



Accessories Of Horizontal Flammability Tester

Standard Accessories

Sample holder

1pc

Metal comb

1pc

Gas feed device

1set

Power line

1pc
