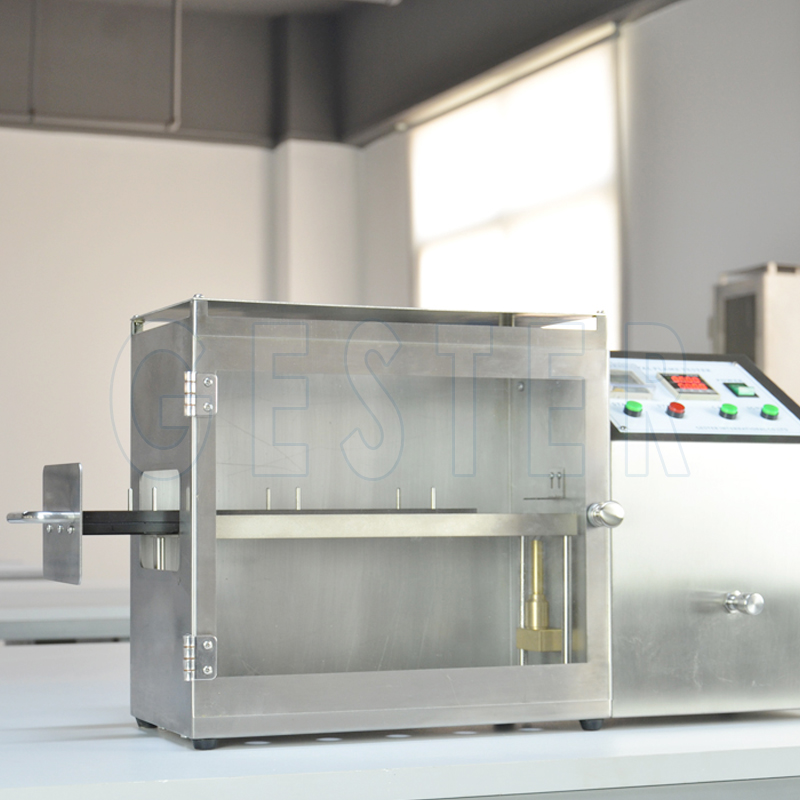

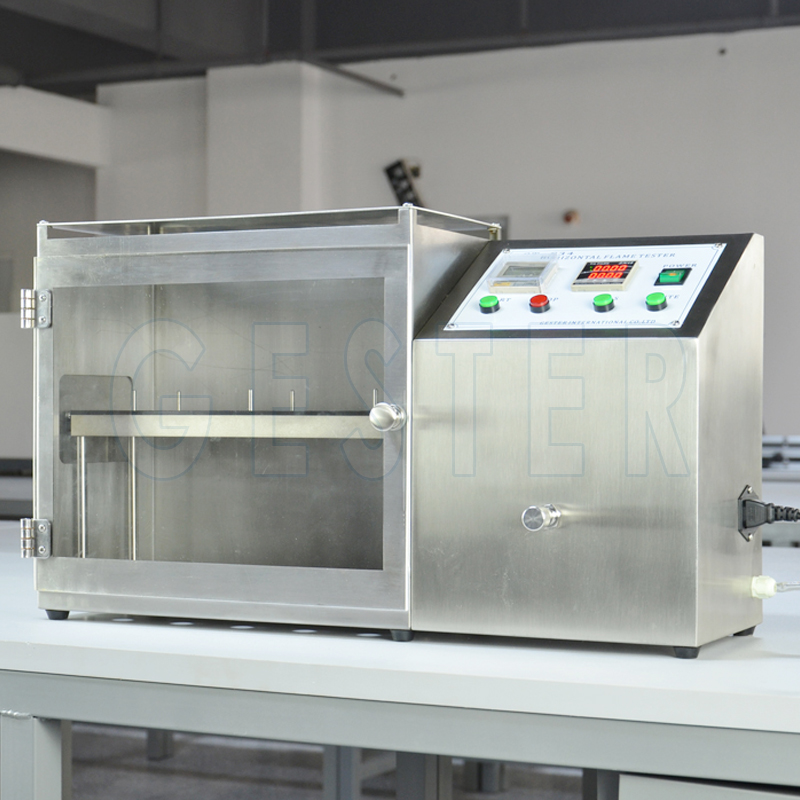

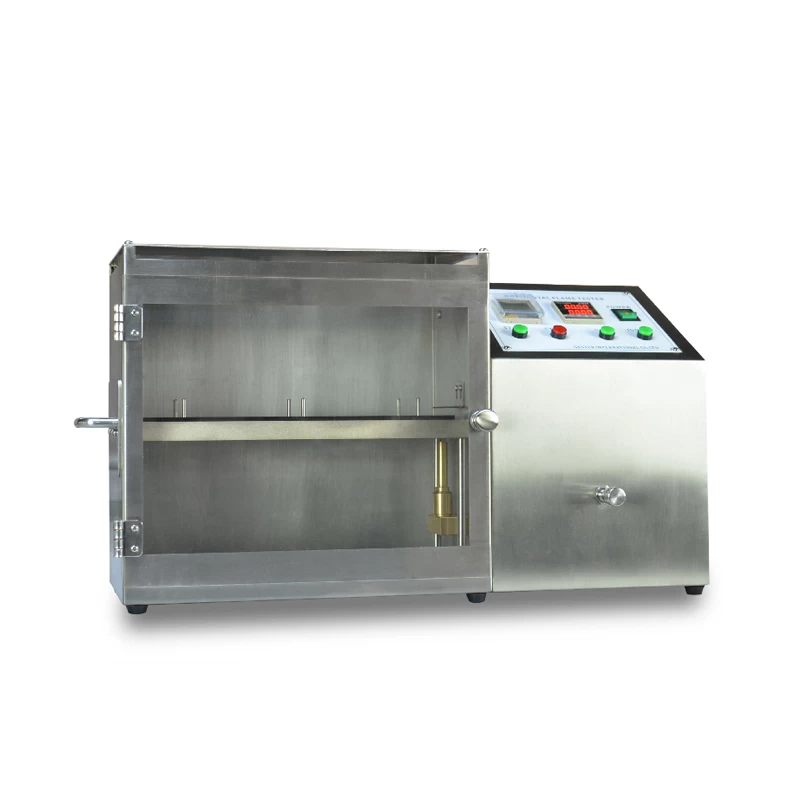

Horizontal Flammability Tester GT-C34A
Product Introduction
| Application of horizontal flame chamber:
Horizontal Flammability Tester; Mainly used for determining the horizontal burning rate of materials used in the occupant compartment of road vehicles ( for example, passenger cars, lorries/trucks, estate cars, coaches ), and of tractors and machinery for agriculture and forestry, after exposure to a small flame.
Standards of horizontal flame chamber:
ASTM D5132, ISO 3795, FMVSS 302 , JIS D1201, FZ/T 01028, GB/T 8410, GB/T20953,
SAE J369, GMW3232
|
Feature
- Stainless steel test cabinet with glass observation pane, durable and easy maintenance
- Equipped with 2 time recorder, one to record firing time and the other one record burning time. (accuracy 0.01s)
- Electric spark firing automatically.
Key Specifications
Application Industry
All kinds of materials can be tested on the Horizontal Flammability Tester
