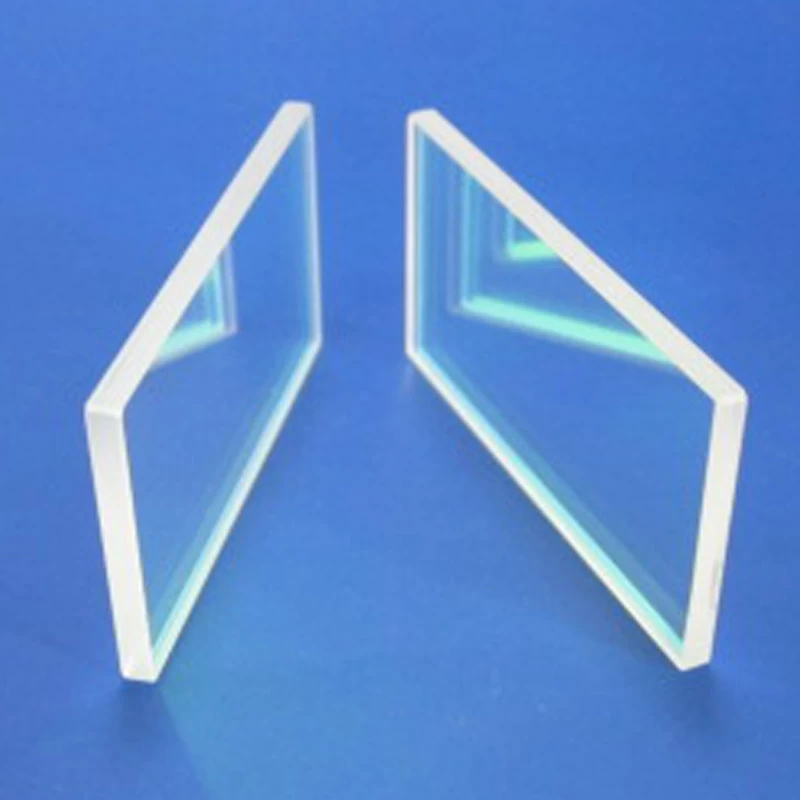

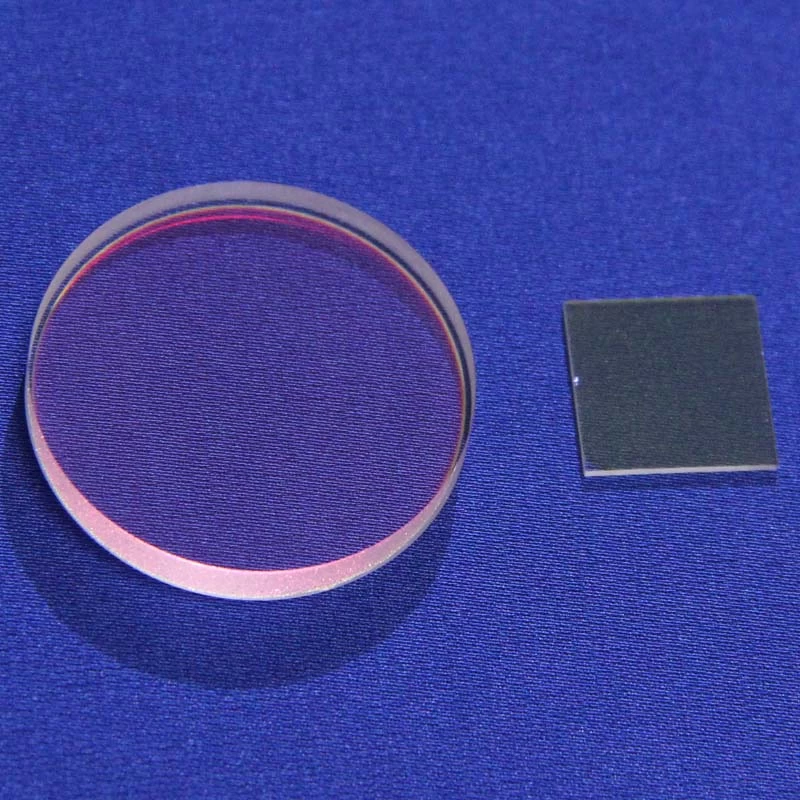

Hot and Cold Mirrors
Hot and Cold Mirrors is applications IR-Filters for CCD-Chips Projectors Lighting Systems Detector Trimmers Sensors.
Hot Mirrors Reflect IR
Cold Mirrors Reflect Visible Light
0° and 45° AOI Available
Hot mirrors transmit visible light and reflect IR, allowing them to protect heat-sensitive elements by reflecting IR energy. In contrast, cold mirrors reflect visible light and transmit IR. They are ideal for projection applications and for use as low- and high-pass filters.
|
Specification
|
|
|
Material:
|
Borofloat, Fused Silica, Soda-Lime Glass
|
|
Dimension Tolerance:
|
+0.0, -0.1mm
|
|
Thickness Tolerance:
|
±0.2mm
|
|
Surface quality:
|
80/50
|
|
Clear Aperture:
|
>85%
|
|
Flatness:
|
5 λ per 25mm@633nm
|
|
Parallelism:
|
<3'
|
|
Bevel:
|
<0.25mm X 45°
|
|
Coating:
|
Reflectance:
|
|
|
Cold Mirror：R>85% @700-1100nm
|
|
|
Hot Mirror： R<5%@ 700-1100nm
|
|
|
Transmittance :
|
|
|
Cold Mirror: T<5%@ 400-700nm
|
|
|
Hot Mirror: T>75%@ 400-700nm
|

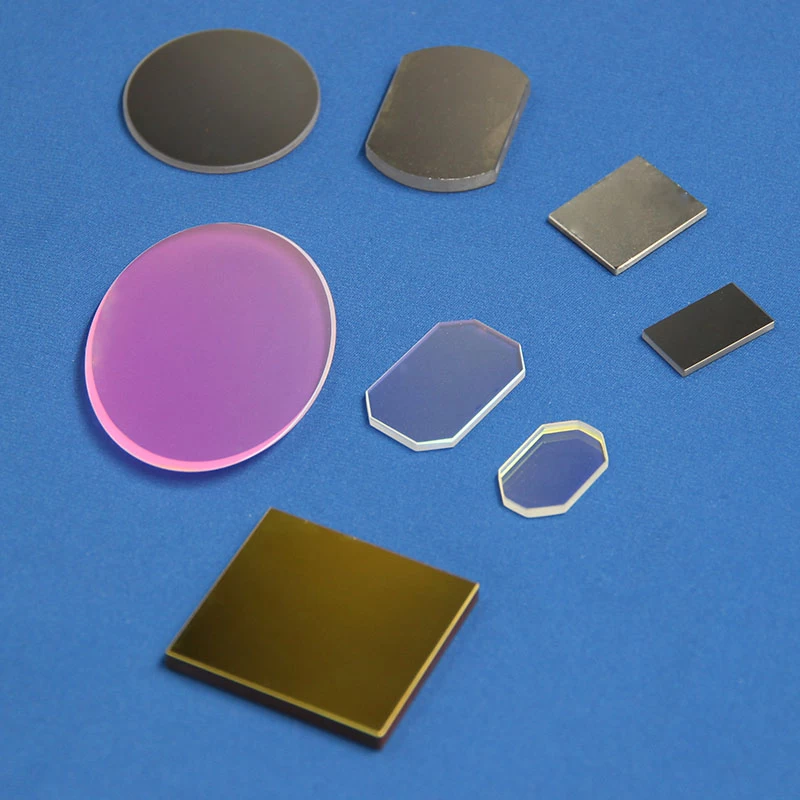

Different Shape, Size, Material and Coating are available.
