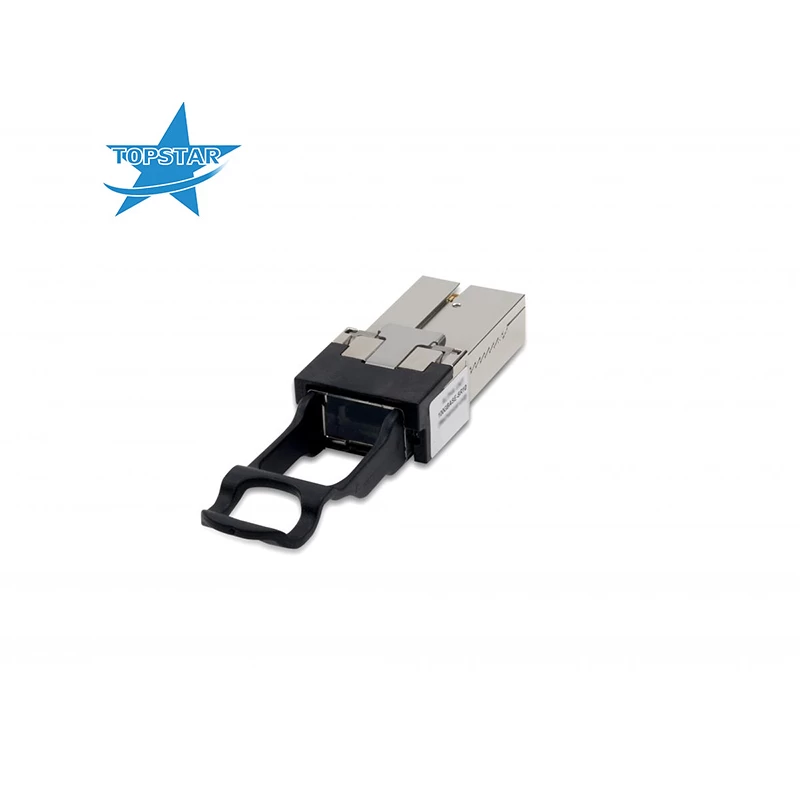

Hot Pluggable Finisar FTLD1xCE1C 12x10G (120G) 100m CXP Optical Transceiver

Form Factor:

CXP

Finisar's FTLD1xCE1C CXP optical transceiver modules are designed for use in data center, core-routing, and high-performance computing applications up to 120 Gigabit per second links over multimode fiber. They are compliant with the InfiniBand Trade Association (IBTA) CXP Specification and IEEE 802.ba 100GBASE-SR10 and CPPI interfaces supporting 12 parallel, bi-directional data channels at rates from 1Gb/s to 10Gb/s per channel.

Warranty1 Year
ConditionNew
Temperature0-70
Data Rate120 Gb/s
Distance100 m
Wavelength850nm
ConnectorMPO

Facebook Twitter Pinterest LinkedIn 分享

Description

Product Description：

Distance:100 m
Data Rate (max):120 Gb/s
Protocol:10x Fibre Channel Compatible 10 Gigabit Ethernet Compatible 40G Ethernet Compatible 100G Ethernet Compliant IB QDR Compliant IB SDR Compatible
Low End Case Temperature (°C):0
High End Case Temperature (°C):70
Diagnostics:Digital
Transmitter:VCSEL
Receiver:PIN
Voltage Supply:3.3
Connector:MPO
Wavelength:850nm Band

Product Feature：

12-channel full-duplex transceiver module
Hot Pluggable, InfiniBand Trade Association (IBTA) CXP form factor
Multirate capability: 1.06Gb/s to 10Gb/s per channel
Maximum link length of 100m on OM3 Multimode Fiber (MMF)
Unretimed CPPI electrical interface
Requires 3.3V power supply only
Low power dissipation: <3.5W
Reliable VCSEL array technology
Built-in digital diagnostic functions
Commercial operating case temperature range: 0°C to 70°C
Single MPO connector receptacle
RoHS-6 Compliant (lead-free)
