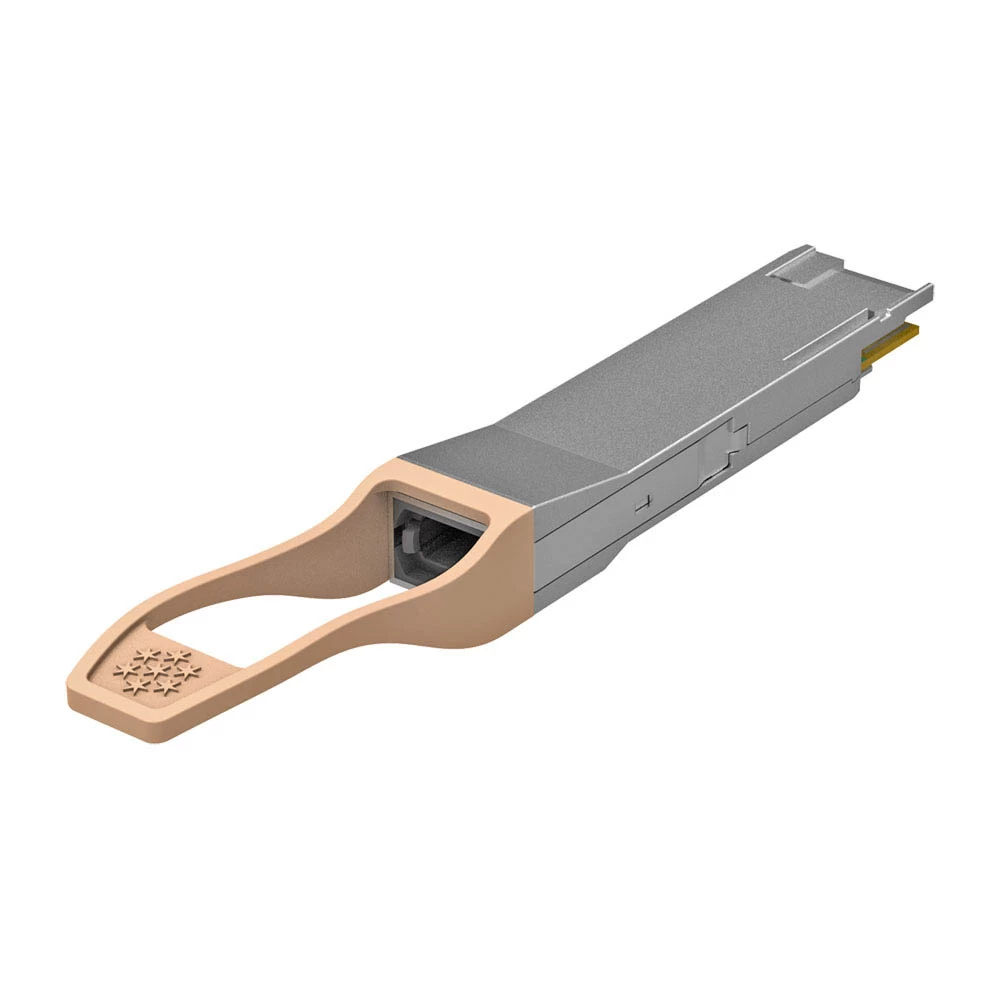

HOT-Pluggable TOP QSFP-DD 200G SR8 100m Optical Transceiver

Features

¨ 8 channels full-duplex transceiver modules

¨ Transmission data rate up to 26Gbps per channel

¨ 8 channels 850nm VCSEL array

¨ 8 channels PIN photo detector array

¨ Internal CDR circuits on both receiver and transmitter channels

¨ Support CDR bypass

¨ Low power consumption <4W

¨ Hot Pluggable QSFP DD form factor

¨ Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF

¨ MPO24 connector receptacle

¨ Operating case temperature 0°C to +70°C

¨ 3.3V power supply voltage

¨ RoHS 6 compliant(lead free)

• Warranty3 Years
• ConditionNew
• Temperature0-70
• Data Rate200G
• Distance100m
• Wavelength850nm
• ConnectorLC

---
