Hot Sale Double Layer Roll Forming Machine

Roll form two different roofing profiles without changing anything

Besides,the sea freight for import is saved by 50%.It is popular choice of both new entrepreneurs and established metal building manufacturers.

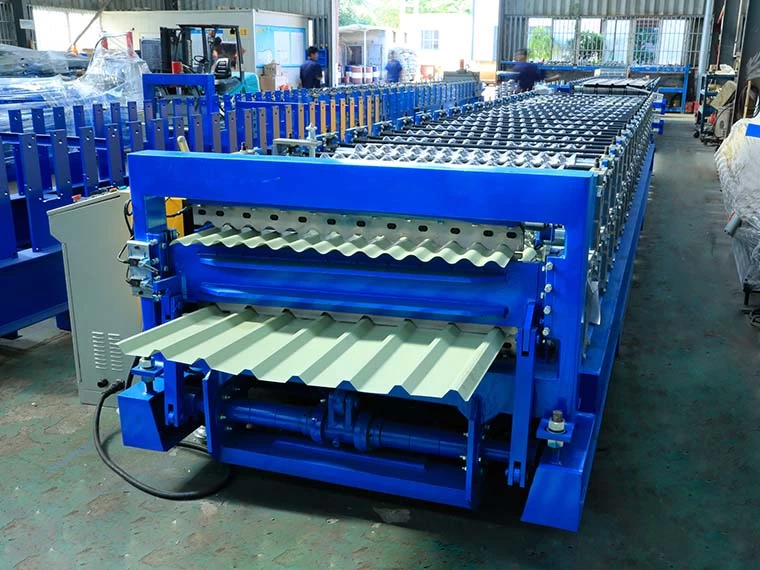

          Double Layer Roof Panel Roll Forming Machine






1.Main features of double layer roof panel  forming machine


    The advantages of double layer roof panel machine are as follows:

    1.Able to produce two different profiles.

    2.Save space,more convenient.

    3.Easy operation, low maintenance cost

    4.Stable and durable


2.Detailed Images of double layer roof panel roll forming machine


    Machine Parts

        1) Double layer roof panel machine pre-cutter

        Brand: BMS    Original: China

        Avoid wasting material.



        2) Double layer roof panel machine rollers

        Brand: BMS    Original: China

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 300# H type steel by welding





       3) Double layer roof panel machine post cutter

        Brand: BMS    Original: China

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 25mm steel plate by welding
        Hydraulic motor:3.7KW, Hydraulic pressure range: 0-16Mpa





        4) Double layer roof panel machine PLC control system

        Brand: BMS    Original: China

        Touch screenbrand:German Schneider ElectricTaiwan WEINVIEW,

        Inverter brand:Finland VOCANTaiwan DELTAALPHA,Encoder brand:Japan KoyoOMRON)




        5) Double layer roof panel machine product show

        Brand: BMS    Original: China




        6) Double layer roof panel machine decoiler

        Brand: BMS    Original: China

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1250mm, coil ID range 470mm±30mm

        Capacity: Max. 9 Ton






        With 6 tons hydraulic decoiler for option





        7) Double layer roof panel roll forming machine exit rack

        Brand: BMS    Original: China

        Un-powered,one unit





Other detailes of double layer roof panel roll forming machine


Suitable for material with thickness 0.3-0.8mm

Applicable material:Painting Steel, Galvanized Steel,Tension Grade: 245Mpa or 550Mpa

Shafts manufactured from 45#,Main shaft diameter=φ85mm,precision machined

Motor driving,Gear chain transmission

Main motor=7.5KW , Frequency speed control. Forming speed approx.12-15mmin

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English


For the more detail click here to see the video:

http:www.rollforming-machinery.comQuick-change-Type-C-Purlin-Roll-Forming-Machine_n26


After-sale service of double layer roof panel machine


1. The warranty of double layer roof panel machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms of trade


1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by TT or by LC

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
