Performance Parameter

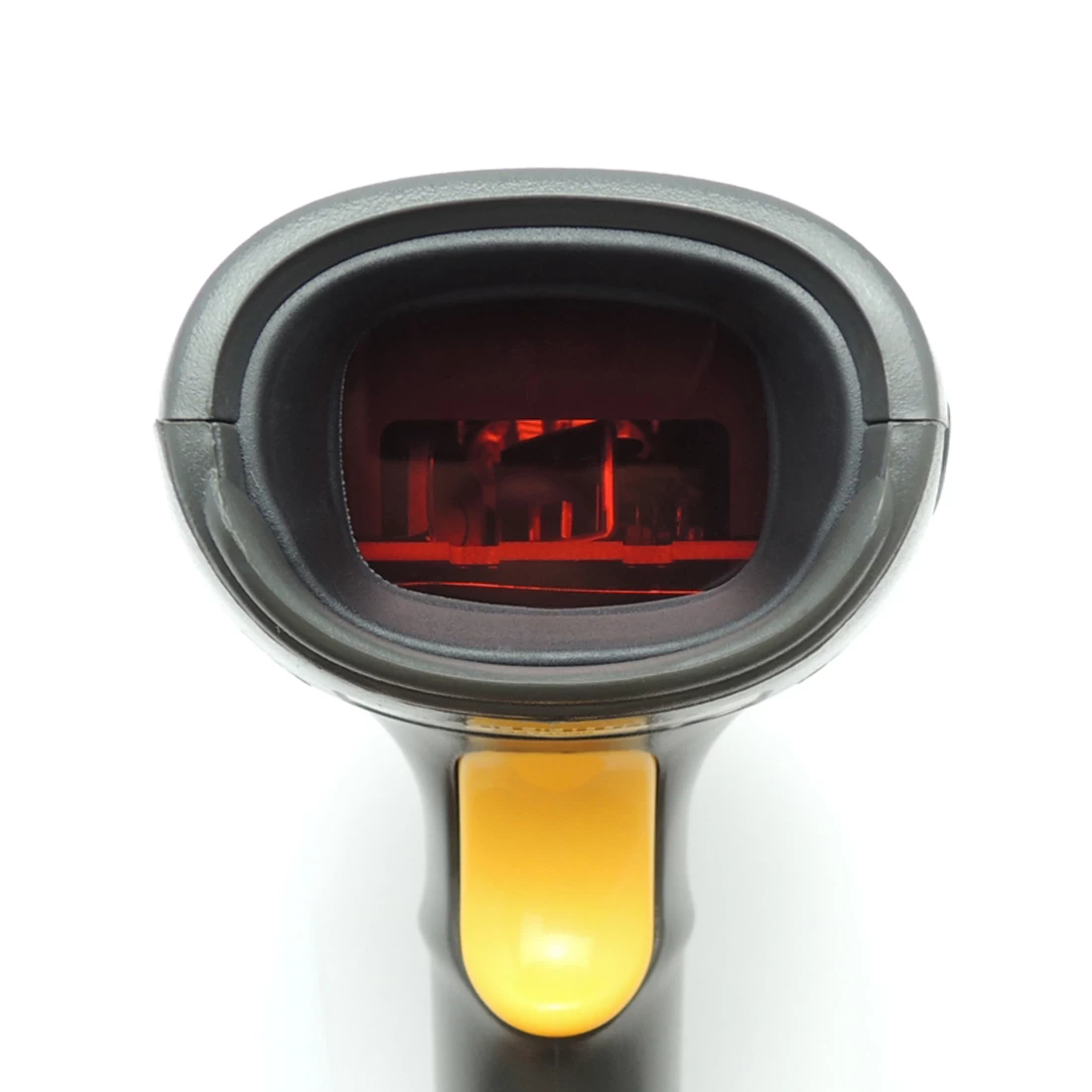

Light Source	Visible Laser diode ,650nm
Decode Capability	EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber, Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,etc.
Scanning Type	Single-line
Scan Rate	150 scans per second
Trigger Mode	Manual /continuous scan
Roll/Pitch/Yaw Angle	30° /65°/55°
Resolution	0.10mm(pcs 0.9)
Depth of scanning field	0-250mm（0.33mm.PCS 90%）
Print Contrast	30%,minimum reflective
Error Rate	1/5million
Indicator	LED,buzzer,loudspeaker
Interface Support	USB-HID,USB-COM,RS232
Frequency	433MHz
Transmission range	300M
Memory capability	≤35000 codes
Physical Parameter
Dimension	L158mm*W68mm*H96mm
Housing Materials	ABS+PC
Cable Parameter	2M
Electrical Parameter
Voltage	DC 5V±1%
Current	20mA(Operating mode),100mA
Battery Capacity	2200mA
Power Supply	DC 5V±@1A

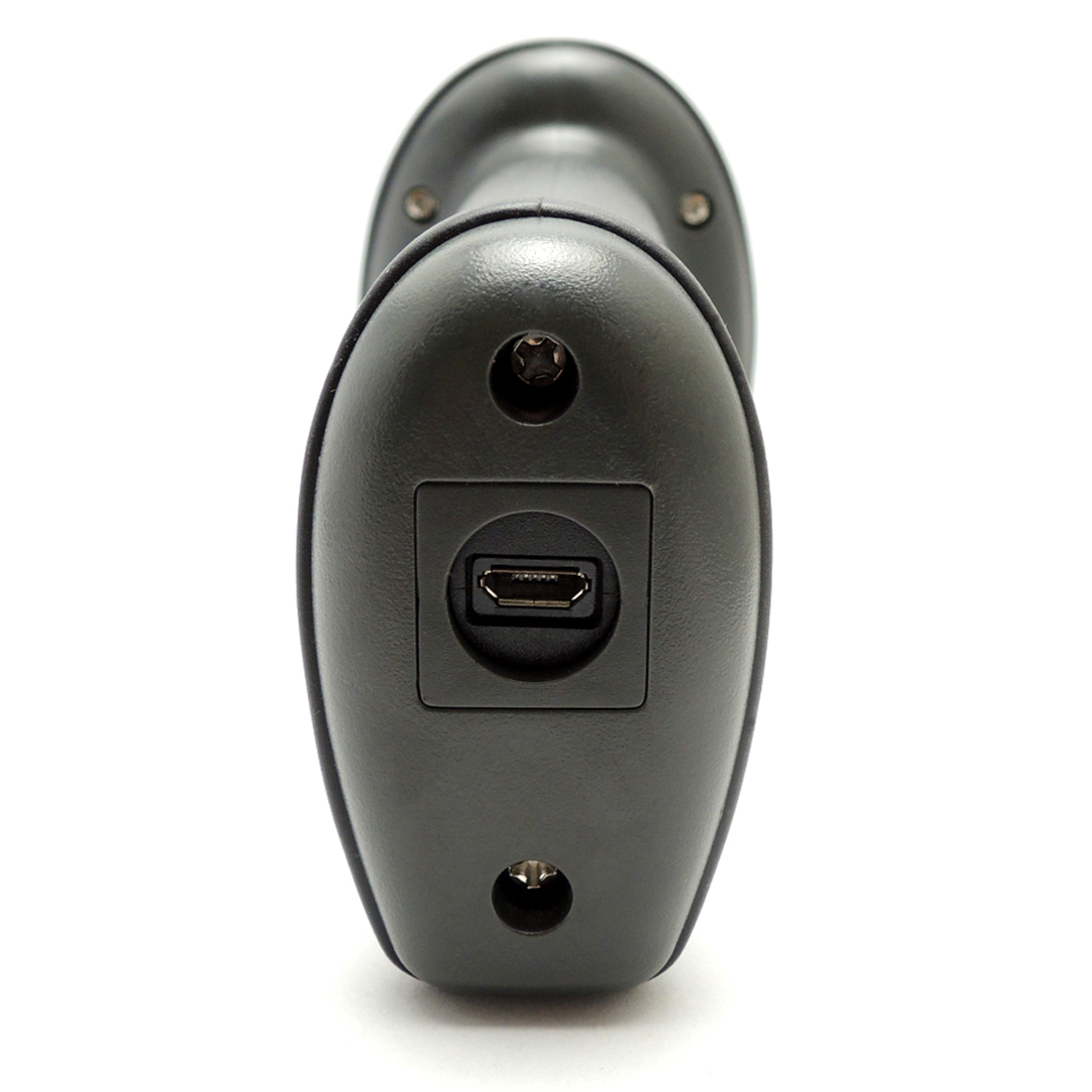

Charge Mode	Cable connecting to charge
Charge Indicator	Orange LED
Environmental Parameter
Operating Temperature	-20℃~50℃
Storage Temperature	-40℃~70℃
Humility	5%-95%(no condensing )
IP Level	IP54
LUX	3000-12000Lux
Impact Resistance	withstands multiple 3m drops to concrete
