HOWO 6x4 water tank fire truck is a professional firefighting vehicle produced by Sinotruk HOWO brand chassis, designed for firefighting and rescue missions. HOWO fire engine is known for heavy capacity, reliability, durability and high cost performance. HOWO 14000Liters Water Pumper Fire Truck is a professional fire fighting equipment that combines strong power diesel engine, matched with durable fire pump, high water carrying capacity and reliable passability. It is suitable for a variety of fire fighting scenarios. HOWO fire engine is a typical representative of Sinotruk in the field of special vehicles. It takes into account performance and cost-effectiveness and is one of the important choices for fire departments.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best HOWO fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service

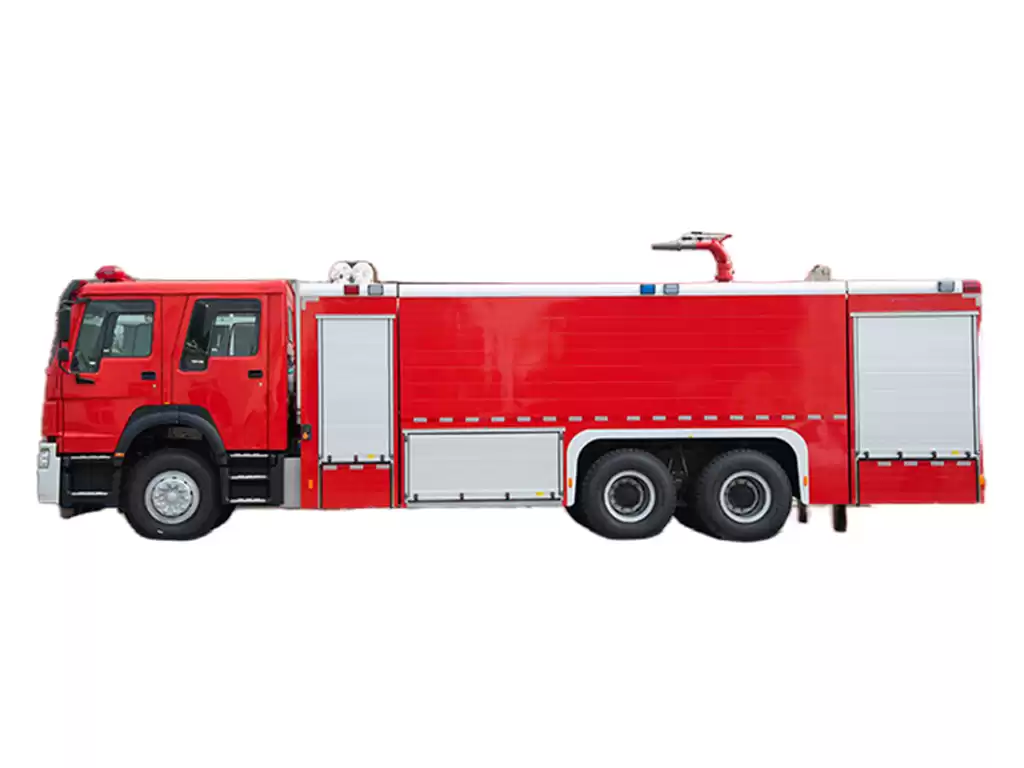

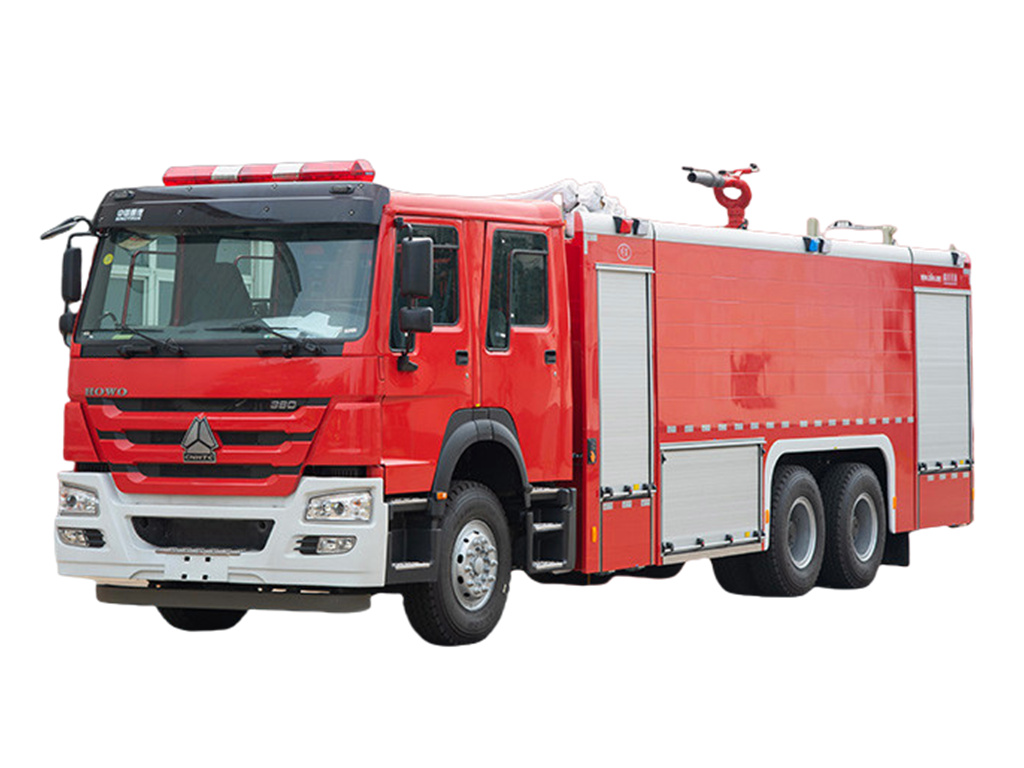

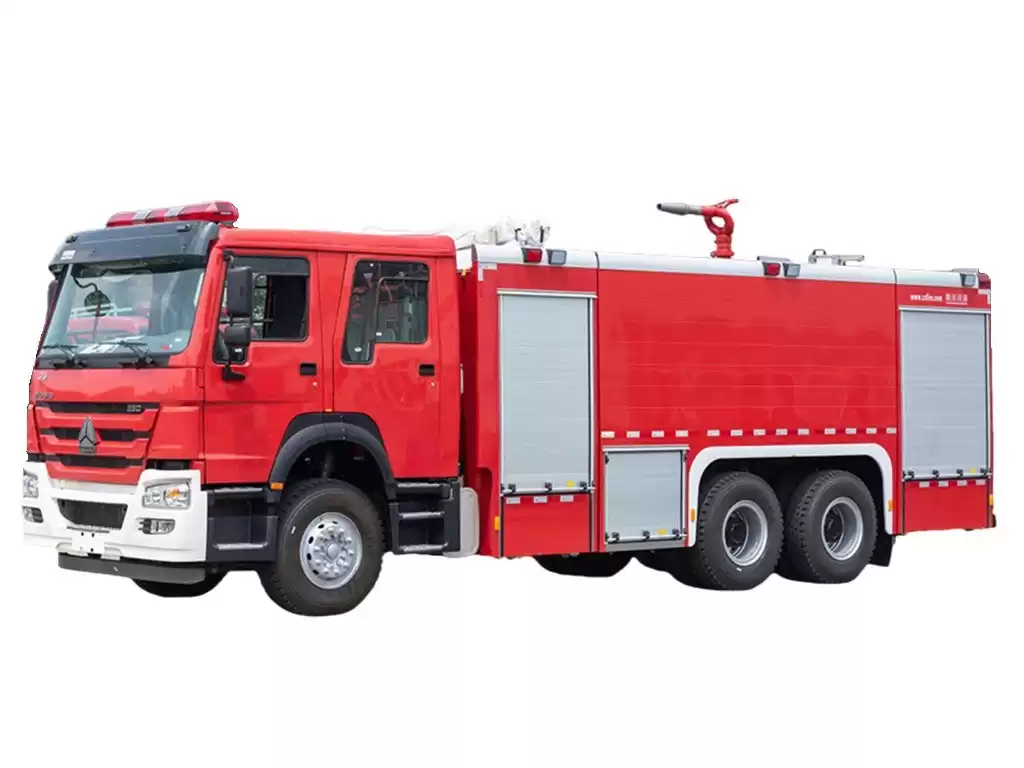

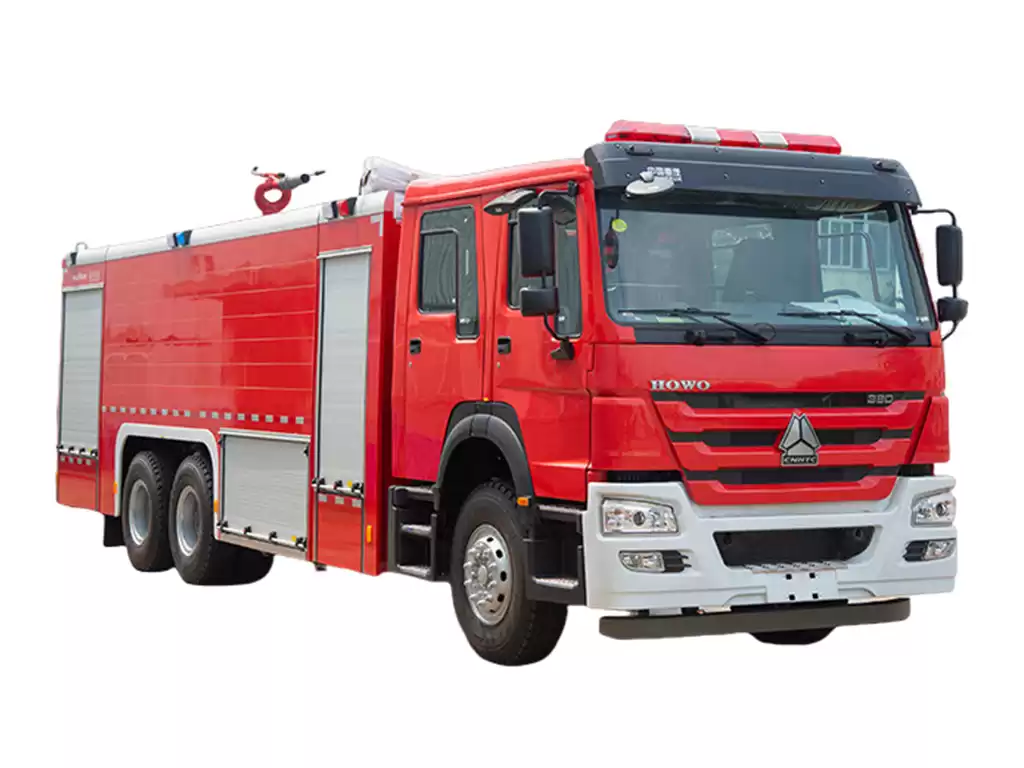

The 14 CBM Sinotruk HOWO Water Fire Apparatus is a vehicle composed of a firefighter’s passenger compartment and a fire tanker body. The passenger compartment is a modified double row that can seat 2+4 people. The fire truck has an exposed tank structure and loading capacity is 14000Liters, the liquid-carrying tank is made of high-quality carbon steel, sprayed with epoxy primer and epoxy asphalt paint. The rear part is a pump room, equipped with CB10/60 atmospheric fire pump, and a PS60 fire monitor on the top of tanker for water jetting and spraying, with highest distance can be 65m. 14 ton Howo double bridge water tank fire truck, provide 14000kg Howo double bridge water tank fire truck parameter configuration, pictures and quotation. Introduce the functions of the 14-ton Howo double rear driving axle Water Tank Fire Truck, pre-sale and after-sales service. Sinotruk HOWO Water Pumper Fire Truck with good maneuverability, convenient operation, long range, suitable for fire brigades, full-time teams, communities, streets, villages, industrial parks, campuses, enterprises, scenic spots, museums and other places.
|
Item
|
unit
|
Parameter
|
|
Vehicle model
|
|
SINOTRUK HOWO 6×4 Fire Fighting Truck
|
| Chassis model |
|
SINOTRUK HOWO
|
|

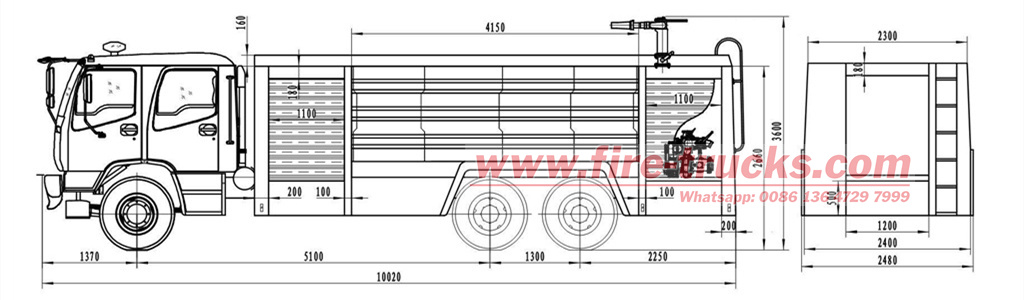

Overall dimensions
|
mm
|
10655x2500×3650
|
| Fact cubage |
L |
Water 14000 liters
|
| |
Cab
|
|
Double row, allowable 2+4 passengers
|
|
GVW
|
kg
|
Appro×25000
|
|
Curb weight
|
Approx14900
|
|
Wheel base
|
mm |
4600+1400
|
|
F/R track base
|
2022/1830
|
|
Approach/departure angle
|
°
|
20/11
|
|
Exhaust/kw
|
ml/kw
|
9726/380
|
|
Max speed
|
km/h
|
90
|
|
Tire specification
|
12.00R20
|
Engine type
|
WP10.380E32
|
|
Horsepower
|
380hp
|
Emission standard
|
Euro 3
|
| Traction system |
6x4 |
Transmission |
HW19710
|
|
Number of axles
|
3
|
Electric system
|
24v
|
|
Operation control system
|
Electrically hydraulic control
|
Tire number
|
10+1 spare
|
|
Fire pump
|
Model: CB10/60
Flow: 60L / s
Pressure: 1.0MPa
Diversion of time: < 50s (when the absorption depth 7 m)
|
|
Fire gun
|
Model: PS60
Pressure: 1.0MPa
Flow: 60L/S
Range: water ≥ 65m
Turning angle: Horizontal: 270°. pitch -20°70°
|
|
Engine
|
SINOTRUK HOWO WEICHAI diesel engine, Euro 3, 380 hp
|
Advantages for HOWO fire fighting truck:
The fire tender is equipped with a SINOTRUCK brand chassis, known for its perfect performance and powerful WEICHAI diesel engine.
The WEICHAI engine provides reliable powerful performance and requires no overhaul for 100,000 km.
The main frame structure is constructed with high-quality square tubes and features a non-slip roof that allows for safe walking.
The sides of the equipment box are fitted with aluminum alloy rolling shutters and include lighting.
For visibility during operations, a row of warning lights is installed on the top of the cab, each with a power of 100w. Additionally, there is one light above the rear of the vehicle.
The crew room and equipment box as well as the pump room are equipped with lighting for added convenience.
Full sets fire fighting equipment and rescue tools are equipped for people rescue and fire extinguishing.
100% customized for the truck painting and logos design.
Packing and Shipping for HOWO pumper fire engine:
Packaging and Shipping for Industrial Fire Truck
The Industrial Fire Truck is a heavy-duty vehicle designed to handle emergency situations in industrial settings. To ensure safe and efficient delivery of this valuable product, we have carefully planned the packaging and shipping process.
Packaging and Inspection
Each Industrial Pumper Fire Truck is carefully packed and waxed before delivery, also all parts been protected before leaving our factory. In addition to the fire fighting truck itself, the crate also contains all necessary accessories and equipment, such as hoses, nozzles, and fire extinguishers. These items are securely fastened inside the crate to prevent any movement or damage.
Shipping
We work with trusted and experienced shipping forwarders and companies to ensure the safe and timely delivery of the Pumper Fire Engine. The shipping process begins with thorough inspections to ensure that the truck and all its components are in perfect condition before being loaded onto the transport vehicle.
During transportation, the crate containing the truck is carefully loaded and secured to prevent any shifting or damage. Our shipping partners use specialized vehicles and equipment to ensure the safe and efficient delivery of the truck to its final destination.
Documentation and Certification
To ensure a smooth and hassle-free delivery process, we provide all necessary documentation for customs clearance, including invoices, certificates, and permits. We also work closely with our shipping partners to ensure that all necessary permits and licenses are obtained for international shipments.
Our team is dedicated to providing top-quality packaging and shipping services for the Industrial Fire Truck, ensuring that it reaches its destination in perfect condition and ready for immediate use.
