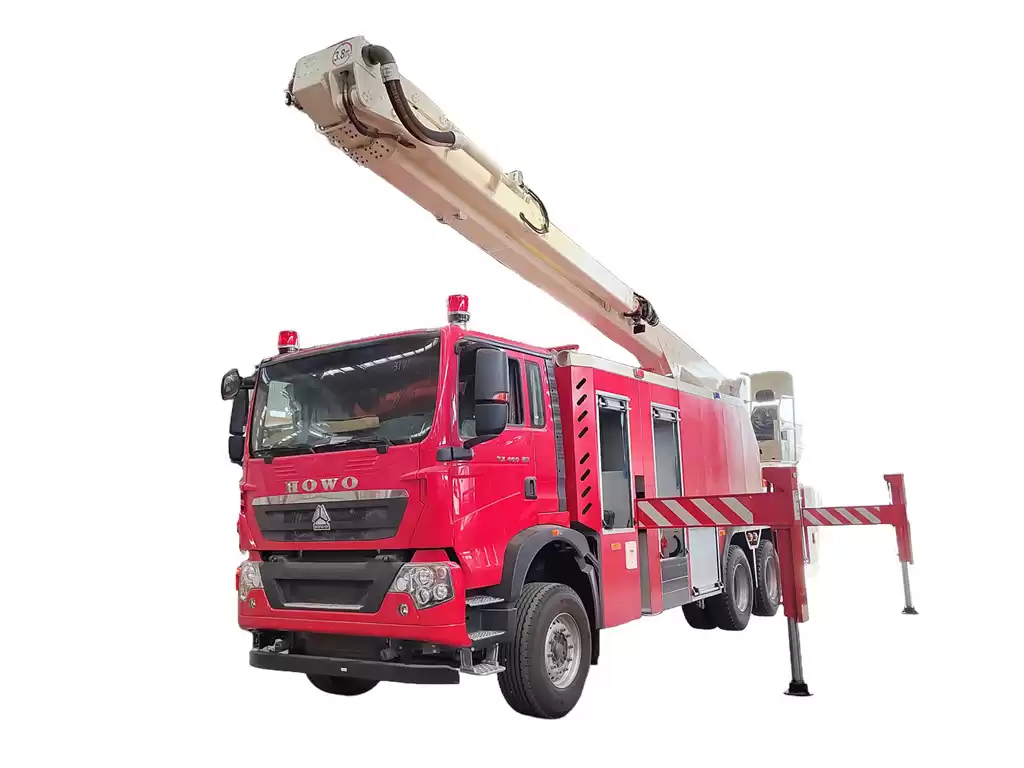

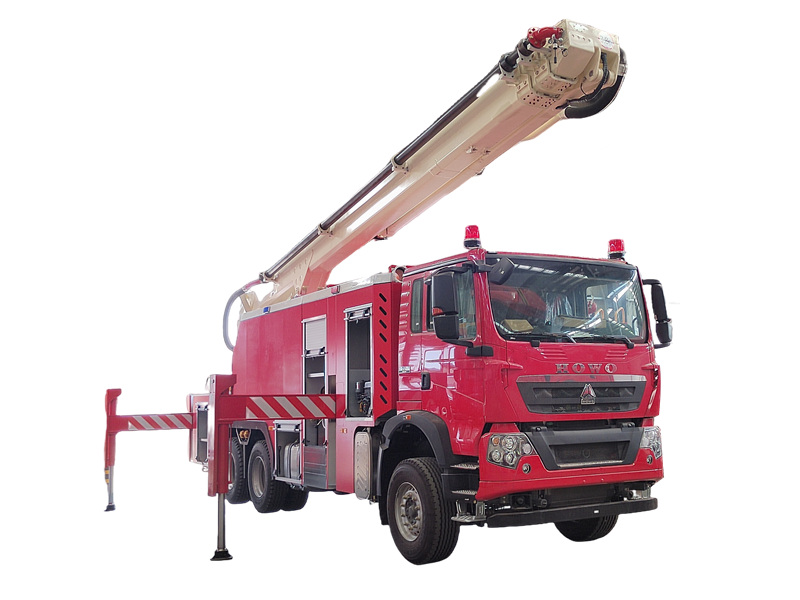

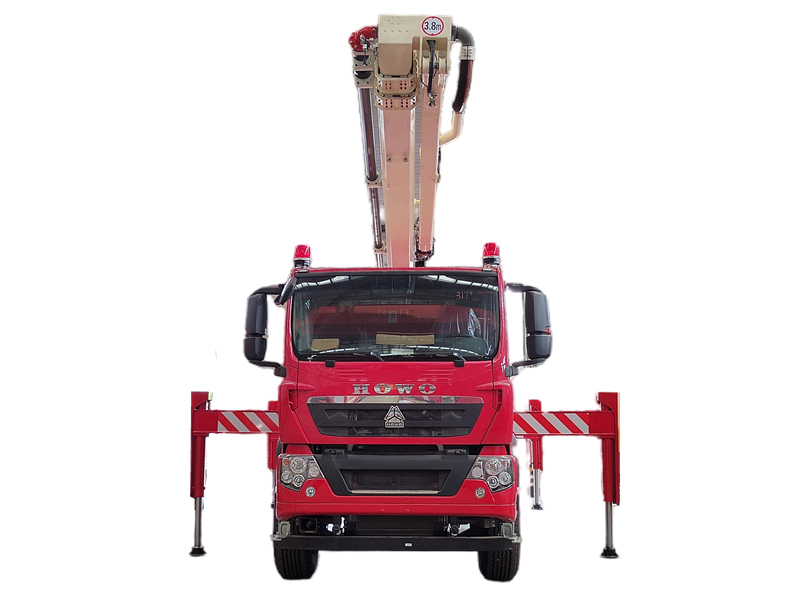

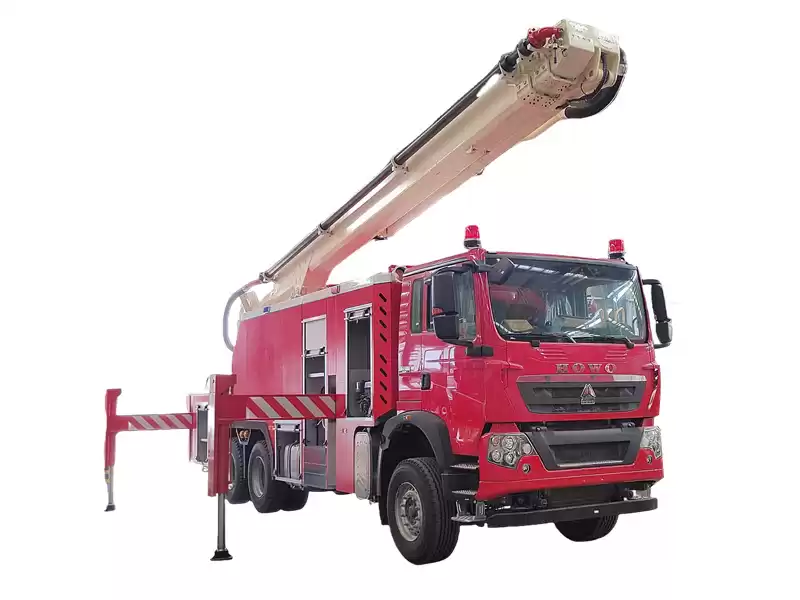

The HOWO 25-meter foam tower fire truck is a state-of-the-art firefighting vehicle that integrates high-efficiency fire suppression, flexible operation, and advanced technology. Built on a Sinotruk HOWO 6×4 chassis and equipped with an MC11.46 engine rated at 341 kW, the truck achieves a maximum speed of over 95 km/h, offering exceptional power and off-road capability. With overall dimensions of 11170×2550×3870 mm and a gross vehicle weight of 33,460 kg, it features 10+1 tires sized 315/80R22.5 18PR, ensuring stability and safety on challenging terrains. Additionally, it has a minimum turning diameter of 26 meters, a maximum gradeability of 30%, and approach/departure angles of 19° and 9°, enabling it to adapt to various environments and meet fire rescue needs in both urban and suburban areas.
The core highlights of the HOWO 25-meter aerial tower fire truck lie in its powerful firefighting capabilities and flexible operational performance. The vehicle is equipped with a 9,000-liter water tank and a 3,000-liter foam tank, both made of stainless steel to ensure durability and corrosion resistance. The fire pump, model CB10/100-TB, delivers a rated flow rate of 100 L/s at a rated pressure of 1.0 MPa, with a water suction depth of over 7 meters and a priming time of no more than 80 seconds, enabling rapid response to fire emergencies. Additionally, the truck features a PLKD8/80 electric-controlled fire monitor with a rated flow rate of 64 L/s and a rated pressure of 0.8 MPa. It achieves a maximum range of 75 meters (water) and 70 meters (foam), with a horizontal rotation angle of 0° to 350° and an elevation/depression angle of -60° to +30°, providing extensive fire suppression coverage.

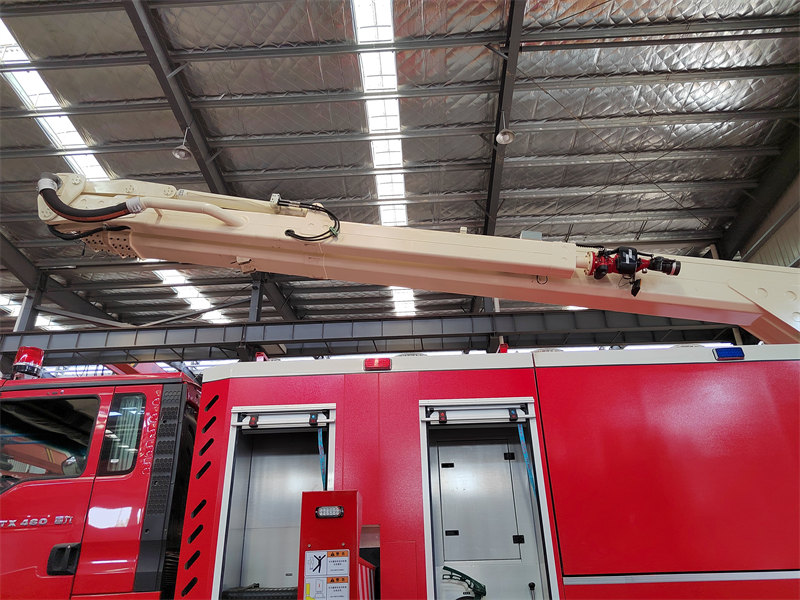

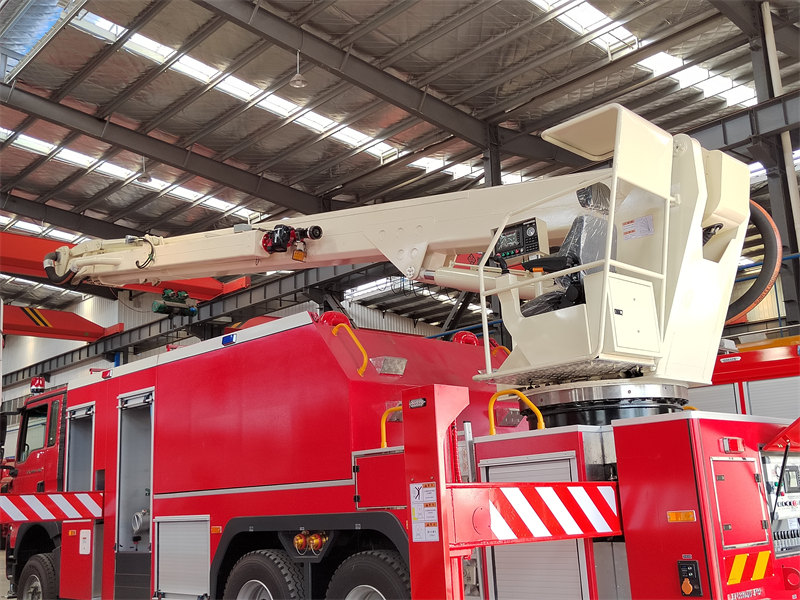

The boom system is another standout feature of the HOWO foam tower fire truck. The main boom has an amplitude range of 0° to +83°, with the middle boom forming an angle of 0° to 152° with the main boom and 0° to 69° with the horizontal plane. The small boom forms an angle of 85° to 180° with the middle boom. The boom movement time is no more than 130 seconds, and the rotation speed ranges from 0 to 2 rpm, allowing for quick and precise adjustment of firefighting angles and positions. Furthermore, the outriggers deploy in under 40 seconds, with a span of 6760×3570 mm, ensuring stability and safety during operations. These design features enable the HOWO foam tower fire truck to deliver outstanding performance in complex fire scenarios, such as high-rise building fires and petrochemical fires.
● 30 years experience in fire truck designing
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● Be designed according to your requirements
● We can offer your a good after-sell service
Product Specifications
|
HOWO 25m foam tower fire truck
|
|
Vehicle Parameters
|
Overall Dimensions
|
11170×2550×3870mm
|
|
Gross Vehicle Weight
|
33460Kg
|
|
Max. driving speed
|
≥95km/h
|
|
Chassis Parameters
|
Chassis
|
HOWO
|
|
Engine
|
Model：MC11.46
|
|
Engine Rated Power
|
341kW / 1900r/min
|
|
Minimum Turning Diameter
|
26m
|
|
Maximum Gradeability
|
30％
|
|
Approach/ Departure Angle
|
19/9°
|
|
Front / Rear Overhang
|
1500/2935mm
|
|
Wheelbase
|
4600+1400mm
|
|
Wheel track
|
2110/1850mm
|
|
Number of Leaf Springs
|
4/5
|
|

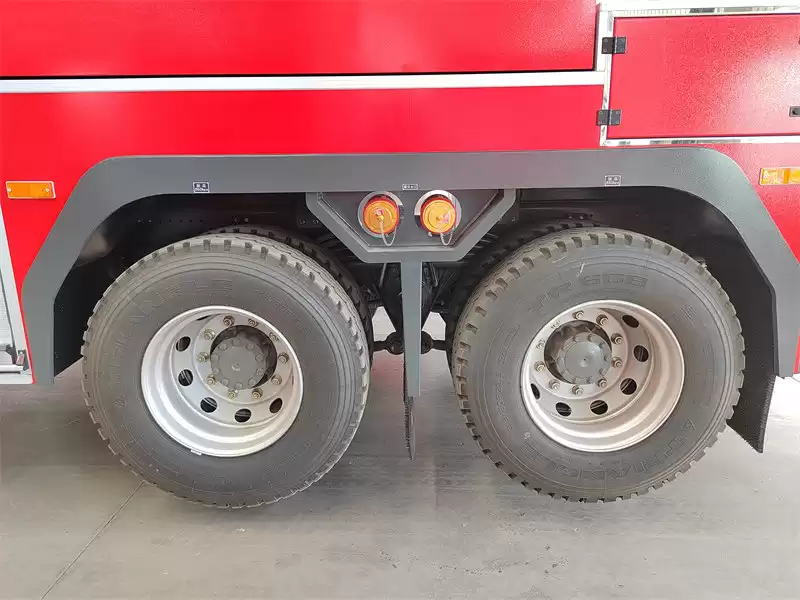

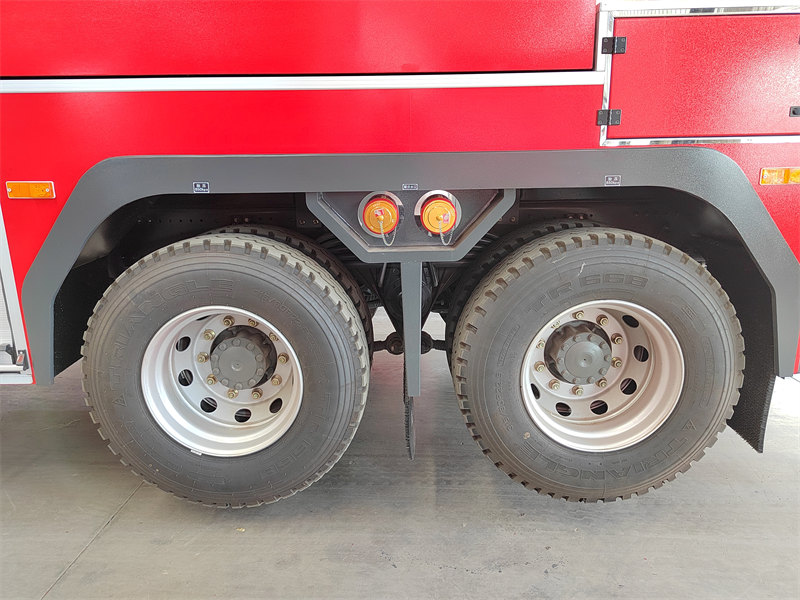

Tire
|
315/80R22.5 18PR
|
|
Number of Tires
|
10+1
|
|
Cab Occupancy
|
2
|
|
Upper Body Parameters
|
Rated Working Height
|
25m
|
|
Maximum Working Radius
|
12m
|
|
Tank
|
Water tank capacity
|
9000 liters
|
|
Foam tank capacity
|
3000 liters
|
|
Material
|
Stainless steel
|
|
Fire pump
|
Model
|
CB10/100-TB
|
|
Rated Flow Rate
|
100L/s
|
|
Rated Pressure
|
1.0MPa
|
|
Water Suction Depth
|
≥7m
|
|
Priming Time
|
≤80s
|
|
Fire monitor
|
Model
|
PLKD8/80 （Electric Control）
|
|
Rated Working Flow Rate
|
Rated Flow Rate: 64L/s, Rated Pressure: 0.8MPa
|
|
Max. range
|
Water≥75m, Foam≥70m (Range varies with flow rate)
|
|
Horizontal rotation angle
|
0°～350°
|
|
Elevation/Depression Angle
|
-60°～+30°
|
|
Boom
|
Boom Amplitude Range
|
Main boom: 0～+83°
|
|
Angle between Middle Boom and Main Boom：0～152°
|
|
Angle between Middle Boom and Horizontal Plane：0～69°
|
|
Angle between Small Boom and Middle Boom：85～180°
|
|
Boom Movement Time
|
≤130s
|
|
Boom Rotation Speed
|
0～2r/min
|
|

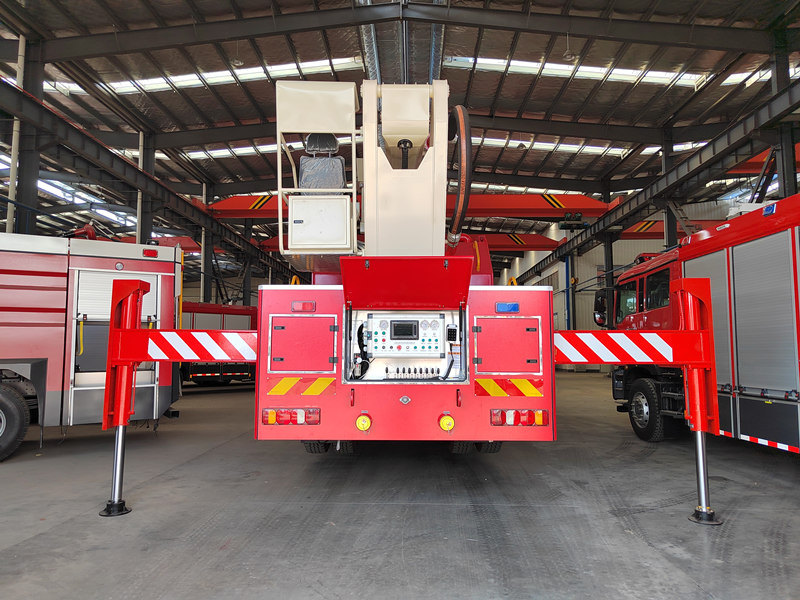

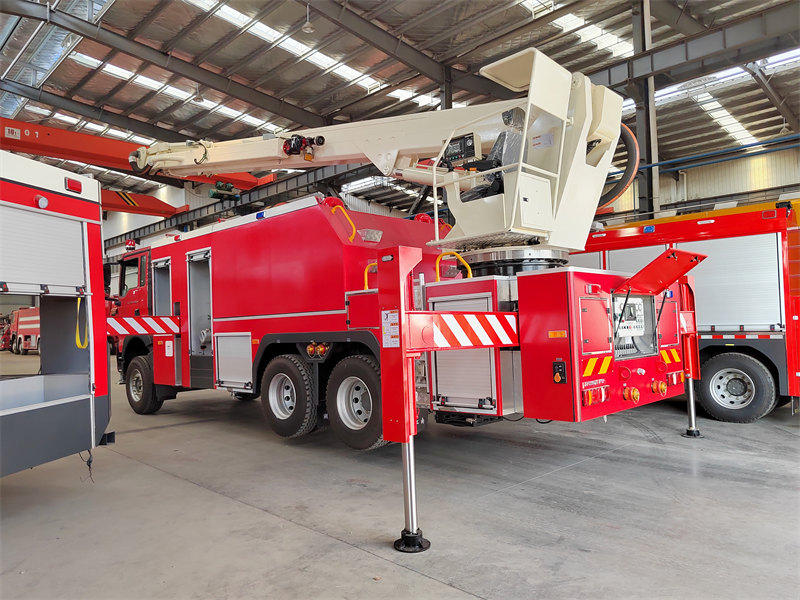

Outrigger
|
Outrigger Deployment Time
|
≤40s
|
|
Outrigger Span (Longitudinal × Lateral)
|
6760×3570mm
|
Product Features
1. High Working Height and Extensive Coverage:
o The HOWO foam tower fire truck boasts a rated working height of 25 meters and a maximum working radius of 12 meters, enabling it to easily tackle fires in high-rise buildings, large warehouses, and other elevated structures, effectively covering a wide fire area.
2. Powerful Water and Foam Capacity:
o The vehicle is equipped with a 9,000-liter water tank and a 3,000-liter foam tank, providing sufficient capacity to meet prolonged and large-scale firefighting demands. The use of stainless steel material ensures the quality and safe storage of firefighting agents.
3. Advanced Fire Pump and Fire Monitor System:
o The CB10/100-TB fire pump features high-rated flow and pressure, enabling rapid delivery of firefighting agents to the scene.
o The PLKD8/80 (electric-controlled) fire monitor offers long-range coverage and flexible adjustment, meeting the diverse needs of different fire scenarios.
4. Flexible Boom System:
o The boom system is capable of flexible movement in three-dimensional space, reaching every corner of the fire scene. The wide angle adjustment range between the main boom, middle boom, and small boom ensures precise and efficient firefighting operations.
