HOWO 32m aerial tower fire truck

The HOWO 32-meter Aerial Tower Fire Truck (PT5330JXFJP32) is a multifunctional firefighting vehicle designed to tackle complex fire scenarios such as high-rise buildings, petrochemical plants, and oil tank warehouses. Built on the SINOTRUK HOWO 6×4 chassis, it is powered by a high-performance engine and advanced hydraulic systems, delivering powerful firefighting capabilities and flexible operational performance. With a maximum working height of 32 meters and a maximum working range of 21 meters, it can independently complete firefighting tasks even in areas far from water sources, making it a standout in modern firefighting equipment.

The boom section of the HOWO aerial fire truck adopts a three-section folding arm plus one curved arm design, enabling maximum coverage in limited spaces. The outrigger span is 6,460 mm longitudinally and 5,200 mm laterally, ensuring stability during operations. Additionally, the vehicle is equipped with a 7-ton water tank and a 2-ton foam tank, meeting the demands of prolonged firefighting operations. The well-designed tank capacities ensure efficient fire suppression while avoiding resource waste.

One of the core components of the HOWO 32m Foam Tower Fire Truck is the American-made Darley PSP1600 fire pump. Renowned for its exceptional performance and reliability, this pump is a top-tier product in the international firefighting industry. The Darley PSP1600 fire pump has a rated flow of 100 L/s and a rated pressure of 1.0 MPa, capable of delivering large volumes of firefighting media in a short time. With a suction depth of 7 meters and a priming time of no more than 60 seconds, it ensures rapid deployment in emergencies.

● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Prompt delivery, any order is welcome
● 24 month quality guarantee term
● Professional sales team help you to choose suitable truck

Product Specifications

Product Features

1. The HOWO aerial fire truck features an elevated jet function, with outriggers and boom movements that are smooth and fast, enabling quicker readiness for operations.

2. The HOWO aerial foam fire truck utilizes American-imported electro-hydraulic proportional control technology and hydraulic transmission, ensuring stable, reliable, and easy operation.

3. The boom structure consists of three telescopic sections and one curved section. The telescopic sections can operate within an 80° range, while the curved section can achieve a 180° range. The boom cross-section adopts a polygonal box structure, made from high-strength steel welding.

4. The boom rotation mechanism of the HOWO aerial fire truck uses a planetary gear reducer and a normally closed brake, driven by a fixed displacement motor. The hydraulic system is equipped with a buffer valve, ensuring smooth and reliable start-up and braking. The single-row ball slewing bearing provides excellent fine-tuning performance.

5. The HOWO 32-meter aerial tower fire engine is suitable for various fire scenarios, including urban high-rise buildings, petrochemical plants, and oil tank warehouses. Its versatility and high performance enable it to handle complex and dynamic fire environments, serving both as an aerial ladder truck for high-rise firefighting and as a water/foam tanker for general fire suppression tasks.

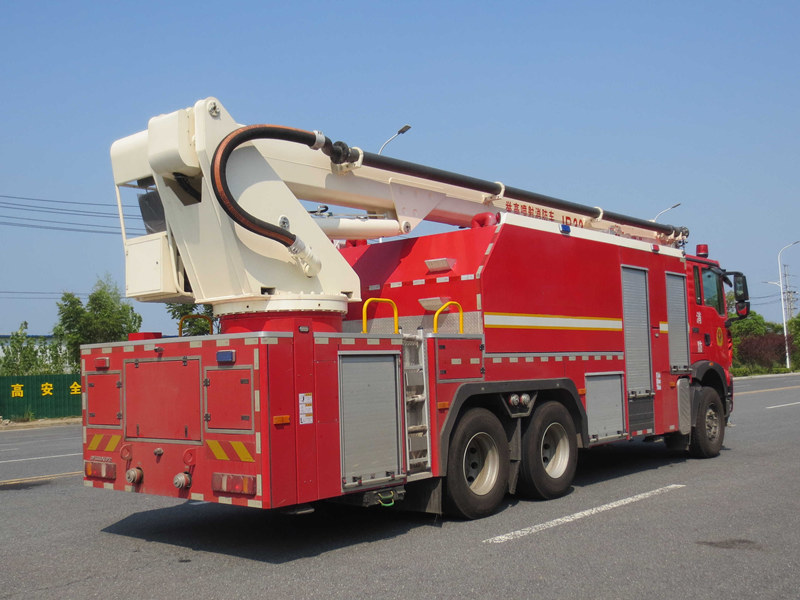

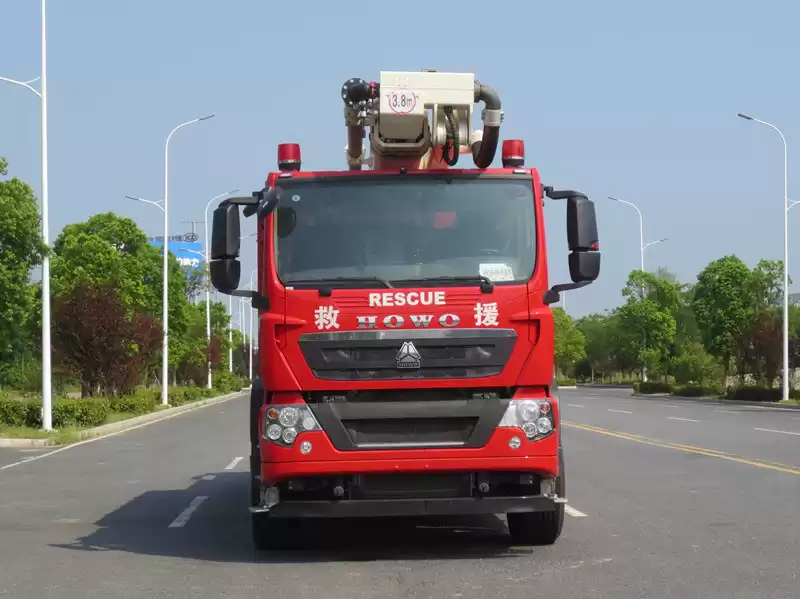

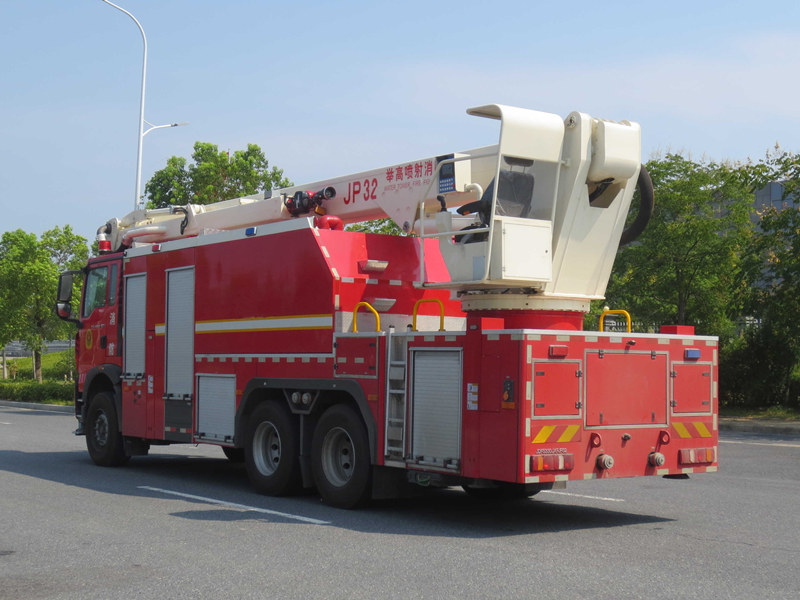

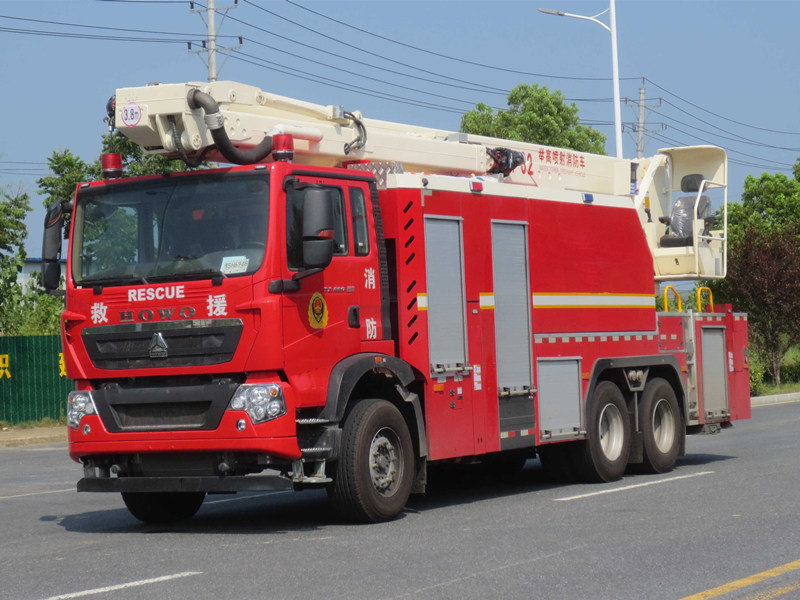

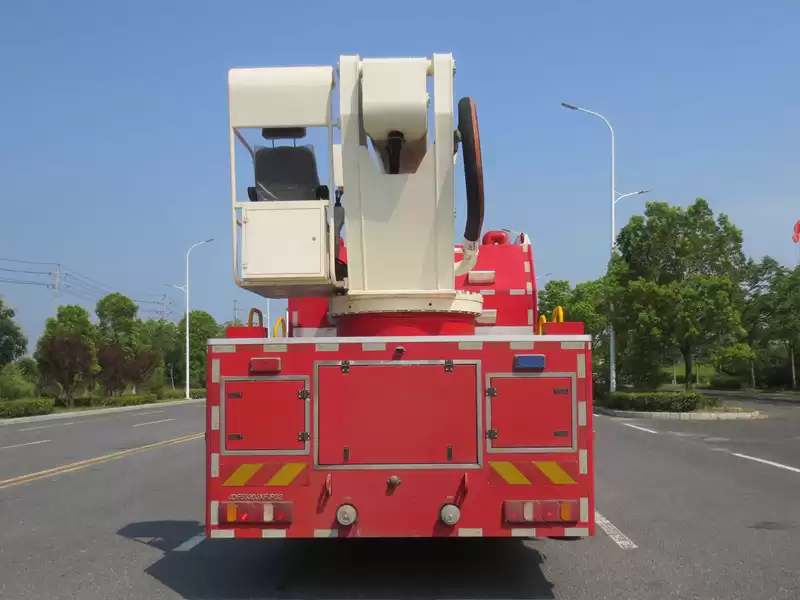

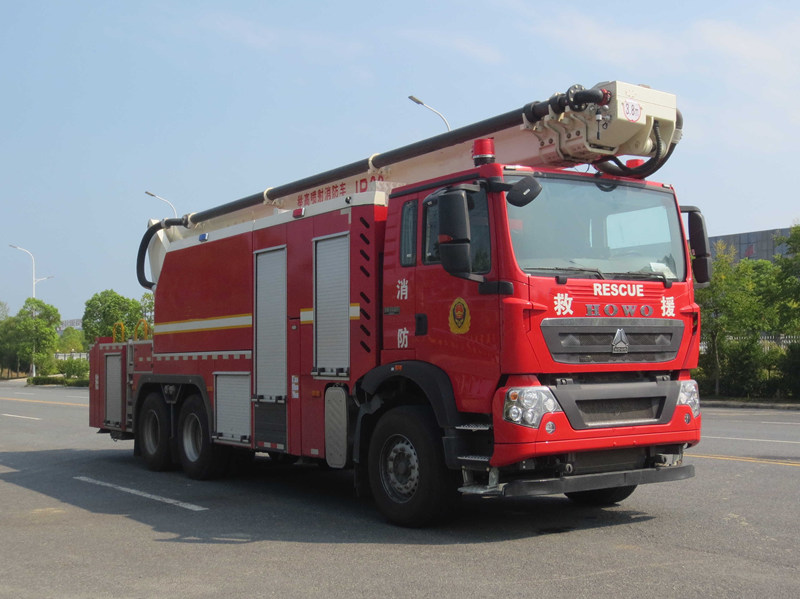

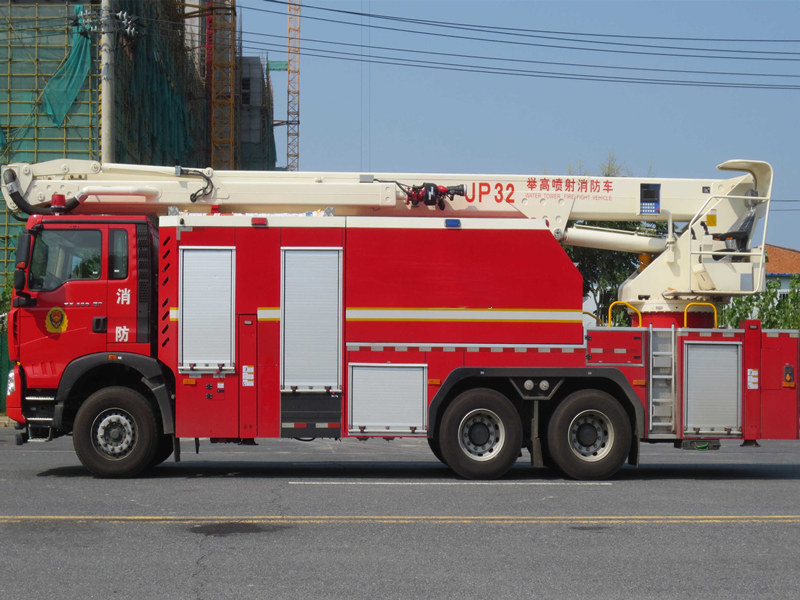

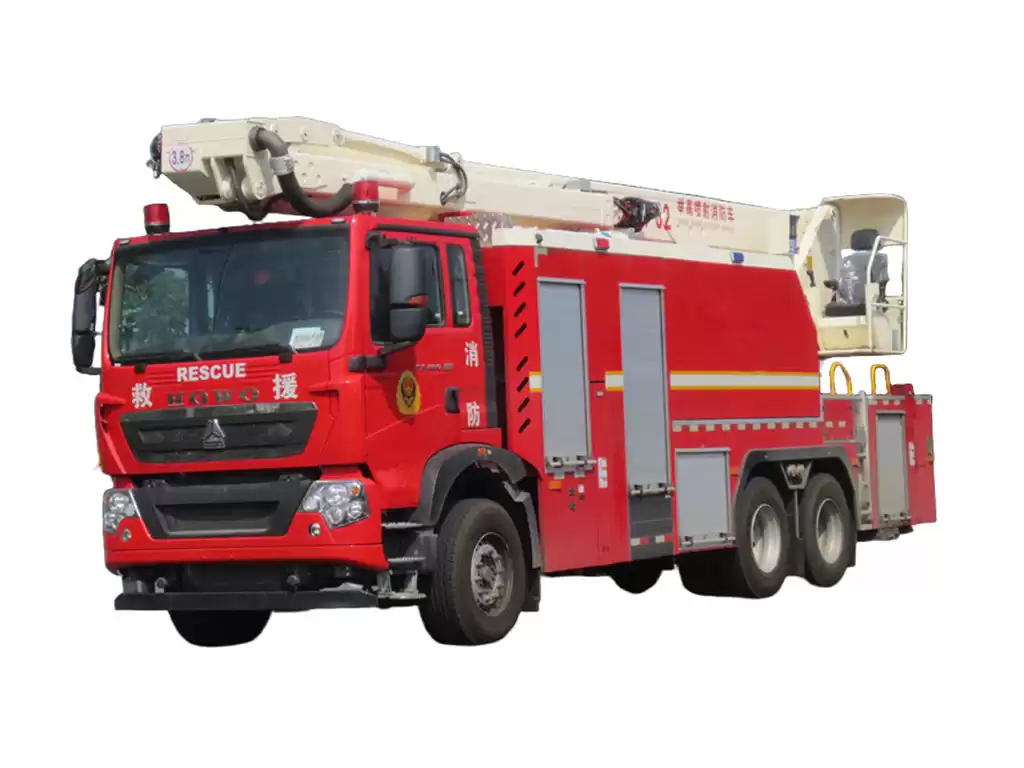

Product Pictures
