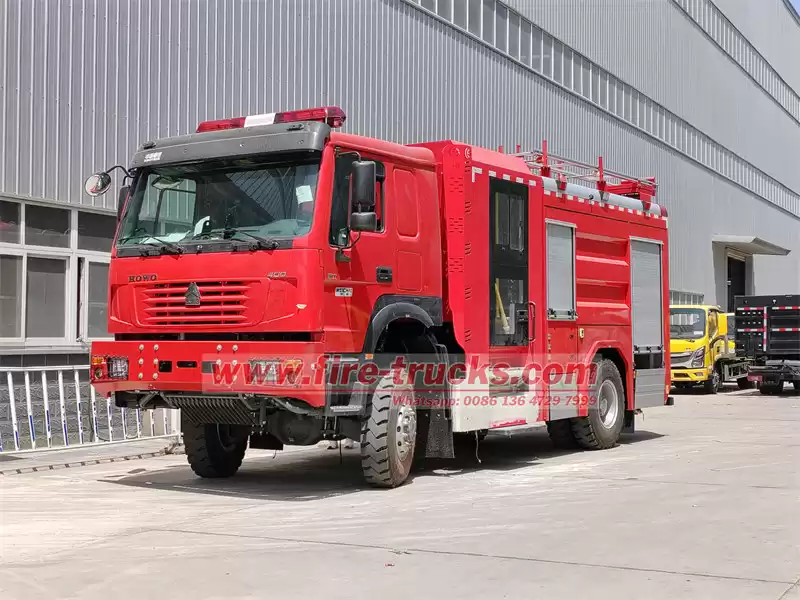

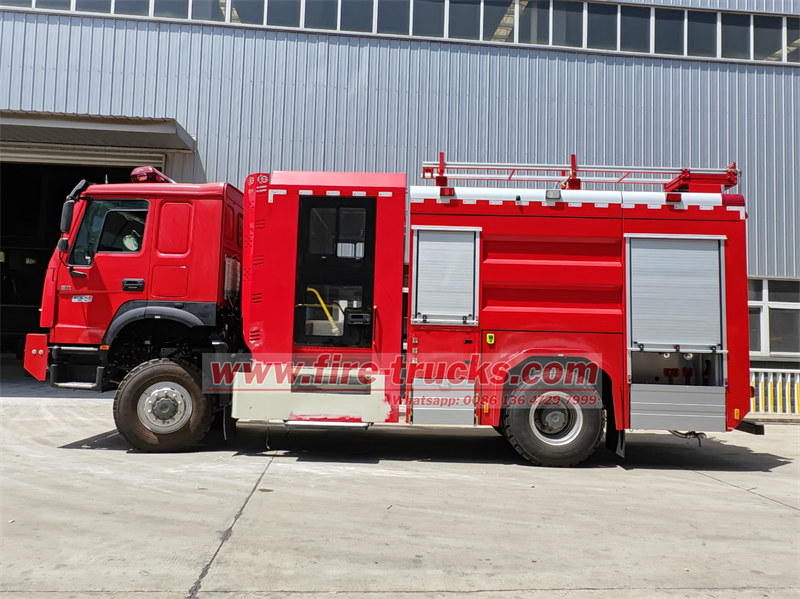

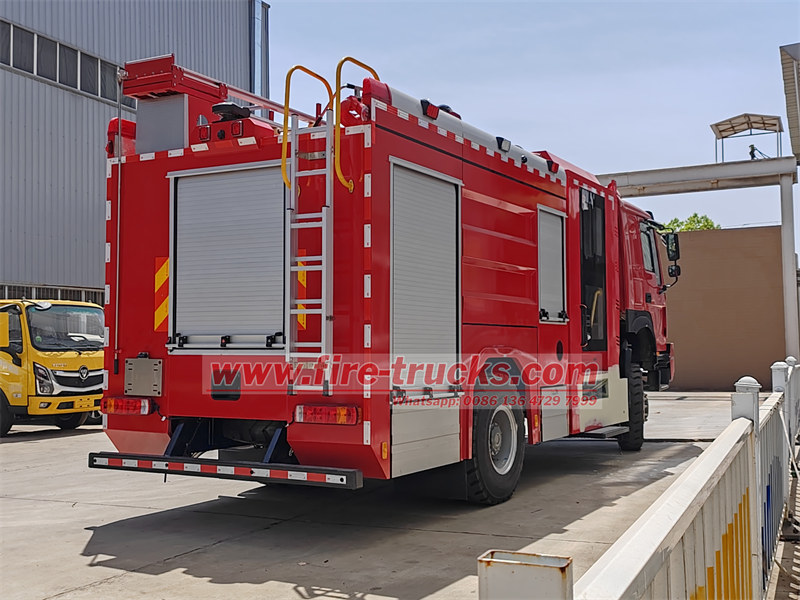

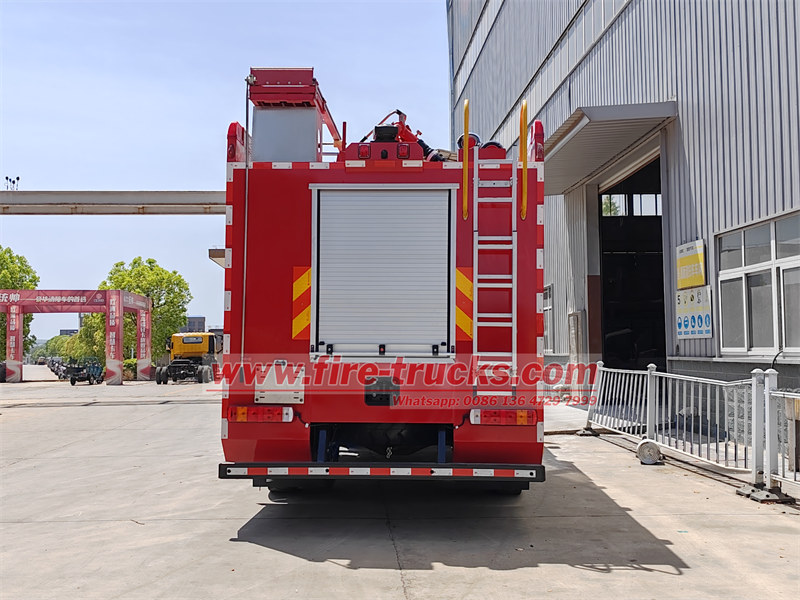

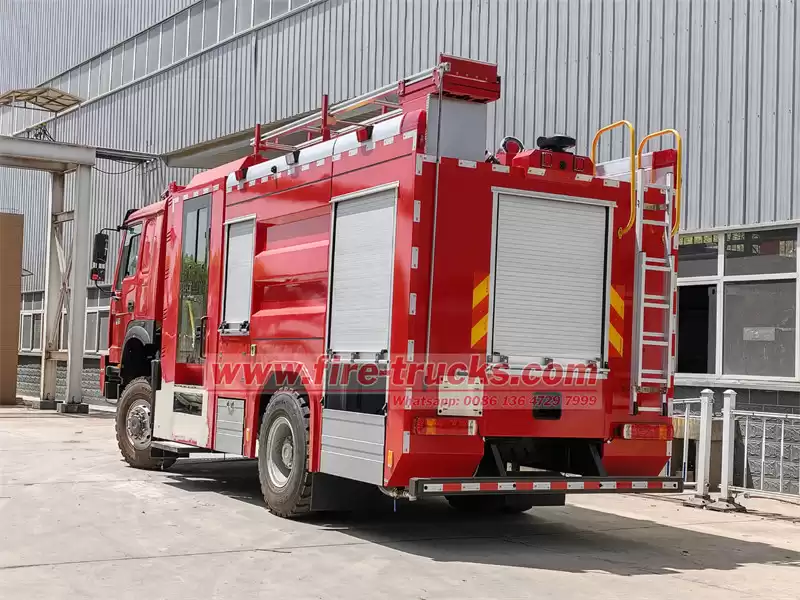

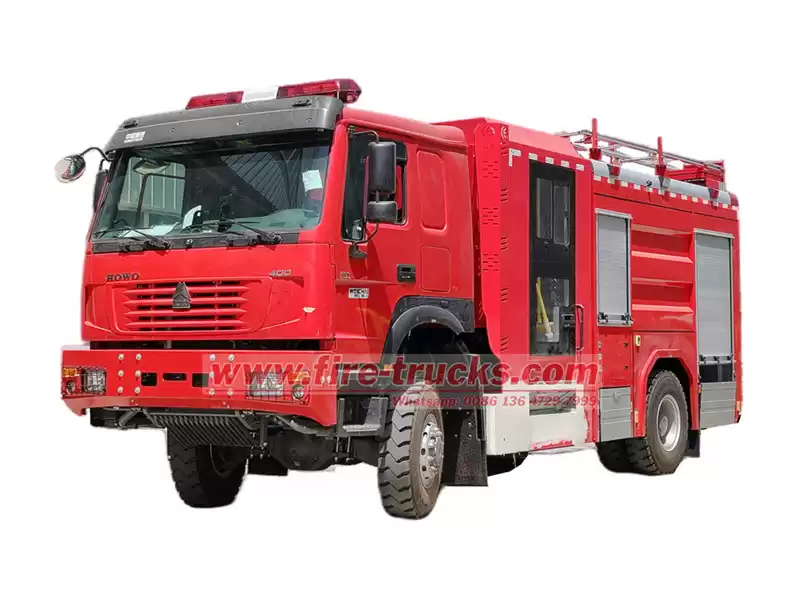

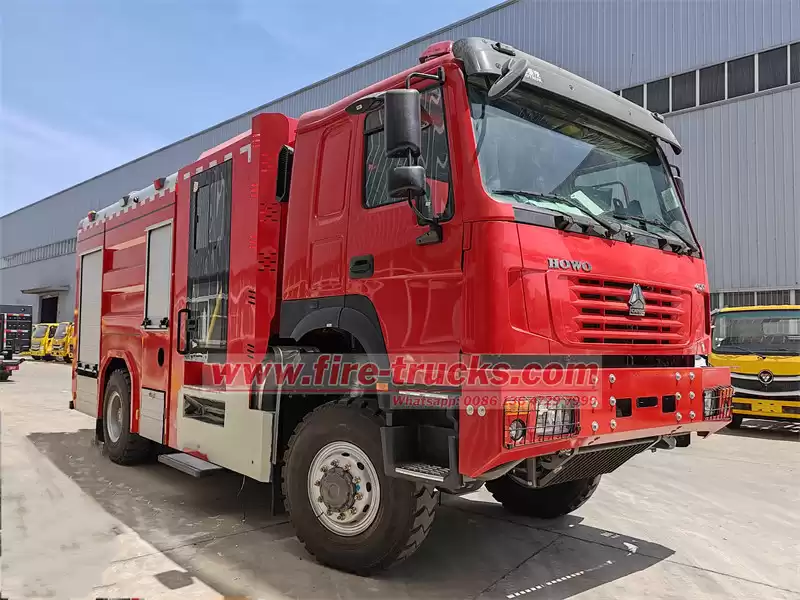

The HOWO 4×4 All-wheel Drive Fire Truck is a professional firefighting apparatus specifically engineered for harsh environments, perfectly integrating robust off-road capabilities with outstanding fire suppression performance. Featuring 4×4 all-wheel drive configuration, 5-ton water tank and 1-ton foam tank, and powered by a 380HP high-performance engine, this fire truck can easily handle fire rescue demands in special terrains including mountainous areas, mining zones and oil fields, making it an indispensable asset for modern fire brigades.
The HOWO 4×4 pumper fire truck's core advantage lies in its professional superstructure configuration. The independent rear crew cabin can rapidly transport 6 firefighters to incident sites, gaining precious rescue time. The combination of 5,000L carbon steel water tank and 1,000L stainless steel foam tank ensures extended operational endurance. The CB10/40 normal-pressure fire pump can complete water priming within 50 seconds, while the 40L/s flow combined with PS8/32 fire monitor's 65m water range creates powerful fire suppression capability. The 360° rotating fire monitor with -35° to +70° elevation range achieves omnidirectional fire coverage. The 30m fire hose reel provides convenience for close-range firefighting.

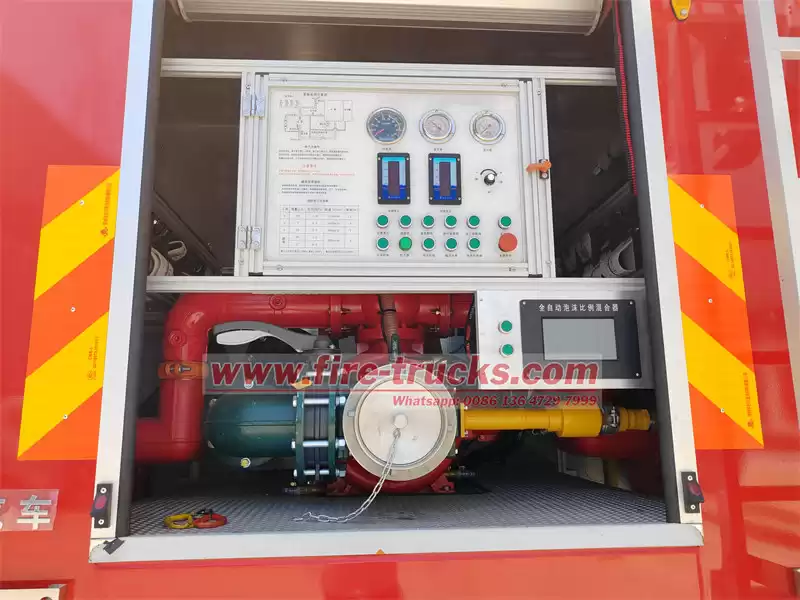

The intelligent control system represents another highlight of the HOWO 4×4 wildland fire truck. The vehicle adopts water-based paint coating process with excellent corrosion resistance. The integrated electrical system realizes one-touch management of pump room operation, lighting control and alarm functions. The carefully designed equipment compartment can store various rescue tools and devices to meet diversified rescue needs. The optimized pipeline system and sandwich power take-off ensure efficient and reliable power transmission, significantly improving operational efficiency.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
Product Specifications
|
Vehicle description
|
|
Overall dimension
|
8620×2550×3620(mm)
|
|
GVW
|
22000kg
|
|
Curb weight
|
10650kg
|
|
Chassis brand
|
SINOTRUCK HOWO
|
|
Traction type
|
4×4, left hand drive
|
|
Chassis description
|
|
Chassis model
|
ZZ2167
|
|
Cab
|
Structure: flat-head, single-row;
Seat setting: 2 people
|
|
Wheelbase
|
4600mm
|
|
Tire specification
|
12.00R20 18PR
|
|
Tire quantity
|
6+1
|
|
Engine
|
Engine model
|
WP10.380E32
|
|
Emission level
|
Euro 3
|
|
Displacement/output
|
9726ml/280kw
|
|
Horse power
|
380hp
|
|
Gear box
|
Model
|
HW19710
|
|
Number of gears
|
10 forward gears& 2 reverse
|
|
Brake system
|
Type
|
Drum
|
|
Service brake
|
Dual-circuit compressed air brake
|
|
Park brake
|
Power spring brake acting on rear wheel
|
|
Auxiliary brake
|
WEVB
|
|
Axle
|
Front
|
HF-7T
|
|
Rear
|
ST-16T
|
|
Suspension
|
Front
|
Semi-elliptic leaf spring
|
|
Rear
|
Trapezoidal leaf spring
|
|
Fuel tanker
|
Type
|
Steel fuel tanker
|
|
Capacity
|
400L
|
|
Upper-body description
|
|
Crew cabin
|
Type
|
Independent crew cabin at rear
|
|
Number of seats
|
6
|
|
Tanker capacity
|
Water tanker
|
5 CBM (5000 liters), carbon steel
|
|
Foam tanker
|
1 CBM (1000 liters), stainless steel
|
|
Standard configuration
|
1 set manhole with quick lock and open device;
1 set overflow device;
1 set fluid level gauge;
1 set drain outlet with manual controlled.
|
|

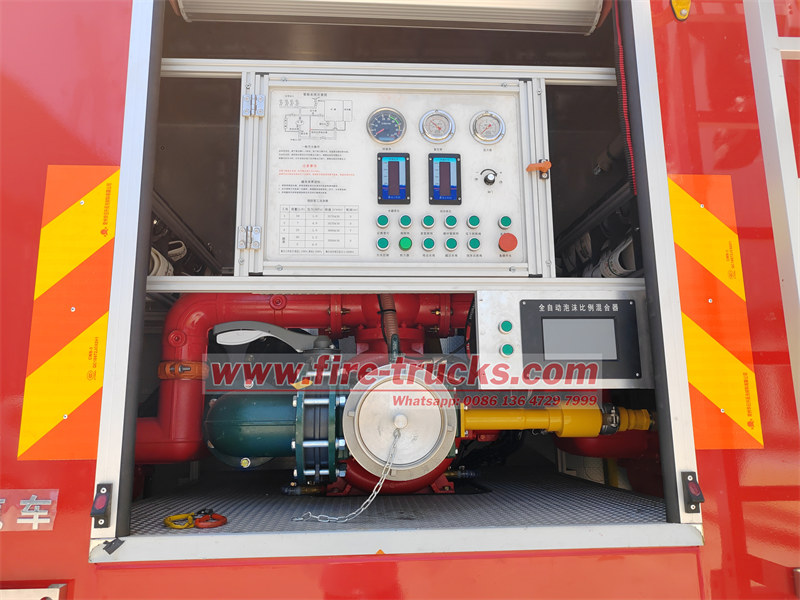

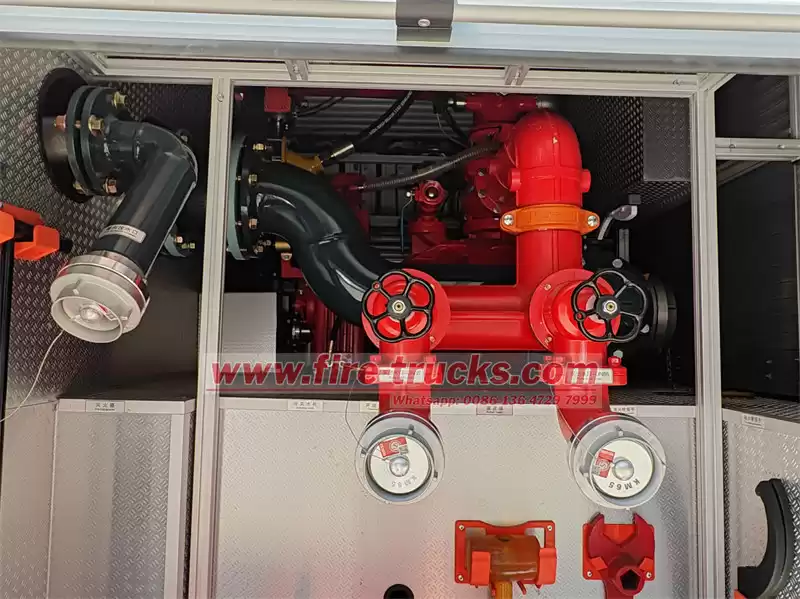

Fire pump
|
Model
|
CB10/40, normal pressure pump
|
|
Flow
|
40L/S
|
|
Pressure
|
1.0Mpa
|
|
Suction depth
|
7m
|
|
Fire monitor
|
Model
|
PS8/32
|
|
Flow
|
32L/S
|
|
Pressure
|
0.8Mpa
|
|
Range
|
Water ≥65m; Foam ≥55m
|
|
Rotation angle
|
Horizontal 360°
Pitch -35°~70°
|
|

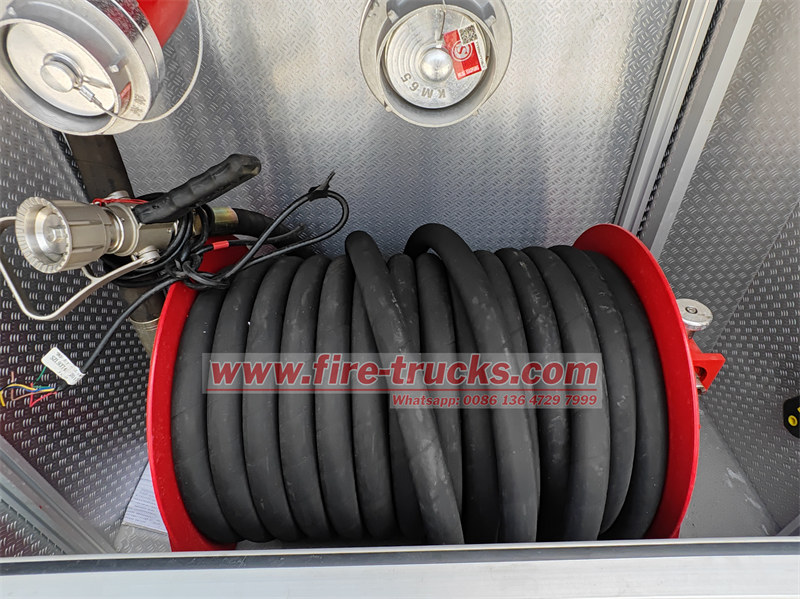

Hose reel
|
Model
|
JPSC1.6
|
|
Inner diameter
|
32mm
|
|
Hose length
|
30m
|
|
Inlet pressure
|
1.6Mpa
|
|
Flow of gun
|
≥120 L/min
|
|
Other configurations
|
Equipped with sandwich PTO, pipeline system;

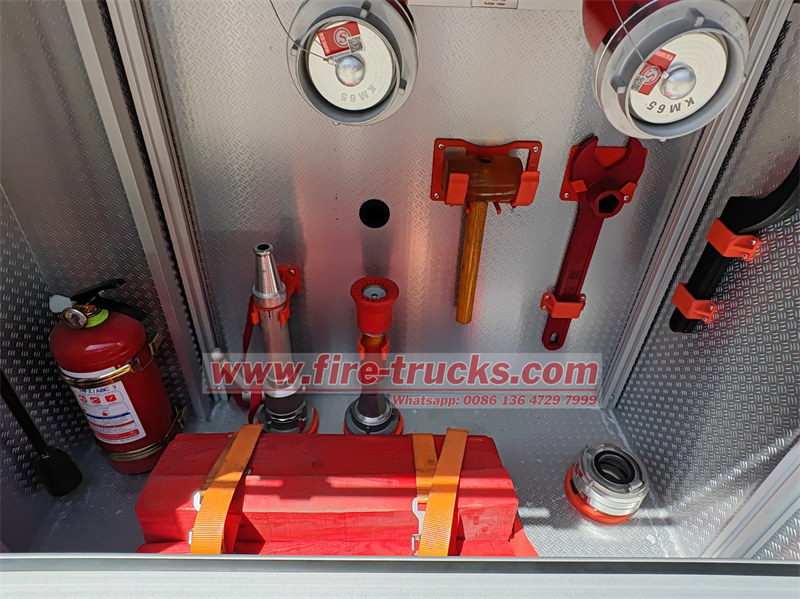

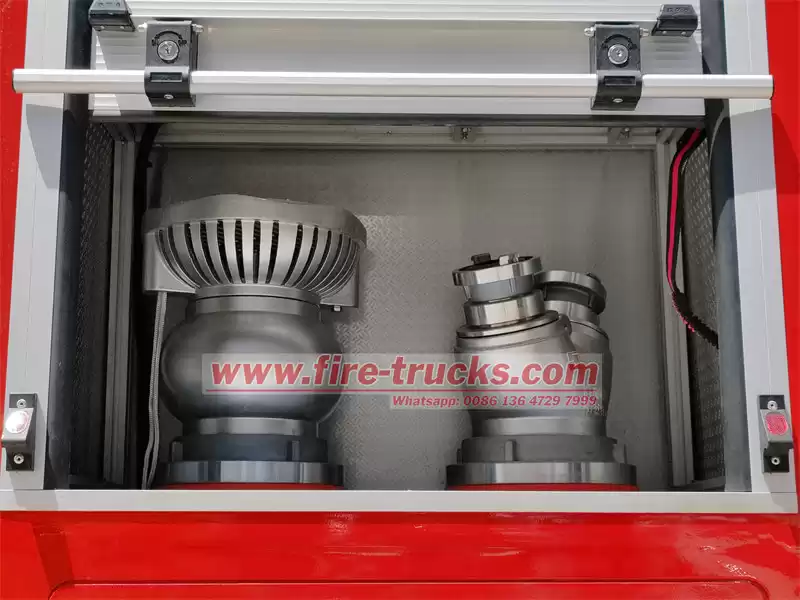

Equipped with equipment compartment and pump room;
Equipped with flip pedal and electric system.
Other fire equipment.
|
Advantages of HOWO 4×4 Wildland Fire Engine Truck:
1. Superior Off-road Capability
The HOWO 4×4 tanker fire truck adopts 4WD system with 380HP engine and 12.00R20 off-road tires, achieving over 60% maximum gradability and only 8m minimum turning radius. The trapezoidal leaf spring suspension and dual-circuit braking system ensure passability and safety in complex road conditions.
2. High-efficiency Fire Suppression System
The 5,000L water tank plus 1,000L foam tank combination, working with CB10/40 fire pump's 40L/s flow, can complete water priming in 50 seconds. The PS8/32 fire monitor achieves 65m water range and 360° full coverage, assisted by 30m hose reel for close-range firefighting.
3. Intelligent Control Experience
The integrated electrical control system enables one-touch operation, while optimized pipeline design and sandwich PTO improve transmission efficiency. Water-based paint coating ensures vehicle durability, and the simplified human-machine interface greatly enhances operational efficiency.
4. Professional Crew Configuration

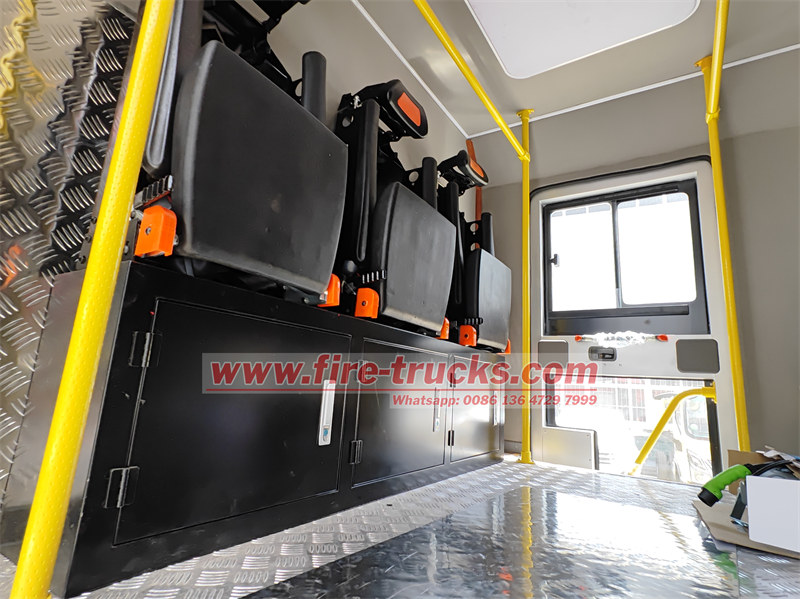

The independent rear crew cabin comfortably accommodates 6 firefighters, with noise/vibration reduction design providing good rest environment during long-distance travel. The quick entry/exit design ensures immediate engagement in rescue operations.
5. Multi-functional Rescue Capability
Beyond professional fire suppression systems, the HOWO off-road fire engine truck is equipped with comprehensive equipment storage space for various rescue tools and first-aid devices, realizing multi-purpose functionality to meet diversified rescue requirements.
