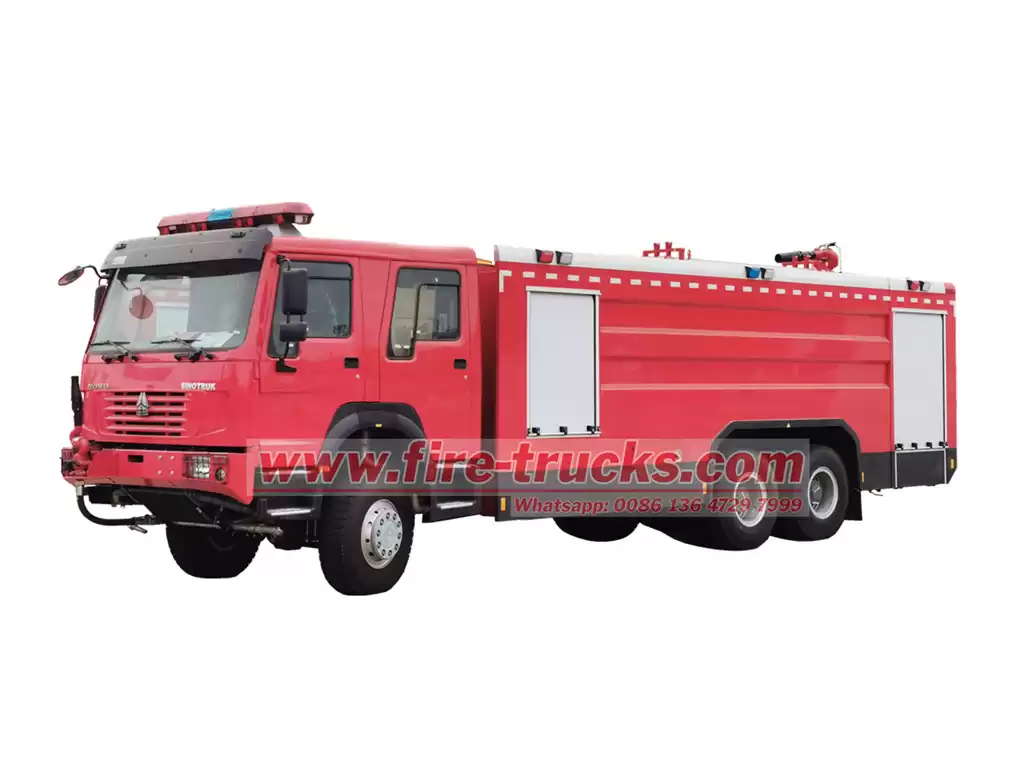

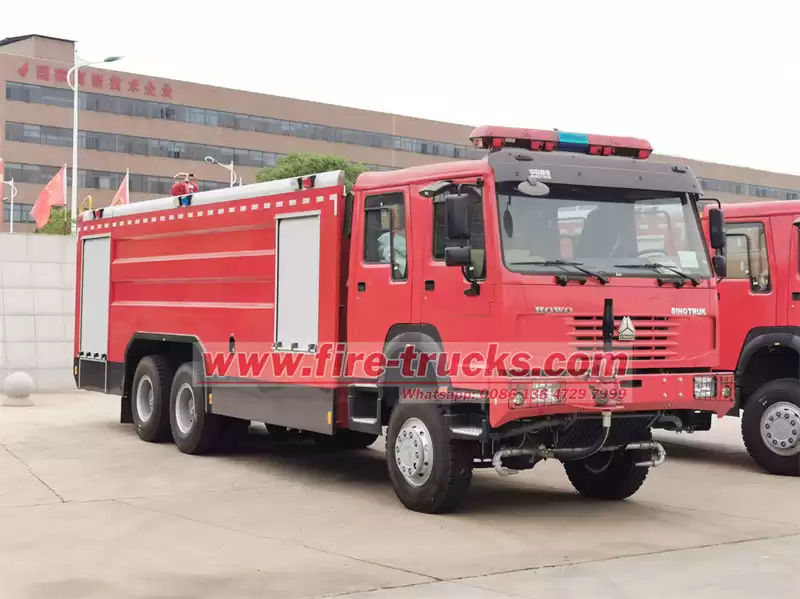

The HOWO 6×6 off-road fire truck is a high-performance firefighting vehicle designed for complex terrains and extreme fire scenarios. Built on the HOWO 6×6 chassis, it integrates advanced power systems, efficient firefighting equipment, and outstanding off-road capabilities. The vehicle's standout feature is its superior all-wheel-drive performance, enabling it to navigate difficult terrains with ease and reach fire scenes quickly, even in extreme conditions. Powered by the Weichai WP10.380E32 engine, it delivers a maximum power of 380 horsepower and a peak torque of 1600 N·m, providing robust power support in challenging environments.
The HOWO 6×6 AWD firefighting truck's superior firefighting equipment is one of its core highlights, designed for efficient fire suppression and versatile applications. The vehicle is equipped with two independent liquid tanks: an 8000-liter water tank and a 2000-liter foam tank, both made of stainless steel for corrosion resistance and high-pressure durability. Each tank is fitted with a DN460 manhole cover featuring a quick-locking/opening mechanism and an automatic pressure relief device, facilitating easy maintenance and emergency operations.
The HOWO 6×6 pumper fire truck is equipped with a CB10/60 fire pump, delivering a flow rate of 60 L/s at a pressure of 1.0 MPa, capable of transporting large volumes of fire suppressants in a short time to quickly control fires. The pump is highly efficient and stable, suitable for various fire scenarios. Additionally, the vehicle features a PL8/48 fire monitor, supporting both water and foam firefighting modes, with a flow rate of 48 L/s and ranges of up to 70 meters (water) and 60 meters (foam). The monitor is easy to operate and adjust, meeting firefighting needs at different distances and heights.

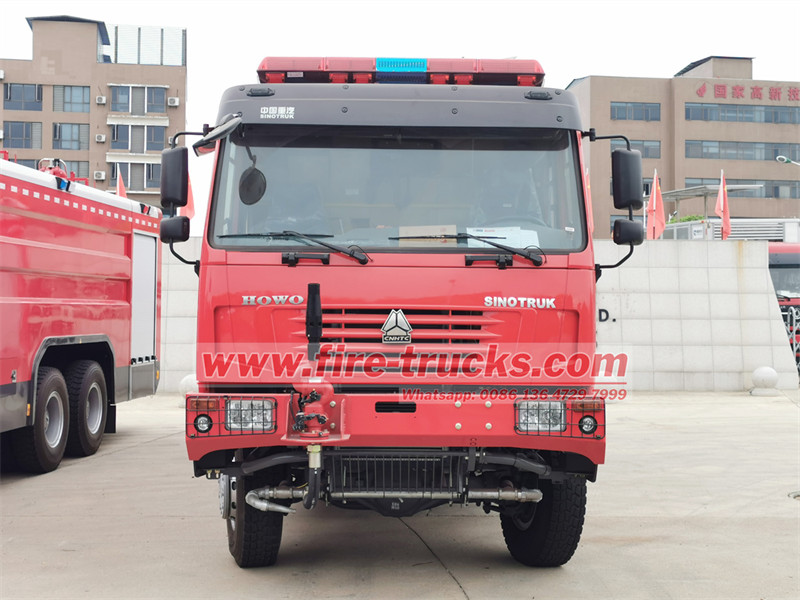

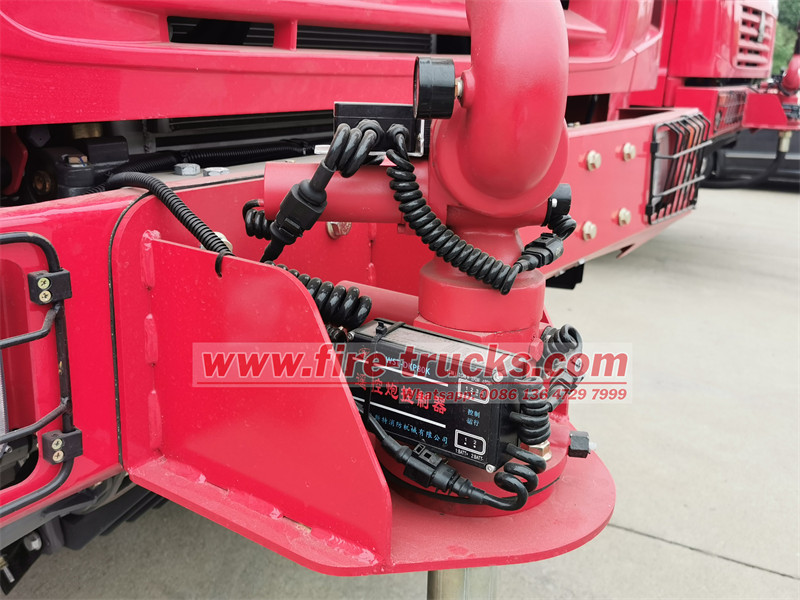

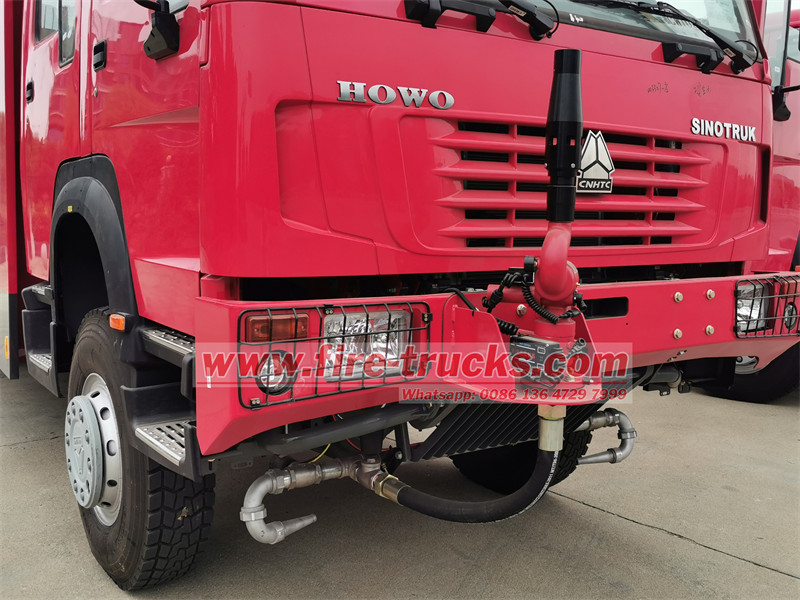

At the front of the cab, the HOWO 6×6 fire engine is equipped with a DKP80K remote-controlled monitor, delivering a flow rate of 80 L/s, a range of ≥85 meters, a rated working pressure of 0.8 MPa, and a remote control distance of ≥150 meters. This remote-controlled monitor allows for long-range firefighting in hazardous environments, ensuring the safety of firefighters. Additionally, sprinkler nozzles are installed beneath the cab, enabling water spraying for added versatility.
● 30 years experience in fire engine truck designing
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu road sweeper truck factory
● A professional sales team helps you choose the right truck.
Product Specifications
|
Item
|
Unit
|
Specifications
|
|
Vehicle Model
|
|
PT5250GXFPM
|
|
Dimension
|
mm
|
10200*2500*3550
|
|
Tank Dimension
|
Liters
|
Water Tank
|
Foam Tank
|
|
8000
|
2000
|
|
Material
|
Stainless steel
|
Stainless steel
|
|
Gross Vehicle Weight
|
Kg
|
25000
|
|
Curb Weight
|
kg
|
12800
|
|
Wheel Base
|
mm
|
3800+1350 mm
|
|
F/R wheel track
|
mm
|
2005 / 1860
|
|
F/R overhang
|
mm
|
1602/2490
|
|
F/R Axled-Load
|
Kg
|
7000 / 18000
|
|
Approach/Departure angle
|
°
|
31/19
|
|
Drive system
|
Type
|
6×6
|
|
Max speed
|
Km/h
|
76
|
|
Tire/Number
|
Type
|
12.00R20, 10+1 pcs
|
|
Engine
|
Brand
|
WEICHAI
|
|
Model
|
WP10.380E32
|
|
Cylinder arrangement
|
In-line
|
|
Type
|
Diesel, 6 cylinders, turbocharge, water cooling
|
|
Displacement
|
9726 ml
|
|
Horse Power
|
380 HP
|
|
Rated speed
|
2200 r/min
|
|
Max. torque
|
1600 N.m
|
|
Gear box
|
Model
|
HW19710, 10-speed, manual
|
|
Electronic
|
V
|
24
|
|
Cab
|
Person
|
6
|
|
Type
|
Can be manually flipped forward
|
|
Configuration
|
Mp3, Radio, Speaker
|
|
Air Conditioner
|
Hot wind / Cooling wind
|
|
Fire Monitor Specifications
|
|
Model
|
PL8/48 (for water and foam)
|
|
Range
|
Water: ≥70m; Foam≥60m
|
|
Working angle
|
Depression angle: ≤-15°
Elevation angle: ≥+45°
|
|
Rotation angle
|
360°
|
|
Operation
|
Manual and remote control
|
|
Flowing Speed
|
48 L / s
|
|
Fire Pump Specifications
|
|
Fire Pump model
|
CB10/60
|
|
Flowing Speed
|
60L/s
|
Pressure
|
1.0 Mpa
|
|
Remote Fire Monitor Specifications
|
|
Model
|
DKP80K
|
|
Flow
|
80 L/s
|
|
Range
|
≥85 m
|
|
Rated working pressure
|
0.8 Mpa
|
|
Remote control distance
|
≥150 m
|

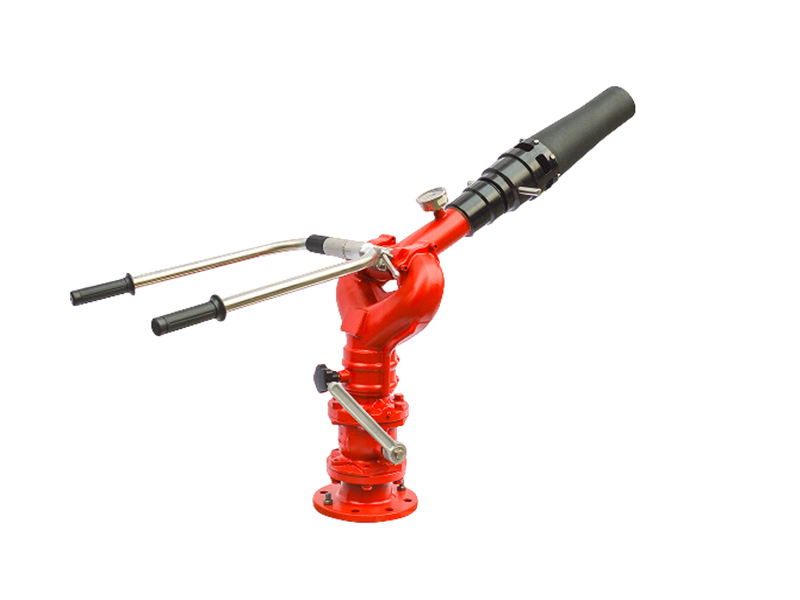

Features of the Fire Monitor on the HOWO 6×6 Fire Truck:
★ Versatile functionality, simple and innovative structure
★ Stable performance, easy maintenance
★ Low inlet pressure
★ Capable of spraying water or foam; the foam tube can be removed for use as a water monitor, with both spray and jet functions
★ Lightweight, made of precision-cast aluminum
★ Equipped with an automatic drain valve
★ Adjustable operating handle angle
★ Horizontal and elevation locking functions
★ Long range, concentrated stream, high foam expansion, and large coverage area
★ Flexible and easy to operate, with horizontal and vertical rotation capabilities

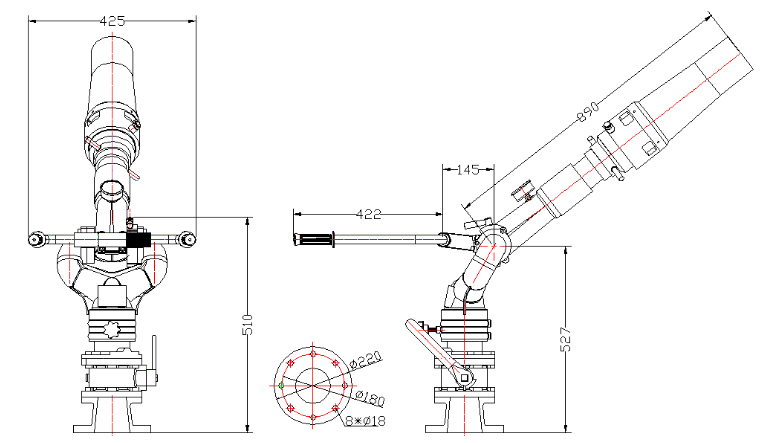

Parameters of Commonly Used Fire Monitors:
|
Model
|
Flow（L/s）
|
Range（m）
|
Rate Working Pressure（Mpa）
|
Pitch rotation
（°）
|
Horizontal rotation
（°）
|
L×W×H
（mm）
|
Weight
（Kg）
|
|
Water
|
Foam
|
|
PL8/24
|
24
|
≥55
|
≥42
|
0.80
|
-45～+70
|
0～360
|
1400*425*660
|
23
|
|
PL8/32
|
32
|
≥60
|
≥48
|
0.80
|
-45～+70
|
0～360
|
1400*425*660
|
23
|
|
PL8/40
|
40
|
≥65
|
≥55
|
0.80
|
-45～+70
|
0～360
|
1400*425*660
|
23
|
|
PL8/48
|
48
|
≥70
|
≥60
|
0.80
|
-45～+70
|
0～360
|
1440*425*600
|
27
|
|
PL8/64
|
64
|
≥75
|
≥70
|
0.80
|
-45～+70
|
0～360
|
1440*425*600
|
27
|
