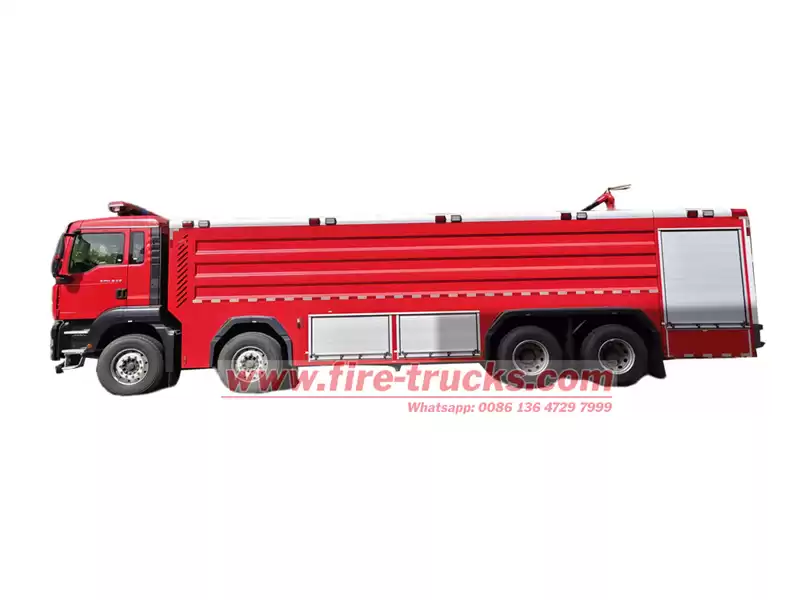

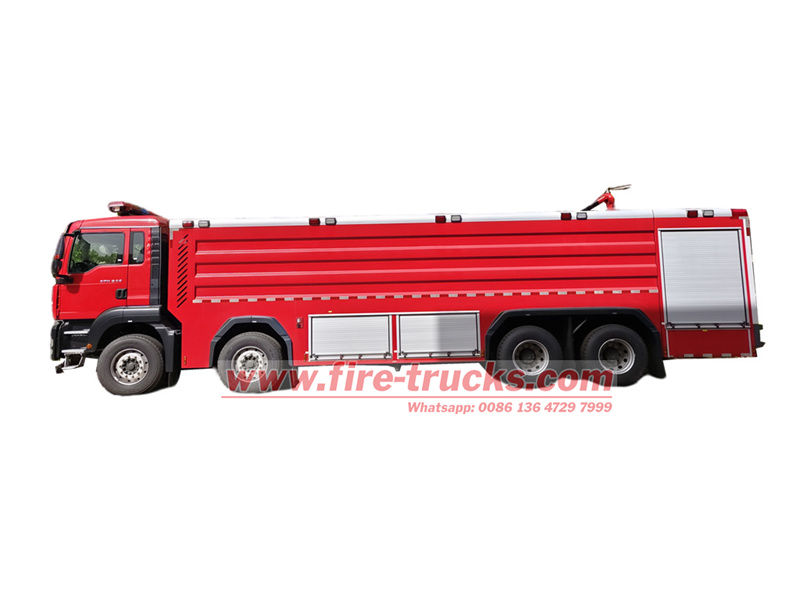

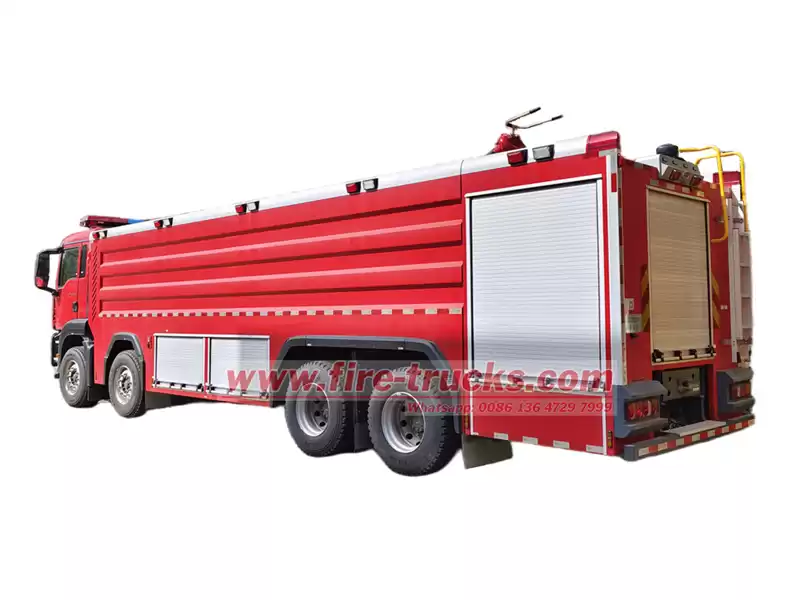

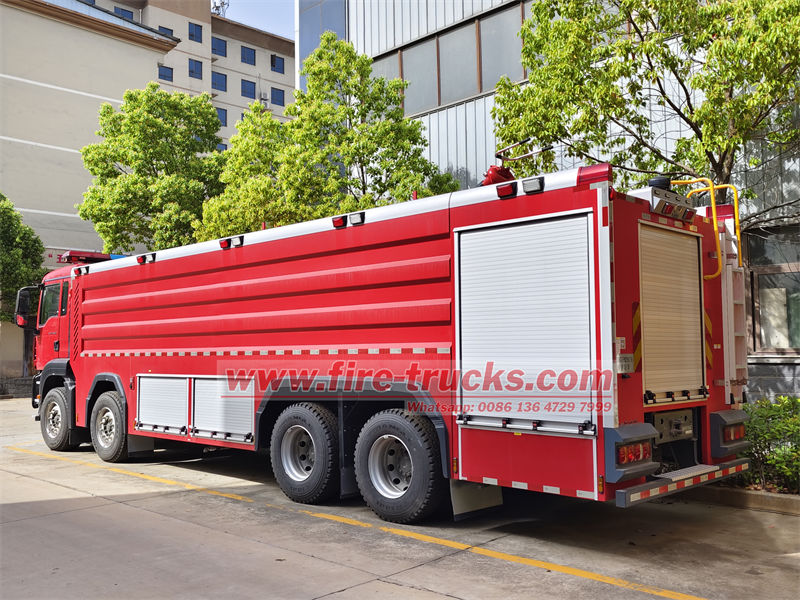

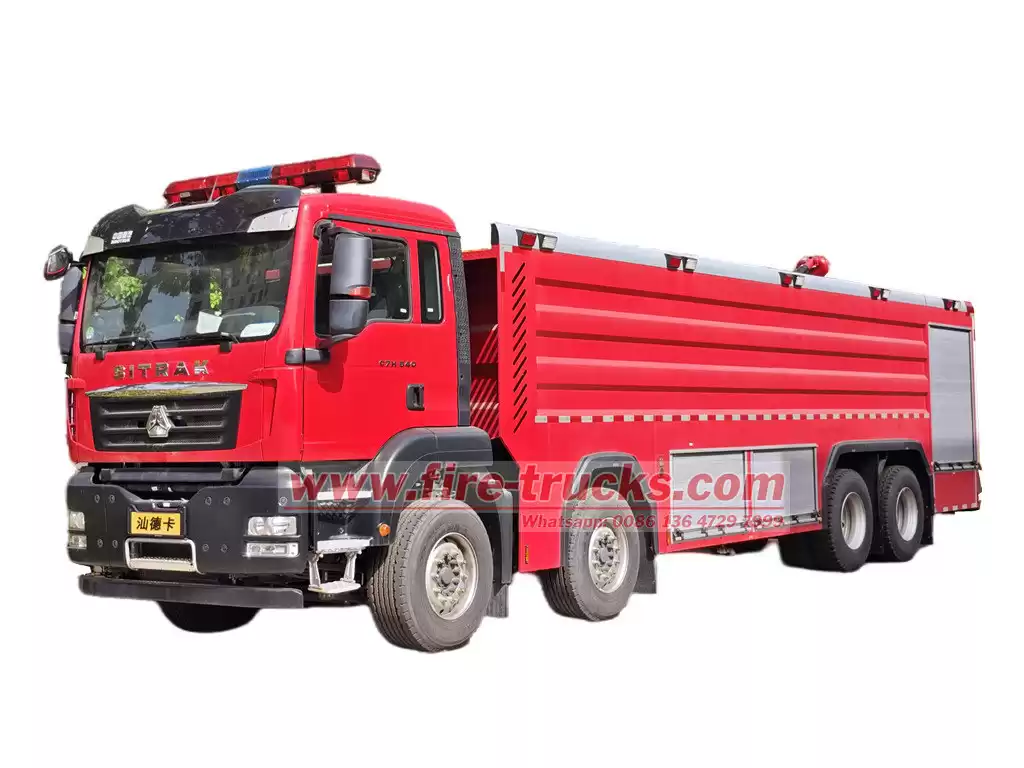

The HOWO 8×4 Water-Foam Fire Truck is a specialized heavy-duty firefighting apparatus classified as a combined water/foam fire truck. Built on the SINOTRUK SITRAK 8×4 high-load chassis, it integrates three core modules: a high-capacity liquid storage system, an efficient fire pump assembly, and a long-range firefighting monitor, achieving key advantages in large liquid capacity, extended range, robust power, and agile maneuverability. Its 20-ton water tank + 5-ton foam tank configuration meets the demands of sustained firefighting operations for large-scale oil fires, chemical plant fires, and urban complex fires.
This HOWO 8×4 firefighting vehicle adopts a dual-compartment design for water and foam storage, with a total liquid capacity of 25 tons. The 20,000-liter water tank uses Q345B carbon steel with double-layer anti-corrosion treatment (epoxy primer + epoxy asphalt paint) on the inner walls, ensuring resistance to corrosion from various water sources. The 5,000-liter foam tank employs 304 stainless steel for long-term storage stability of foam concentrates. Both tanks are equipped with quick-lock manhole covers, overflow valves, level indicators, and manual drain valves. The tank tops feature DN80 water injection ports and DN65 foam concentrate filling ports, enabling rapid refilling operations.

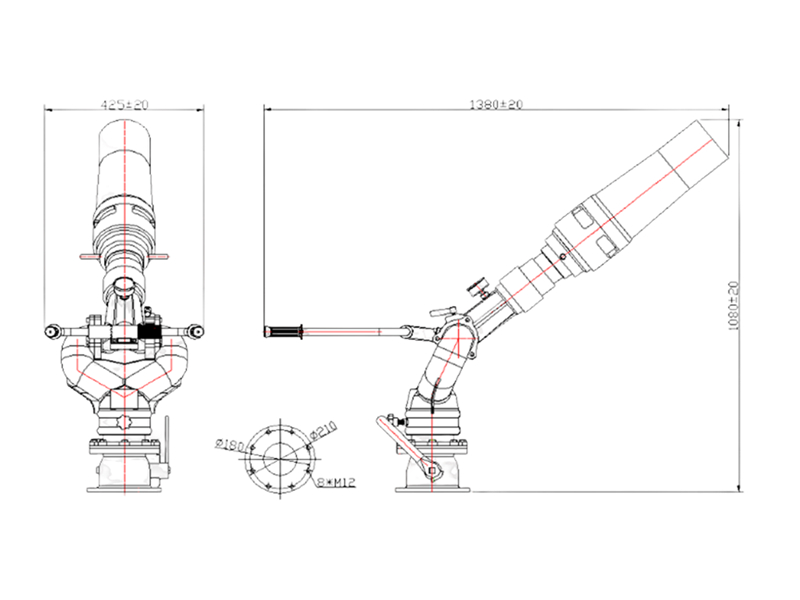

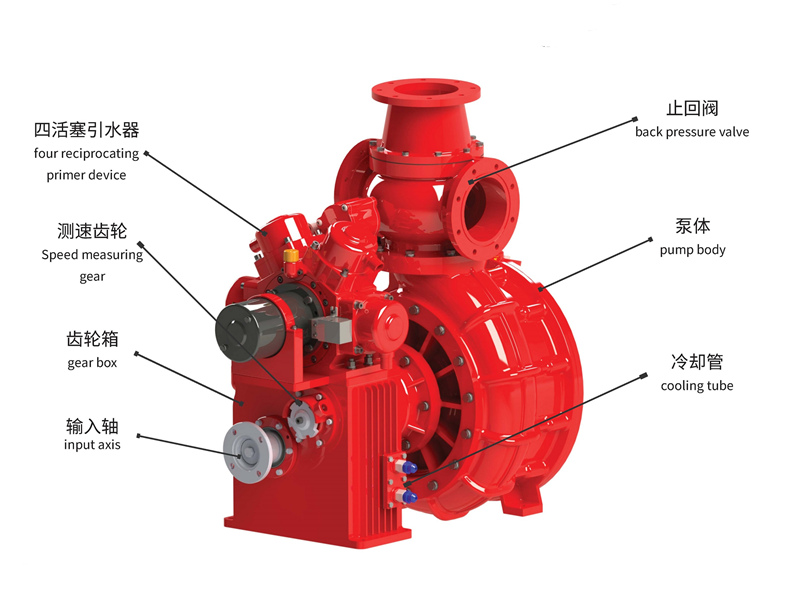

The core firefighting system of the HOWO heavy-duty fire truck is the CB10/100 normal-pressure fire pump, which adopts a double-stage impeller centrifugal structure with a rated flow of 100 L/s and an outlet pressure of 1.0 MPa. It supports direct suction from wells up to 7 meters deep or tandem relay pumping. The pump is connected to the power take-off (PTO) via a sandwich-type full-power output device, ensuring zero power loss during transmission. Mounted on the vehicle roof, the PL8/80 firefighting monitor integrates dual-medium (water/foam) spraying capabilities, offering 360° continuous horizontal rotation and -45° to +70° pitch adjustment. With a rated operating pressure of 0.8 MPa, it achieves spray ranges of ≥85 meters for water and ≥80 meters for foam, making it particularly suitable for three-dimensional firefighting in petrochemical incidents.
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Product Specifications
|
Vehicle description
|
|
Overall dimension
|
11870×2540×3600 mm
|
|
GVW
|
42650kg
|
|
Curb weight
|
17500kg
|
|
Rated payload
|
25000 kg
|
|
Chassis brand
|
SINOTRUK SITRAK
|
|
Traction type
|
8*4 left hand drive
|
|
Approach/Departure angle
|
19/11°
|
|
Front/rear overhang
|
1492/2428 mm
|
|
Chassis description
|
|
Chassis model
|
ZZ5446
|
|

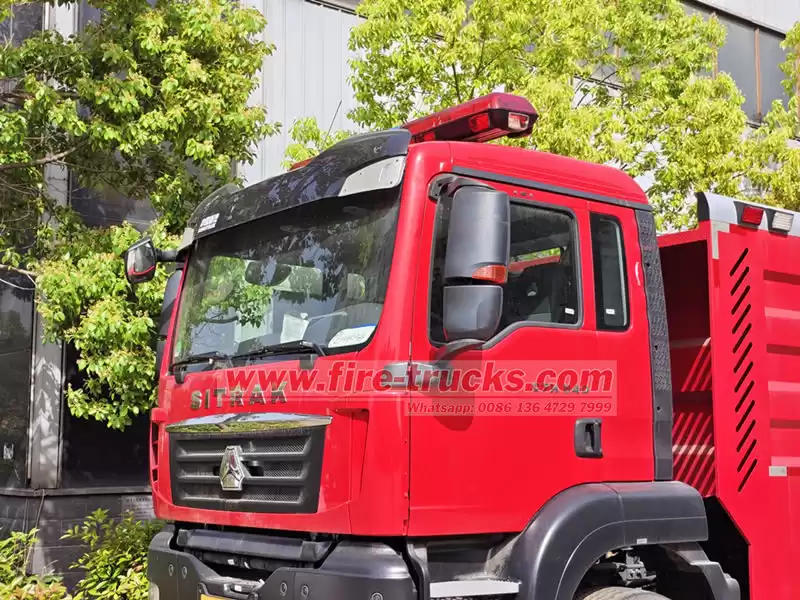

Cab
|
Structure: flat-head, single row cabin with sleeper.
Seat setting: 2 seats and one sleeper.
|
|
Wheelbase
|
1950+4600+1400 mm
|
|
Tire specification
|
315/80R22.5 18PR
|
|
Tire quantity
|
12+1
|
|
Engine
|
Engine model
|
MC13.54-61
|
|
Emission standard
|
Euro 6
|
|
Displacement/output
|
12419 ml
|
|
Output
|
400 kw
|
|
Horse power
|
540 hp
|
|
Max. torqued
|
2500 N.m
|
|
Rated speed
|
1900 rpm
|
|
Gear box
|
Model
|
HW19712
|
|
Number of gears
|
12 forward gears& 2 reverse
|
|
Brake system
|
Type
|
Drum
|
|
Service brake
|
Dual-circuit compressed air brake
|
|
Park brake
|
Power spring brake acting on rear wheel
|
|
Auxiliary brake
|
WEVB
|
|
Axle load
|
Front
|
9000kg/8450kg
|
|
Rear
|
12600kg/12600kg
|
|
Fuel tanker
|
Type
|
Steel fuel tanker
|
|
Capacity
|
400 L
|
|
Superstructure description
|
|
Tank capacity
|
Water tanker
|
20000 liters, carbon steel
|
|
Foam tanker
|
5000 liters, stainless steel
|
|
Tank configuration
|
1 set manhole with quick lock and open device;
1 set overflow device;
1 set fluid level gauge;
1 set drain outlet with manual controlled.
|
|

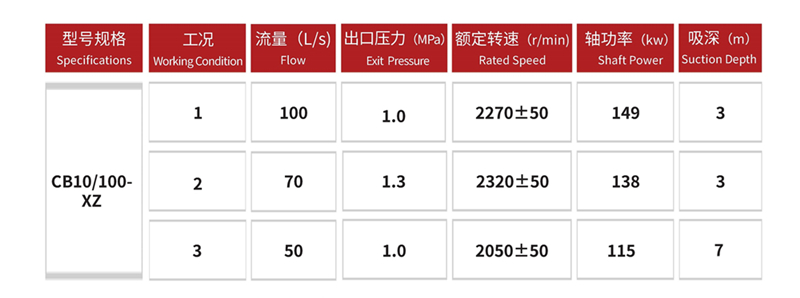

Fire pump
|
Model
|
CB10/100, normal pressure pump
|
|
Flow
|
100L/s
|
|
Pressure
|
1.0Mpa
|
|
Suction depth
|
7m
|
|

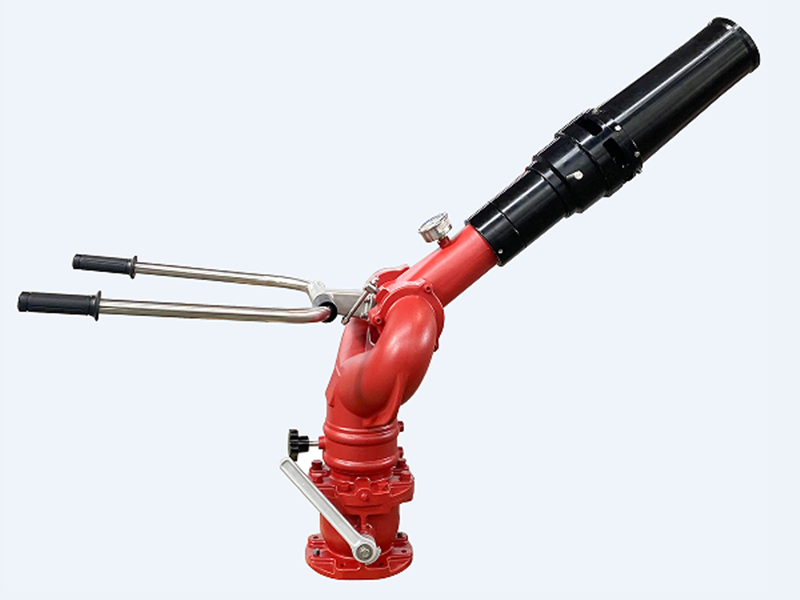

Fire monitor
|
Model
|
PL8/80
|
|
Rated pressure
|
0.8Mpa
|
|
Rated flow
|
80L/S
|
|
Range
|
Water≥85m; Foam≥80m
|
|
Rotation angle
|
Horizontal: 360°
Pitch: -45°~70°
|
|
Other configuration
|
Equipped with sandwich PTO, pipeline system;
Equipped with equipment box and pump room;
Equipped with flip pedal and electric system.
Equipped with factory standard fire-fighting equipment.
|

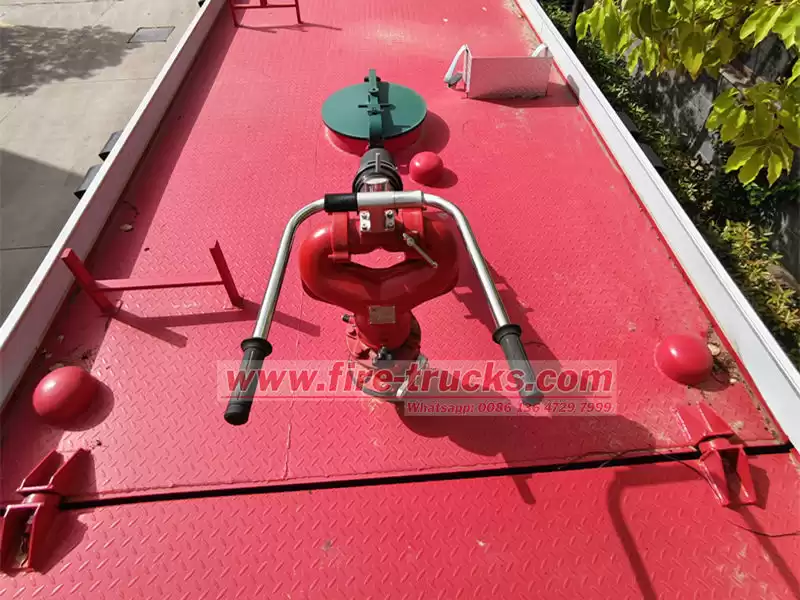

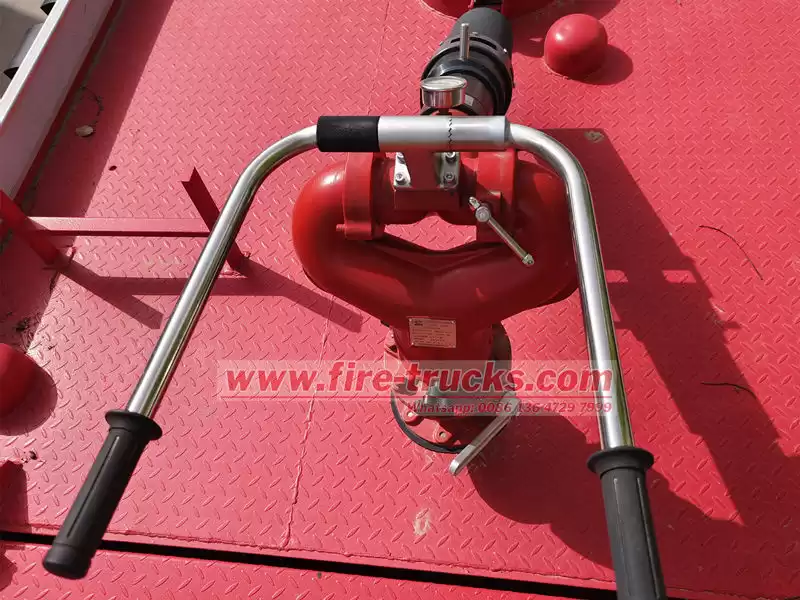

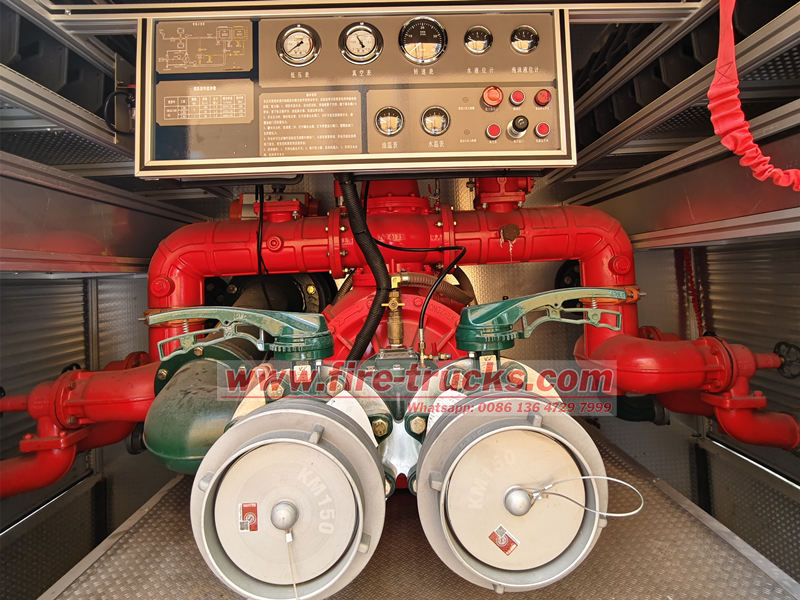

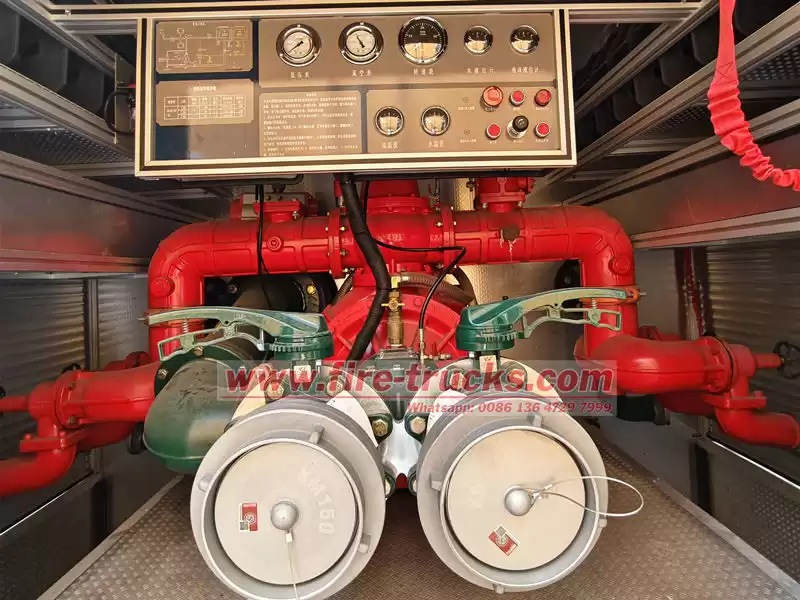

Fire pump and fire monitor of HOWO heavy-duty fire truck

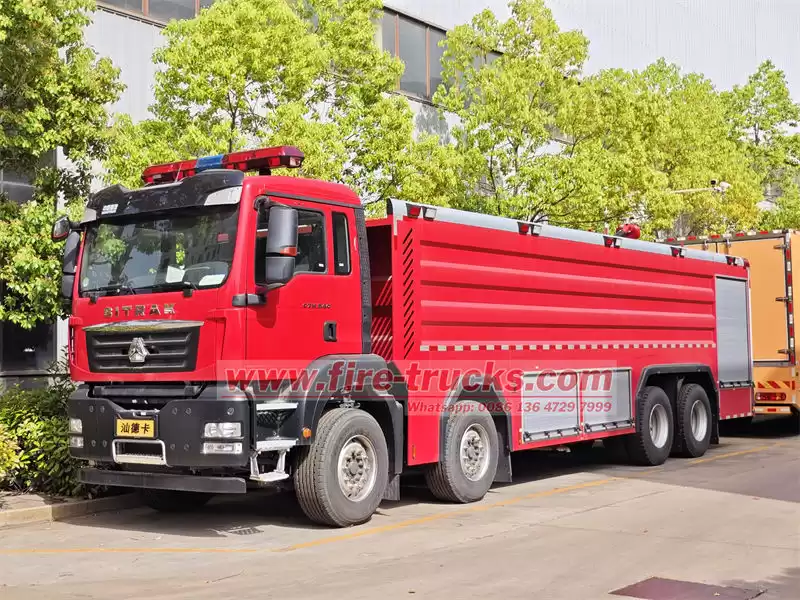

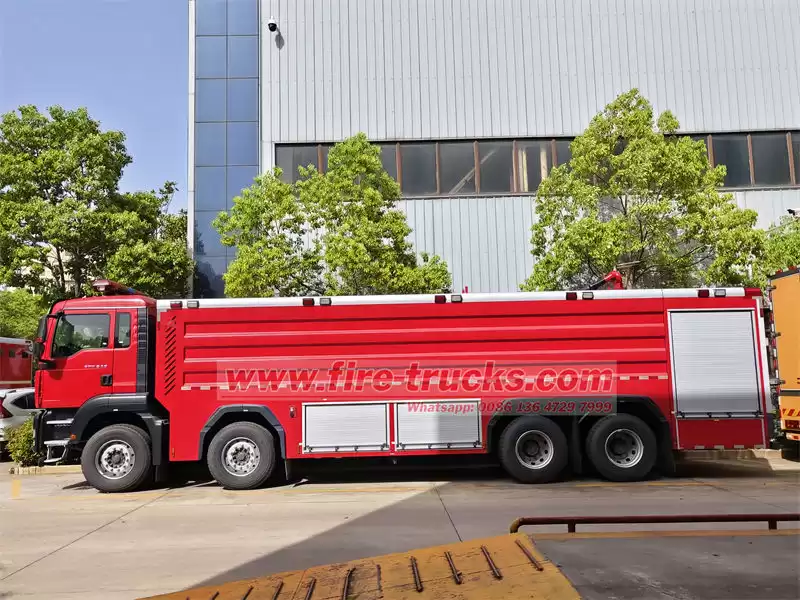

Product Pictures
