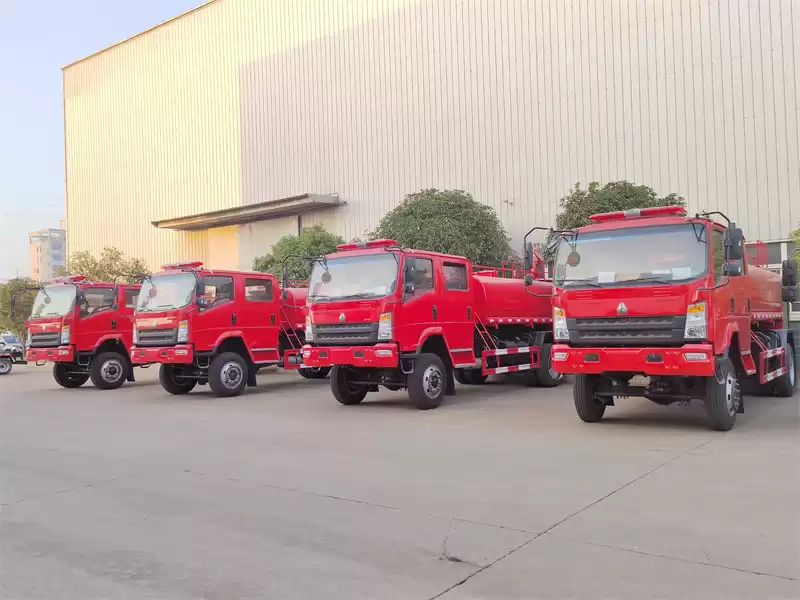

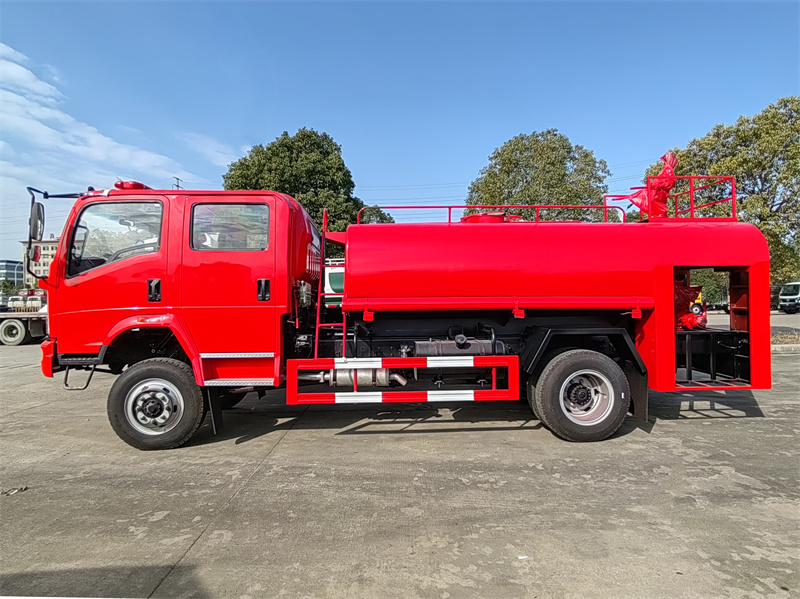

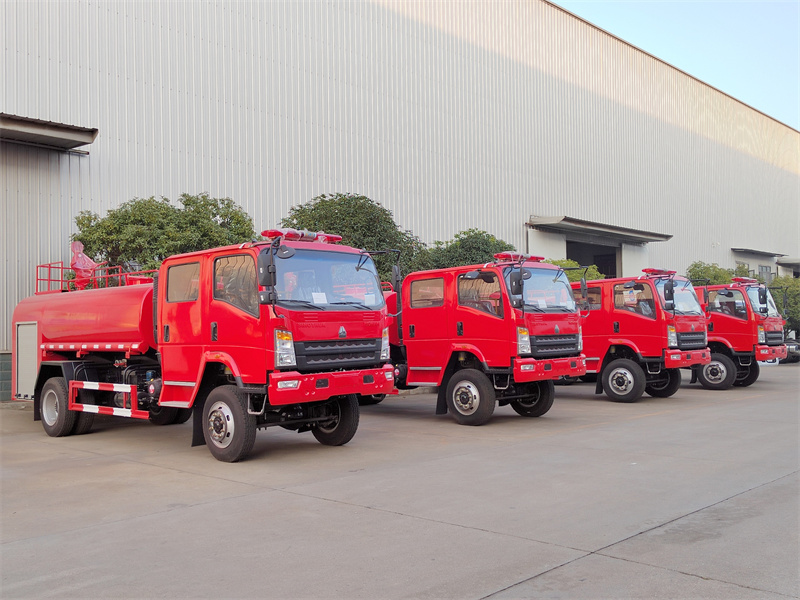

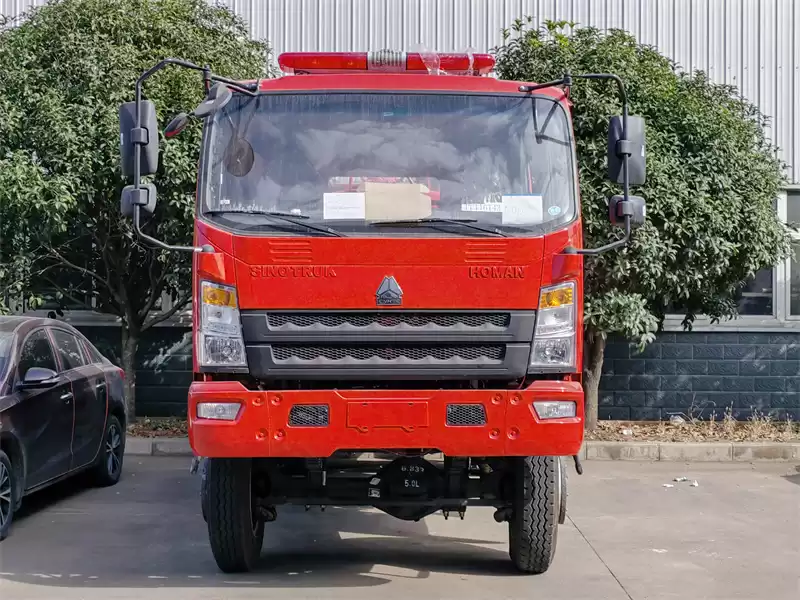

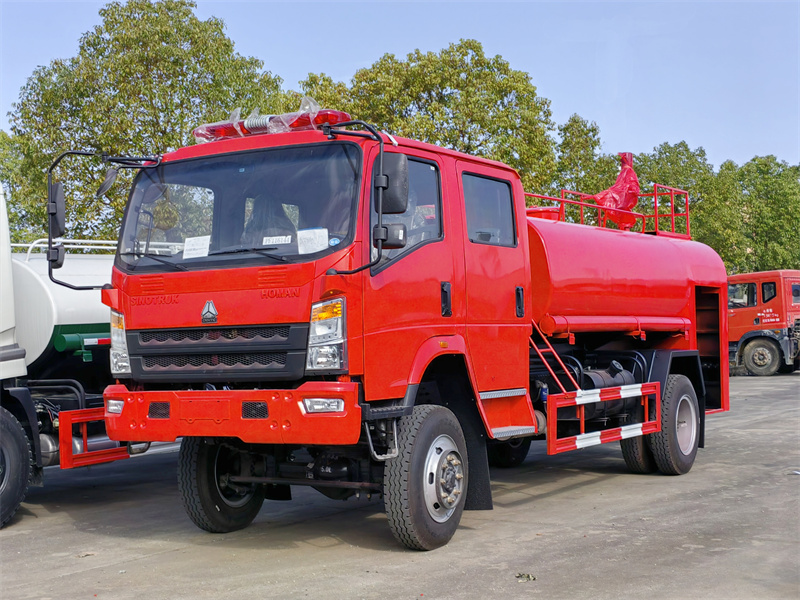

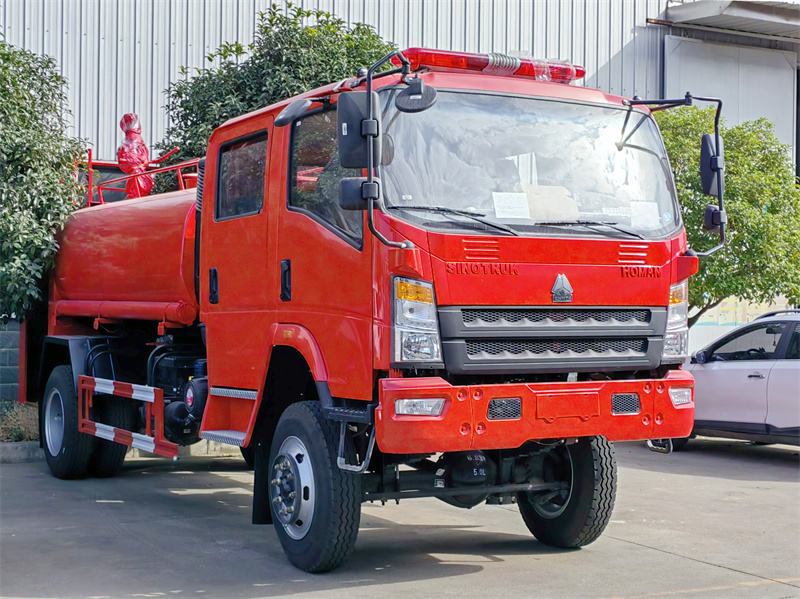

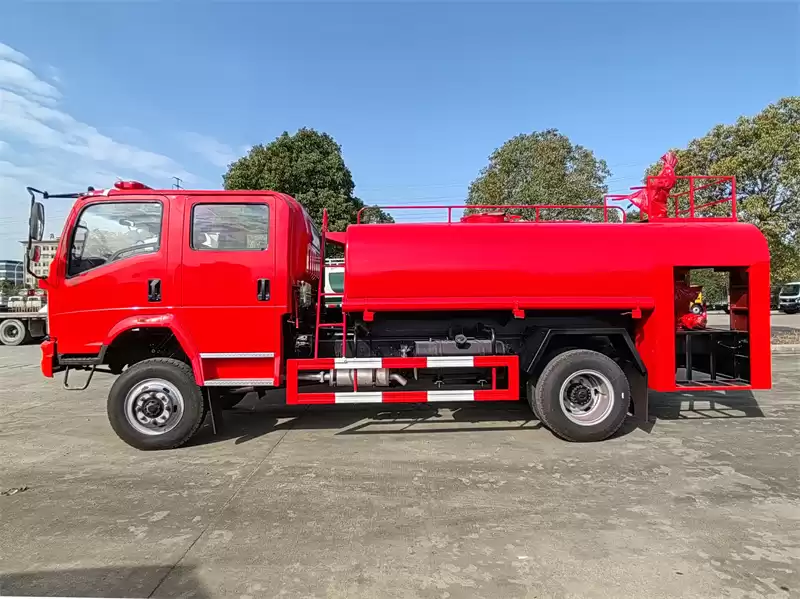

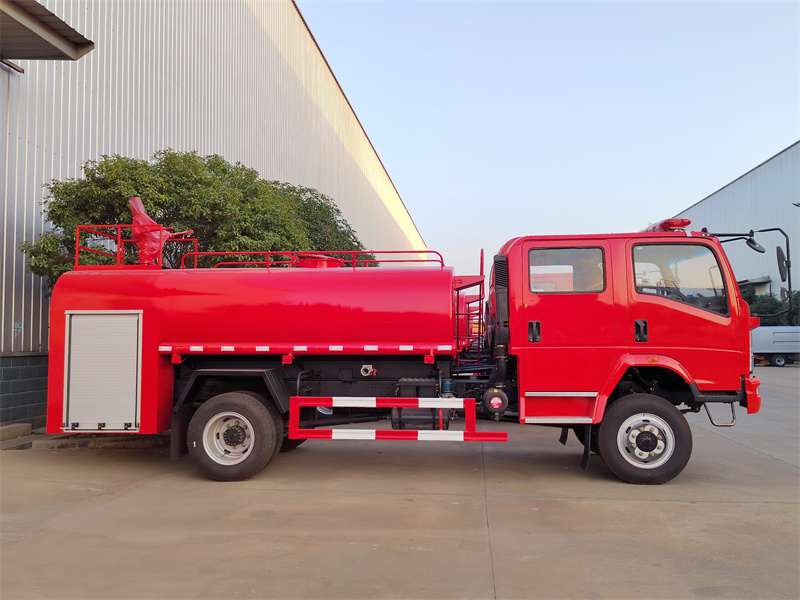

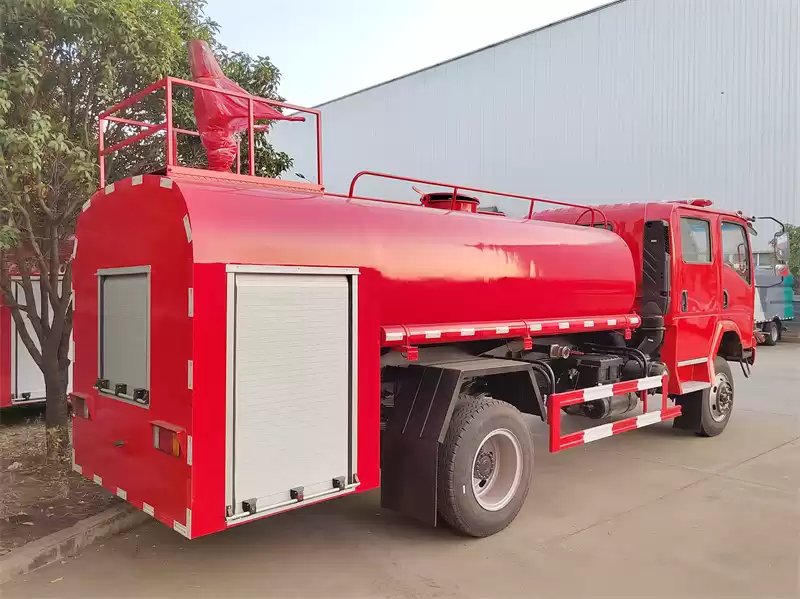

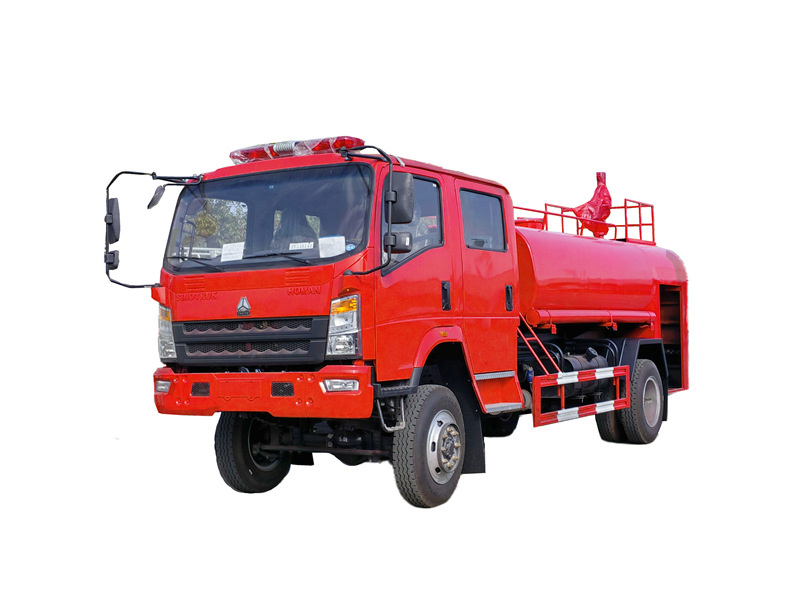

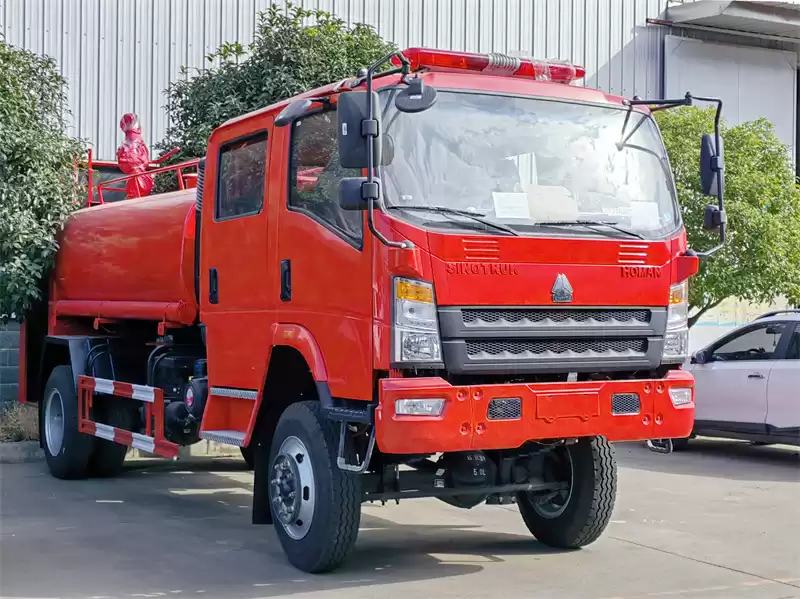

Howo 4X4 fire fighting Water Bowser
|
|
General
|
Vehicle Brand
|
Powerstar Trucks
|
|

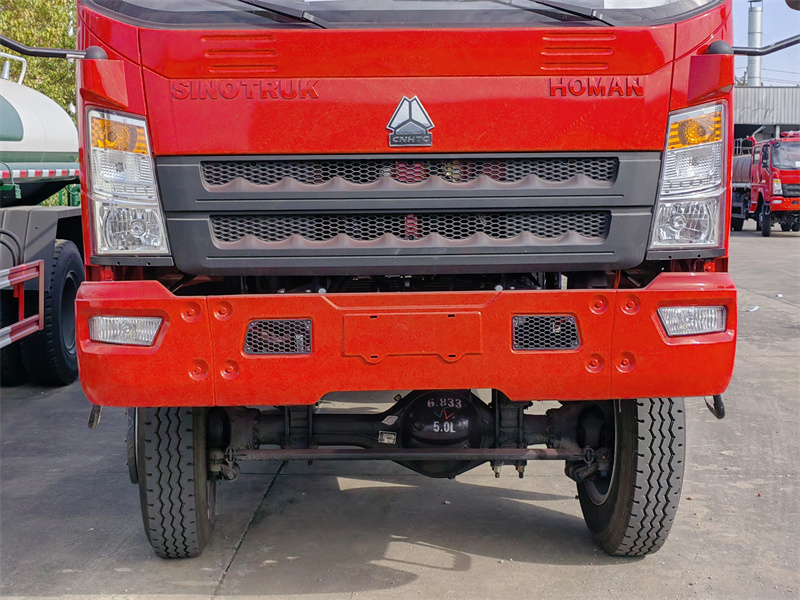

Chassis Brand
|
Howo
|
|
Overall Dimension
|
7300 * 2350 * 3150 mm
|
|
GVW / Kerb Weight
|
13,055kg / 7,300kg
|
|
Cab
|
Cab Capacity
|
3+3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
Cummins
|
|
Model
|
ISF3.8S3154
|
|
Power
|
154 HP (115 KW)
|
|
Displacement
|
3760 ml
|
|
Emission Standard
|
Euro 3
|
|
Chassis
|
Drive Type
|
4X4 (left or right hand drive)
|
|
Transmission
|
6-speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
4200 mm / 2
|
|
Tire Specification
|
8.25R16
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|

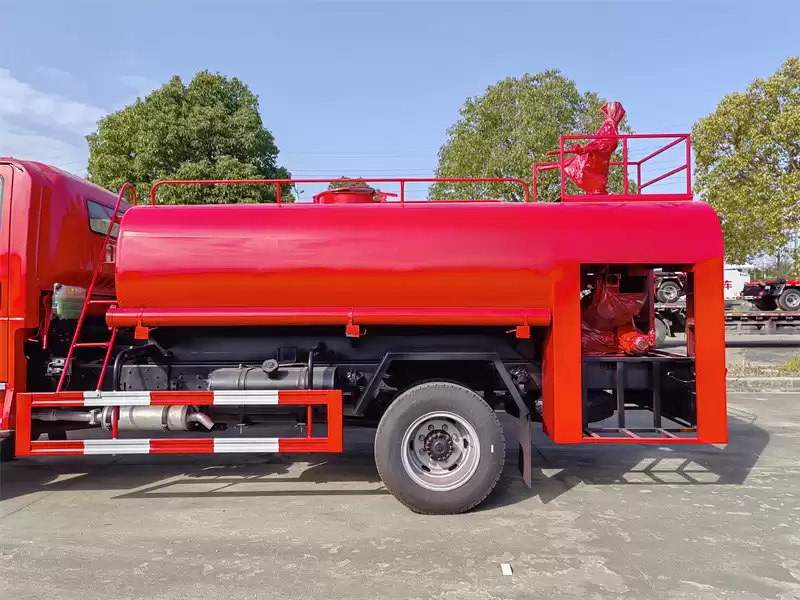

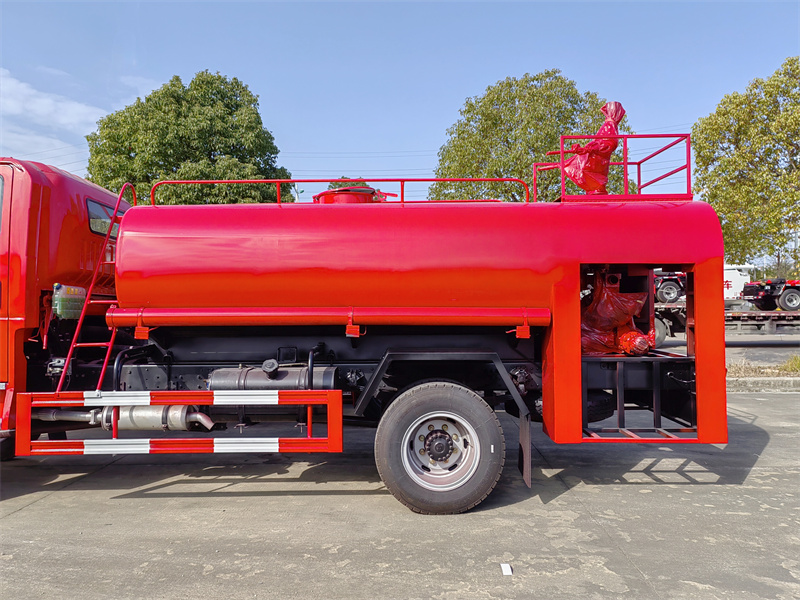

Superstructure
|

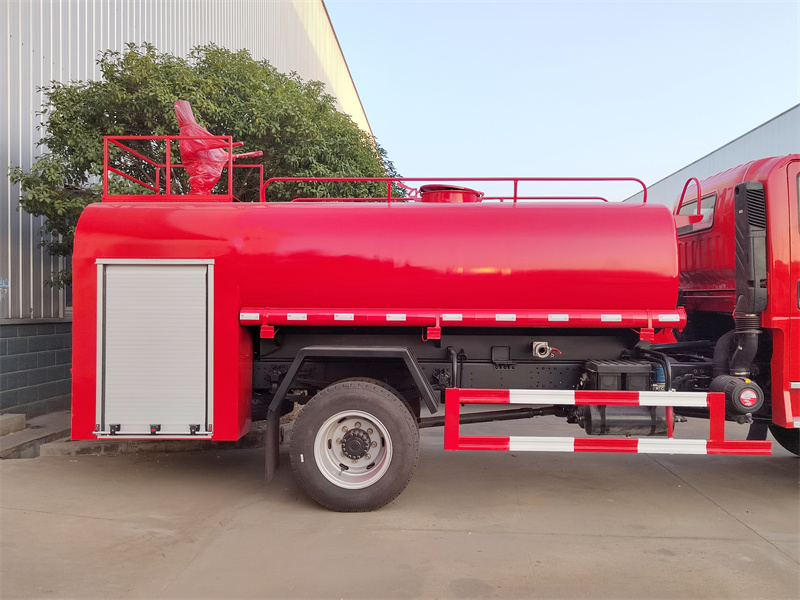

Tank Capacity
|
6,000 L Water tank
|
|
Tanker Material
|
Carbon Steel
|
|

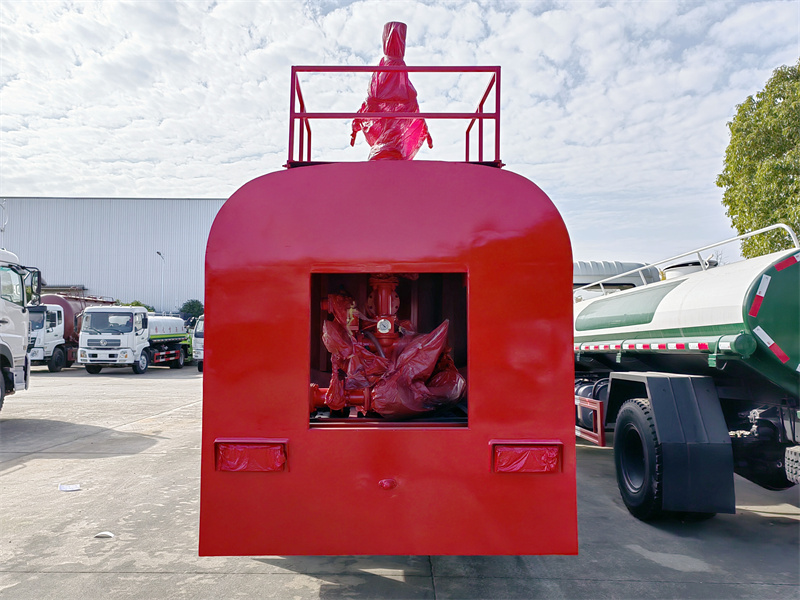

Fire pump
|
CB10/40, 36L/S
|
|
Fire pump location
|
Center or rear
|
|
Fire monitor
|
Water jet distance: ≥45m
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual……
|
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
Performance Feature:
1. Powerful off-road and passing capabilities
►All-wheel drive chassis (4X4): Adapts to complex terrain (such as mountains, mud, ruins, etc.), ensures quick arrival at the scene under adverse road conditions, and shortens rescue response time.
►8.25R16 tires: Enhance grip and stability, ensure safe handling under high-speed driving or rugged terrain.
►Optional front trailer winch/snow removal equipment: Expands self-rescue and rescue capabilities in extreme environments (such as snowstorms, trapped vehicles).
2. High-efficiency fire extinguishing performance
►Large-capacity water tank (6000L): Provides independent fire extinguishing resources, especially suitable for water-scarce areas or initial fire control, reducing dependence on external water supply.
►High-pressure fire pump and gun combination:
● 36L/S@1.0MPa flow rate: High flow rate quickly covers the fire scene and suppresses the fire.
● Range of more than 45 meters: Long-distance precise fire extinguishing, protecting the safety of firefighters, suitable for high-risk scenarios such as high-rise buildings or chemical fires.
● 32L/S@2.0MPa rated flow rate: Maintains stable output under high-pressure conditions to cope with high-intensity fires.
3. Versatility and scene adaptation
►Modular optional configuration:
● Rear folding arm crane: used for traffic accident rescue, obstacle clearing or equipment lifting.
● Front snow removal equipment: expand winter disaster rescue capabilities.
● Winch system: vehicle towing or rescue of trapped personnel/materials.
► Comprehensive standard configuration:
● Multi-directional working lights (cab, top, rear): ensure safe operation at night or in low-light environments.
● Generator and full set of firefighting equipment: ensure power supply and tools are available to support long-term operations.
● Safety protection facilities and anti-collision design (U-shaped subframe, rubber fender): improve occupant safety and vehicle durability.
4. Examples of actual application scenarios
►Forest/mountain fires: AWD chassis and high-range water cannons can break through complex terrain restrictions and suppress fires remotely.
►Urban high-rise fires: Large-flow water pumps with a 45-meter range can effectively cover medium and high-rise buildings.
►Natural disasters (floods, snowstorms): winches, snow removal equipment and cranes support multiple types of rescue missions.
►Industrial fires: Large-capacity water tanks and high-pressure pumps can deal with chemical leaks or explosions in the early stages.
