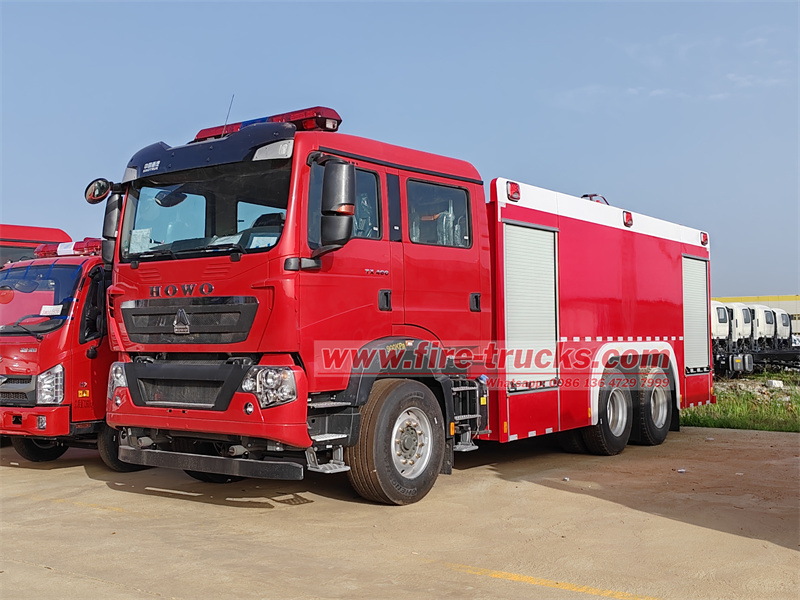

HOWO TX400 emergency fire department apparatus

HOWO TX400 emergency fire department apparatus is equipped with a 400HP Euro 6 engine and a 12-speed intelligent gearbox, which has both strong power and low fuel consumption. The upper body adopts a "equipment-water tank-pump room" trinity layout: the front equipment room is equipped with more than 20 types of equipment such as demolition and protection; the middle is equipped with a 10m³ carbon steel water tank and a 2m³ stainless steel foam tank, which supports water-foam coordinated fire extinguishing; the rear pump room integrates a CB10/60 fire pump and an intelligent control panel, which can switch the fire extinguishing mode with one button, and is equipped with a PL8/48 fire cannon to achieve 70-meter long-range precision strike. The vehicle has all-terrain passability, high-efficiency fire extinguishing performance and modular expansion capabilities. It is suitable for rescue in multiple scenarios such as urban high-rise buildings, chemical parks, and forest fires. It is a medium-sized firefighting weapon that takes into account both reliability and intelligence.

● China best Isuzu fire truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service

★ Chassis and body structure

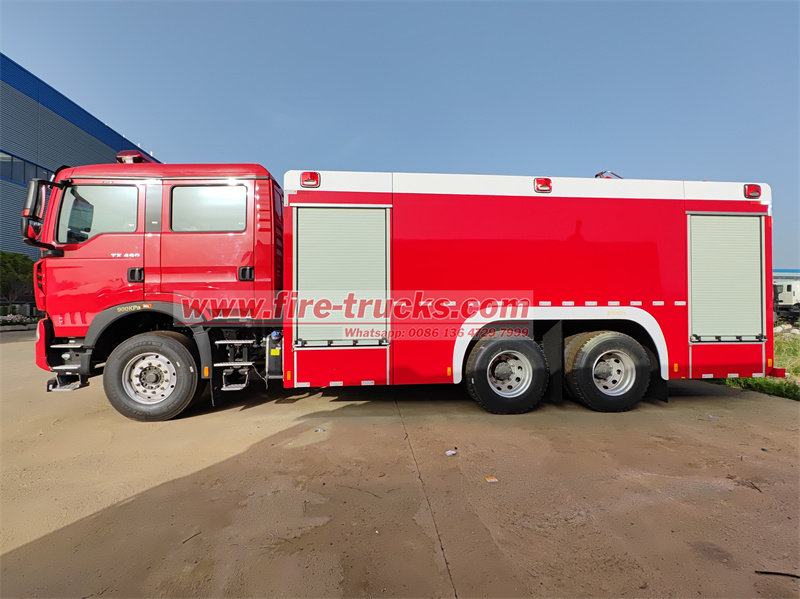

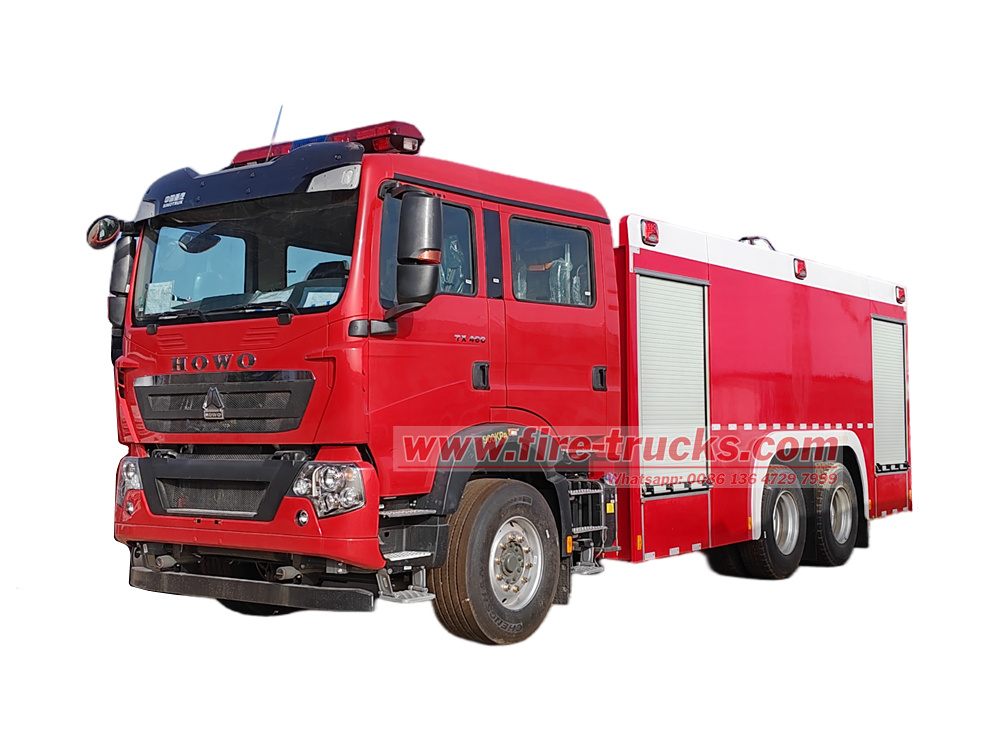

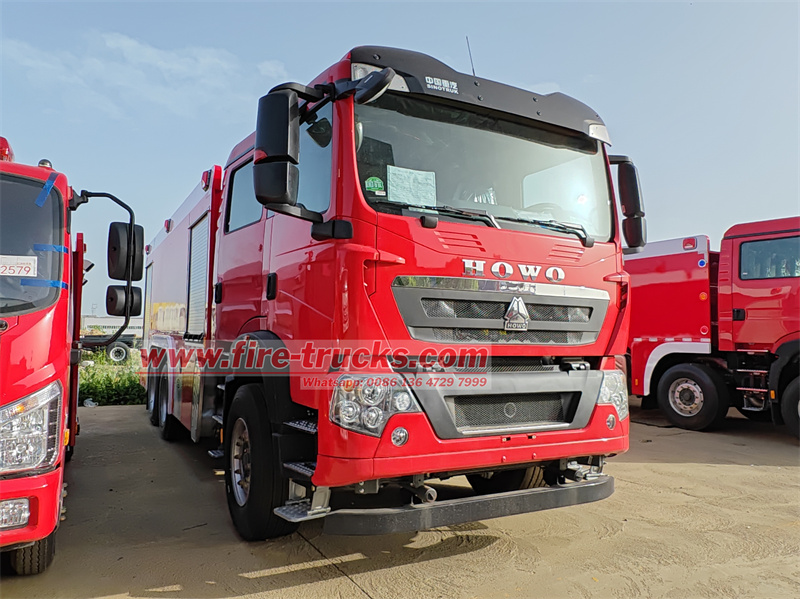

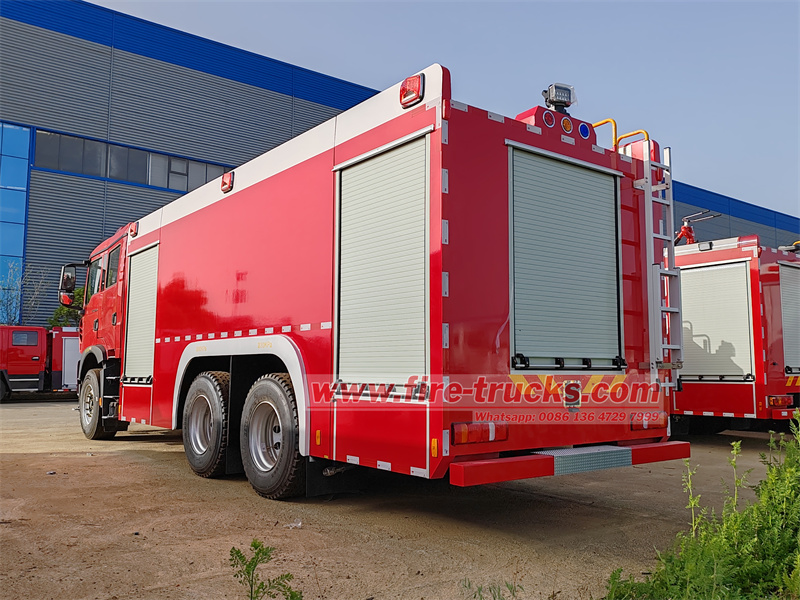

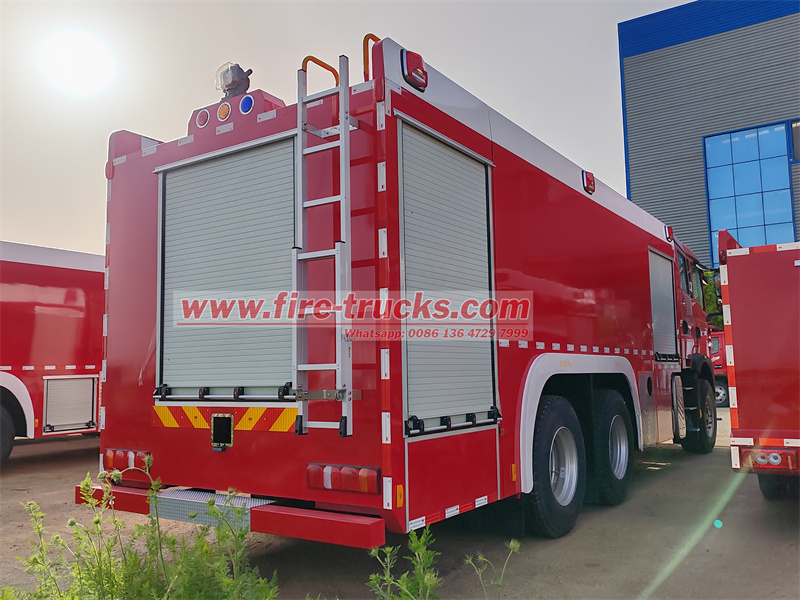

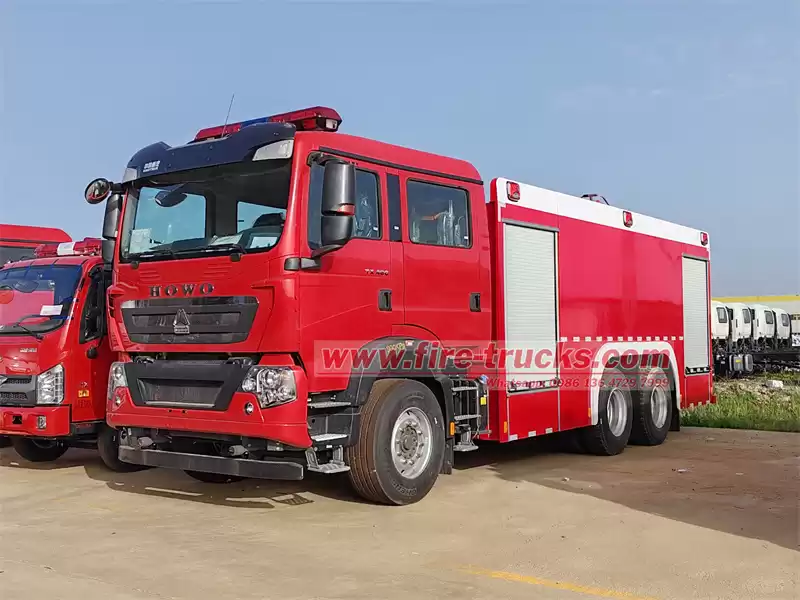

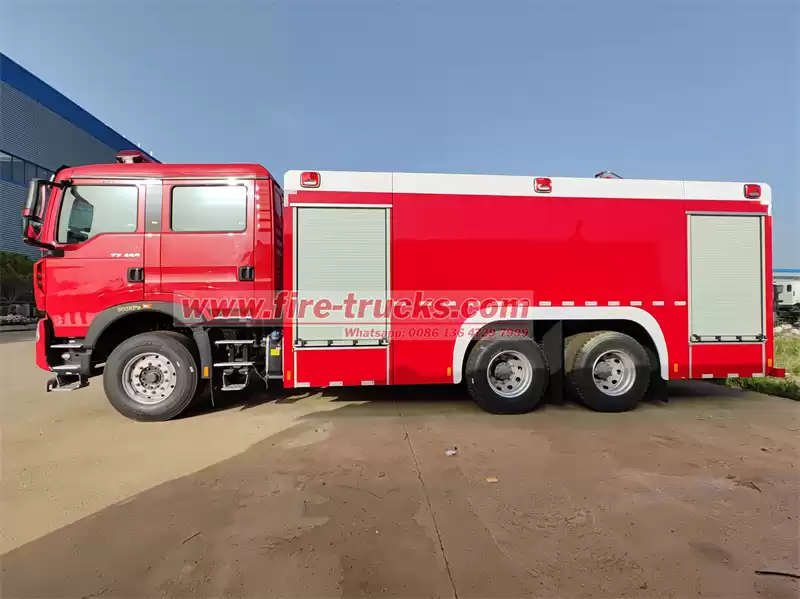

The HOWO TX400 emergency fire truck is modified based on the Sinotruk HOWO TX400 6×4 chassis. It adopts a 4325+1350mm double-stage wheelbase design, taking into account vehicle stability and passability. The cab has a 2+4 seat layout (driver + co-pilot + 4 firefighters), with spacious space, suitable for rapid deployment and long-distance rescue missions.

WP10H400E62 engine

Power performance: 400 horsepower (294kW), meeting Euro VI emission standards, with both high power and low pollution characteristics.



Torque output: Maximum torque reaches 1900N·m (1200-1300rpm), adapting to complex road conditions and heavy load requirements.



Technical highlights: Adopting high-pressure common rail fuel system and intelligent electronically controlled EGR technology to optimize combustion efficiency and reduce fuel consumption and noise.

Sinotruk HW19712CL gearbox

12-speed manual transmission: with overdrive design, wide speed ratio range, suitable for frequent start-stop and high-speed rescue needs of fire trucks.



Reliability: lightweight design of aluminum alloy shell, smooth synchronizer shifting, strong durability.

★ Detailed explanation of upper functional modules

Front equipment room

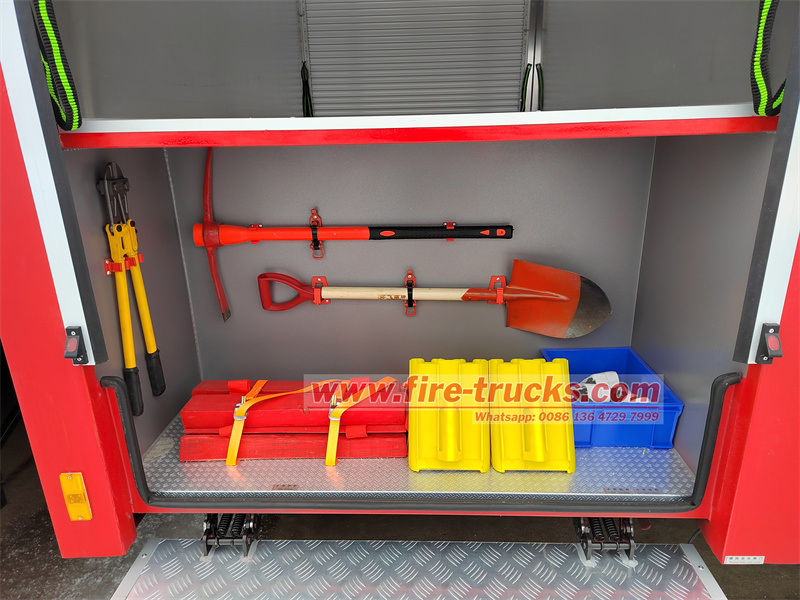

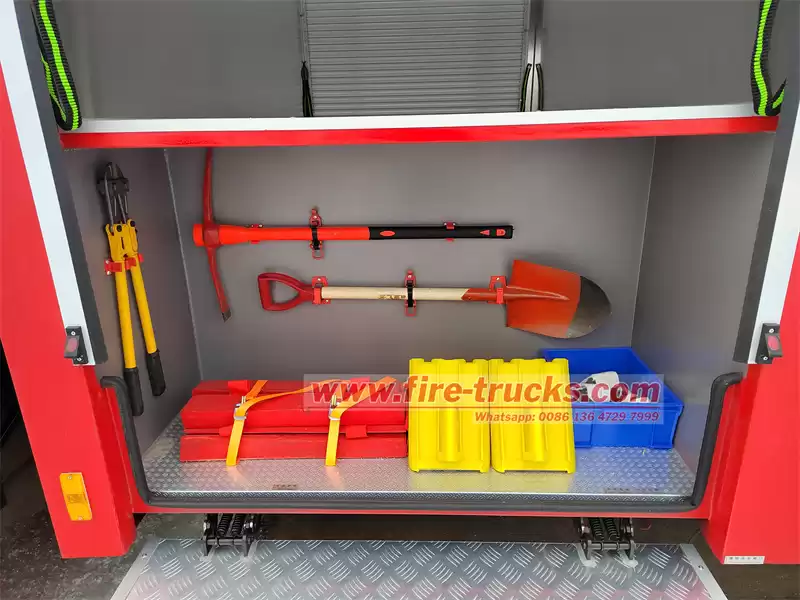

Layout: modular storage space, built-in fire emergency tools, including shovels, pickaxes, hose wraps, bridge guards, etc., classified and fixed, easy to use.



Use: suitable for initial rescue tasks such as demolition, plugging, and road cleaning.

Middle tank system

10 cubic carbon steel water tank: volume 10,000L, made of anti-corrosion carbon steel, internal wave plate design to ensure water stability during driving.



2 cubic stainless steel foam tank: volume 2,000L, 304 stainless steel material, corrosion-resistant, can store A/B type foam liquid, support foam fire extinguishing system.

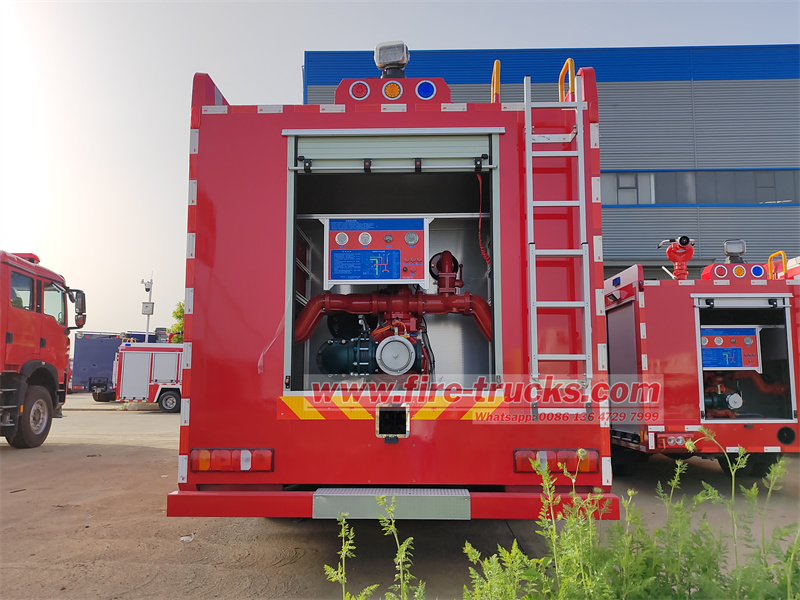

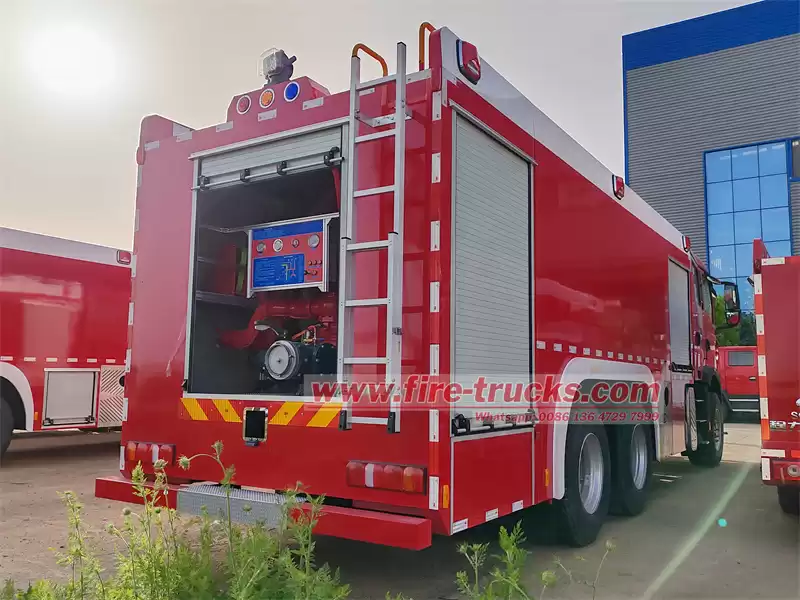

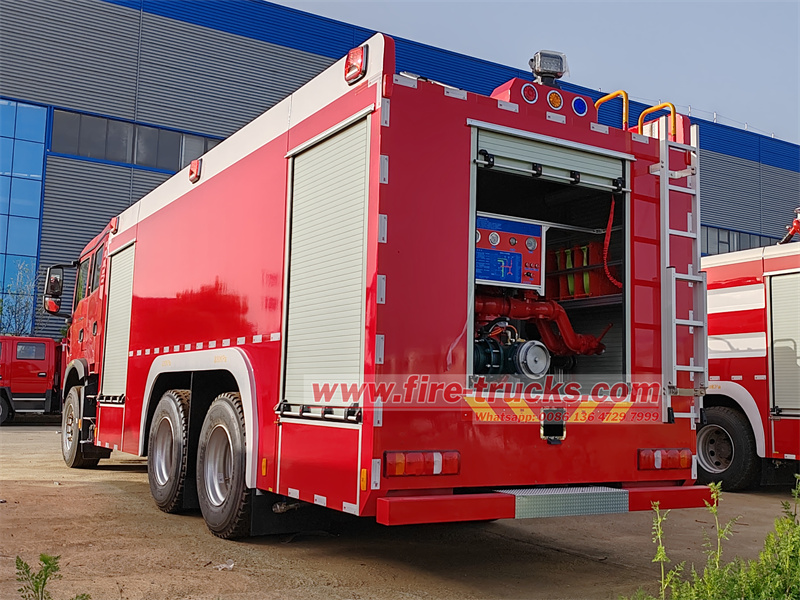

Rear pump room

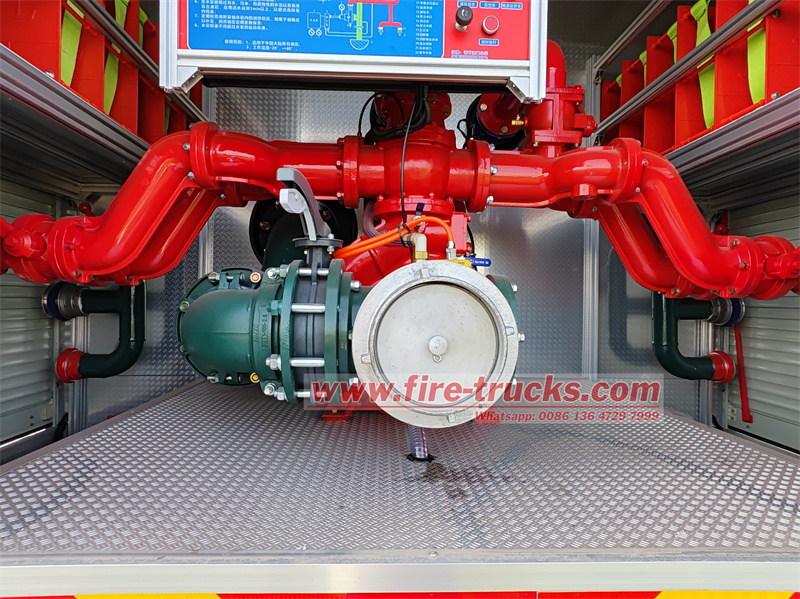

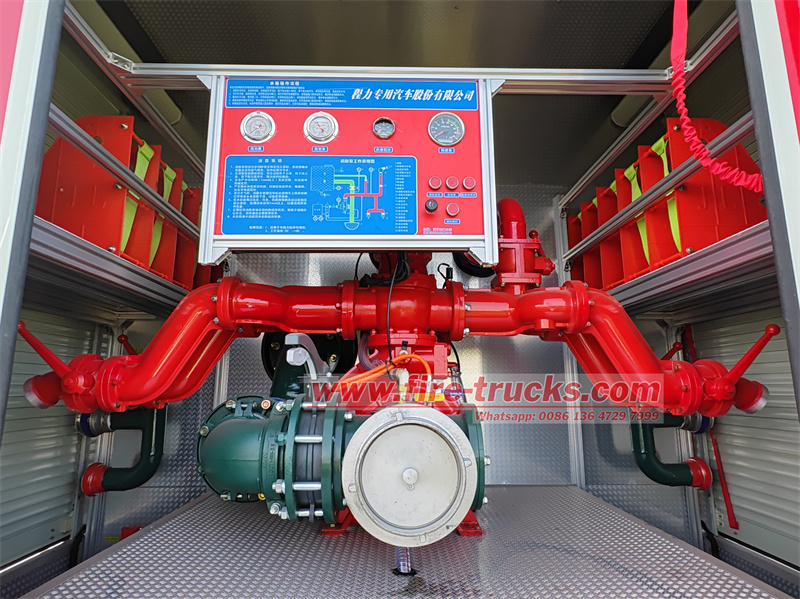

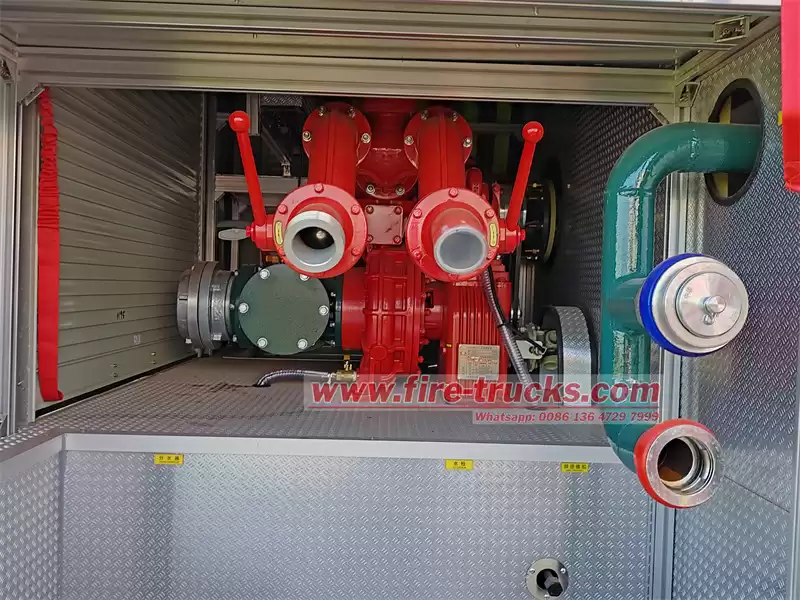

Fire pump: equipped with CB10/60 fire pump, flow rate 60L/s, pressure 1.0MPa, supports fast water/foam mixed injection.

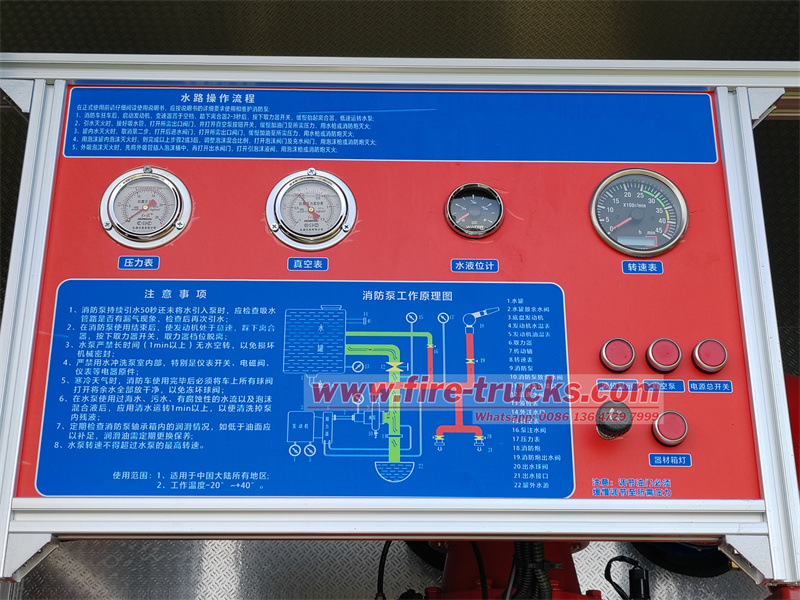

Control panel: integrated pressure gauge, vacuum gauge, tachometer, water level gauge, foam level gauge, real-time monitoring of the pump group operation status. Liquid level display, main power switch, vacuum pump, equipment box light and other buttons control specific operations

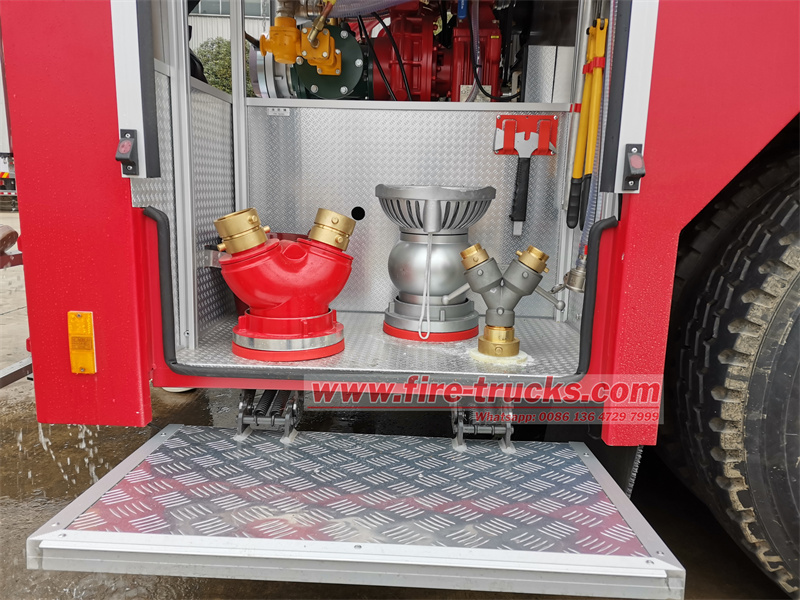

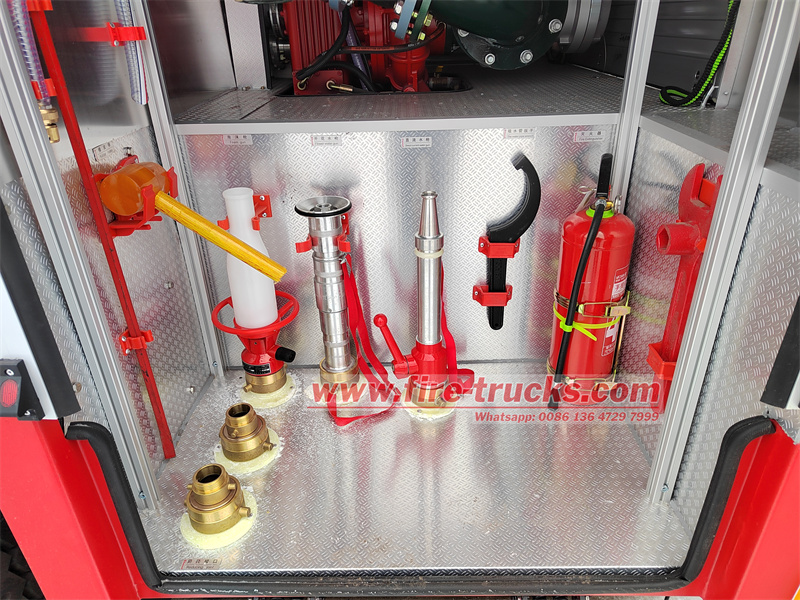

Auxiliary tools: built-in fire hose, water collector, water distributor, water filter, reducer, etc., suitable for a variety of rescue scenarios; fire shears, wrenches, fire extinguishers and other emergency equipment are also equipped.

•
•
•

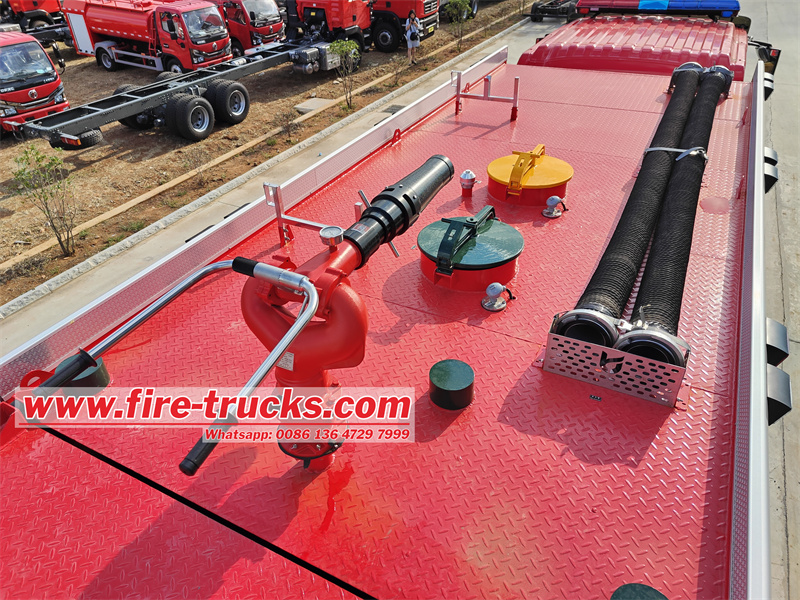

Top fire monitor

PL8/48 fire monitor: flow rate 48L/s, range water ≥70m, foam ≥60m, support water/foam dual mode switching, remote control operation, covering a large area of ​​fire.

★ Application scenarios and advantages

Applicable scenarios

Urban fire fighting: large-capacity water tanks and foam systems are suitable for Class A/B fires.

Traffic accident rescue: The equipment room tools can quickly handle the dangerous situations derived from traffic accidents.

Industrial zone emergency: High-pressure fire cannons can deal with high-risk scenarios such as chemical fires.

Core advantages

Efficient power: 400 horsepower engine + 12-speed gearbox to ensure rapid response under complex road conditions.

Multi-functional integration: Water tank, foam tank, equipment room, pump room four-in-one to meet comprehensive rescue needs.

Intelligent control: Pump room control panel and remote control fire cannon improve combat efficiency.
