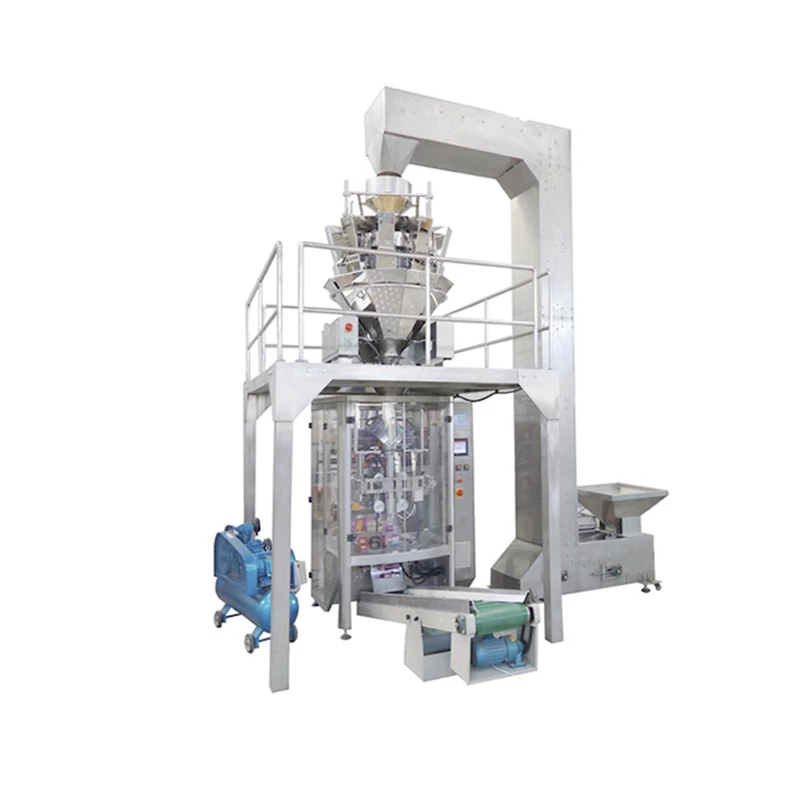

HP-SZ Fully Automatic Packaging Machine

Used for weighing and quantification for the materials of Potato, rice crust, puffed food, walnut, pistachio, large shell nut, sweet, melon seeds, glue pudding ,rice dumpling and other frozen food, jelly, waxberry, peanut, nutlet, chocolate, snake food, hardware, ice cube and other granular, lump-like, spherical and slice materials.



Features:

1.Fully automatic in the whole process of weighing, filling and bag-making, and packaging.

2.The driven core composed of programmable PLC system, servo power driven system and pneumatic executive system, carries out multiple functions of counting, date printing, nitrogen filling (air outlet),product conveying through man-machine interface of the liquid touch screen in the weighing, packaging process.

3.To do easily the parameter-setting, parameter-revising via touch screen, which can memorize and store technical data for 10 different products. This makes it easier to interchange technical data for another of these products instead of resetting.

Weighing Range

10-1000g

Weighing Precision Range

 0.1-1.5g

Bag-making Size

503-7080-240mm)(LWH

 Max Membrane Wideth

500mm

Packaging Speed

40-60bag/min

Power Current

2.5Kw 7A

Air Source Pressure

0.36.6Mpa

Air Source Consumption

0.4 Nm3/min

 Frequency Voltage

50Hz/ 60Hz    220V/ 380 V

Power Supply

Single Phrase three-sire

Outer Dimension

 1500*1580*2380mmLWH

Operation Interface

5.7-intch liquid crystal display
