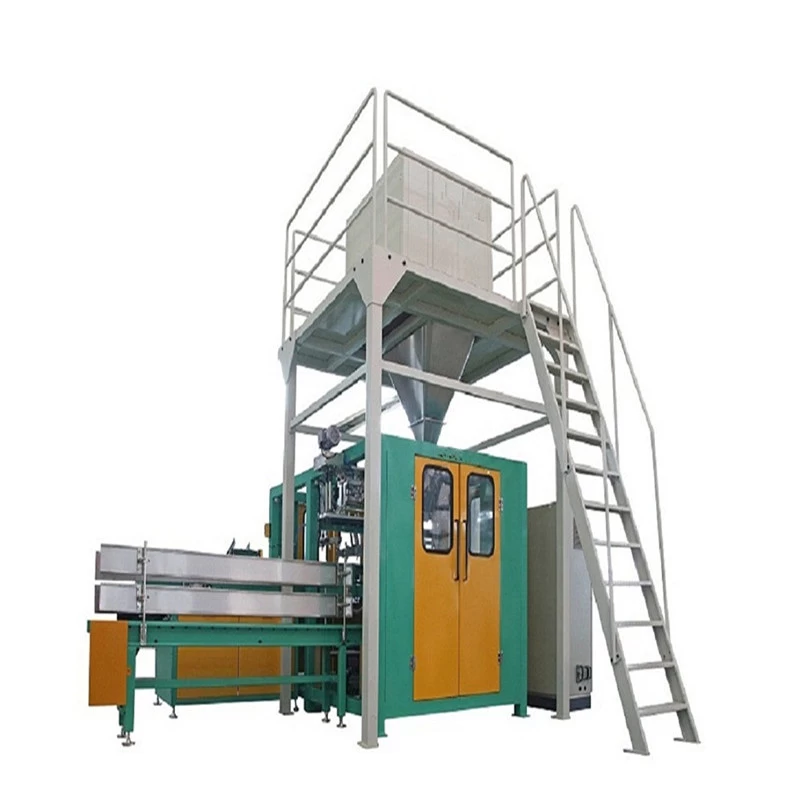

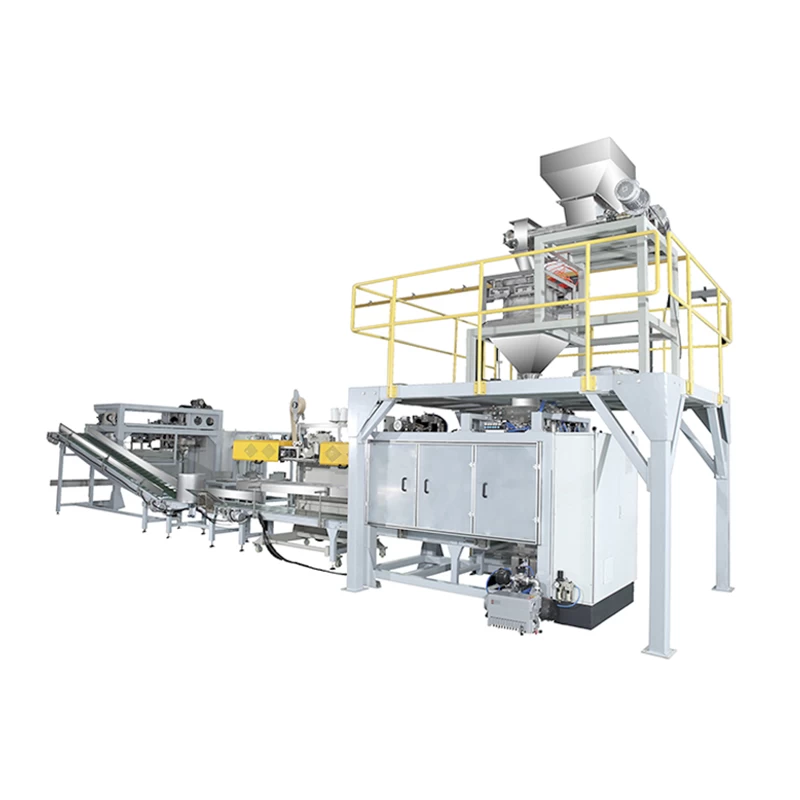

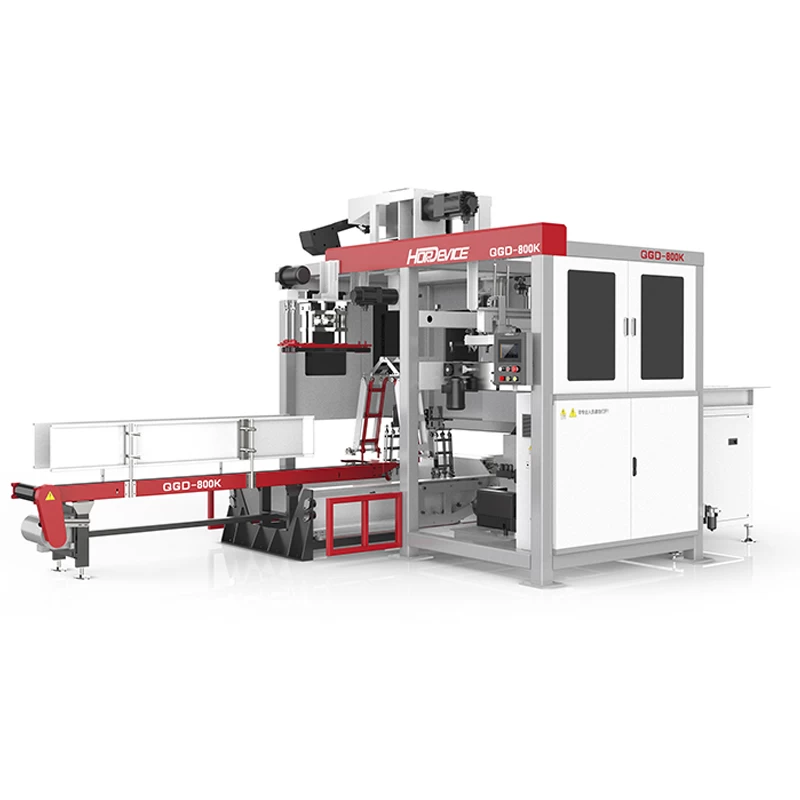

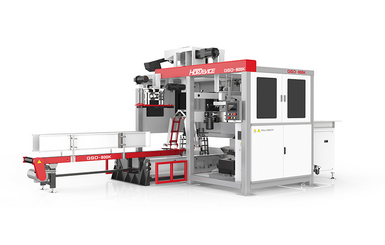

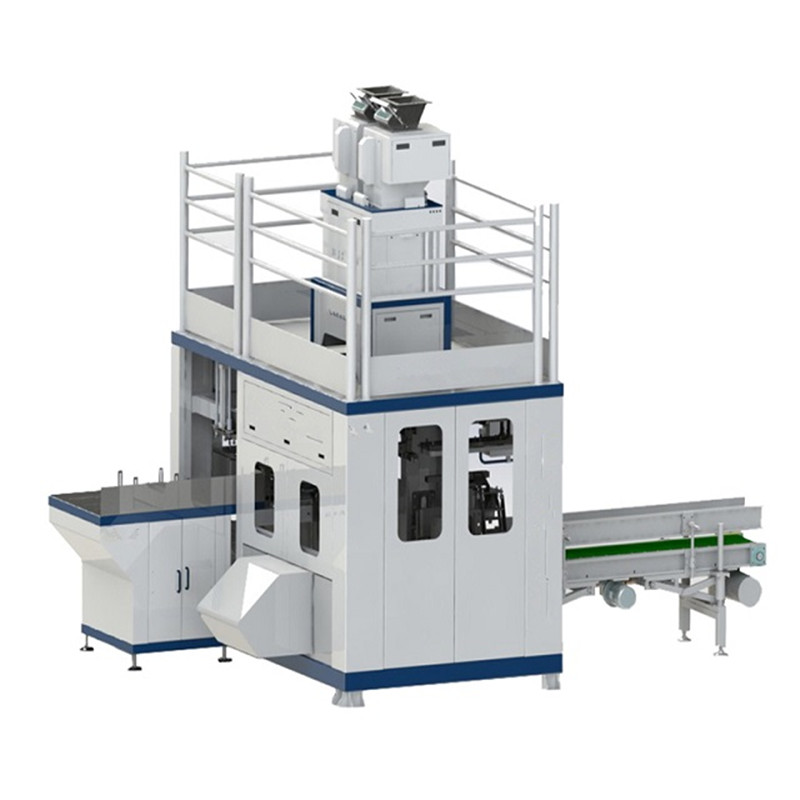

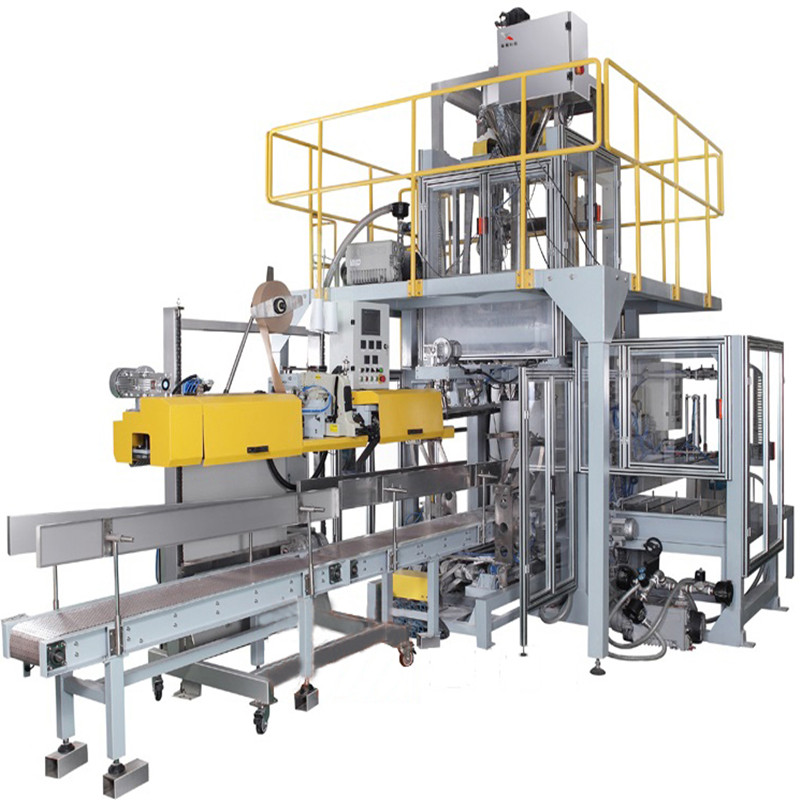

Automatic Plastic Packaging Machine QGD-800
1.Technical Parameters
1.1 Packaging Unit
a. Hopper:0.3m³Cone Type equipped with function of material level alarm
b. Measuring Scale: High accurate packaging, three-sensor location weighing structure,packaging speed over 800bags/h
c. Bag hopper:max 300 free-loading bags
d.Bag Holding Type:mechanical arm fetching
e. Bag Sealing Type:fully automatic over-edging,thread stitching
f.Repair Platform: Lade stand,anti-slip platform and safety railing
1.2 System equipment meets engineering condition &public use.
(1) Electricity:220/380V,50Hz
(2) Power:14kw
(3) Air Supply Pressure:0.5-0.7MPa
(4) Air Consumption:1.8Nm³/min
(5) Temperature:-15℃-45℃
|
Category
|
Packing Machine
|
|
Model
|
QGD-800
|
|
Speed
|
≤900bags/hour
|
|
Weighing Range
|
20-50Kg/B
|
|
Accuracy
|
±0.2% (2ó)
|
|
Sealing Method
|
1. woven bag: fold/sewing
2.paper bag: heat sealing/ sewing
3.complex film plastic bag: heat sealing
4.crepe paper bag covered edge+ sewing
|
|
Power Supply
|
AC 380V×3，50Hz，（R. S. T. E.+E1）
|
|
Total Power
|
14KW
|
|
Air Pressure
|
0.5-0.7 MPa
|
|
Air Supply
|
1.8Nm³/min
|
|
Noise
|
≤75db（test above 1m）
|
|
Working environment Temperature
|
Indoor（0～+40℃）
|
|
Dimension
|
4650(L)*3050(W)*2550mm(H)
|
|
S/N
|
Item
|
Component
|
Spec.
|
Quantity
|
|
1
|
QGD800
|
Hopper
|
QGD800K-LC
|
1 PC
|
|
2
|
Scale
|
QGD800K-GY25A
|
1 PC
|
|
3
|
Bag Holder
|
QGD800K-JD
|
1 PC
|
|
4
|
Empty Bag Hopper
|
QGD800K-BD
|
1 PC
|
|
5
|

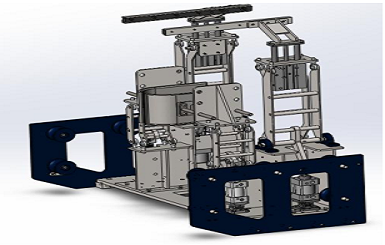

Bag Lifting& Open Unit
|
QGD800K-SDKD
|
1 PC
|
|
6
|
Bag-embracing Structure
|
QGD800K-BDYS
|
1 PC
|
|
7
|
Guiding Structure
|
QGD800K-DX
|
1 PC
|
|
8
|
Over-edging Sealing Machine
|
HP-GS-9C
|
1 PC
|
|
9
|

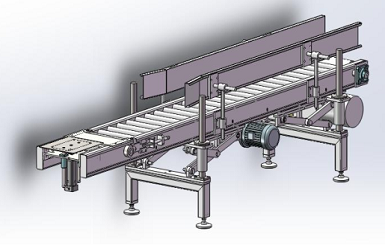

Vertical Bag Conveying& Tackling Machine
|
QGD800K-LDS
|
1 PC
|
|
10
|
Control Panel
|
HPV 1.0 Control System
|
1 PC
|
|
11
|
Platform,Pillar & Safety Railing
|
QGD800K-LZ
|
1 PC
|

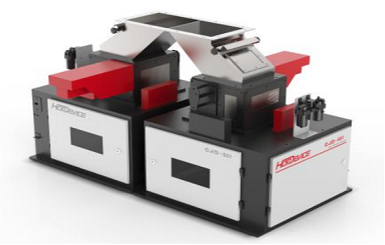

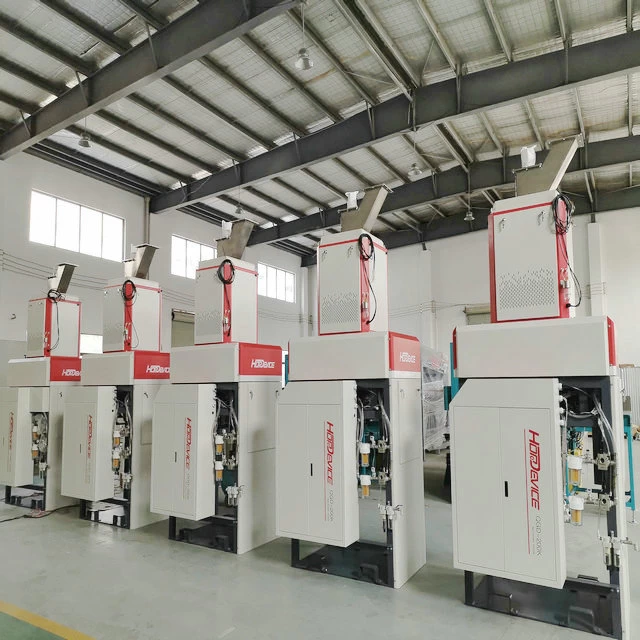

2.High Speed Weighing Machine
|
S/N
|
Model
|
CJD-50II
|
|
1
|
Speed
|
≤1200bags/h
|
|
2
|
Accuracy
|
Within±0.2%
|
|
3
|
Bag Spec.
|
25-50kg
|
|
4
|
Control System
|
Siemens PLC Control System
|
|
5
|
Material
|
Machine parts direct touch with material is stainless steel, other parts use cabon steel
|
|
6
|
Electricity
|
AC380V±10%，50HZ±0.5HZ
|
|
7
|
Air Supply
|
0.5-0.7Mpa
|
|
8
|
Temperature
|
-15℃-45℃
|
|
9
|
Power
|
2.2kw
|
|
10
|
Air Consumption
|
0.1Nm³/min
|
3. Bag Fetching Complete List
Application:
Applicable to many industries, including the chemical industry, cereal, food, pharmacy, fertilizer, seed, feed, and additives, etc., and mainly targeted at the full-automatic high-speed measurement and packaging of granular, loose and flake-like materials;
