HTG fiberglass sleeve
1.Product Introduction

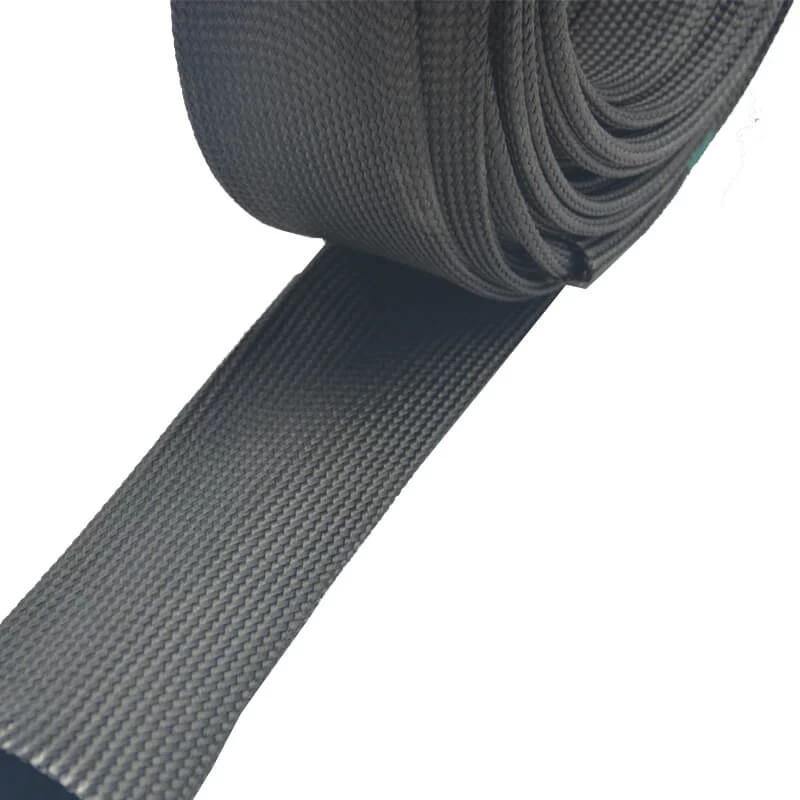

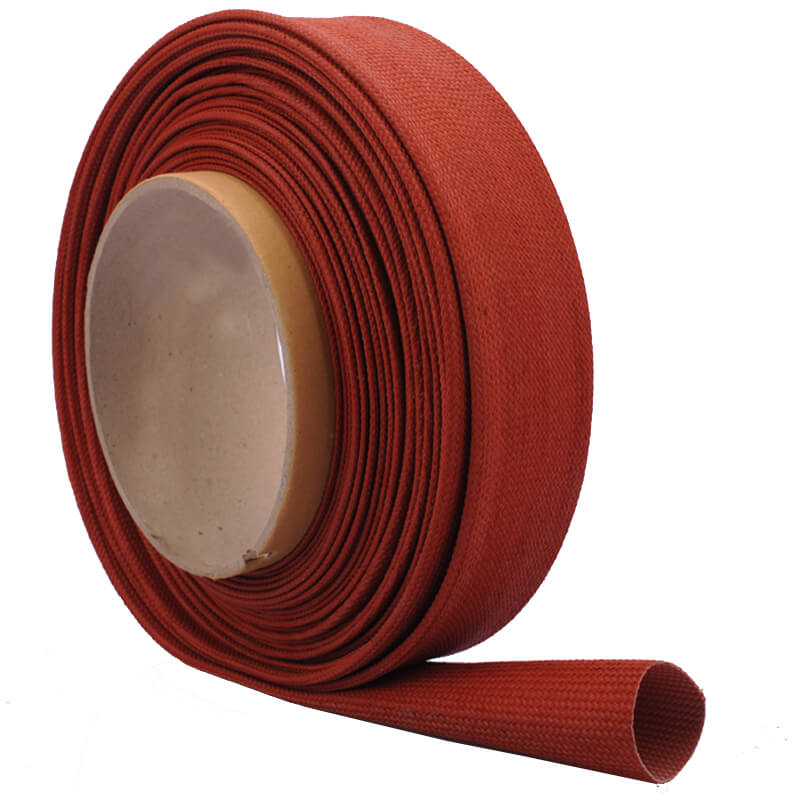

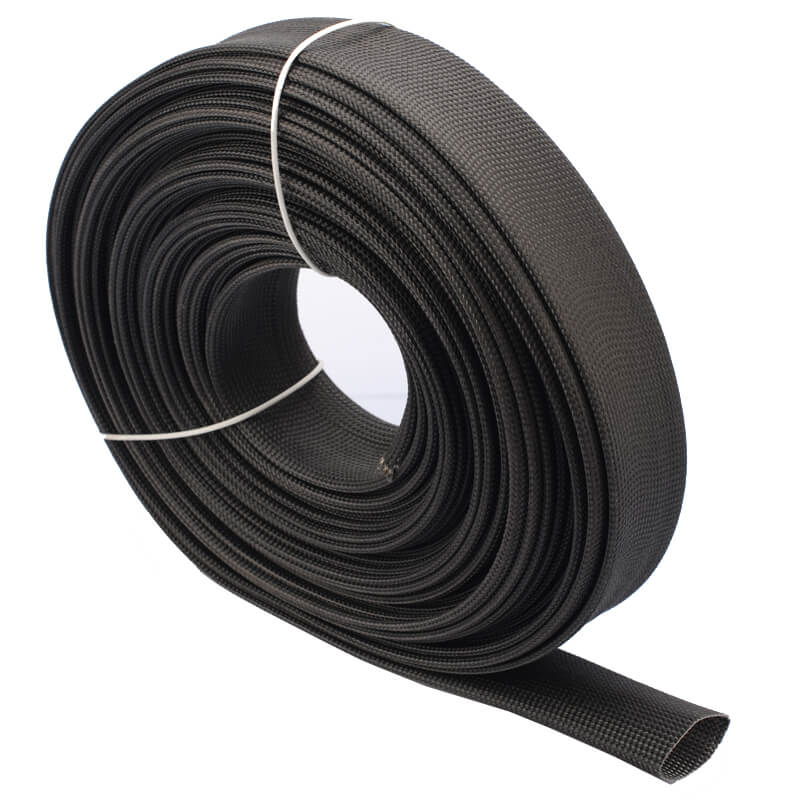

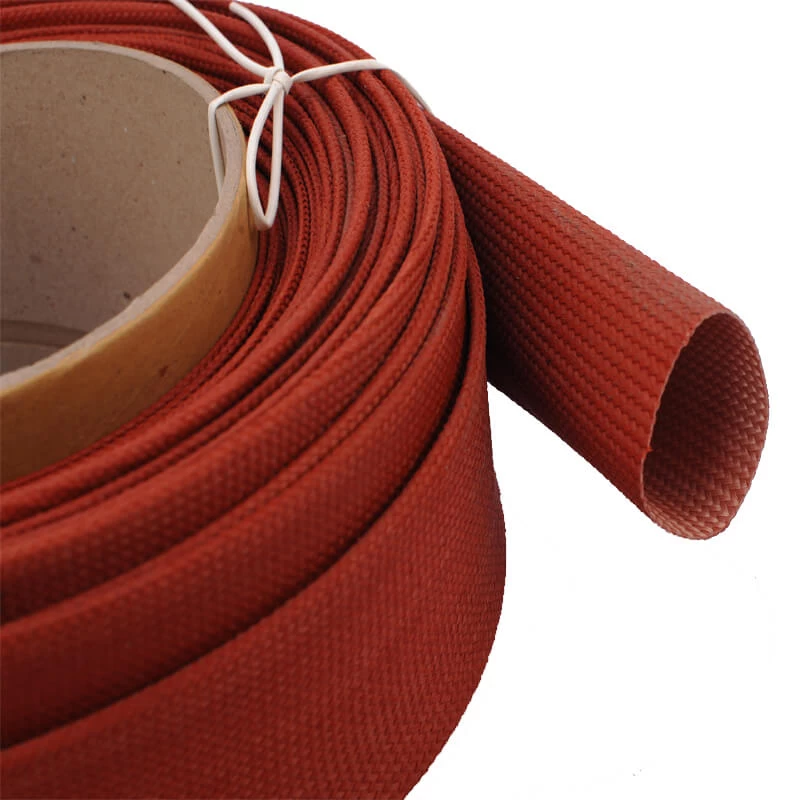

ZBAO HTG Fiberglass Sleeve is kind of insulation fire sleeve, which braided by E grade glass fiber then weave lock by impregnated with special resin. Widely used to protect wires from high temperature and occasional flame on electric motor, household appliances and automobile.
2.Product Characters
|
Thermal Class
|
C
|
|
Size/Inner diameter
|
1mm-30mm
|
|
Colour
|
White.Other colors can be customized
|
|
Working temperature
|
-70°C -550°C
|
|
Breakdown voltage
|
1kv
|
|
Character
|
High temperature & flame resistant,anti-aging,acid and alkali resistant.
|
3.Standard Specifications
|
ZBAO Part No.
|
Inner Dia./mm
|
Thickness /mm
|
Roll Length/m
|
|
Nominal
|
Tolerance
|
|
ZBHTG-S-010
|
1
|
+0.30
-0.0
|
0.30±0.12
|
Min Packing 100m/roll
MOQ:5000m
|
|
ZBHTG-S-015
|
1.5
|
|
ZBHTG-S-020
|
2
|
0.40±0.15
|
|
ZBHTG-S-025
|
2.5
|
|
ZBHTG-S-030
|
3
|
Min Packing 100m/roll
MOQ:3000m
|
|
ZBHTG-S-040
|
4
|
|
ZBHTG-S-050
|
5
|
+0.5
-0.0
|
0.45±0.15
|
|
ZBHTG-S-060
|
6
|
|
ZBHTG-S-070
|
7
|
|
ZBHTG-S-080
|
8
|
|
ZBHTG-S-090
|
9
|
+1.0
-0.0
|
0.60±0.20
|
|
ZBHTG-S-100
|
10
|
Min Packing 50m/roll
MOQ:2000m
|
|
ZBHTG-S-120
|
12
|
|
ZBHTG-S-130
|
13
|
|
ZBHTG-S-140
|
14
|
Min Packing 25m/roll
MOQ:1000m
|
|
ZBHTG-S-160
|
16
|
|
HTHTG-S-180
|
18
|
+2.0
-0.0
|
0.64±0.22
|
Min Packing 20m/roll
MOQ:1000m
|
|
HTHTG-S-200
|
20
|
|
HTHTG-S-220
|
22
|
|
HTHTG-S-250
|
25
|
Min Packing 20m/roll
MOQ:1000m
|
|
HTHTG-S-300
|
30
|
0.66±0.22
|
We are professional fire sleeve manufacturer,we have participated in the fierce market competition and won our customers support and trust with qualified product quality, preferential product price and satisfactory sales service.
Looking forward to cooperation with you！
