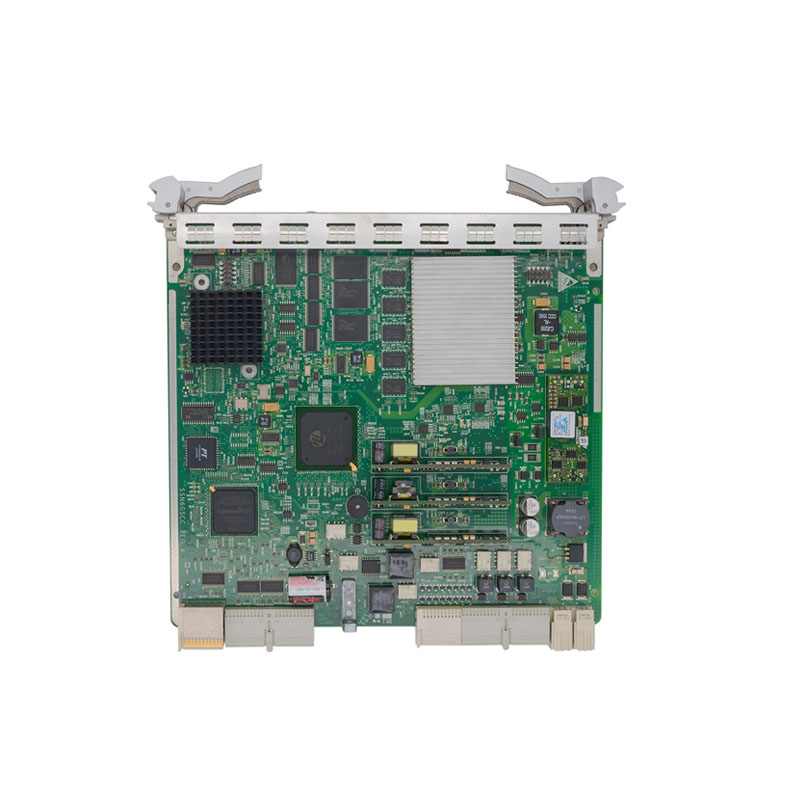

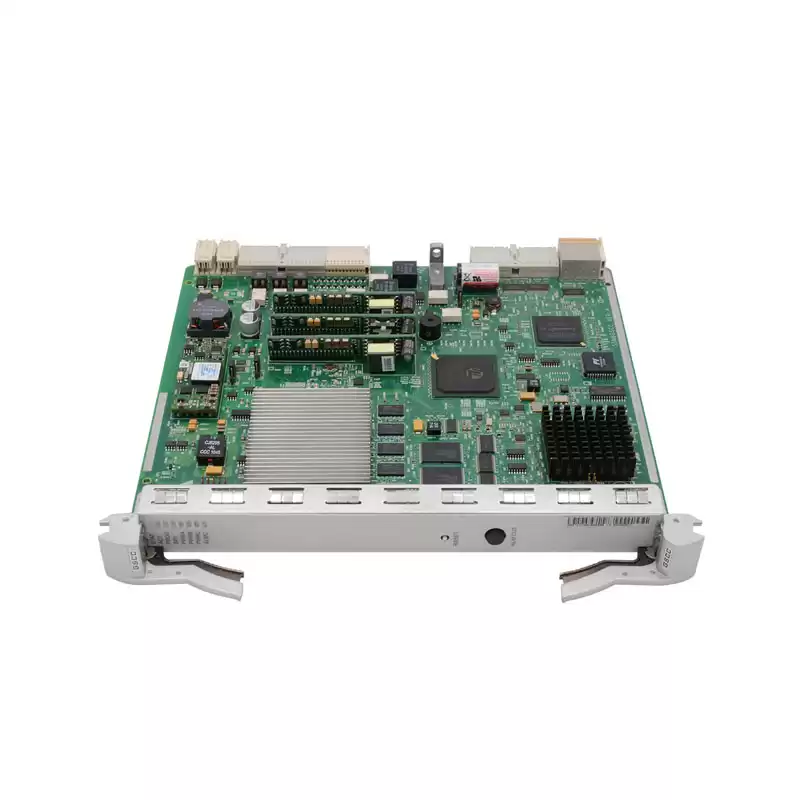

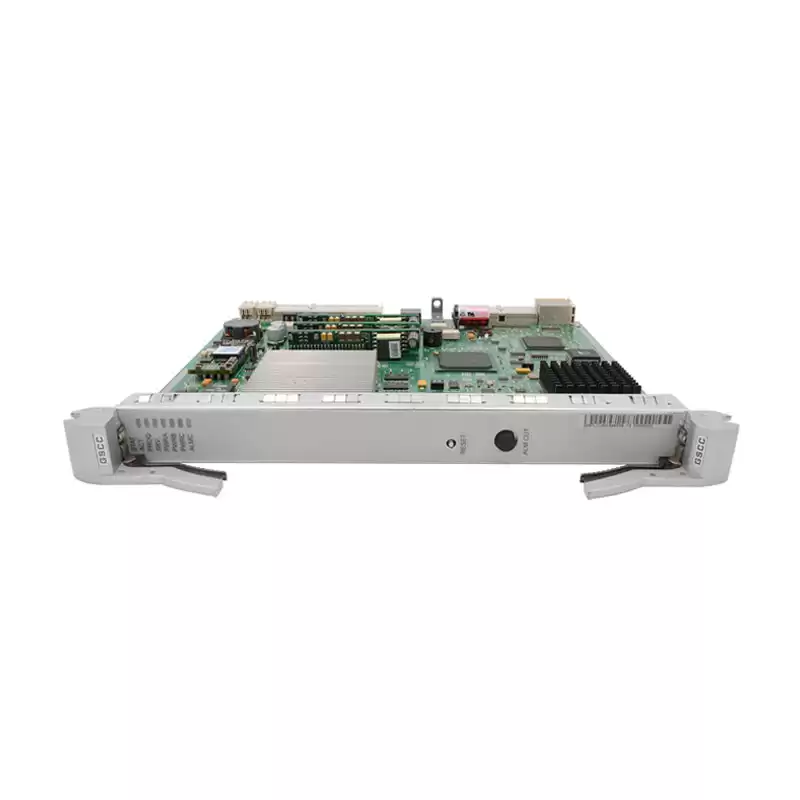

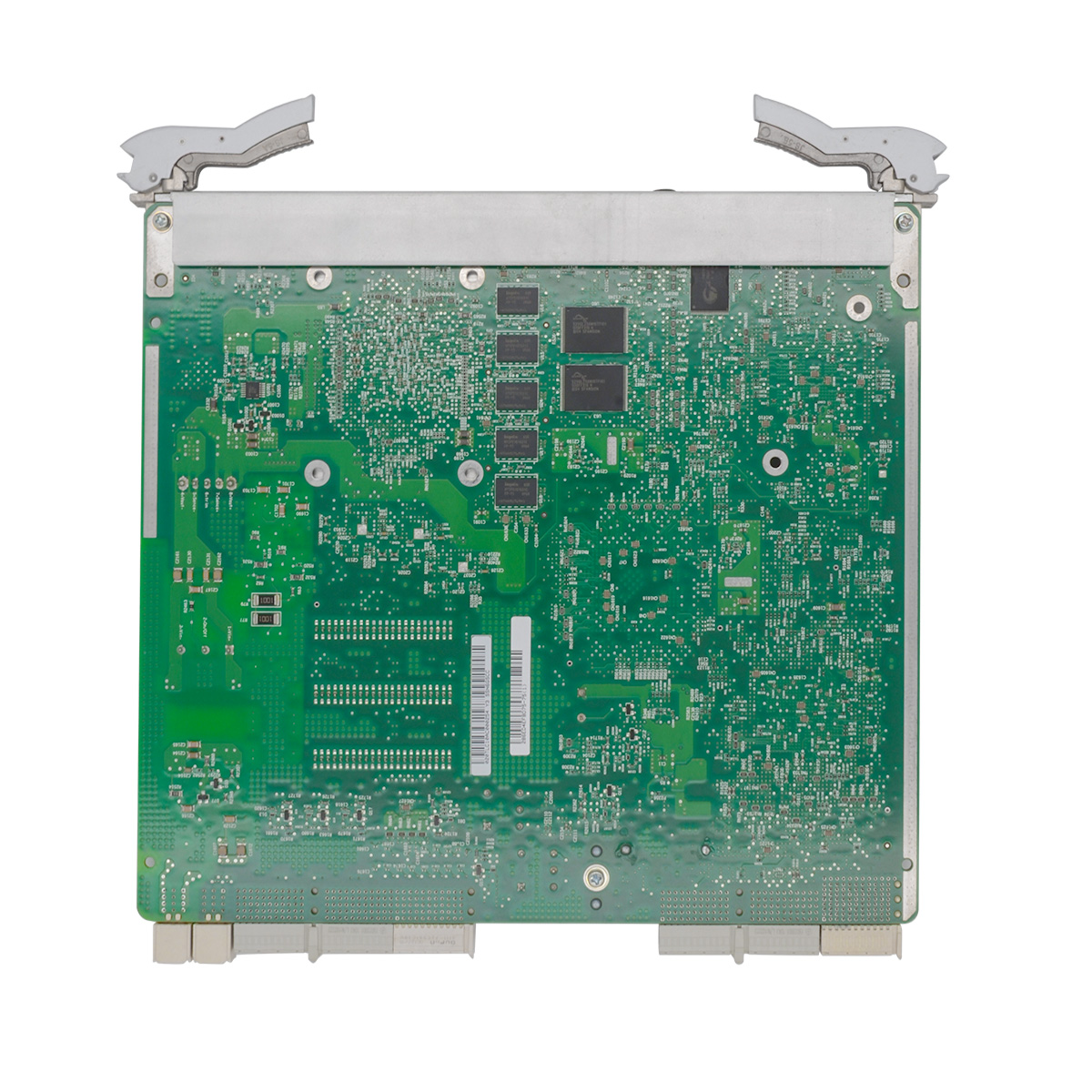

HUAWEI SSN6GSCC OptiX OSN 7500 system control board
Product Description
|
Function and Feature
|
GSCC
|
|
Basic functions
|
Performs the service configuration function and service grooming function, monitors the service performance, and collects information about performance events and alarms.
|
|
Interfaces
|
-
Provides the 10M/100M Ethernet port, which is used for communicating with the NMS. The Ethernet port is accessed through the EOW.
-
Provides the F&f interface, which is accessed through the AUX and is used to manage the COA.
-
Provides one 64 kbit/s synchronous data port F1, which is accessed through the AUX.
-
Provides the RS232 OAM interface, which is used for connecting a PC or workstation, and supports the remote maintenance by using a modem that uses the RS232 DCE interface. The OAM interface is accessed through the EOW.
|
|
DCC communication
|
Processes a maximum of 160 DCCs (D1-D3). In this manner, the link is provided for transmitting the NM information.
|
|
Overhead processing
|
Processes the E1, E2, F1, and serial1-serial4 bytes.
|
|
Clock function
|
-
Provides the RTC.
-
Supports the high-precision clock synchronization feature, and complies with the IEEE 1588 V2 protocol. The N4GSCC receives the time information through interfaces S1-S4 of the EOW. The S1, S3 and ALMI4 interfaces receive the first channel of time information, and the S2, S4 and ALMI4 interfaces receive the second channel of time information.
|
|
Alarms and maintenance features
|
-
Supports service performance monitoring and collects information about performance events and alarms.
-
Provides 16 alarm inputs and four alarm outputs through the AUX.
-
Provides one 4-output alarm cascading port through the AUX.
-
Controls the four cabinet indicators through the AUX.
-
Supports intelligent fan speed control and manages the fan alarms.
-
Supports simulation package loading and diffused loading.
-
Supports the function of detecting whether a packet data board is in position.
|
|
Power supply management
|
-
Reports the alarm indicating a fault in the power supply (the power supply and the backup power supply of the EOW), for the AUX/EOW board.
-
Supports the monitoring of the -48 V or -60 V power supply.
-
Supports the in-service check function for the PIU board and supports the failure check function for the lightning protection module of the PIU.
|
|
Protection schemes
|
Supports the 1+1 Hot Backup for the SCC Unit. When the active board is faulty, services are switched to the standby board automatically.
NOTE:
If GSCC boards are used in packet systems, two N4GSCC/N6GSCC boards of the same version need to be configured in 1+1 backup mode.
|
|
Packet function
|
The N4GSCC and N6GSCC support the packet function.
For information about the performance of the packet system, see Packet System Performance.
|
