Huge White Party Tents
Huge White Party Tents Widely used for temporary outdoor exhibitions, wedding parties, festival celebrations, conferences, sports and other events, and also good solution of temporary warehouse, workshop and temporary emergency relief and other purposes.
Available sizes:
Clear span available from 3m to 60m.
Length: adjustable by 3m unit (SS & WS series) or 5m unit (for other series).
Features:
No exterior guy ropes or staking required.
Relocatable, easy to install, dismantle and transport.
No poles inside, 100% interior space be used.
Roof and gable vent is available.
Full line accessories available.
Frame:
No maintenance required.

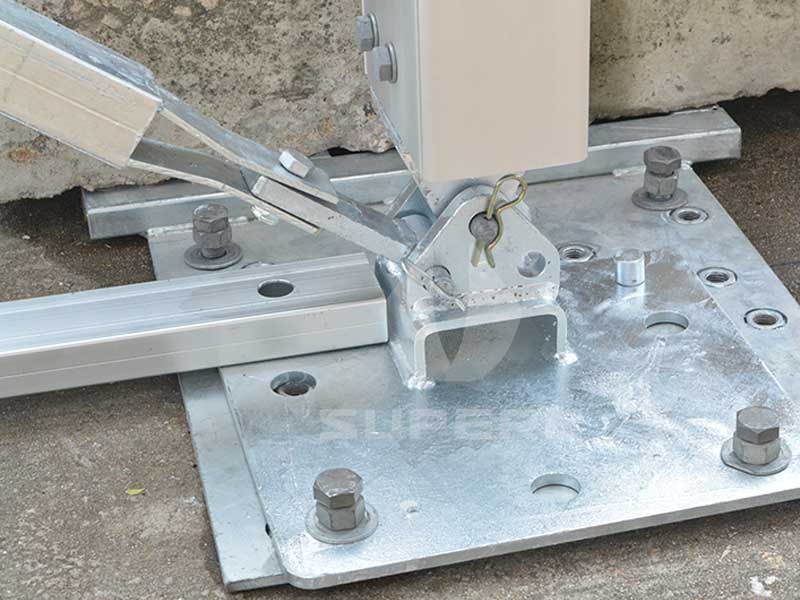

All steel connectors including small parts have galvanized finishing above 60um.
Modular character for diverse combination and expansion.
Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
Cover:
Kedered roof fabric and sidewalls provide weather-proof tight coverings.
Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
Bar tensioning roof & sidewalls system.
The Specification of Huge White Party Tents:
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Roof Pitch
|
Longest Component (m)
|
Wind Load (km/h)
|
|
LS20/4-5
|
20
|
4
|
7.2
|
5
|
18°
|
10.7
|
100
|
|
LS25/4-5
|
25
|
4
|
8
|
5
|
18°
|
10.7
|
100
|
|
LS30/4-5
|
30
|
4
|
8.9
|
5
|
18°
|
10.7
|
100
|
|
Main frame Profile
|
256x120x5mm（4-channel)
|
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum 6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m
|
The accessories of Huge White Party Tents:
