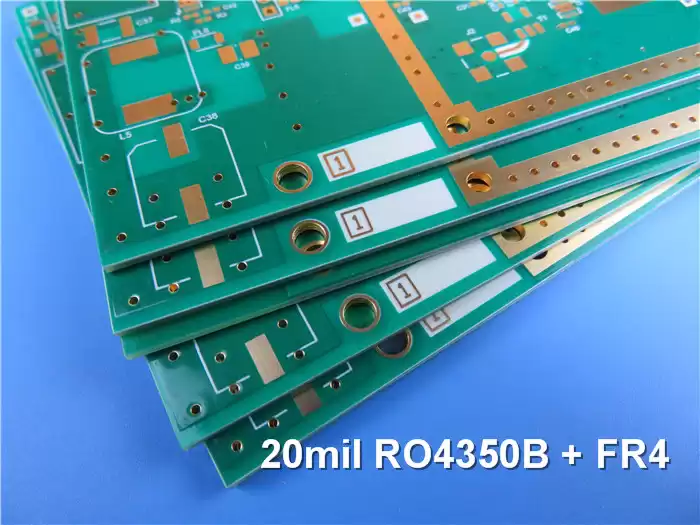

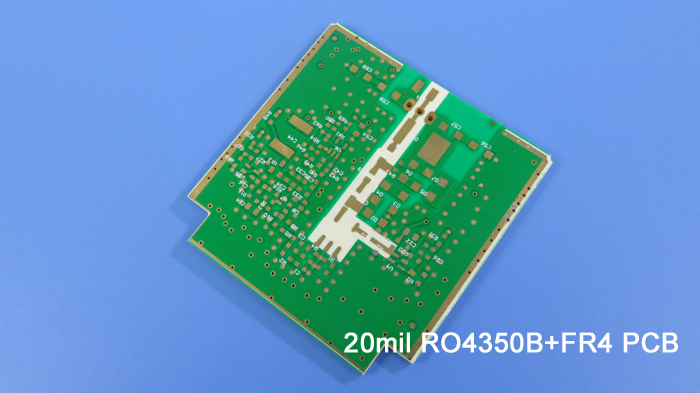

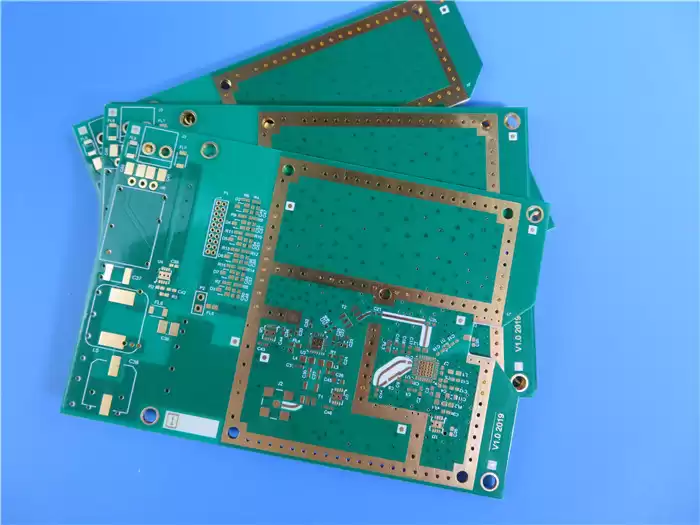

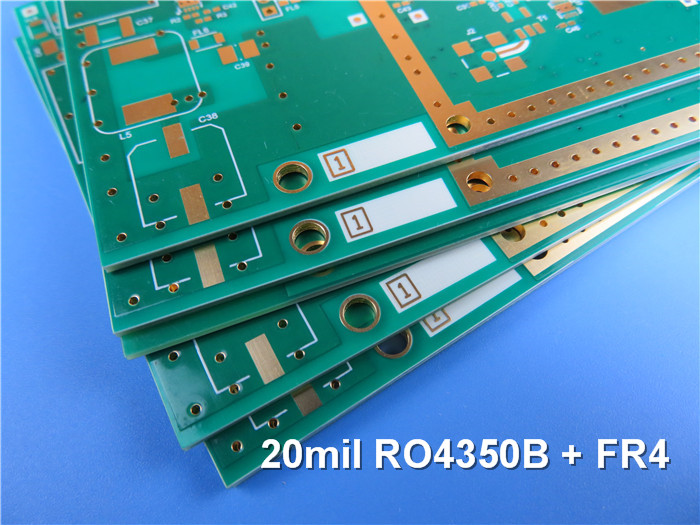

Hybrid PCB | Mixed Material 4-layer PCB
Made On 20 mil RO4350B + FR4 With Blind Via
(Printed
circuit boards are custom-made products, the picture and parameters shown are
just for reference)
Layer
1 to layer 2 is the core of 20mil (0.508mm) RO4350B high frequency material,
the signal transmission lines are on first layer copper, then layer 3 to layer
4 is another core of epoxy glass material. The 2 cores are bonded by a sheet of
adhesive (prepreg).
Basic specifications：
Layer
count: 4 layers
Panel:
75mm x 82mm = 1 type = 1 piece
Surface
finish: Immersion gold
Copper
weight: Outer layer 70 um/ Inner layer 35 um
Solder
mask / Legend: green / white
Final
PCB height: 1.6 mm
Standard:
IPC 6012 Class 2
Packing:
20 panels are packed for shipment.
Lead
time: 10 working days
Shelf
life: 6 months
Features and benefits：
1) The
temperature coefficient of dielectric constant is among the lowest of any
circuit board material, making it ideal for temperature sensitive applications;
2) RO4350B
exhibits a stable dielectric constant over a broad frequency range. This makes
it an ideal substrate for broadband applications;
3) Signal
integrity performance improvement over the stack-ups with all FR4 board;
4) ISO9001,
ISO14001, IATF16949, UL Certified factory
5) Prototype
to mass production capability;
Applications：
Mixer,
Radar data acquisition converter, Spread spectrum, Duplexer
Parameter and
Data Sheet：
|
PCB SIZE
|
125mm x 125mm =
1 type = 1 piece
|
|
BOARD TYPE
|
Multlayer
PCB
|
|
Number
of Layers
|
4 Layers
|
|
Surface
Mount Components
|
YES
|
|
Through
Hole Components
|
YES
|
|

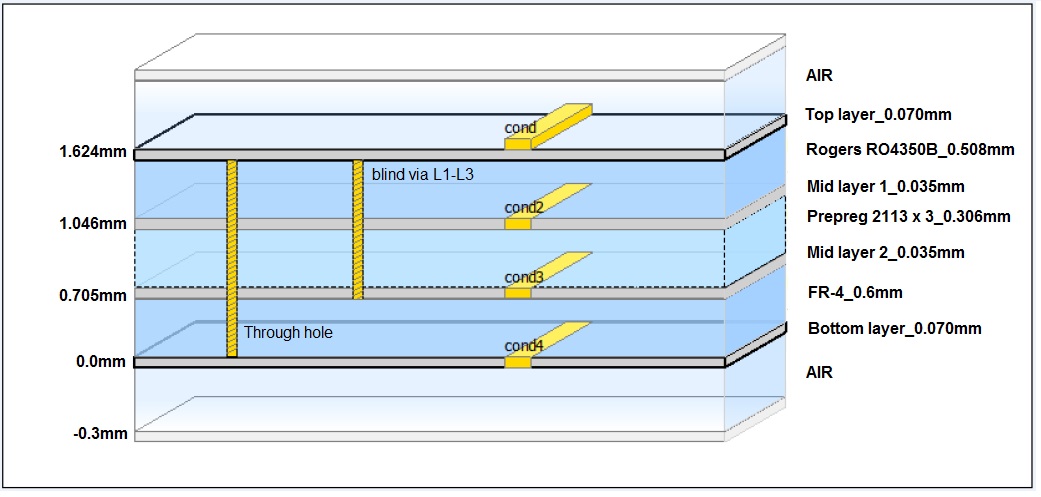

LAYER STACKUP
|
Copper
-----Top Layer 0.070mm (2 oz)
|
|
RO4350B 0.508 mm
|
|
Copper -----Plain 0.035 mm
|
|
Prepreg 2113 X 3, 0.306mm
|
|
Copper -----Plain 0.035 mm
|
|
FR-4 0.6mm
|
|
Copper ------- Bottom Layer 0.070mm (2oz)
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
5.5
mil / 7.2 mil
|
|
Minimum
/ Maximum Holes:
|
0.4
mm / 5.7 mm
|
|
Number
of Different Holes:
|
15
|
|
Number
of Drill Holes:
|
172
|
|
Number
of Milled Slots:
|
0
|
|
Number
of Internal Cutouts:
|
NA
|
|
Impedance
Control:
|
N/A
|
|
Number
of Gold finger:
|
N/A
|
|
BOARD
MATERIAL
|
|
|
Glass
Epoxy:
|
RO4350B Tg280℃, er<3.48, Rogers Corp.; FR-4 IT158, ITEQ
|
|
Final
foil external:
|
2.0
oz
|
|
Final
foil internal:
|
1.0
oz
|
|
Final
height of PCB:
|
1.6
mm ±10%
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
Immersion Gold
|
|
Solder
Mask Apply To:
|
Both Top and
Bottom sides
|
|
Solder
Mask Color:
|
Green
|
|
Solder
Mask Type:
|
LPI, Taiyo
PSR-2000GT600D
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of
Component Legend
|
Top
and bottom side
|
|
Colour
of Component Legend
|
White, IJR-4000
MW300, Taiyo brand
|
|
Manufacturer
Name or Logo:
|
Marked on the
board in a conductor and leged FREE AREA
|
|
VIA
|
Plated
through hole(PTH), minimum size 0.4mm.
|
|
FLAMIBILITY RATING
|
UL
94-V0 Approval MIN.
|
|
DIMENSION TOLERANCE
|
|
|
Outline
dimension:
|
0.0059"
|
|
Board
plating:
|
0.0029"
|
|
Drill
tolerance:
|
0.002"
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
