Hydraulic Battery Coin Cell Crimping Machine Supplier
Product specification

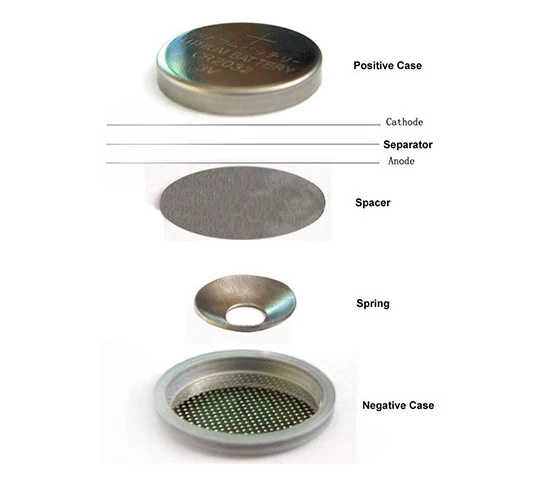

MSK-110 is a new design and CE Certified coin cell crimper with lighter weight and a smaller footprint. The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with included die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets. In addition, customers can easily replace the original die for the disassembling purpose.
|
Model
|
Coin cell crimper machine MSK-110
|
|

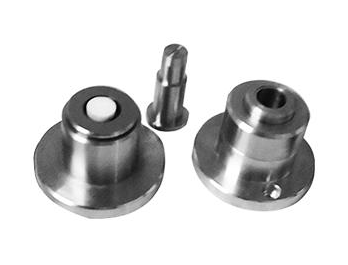

Standard crimping Die
|
One set of crimping die for CR2032, CR2025, and CR2016 or CR2325, CR2450, AG3, AG5

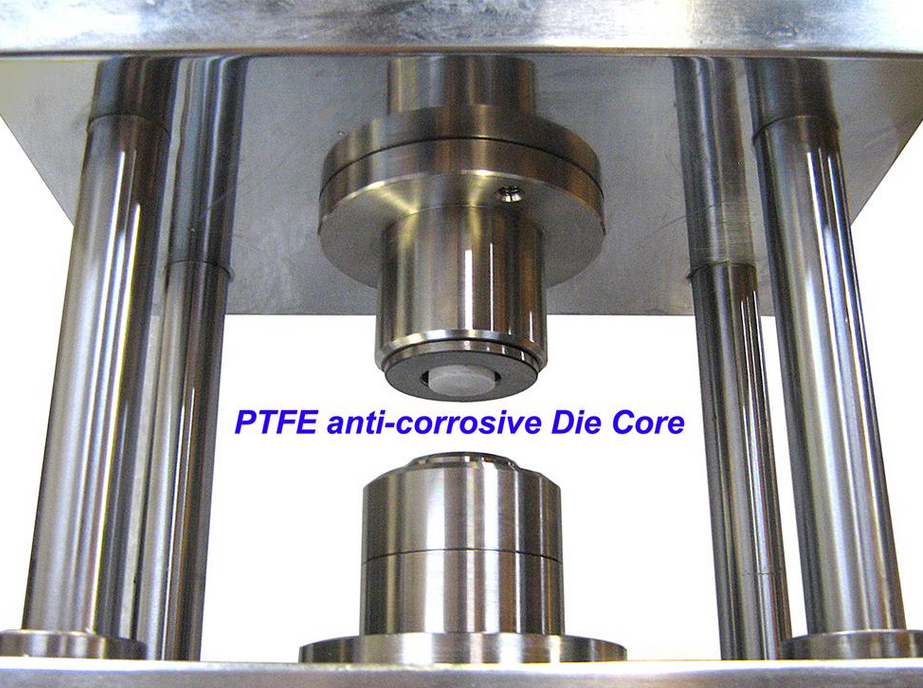

PTFE Anti-Corrosion Core prevents coin cells from being short-circuited
|
|
Structure
|
Heavy Duty Steel Platform
|
|
Pressure
|
Max. 8 metric Tons hydraulic pump with automatic pressure relief
Max.200 Kg/cm2 on CR20XX series coin cell
|
|
Structure
|
Heavy Duty Steel Platform
|
|

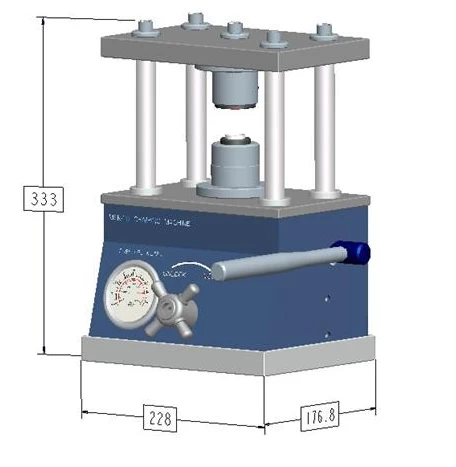

Product Dimensions
|
With handle positioned horizontally: 280mm(L) x 280mm(W) x 333mm(H)
Without handle: 228mm(L) x 176.8mm(W) x 333mm(H)
|
|
Compliance
|
CE Certified
|
|
Warranty
|
One Year limited warranty with lifetime support
(Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)
|
|
Maintenance & Equipment Care
|
Electrolytes are highly corrosive materials, therefore, the die set must be cleaned with ethanol after the completion of each experiment in order to avoid any corrosion damages. Also turn the hydraulic valve to Lock position when not in use.
|
|
Net Weight
|
26 kg (58 lbs)
|
|
Shipping Weight
|
45 kg (100 lbs)
|

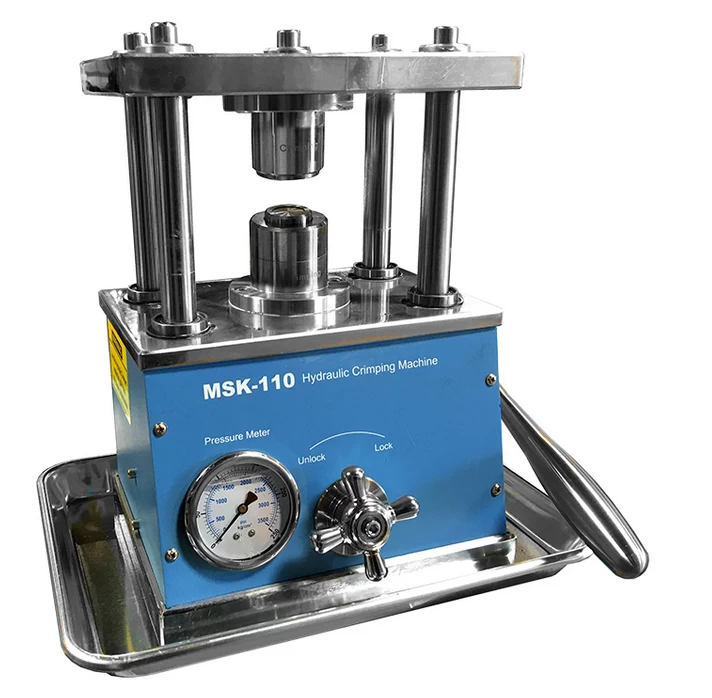

Product Images
Product Packing
