General Description

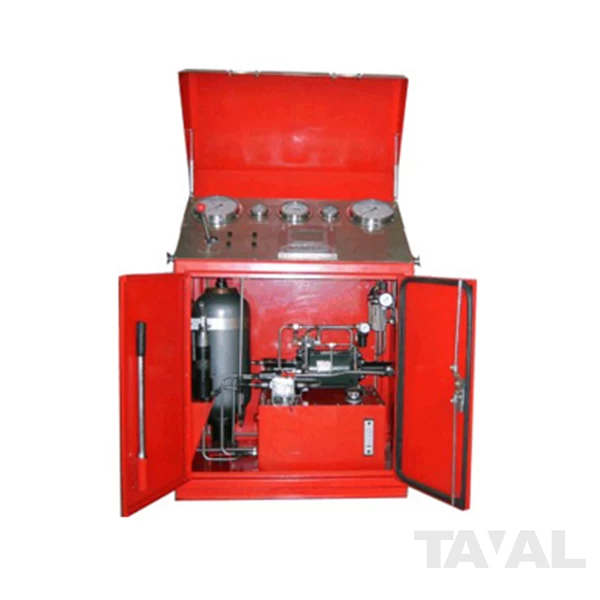

Hydraulic Choke Control Panel is used for adjusting and displaying the opening of hydraulical choke's orifice, usually it is customised in accordance with API 16D.
Specifications
1 Gas source pressure：0.6MPa
2 Rated output oil pressure: 4MPa
3 Maximum output oil pressure: 6MPa
4 Pneumatic circuit--Quick coupling size: M16×1.5, length: 15 meters (standard)
5 Liquid circuit--Quick coupling size: M22×1.5, length: 15 meters (standard)
6 Hydraulic oil specifications: 10 # aviation hydraulic oil
Application
The hydraulic choke control panel is the controlling device in the hydraulic choke manifolds. It can control the switch of the hydraulic choke valve from a distance and indicate the pressure of the standpipe, casing, and the valve position of the choke valve. The hydraulic choke control panel is a piece of necessary equipment to successfully control the pressure in the wellbore and prevent kicks and blowout.
