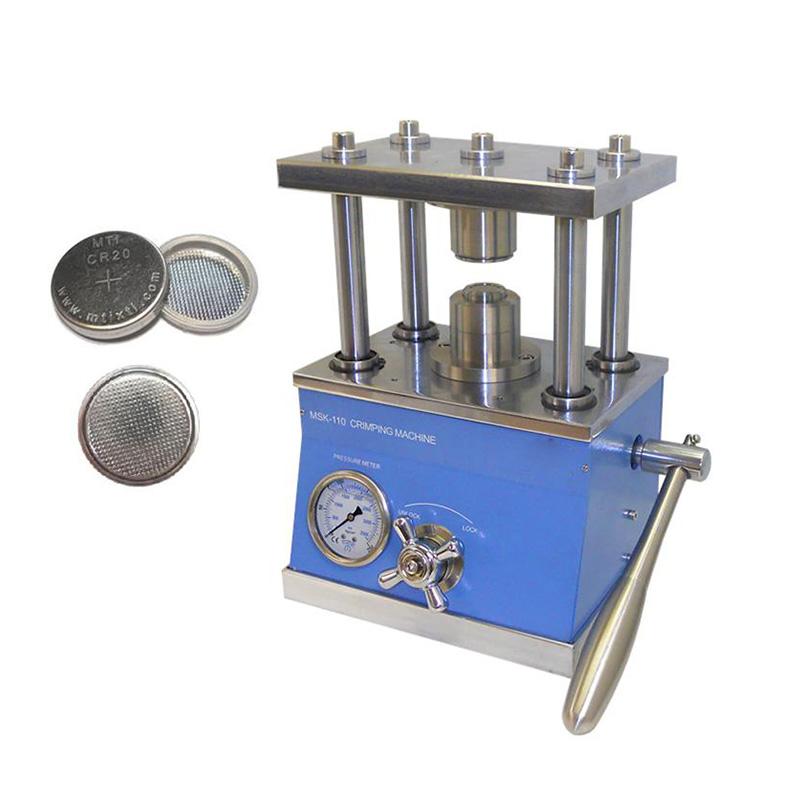

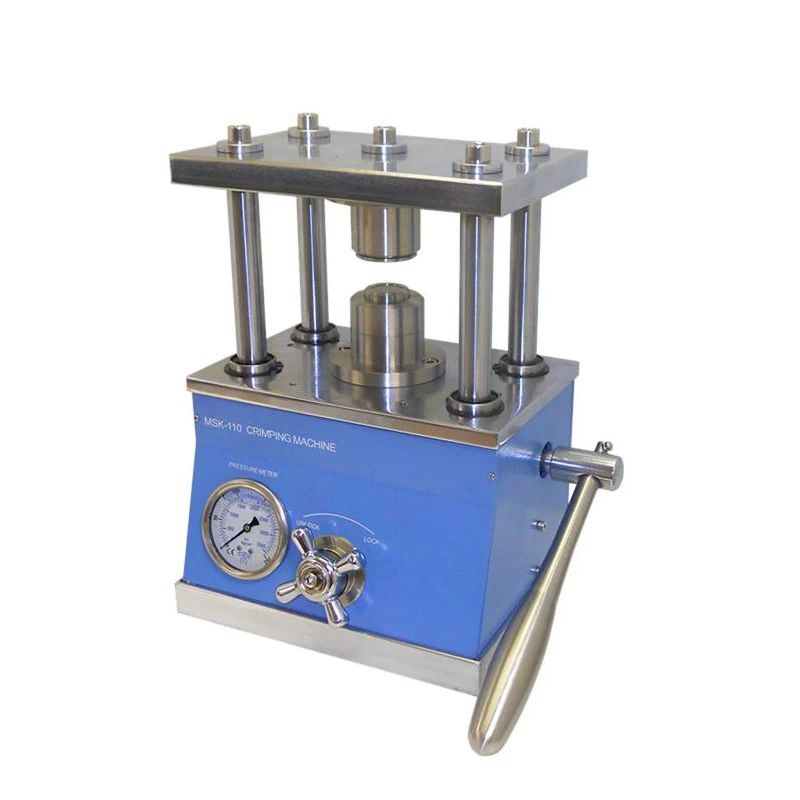

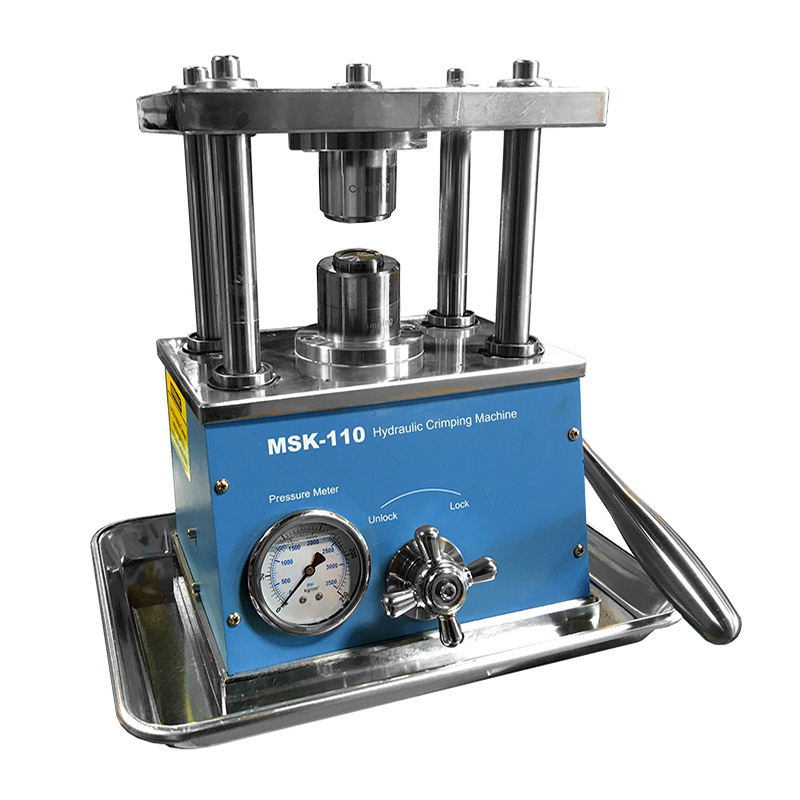

Hydraulic Crimping Machine for All Types of CR20XX Coin Cell

Thiis hydraulic crimping machine a new design and CE Certified manual coin cell crimper with lighter weight and a smaller footprint. It is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with included die.



Hydraulic Button Battery Crimping Machine for All Kinds of Coin Cells


AOT-MSK-110 is a new design and CE Certified manualcoin cell crimper machine with lighter weight and a smaller footprint. The crimping machine is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with included die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets.

SPECIFICATIONS:

Features

Heavy duty steel frame

PTFE Anti-Corrosion Core prevents coin cells from being short-circuited

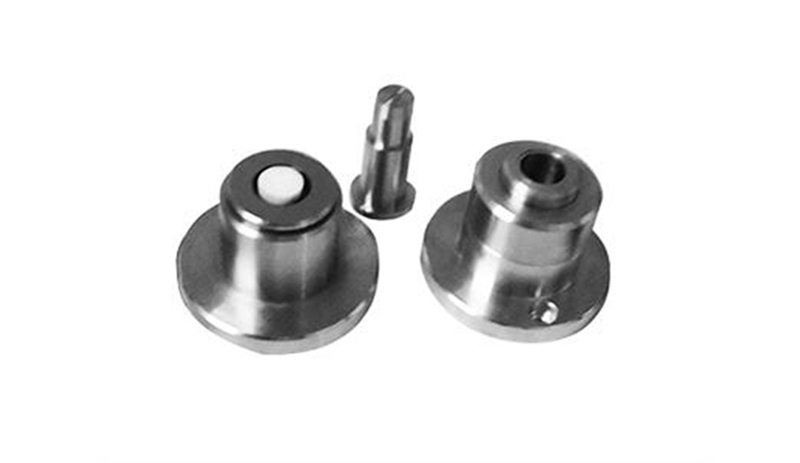

Crimping Die

Optional die available from product option for crimping CR20XX, CR12XX, CR23XX, CR24XX, AG3, AG5

Pressure

Max. 8 metric Tons hydraulic pump with automatic pressure relief

Max.200 Kg/cm2 on CR20XX series coin cell

Warranty

One year limited manufacturer warranty with lifetime support.

Product Dimensions

223mm X 170mm X 325mm

Compliance

CE Certified

Net Weight

25 kg


Application Notes

Attention: The built-in small hydraulic pump is not designed for holding high pressure. The pressure inside will be released gradually after reaching 50~80 Kg/cm^2, (which is sufficient for disassembling the coin cell).

Manual Coin Cell CrimperCrimping DieCr2032 crimping die
