Hydraulic Pressure Electric Roller Press Machine for Battery Electrode Rolling


The hydraulic balanced electric roller is used for high-precision rolling of battery electrode. The equipment has good horizontal and vertical uniformity in rolling and provides high-quality  rolling performance. The equipment is used for roller rolling with the pressure provided by the hydraulic system. It is suitable for occasions where the consistency of rolling force and rolling gap is required to be high.

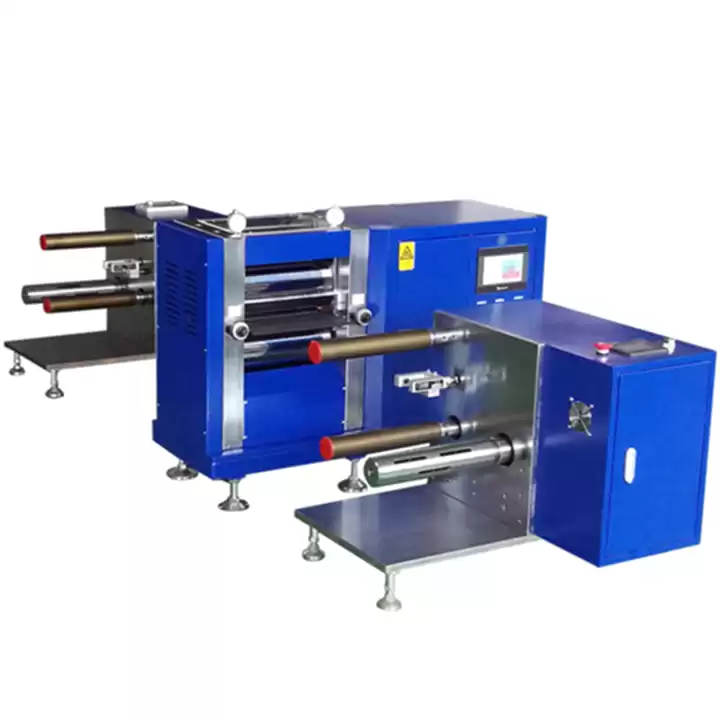

The machine includes hydraulic system, AC variable frequency motor, reducer, gear box, precision coupling, screwdown device, roller system, machine body, protection plate, PLC touch screen, electrical control, etc.

Operation video: https://www.youtube.com/watch?v=w3yMYmuYACk&t=13s


Features

*Integral gantry frame, CNC precision machining to ensure high precision and stability;

*The roller is made of imported cold-rolled chrome molybdenum material by heat-treated surface chrome plating and cryogenic treatment, with high internal and external hardness and good wear resistance;

*American original imported hydraulic system, automatic control rolling pressure;

*Patented hydraulic balanced rolling mechanism, stable pressure maintaining, good rolling uniformity in transverse and longitudinal direction;

*Inclined block type roll gap adjustment device, surface display adjustment;


Specifications

Voltage

220V/110V, 50/60Hz

Rolling force

Max 25ton

Maximum adjustable gap

2 mm

Rolling speed

Max.6m/min adjustable

Roller size

Ф200 mm*330mm width

Roller material

9Cr3Mo

Roller surface hardness

HRC65~68

Roller inner hardness

HRC60-62

Roller surface roughness

Ra≤0.4

Circular run-out error

±2μm

Control mode

PLC control

Roller heating temperature

(optional)

RT~150

Winding&unwinding system

(optional)

Available

Pressure driven mode

Hydraulic

Rolling accuracy

±1.5μm

Reducer and gear box

Combination type

Motor

AC variable frequency motor

Overall machine dimension

1400mm L X 500mm W X 1300mm H

Power

2KW

Gas requirement

0.5-0.8MPa compressed air

Machine weight

About 600KG

Use environment

It is recommended that the ambient temperature is 25 ± 3 ℃, the humidity is 30 ~ 90rh, and there is no vibration and electromagnetic interference

Note

The reduction of lithium electrode piece is 20% ~ 30% at a time. If it is thinner, it needs to be rolled several times (5μm/ time)
