Bearing
No.
|
Dimensions(mm)
|
a°
mis.
angle
|
Load
ratings
(KN)
|
Screw
|
Weight
≈ kg
|
|
d
|
B
|
dk
|
C1
|
d2
|
G-6H
|
h1
|
l3
|
(l2)
|
l7
|
d4
|
d6
|
b
|
Dynamic
|
Static
|
|

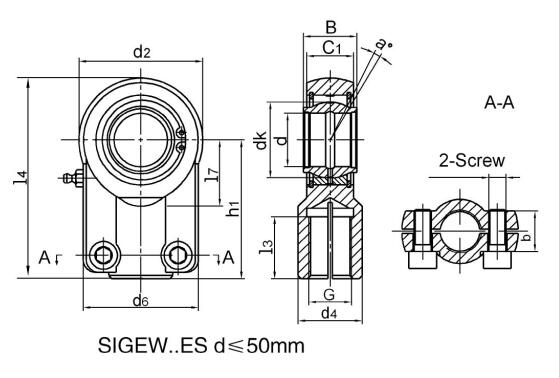

SIGEW12ES1)
|
12
|
12
|
18
|
11
|
32
|
M12X1.25
|
38
|
17
|
54
|
14
|
16
|
32
|
11
|
4
|
10
|
24.5
|
M5x12
|
0.11
|
|
SIGEW16ES2)
|
16
|
16
|
23
|
13
|
40
|
M14x1.5
|
44
|
19
|
64
|
20
|
21
|
40
|
13
|
4
|
17
|
36.5
|
M6x12
|
0.20
|
|
SIGEW20ES
|
20
|
20
|
29
|
17
|
47
|
M16x1.5
|
52
|
23
|
75.5
|
22
|
25
|
47
|
17
|
4
|
30
|
48
|
M8x20
|
0.35
|
|
SIGEW25ES
|
25
|
25
|
35.5
|
22
|
58
|
M20X1.5
|
65
|
29
|
94
|
27
|
30
|
54
|
19
|
4
|
48
|
78
|
M8x20
|
0.62
|
|
SIGEW32ES
|
32
|
32
|
43
|
28
|
71
|
M27x2
|
80
|
37
|
115.5
|
32
|
38
|
66
|
22
|
4
|
65
|
114
|
M10x30
|
1.15
|
|
SIGEW40ES
|
40
|
40
|
53
|
33
|
90
|
M33x2
|
97
|
46
|
142
|
41
|
47
|
80
|
26
|
4
|
99
|
204
|
M12x35
|
2.18
|
|
SIGEW50ES
|
50
|
50
|
66
|
41
|
109
|
M42x2
|
120
|
57
|
174.5
|
50
|
58
|
96
|
32
|
4
|
156
|
310
|
M16x40
|
3.96
|
|

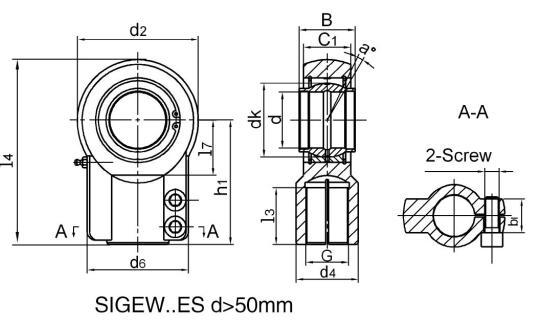

SIGEW63ES
|
63
|
63
|
83
|
53
|
136
|
M48x2
|
140
|
64
|
208
|
62
|
70
|
114
|
38
|
4
|
253
|
430
|
M16x40
|
6.8
|
|
SIGEW70ES
|
70
|
70
|
92
|
57
|
155
|
M56x2
|
160
|
76
|
237.5
|
70
|
80
|
135
|
42
|
4
|
313
|
540
|
M16x40
|
9.6
|
|
SIGEW80ES
|
80
|
80
|
105
|
67
|
170
|
M64x3
|
180
|
86
|
265
|
78
|
90
|
148
|
48
|
4
|
400
|
695
|
M20x50
|
13.0
|
|
SIGEW90ES
|
90
|
90
|
115
|
72
|
185
|
M72x3
|
195
|
91
|
287.5
|
85
|
100
|
160
|
52
|
4
|
488
|
750
|
M20x60
|
19.1
|
|
SIGEW100ES
|
100
|
100
|
130
|
85
|
211
|
M80x3
|
210
|
96
|
315.5
|
98
|
110
|
178
|
62
|
4
|
607
|
1060
|
M24x60
|
25.0
|
|
SIGEW110ES
|
110
|
110
|
140
|
88
|
235
|
M90x3
|
235
|
106
|
352.5
|
105
|
125
|
190
|
62
|
4
|
654
|
1200
|
M24x60
|
32.0
|
|
SIGEW125ES
|
125
|
125
|
160
|
103
|
265
|
M100x3
|
260
|
113
|
392.5
|
120
|
135
|
200
|
72
|
4
|
950
|
1430
|
M24x70
|
46.0
|
|
SIGEW160ES
|
160
|
160
|
200
|
130
|
326
|
M125x4
|
310
|
126
|
473
|
150
|
165
|
250
|
82
|
4
|
1360
|
2200
|
M24x80
|
82.5
|
|
SIGEW200ES
|
200
|
200
|
250
|
162
|
418
|
M160x4
|
390
|
161
|
599
|
195
|
215
|
320
|
102
|
4
|
2120
|
3650
|
M30X100
|
168
|
1) Can only be relubricated through the rod end housing.
2) Can supply rod ends with maintenance-free spherical bearings.
For left-hand thread, suffix "L" is added to bearing number and thread sign. E.g.:SILGEW40ES M33×2L-6H
