Hydraulic Rod Ends SK..E SK..ES


Body: Weldable steel, With dowel pin on shanks.

SK..E: Mounted GE..E type of radial spherical plain bearings.

Sliding contact surfaces: Steel/Steel



Facebook Twitter Pinterest LinkedIn 分享

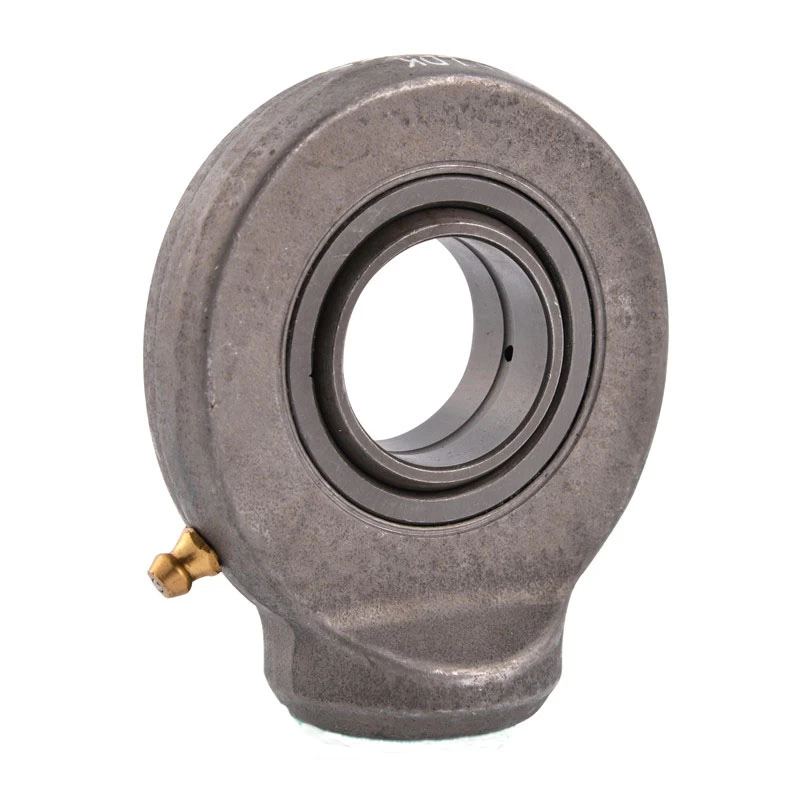

Hydraulic Rod Ends SK35ES

Bearing No. Dimensions(mm)
a°
mis.
angle
Load ratings
(KN)
Weight
≈kg

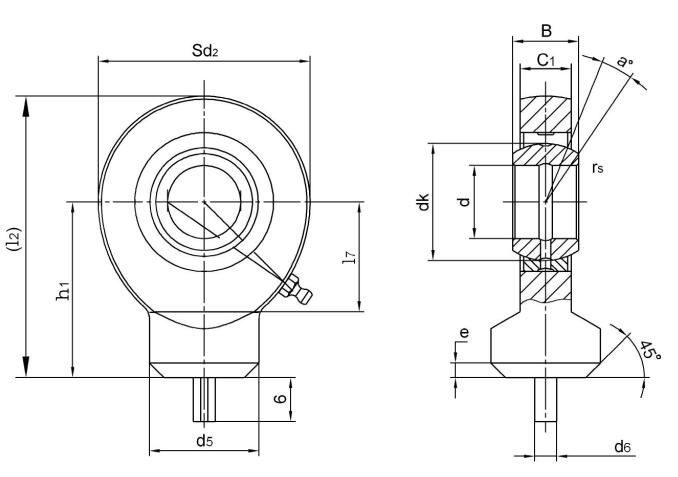

d B dk C1 d2 d5 d6 h1 e l7 (l2) Dynamic Static
SK10E 1) 10 9 16 7 29 15 3 24 2 15 38.5 12 8.1 15 0.041
SK12E 1) 12 10 18 8 34 17.5 3 27 2 18 44 10 10 21 0.066
SK15ES2) 15 12 22 10 40 21 4 31 2.5 20 51 8 16 32 0.12
SK17ES 2) 17 14 25 11 46 24 4 35 2.5 23 58 10 21 40 0.19
SK20ES 20 16 29 13 53 27.5 4 38 2.5 27 64.5 9 30 54 0.26
SK25ES 25 20 35.5 17 64 33.5 4 45 3 32 77 7 48 72 0.45
SK30ES 30 22 40.7 19 73 40 4 51 3 37 87.5 6 62 95 0.067
SK35ES 35 25 47 21 82 47 4 61 3 42 102 6 79 125 1.02
SK40ES 40 28 53 23 92 52 4 69 4 48 115 7 99 156 1.04
SK45ES 45 32 60 27 102 58 6 77 5 52 128 7 127 208 1.93
SK50ES 50 35 66 30 112 62 6 88 5 60 144 6 156 250 2.68
SK60ES 60 44 80 38 135 70 6 100 5 75 167.5 6 245 390 4.6
SK70ES 70 49 92 42 160 80 6 115 6 87 195 6 313 510 7.0
SK80ES 80 55 105 47 180 95 6 141 6 100 231 6 400 620 11.0


Can not be relubricated.

Can only be relubricated through the rod end housing.
