Hydraulic Rod Ends SF..ES


Body: Weldable steel, With dowel pin on shanks.

SF..ES: Mounted with GE..ES type of radial spherical plain bearings.

Sliding contact surfaces: Steel/Steel


Facebook Twitter Pinterest LinkedIn 分享

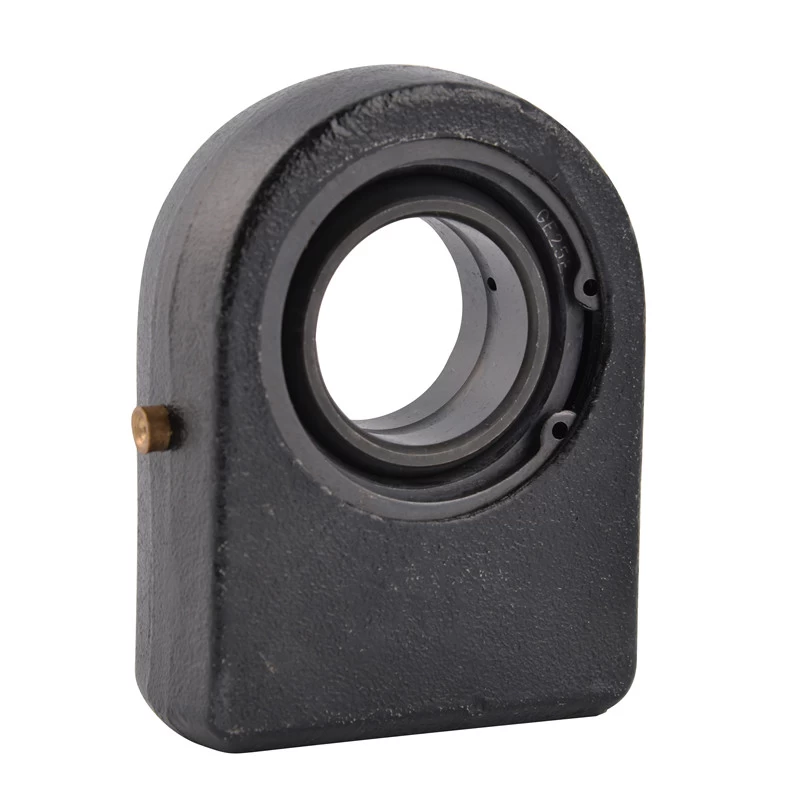

Hydraulic Rod Ends SF70ES

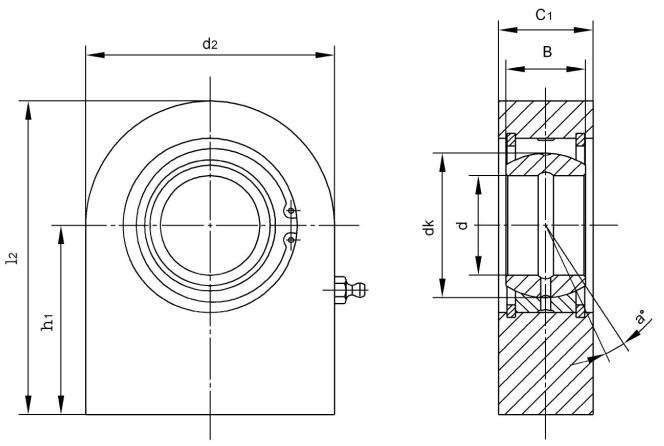

Bearing No. Dimensions(mm)
a°
mis.
angle
Load ratings
 (KN)
Weight
≈ kg
d B dk C1 d2 h1 (l2) Dynamic Static
SF20ES 20 16 29 19 50 38 63 9 30 67 0.36
SF25ES 25 20 35.5 23 55 45 72.5 7 48 69 0.53
SF30ES 30 22 40.7 28 65 51 83.5 6 62 118 0.85
SF35ES 35 25 47 30 83 61 102.5 6 79 196 1.5
SF40ES 40 28 53 35 100 69 119 7 99 305 2.42
SF45ES 45 32 60 40 110 77 132 7 127 386 3.39
SF50ES 50 35 66 40 123 88 149.5 6 156 441 4.24
SF60ES 60 44 80 50 140 100 170 6 245 570 7.10
SF70ES 70 49 92 55 164 115 197 6 313 724 10.7
SF80ES 80 55 105 60 180 141 231 6 400 804 15.1
SF90ES 90 60 115 65 226 150 263 5 488 1340 23.4
SF100ES 100 70 130 70 250 170 295 7 607 1516 33.1
SF110ES 110 70 140 80 295 185 332.5 6 654 2340 48.5
SF120ES 120 85 160 90 360 210 390 6 950 3210 79.5
