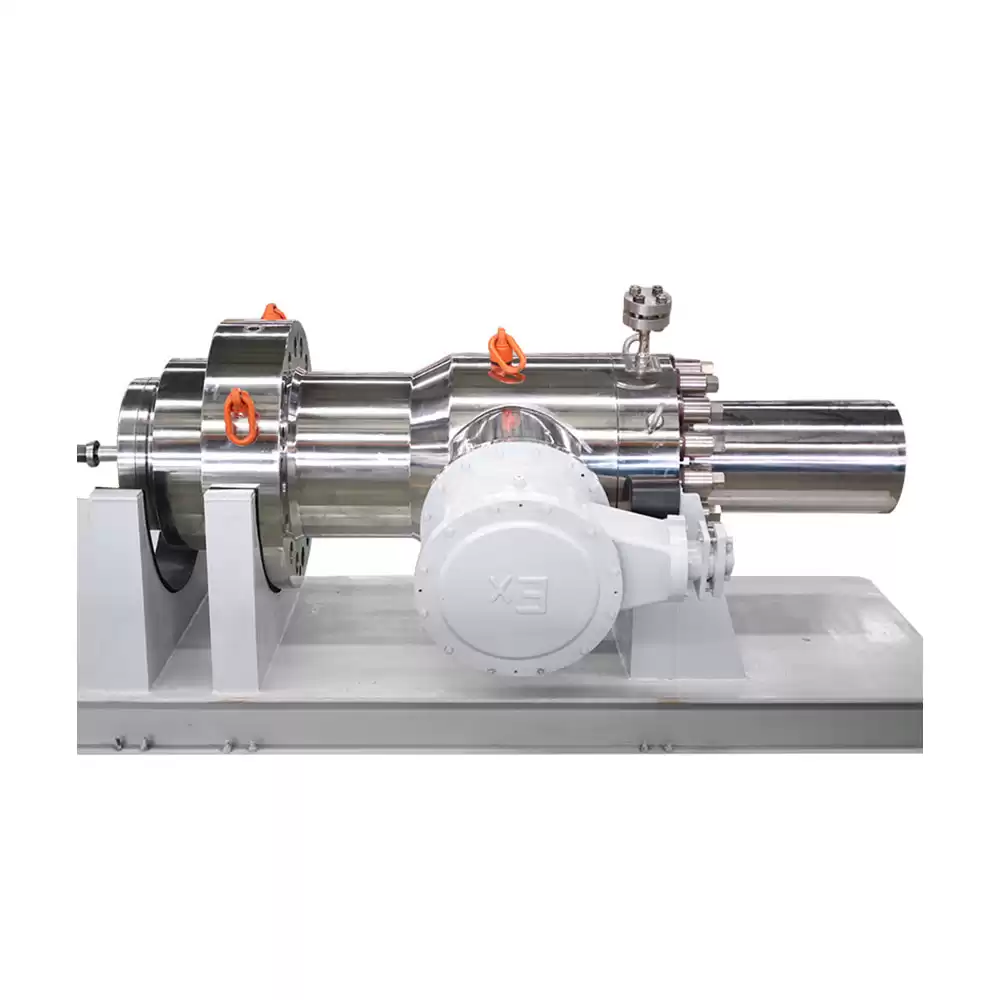

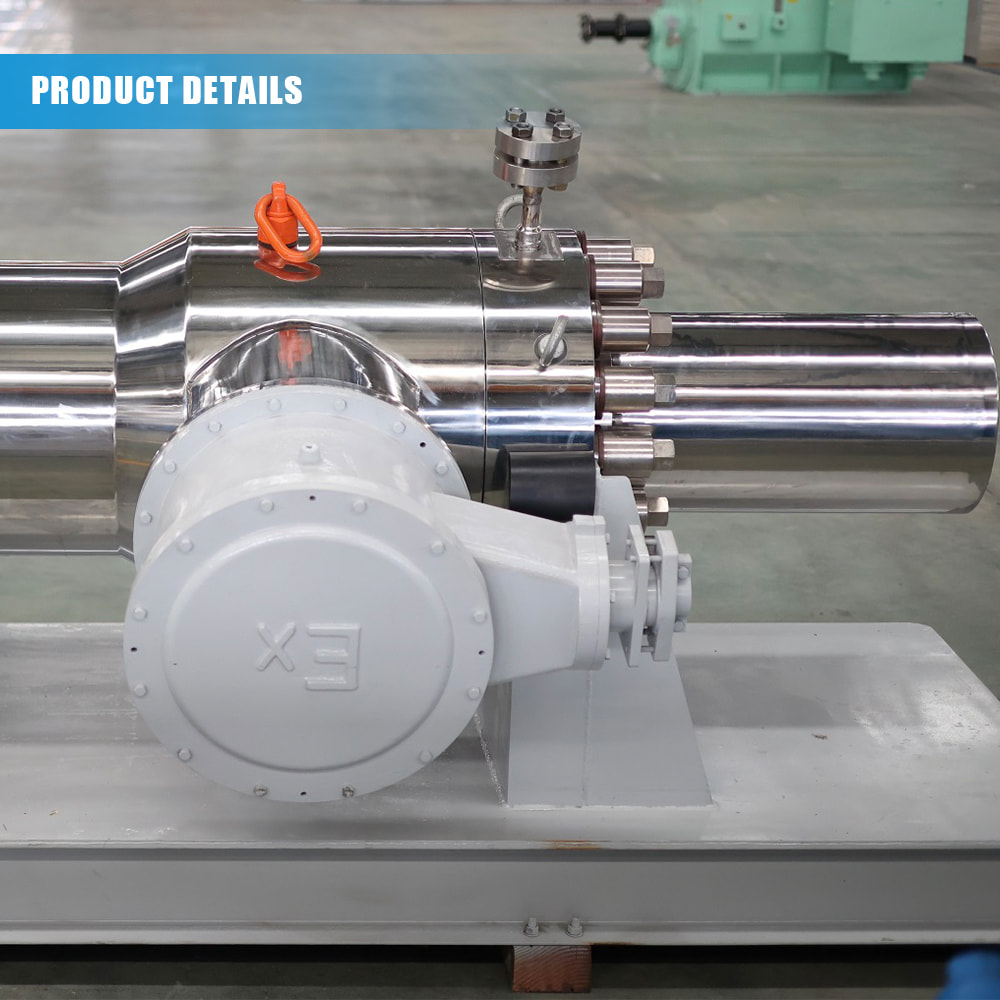

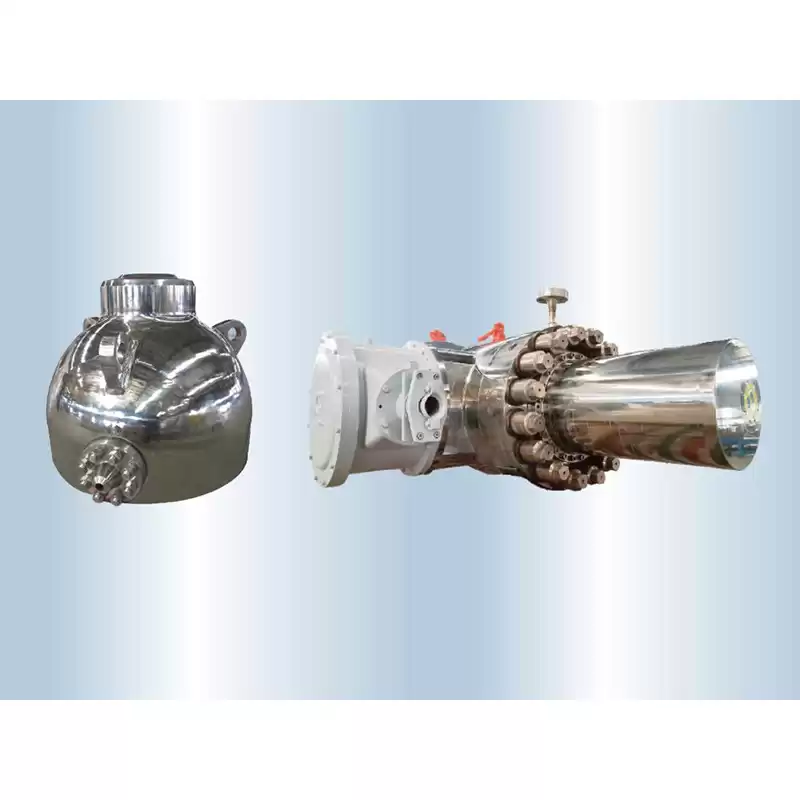

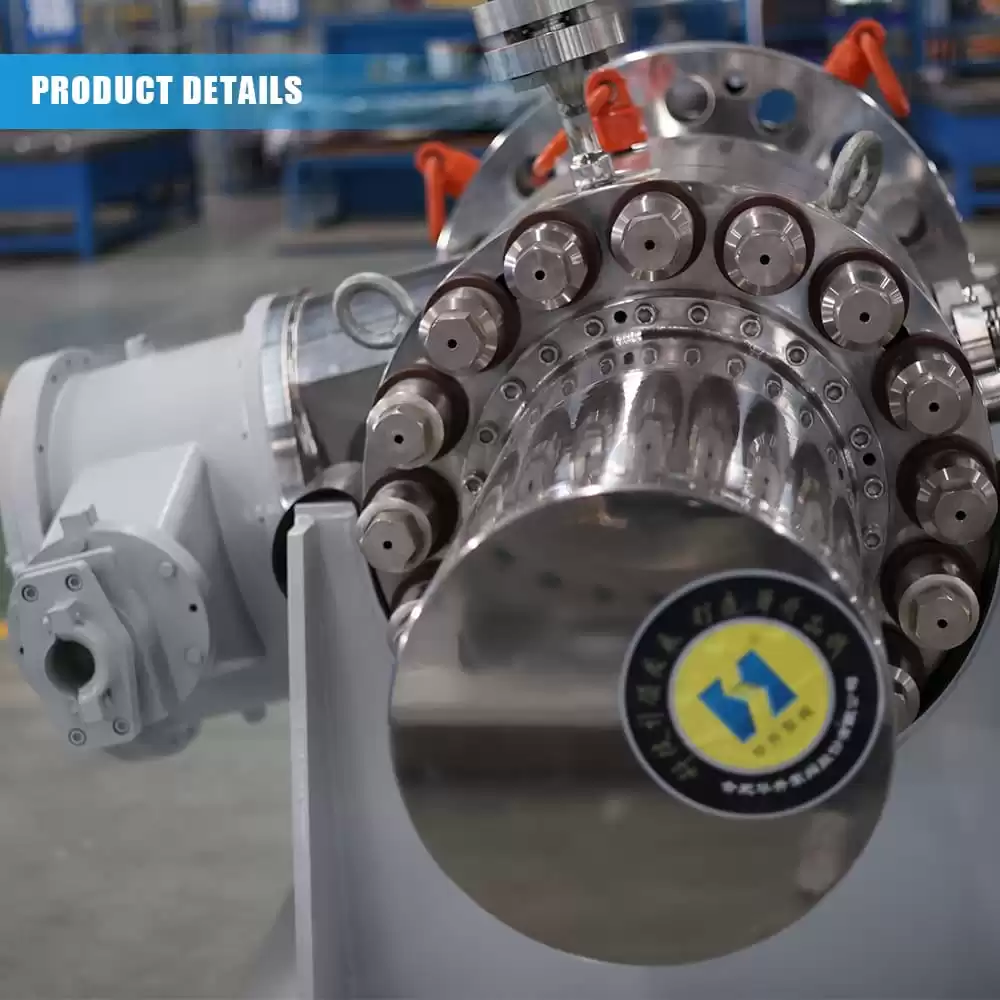

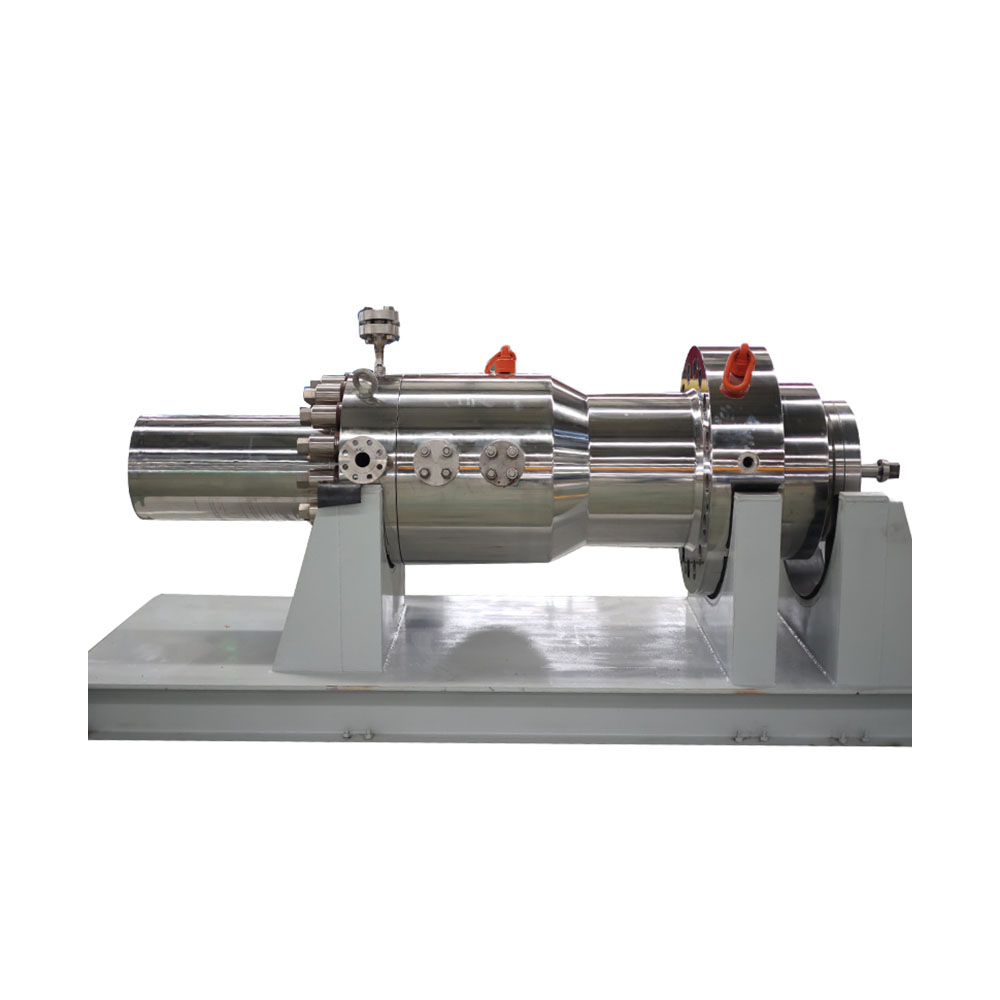

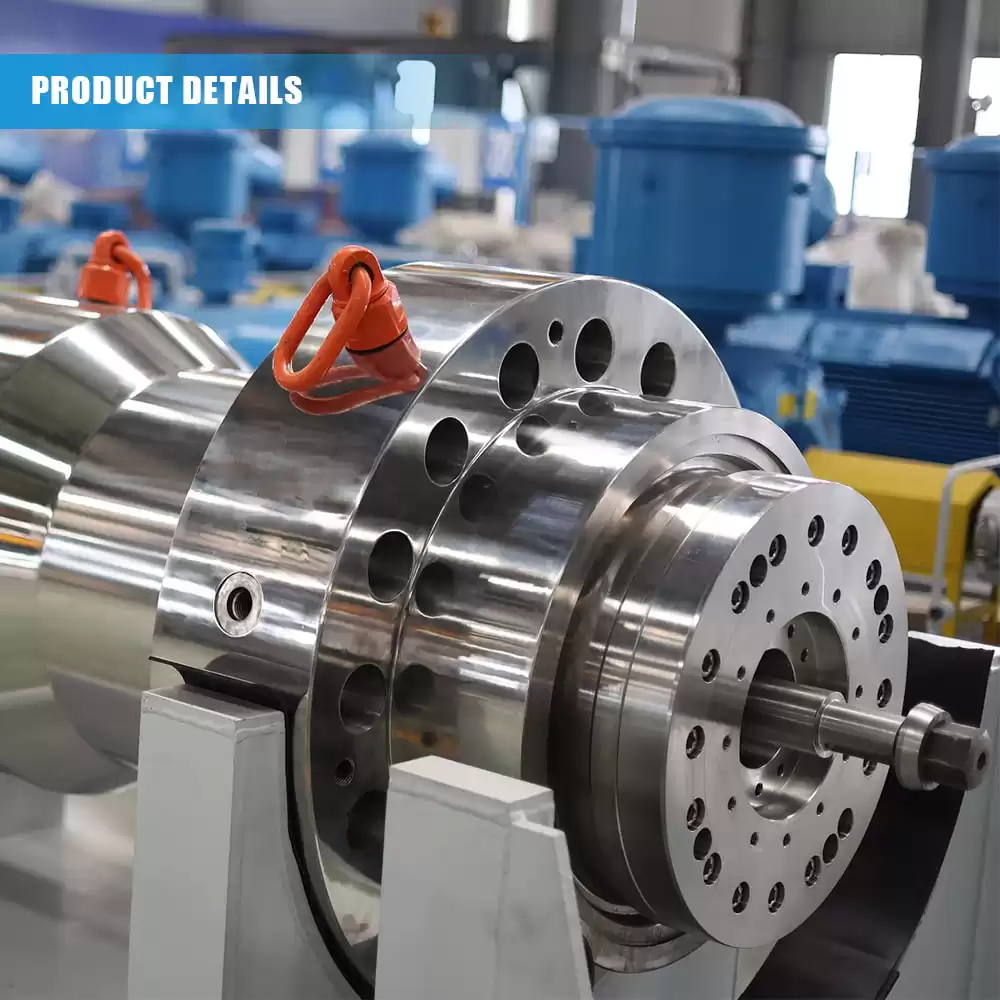

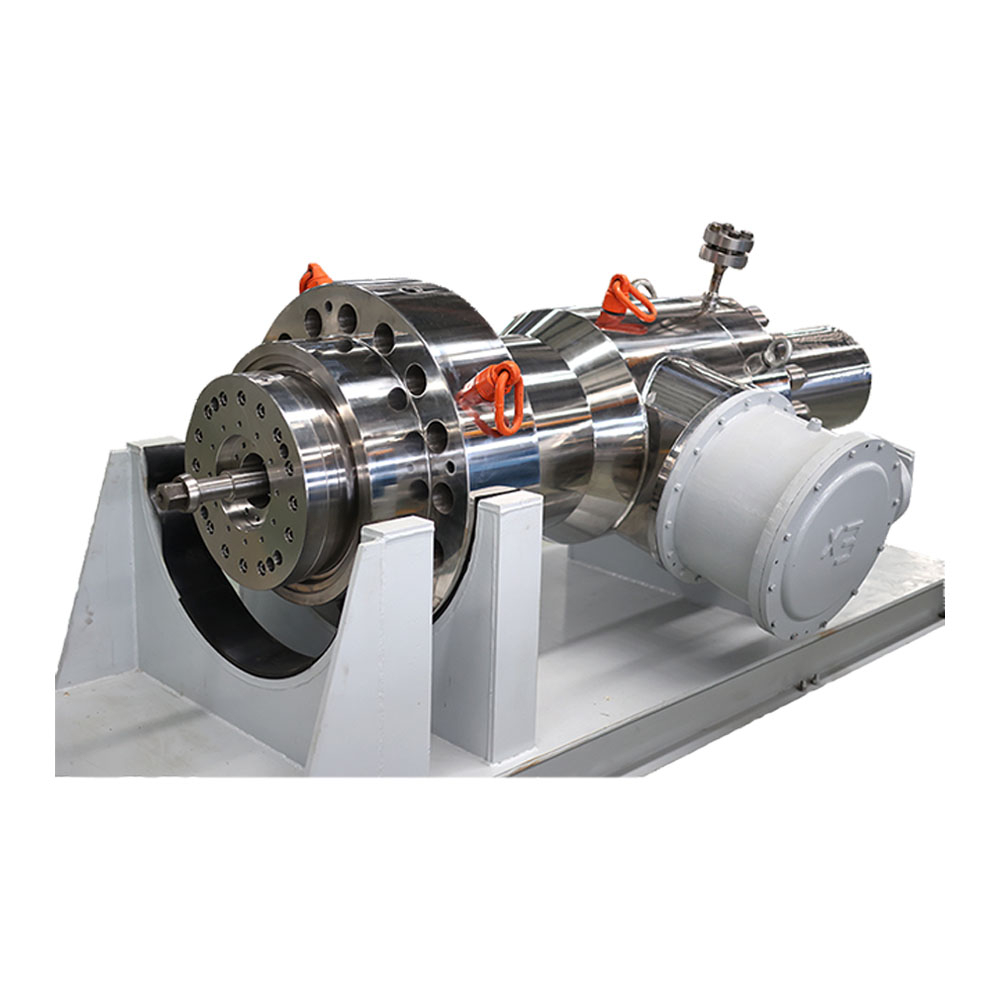

Hydrocracking reactor centrifugal circulation pump (Ebullated Pump)

Hydrocracking reactor centrifugal circulation pump (Ebullated Pump)

Product profiles:

• The Ebullated Pump is a circulating pump that provides energy for the fluidized bed hydrogenation unit and the suspended bed hydrogenation unit.

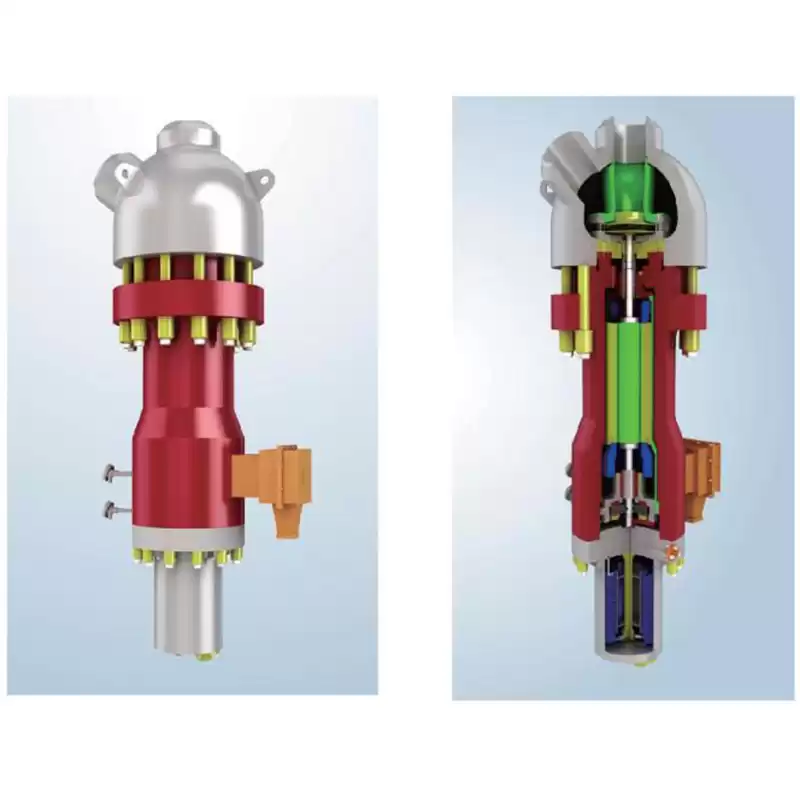

• The pump adopts a shielded structure, eliminates mechanical seals, reduces leakage points, and improves equipment safety.
• The pump casing adopts forgings to bear pressure, the impeller and the motor are coaxial, and the motor is lubricated by an external oil injection system.
• The lubricating oil pressure is higher than the pump chamber pressure to ensure that the medium does not enter the motor.
• The thrust bearing is made of special materials, taking into account wear resistance and conductivity to improve safety performance.

Features：

• Process including fluid, solid and gas.
• Pump configuration adapt wet motor design with stable lub.
• Oil circulation system and monitoring system.

Application:

• Boiling bed hydrogenation,
• Suspended bed hydrogenation,
• Jet fuel hydrogenation,
• Heavy oil catalysis,
• Direct coal liquefaction and other equipment
