Hyundai spare parts XKAH-01011 XKAH01011 for R360LC7

Hyundai excavator travel gearbox bearing XKAH-01011 XKAH01011


XKAH-01011 BEARING;ANGULAR Hyundai parts fit:R360LC7, R360LC7A, R370LC7.




Hyundai excavator travel bearing XKAH-01011

P/N XKAH-01011 Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Angular contact bearing

Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:

100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience

Production Process






Product Photos

XKAH-01011Hyundai XKAH-01011Bearing XKAH-01011

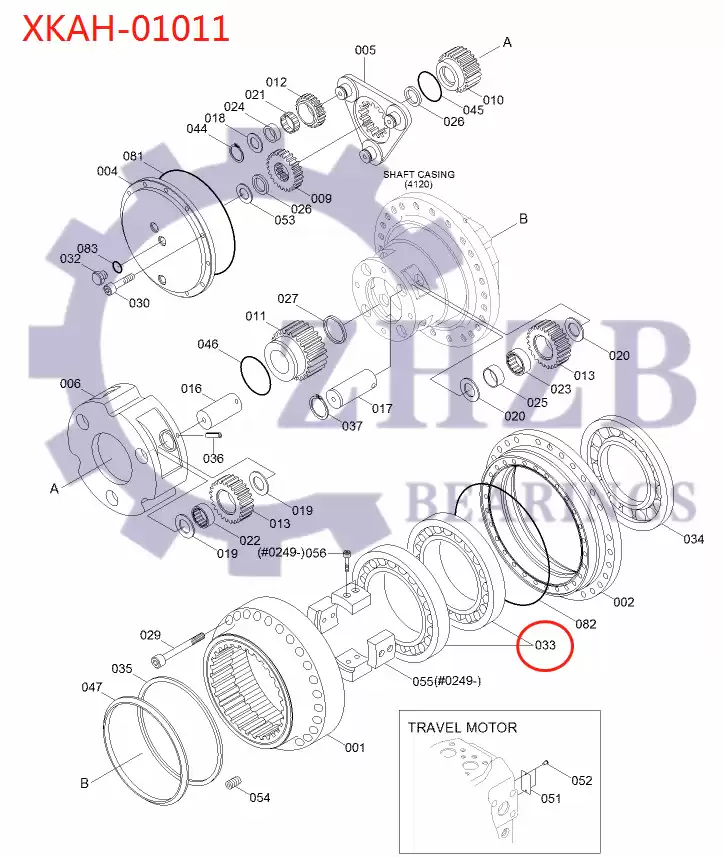

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.

Hyundai parts

Pos.

Part No

Qty

Parts name

Comments

*-2.

XKAH-01061

[1]

  T/REDUCTION GEAR

     SEE 4120

*-2.

XKAH-01620

[1]

  T/REDUCTION GEAR

     SEE 4120

001.

XKAH-00987

[1]

  GEAR-RING



001.

XKAH-01619

[1]

  GEAR-RING



002.

XKAH-00988

[1]

  HOUSING



002.

XKAH-01612

[1]

  HOUSING



004.

XKAH-00989

[1]

  COVER-SIDE



004.

XKAH-01608

[1]

  COVER-SIDE



S005.

XKAH-00990

[1]

  CARRIER NO.1



S005.

XKAH-01444

[1]

  CARRIER NO.1



S006.

XKAH-00991

[1]

  CARRIER NO.2,B



S006.

XKAH-01445

[1]

  CARRIER NO.2,B



009.

XKAH-00992

[1]

  SUN GEAR NO.1



009.

XKAH-01446

[1]

  SUN GEAR NO.1



010.

XKAH-00993

[1]

  SUN GEAR NO.2



010.

XKAH-01447

[1]

  SUN GEAR NO.2



011.

XKAH-00994

[1]

  SUN GEAR NO.3



011.

XKAH-01448

[1]

  SUN GEAR NO.3



S012.

XKAH-00995

[3]

  GEAR 1-PLANETARY



S013.

XKAH-00996

[3]

  GEAR 2-PLANETARY



S014.

XKAH-00997

[4]

  GEAR 3-PLANETARY



S016.

XKAH-00998

[3]

  PIN 2



S017.

XKAH-00999

[4]

  PIN 3



S018.

XKAH-01000

[3]

  PLATE E-SIDE



S019.

XKAH-01001

[6]

  PLATE A-SIDE



S020.

XKAH-01002

[8]

  PLATE F-SIDE



S021.

XKAH-01003

[3]

  CAGE-NEEDLE



S022.

XKAH-01004

[3]

  CAGE-NEEDLE



S023.

XKAH-01005

[4]

  CAGE-NEEDLE



024.

XKAH-01006

[3]

  RING-INNER



024.

XKAH-01262

[3]

  RING-INNER



025.

XKAH-01007

[4]

  BUSHING-FLOATING



026.

XKAH-01008

[2]

  RING-THRUST 60



S027.

XKAH-01009

[1]

  RING-THRUST



029.

XKAH-01010

[28]

  BOLT-SOCKET



030.

XKAH-00210

[12]

  BOLT-SOCKET



030.

XKAH-01609

[12]

  BOLT-SOCKET



032.

XKAH-00032

[3]

  PLUG-RO



033.

XKAH-01011

[2]

  BEARING-ANGULAR



033.

XKAH-01450

[2]

  BEARING-ANGULAR



K034.

XKAH-01012

[1]

  SEAL-FLOATING



K034.

XKAH-01451

[1]

  SEAL-FLOATING



035.

XKAH-01013

[1]

  SHIM



S036.

XKAH-01014

[3]

  PIN-SPRING



S037.

XKAH-01015

[4]

  RING-SNAP



S044.

XKAH-01016

[3]

  RING-SNAP



S044.

XKAH-00143

[3]

  RING-SNAP



045.

XKAH-01017

[1]

  CLIP



046.

XKAH-01018

[1]

  CLIP-W



047.

XKAH-01019

[1]

  RING-NUT



N047.

XKAH-01452

[1]

  NUTRING



N051.

XKAH-00985

[1]

  NAME PLATE



051.

XKAH-01482

[1]

  NAME PLATE



051.

XKAH-01614

[1]

  NAME PLATE



N052.

XKAH-00986

[2]

  SCREW-RIVET



052.

XKAH-00116

[2]

  SCREW-RIVET



K081.

XKAH-01020

[1]

  O-RING



K081.

XKAH-01453

[1]

  O-RING



K082.

XKAH-01021

[1]

  O-RING



K082.

XKAH-01454

[1]

  O-RING



K083.

XKAH-00035

[3]

  O-RING



053.

XKAH-01022

[1]

  WASHER



054.

XKAH-01023

[6]

  SCREW-SET



054.

XKAH-01023

[3]

  SCREW-SET



054.

XKAH-01455

[3]

  SCREW-SET



055.

XKAH-01439

[4]

  STOPPER-NUTRING



055.

XKAH-01610

[4]

  STOPPER-NUTRING



056.

XKAH-01440

[8]

  BOLT-SOCKET



011.

XKAH-01024

[1]

  SUB ASSY 1-CARRIER

     SEE ILLUST

012.

XKAH-01025

[1]

  SUB ASSY 2-CARRIER

     SEE ILLUST

013.

XKAH-01026

[1]

  SUB ASSY-SEAL KIT

     SEE ILLUST
