Hyundai spare parts XKAH-01450 XKAH01450 for R390LC9

Hyundai excavator travel gearbox bearing XKAH-01450 XKAH01450

XKAH-01450 BEARING;ANGULAR Hyundai parts fit : HX380L, R360LC7A, R360LC9, R370LC7, R380LC9A, R380LC9DM, R380LC9MH, R380LC9SH, R390LC9.





Hyundai excavator travel bearing XKAH-01450

P/N XKAH-01450 Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Angular contact bearing

Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:

100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience

Production Process






Product Photos

XKAH-01450Hyundai XKAH-01450Bearing XKAH-01450

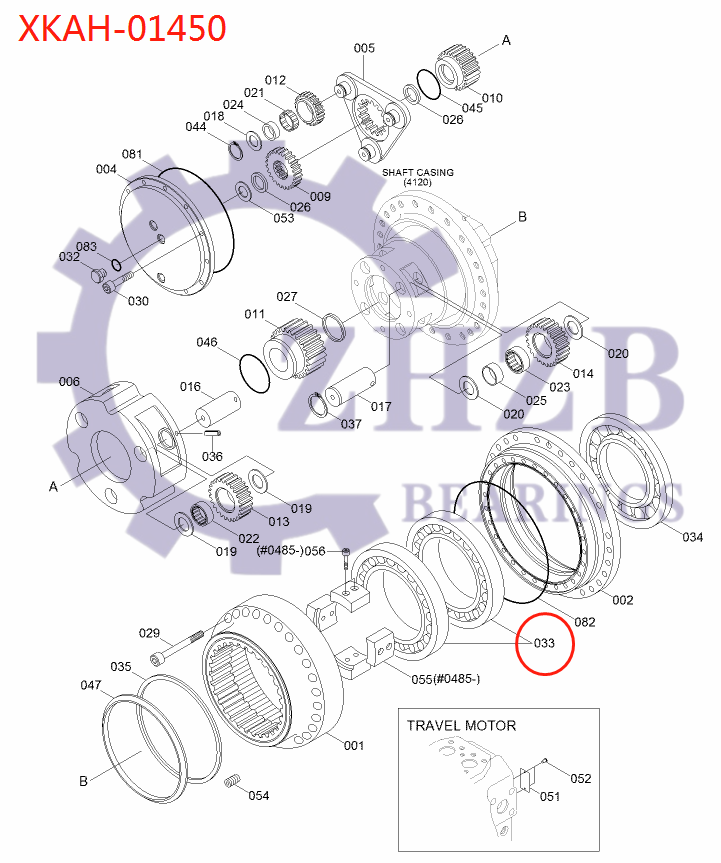

Any other parts for the travel gearbox system you need , pls search from below picture and form list then mark to me , we will quote to you.

Hyundai parts


Pos.

Part No

Qty

Parts name

Comments

*-2.

XKAH-01061

[1]

  T/REDUCTION GEAR

     SEE 4120

*-2.

XKAH-01620

[1]

  T/REDUCTION GEAR

     SEE 4120

001.

XKAH-00987

[1]

  GEAR-RING



001.

XKAH-01619

[1]

  GEAR-RING



002.

XKAH-00988

[1]

  HOUSING



002.

XKAH-01612

[1]

  HOUSING



004.

XKAH-00989

[1]

  COVER-SIDE



004.

XKAH-01608

[1]

  COVER-SIDE



S005.

XKAH-00990

[1]

  CARRIER NO.1



S005.

XKAH-01444

[1]

  CARRIER NO.1



S006.

XKAH-00991

[1]

  CARRIER NO.2,B



S006.

XKAH-01445

[1]

  CARRIER NO.2,B



009.

XKAH-00992

[1]

  SUN GEAR NO.1



009.

XKAH-01446

[1]

  SUN GEAR NO.1



010.

XKAH-00993

[1]

  SUN GEAR NO.2



010.

XKAH-01447

[1]

  SUN GEAR NO.2



011.

XKAH-00994

[1]

  SUN GEAR NO.3



011.

XKAH-01448

[1]

  SUN GEAR NO.3



S012.

XKAH-00995

[3]

  GEAR 1-PLANETARY



S013.

XKAH-00996

[3]

  GEAR 2-PLANETARY



S014.

XKAH-00997

[4]

  GEAR 3-PLANETARY



S016.

XKAH-00998

[3]

  PIN 2



S017.

XKAH-00999

[4]

  PIN 3



S018.

XKAH-01000

[3]

  PLATE E-SIDE



S019.

XKAH-01001

[6]

  PLATE A-SIDE



S020.

XKAH-01002

[8]

  PLATE F-SIDE



S021.

XKAH-01003

[3]

  CAGE-NEEDLE



S022.

XKAH-01004

[3]

  CAGE-NEEDLE



S023.

XKAH-01005

[4]

  CAGE-NEEDLE



024.

XKAH-01006

[3]

  RING-INNER



024.

XKAH-01262

[3]

  RING-INNER



025.

XKAH-01007

[4]

  BUSHING-FLOATING



026.

XKAH-01008

[2]

  RING-THRUST 60



S027.

XKAH-01009

[1]

  RING-THRUST



029.

XKAH-01010

[28]

  BOLT-SOCKET



030.

XKAH-00210

[12]

  BOLT-SOCKET



030.

XKAH-01609

[12]

  BOLT-SOCKET



032.

XKAH-00032

[3]

  PLUG-RO



033.

XKAH-01011

[2]

  BEARING-ANGULAR



033.

XKAH-01450

[2]

  BEARING-ANGULAR



K034.

XKAH-01012

[1]

  SEAL-FLOATING



K034.

XKAH-01451

[1]

  SEAL-FLOATING



035.

XKAH-01013

[1]

  SHIM



S036.

XKAH-01014

[3]

  PIN-SPRING



S037.

XKAH-01015

[4]

  RING-SNAP



S044.

XKAH-01016

[3]

  RING-SNAP



S044.

XKAH-00143

[3]

  RING-SNAP



045.

XKAH-01017

[1]

  CLIP



046.

XKAH-01018

[1]

  CLIP-W



047.

XKAH-01019

[1]

  RING-NUT



N047.

XKAH-01452

[1]

  NUTRING



N051.

XKAH-00985

[1]

  NAME PLATE



051.

XKAH-01482

[1]

  NAME PLATE



051.

XKAH-01614

[1]

  NAME PLATE



N052.

XKAH-00986

[2]

  SCREW-RIVET



052.

XKAH-00116

[2]

  SCREW-RIVET



K081.

XKAH-01020

[1]

  O-RING



K081.

XKAH-01453

[1]

  O-RING



K082.

XKAH-01021

[1]

  O-RING



K082.

XKAH-01454

[1]

  O-RING



K083.

XKAH-00035

[3]

  O-RING



053.

XKAH-01022

[1]

  WASHER



054.

XKAH-01023

[6]

  SCREW-SET



054.

XKAH-01023

[3]

  SCREW-SET



054.

XKAH-01455

[3]

  SCREW-SET



055.

XKAH-01439

[4]

  STOPPER-NUTRING



055.

XKAH-01610

[4]

  STOPPER-NUTRING



056.

XKAH-01440

[8]

  BOLT-SOCKET



011.

XKAH-01024

[1]

  SUB ASSY 1-CARRIER

     SEE ILLUST

012.

XKAH-01025

[1]

  SUB ASSY 2-CARRIER

     SEE ILLUST

013.

XKAH-01026

[1]

  SUB ASSY-SEAL KIT

     SEE ILLUST




Company

ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!

ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!
