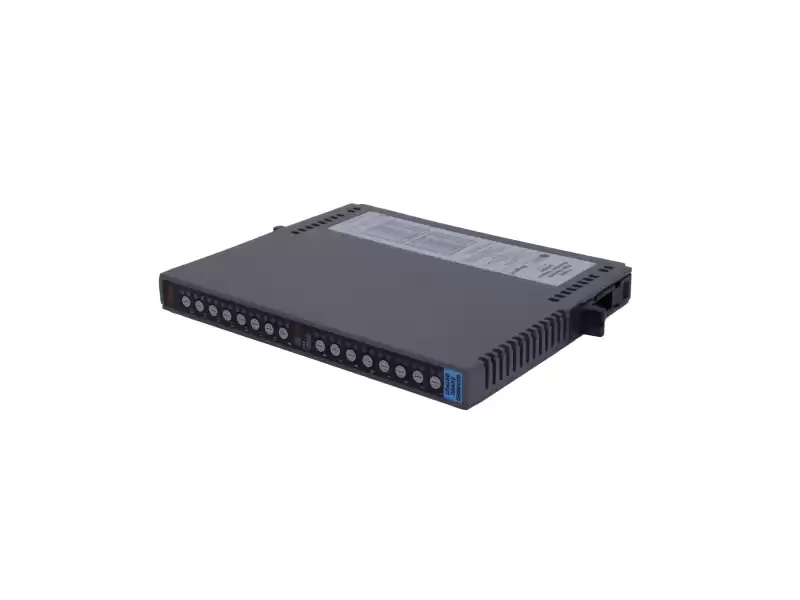

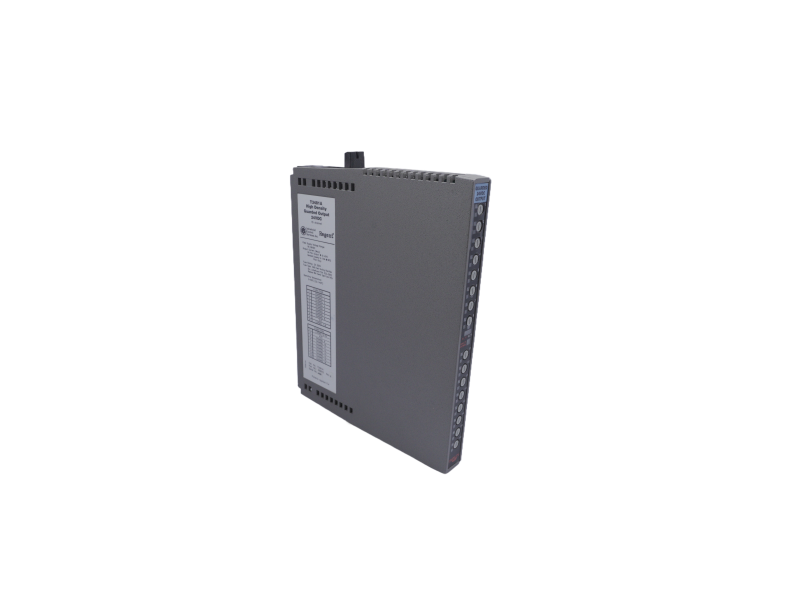

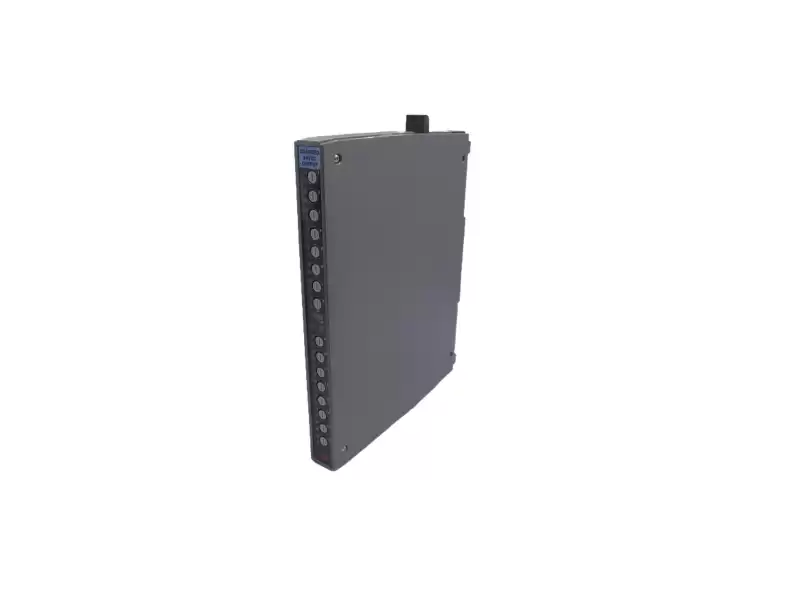

T3481A is not a minor rev of the T3481; it is a performance variant built for “fast-loop” duties: 250 µs channel refresh, differential voltage read-back terminals and zero-drift calibration without stopping the process. Target applications are gas-turbine inter-stage cooling valves, ethylene-cracking-furnace draft dampers and millisecond-trip differential-pressure valves—any control loop that needs command and feedback inside the same Tricon scan.
1.What makes it different
• 250 µs / 16 ch parallel update – four times faster than the standard T3481, fits directly into a 2 ms Tricon task.
• Every channel provides a differential 0–5 V read-back pin for positioner or transmitter feedback, saving one whole input board slot.
• On-line “auto-zero wipe”: Hall sensors disconnect the loop for 100 µs every 30 min, re-calibrate offset and gain, SIL 3 validity maintained.
• Field-side rating raised to 80 V dc, tolerates 48 V dc buses plus 100 % surge overhead.
2.Key data
|
Item
|
Value
|
|
Function
|
16 isolated current sinks + diff. voltage read-back
|
|
Sink range
|
0–22 mA (default 4–20 mA)
|
|
Load capability
|
0–1 kΩ @ 20 mA / 80 V
|
|
Refresh & settle
|
250 µs update all ch, <50 µs settling
|
|
Read-back accuracy
|
±0.05 % for 0–5 V
|
|
Current accuracy
|
±0.04 % FSR
|
|
Temp. drift
|
25 ppm/°C
|
|
Isolation
|
1 kV rms ch-to-bus, ch-to-ch
|
|
On-line cal.
|
Zero/gain, 30 min cycle, bumpless
|
|
Diag. pulse
|
0.3 mA, 80 µs, HART-0 transparent
|
|
Field bus
|
12–80 V dc
|
|
Energy absorption
|
2 J (inductive)
|
|
Rack power
|
5 V 1.2 A, 3.3 V 0.4 A
|
|
MTBF (Telcordia)
|
1.22 million h
|
|
Temperature
|
–40 … +75 °C
|
|
Termination
|
Push-in, 2.5 mm², pluggable
|
3.Typical “fast-loop” wiring
① Gas-turbine cooling valve: Tricon DO → T3481A CHx current sink → servo-valve coil; valve potentiometer 0–5 V wired to the same board “read-back” terminal → Tricon AI—command and feedback in one cable.
② Millisecond relief valve: T3481A outputs 8 mA (safe position) → cryo-solenoid; when SPEED task triggers, the board slews to 20 mA within 250 µs, valve fully open, one full scan faster than legacy schemes.
