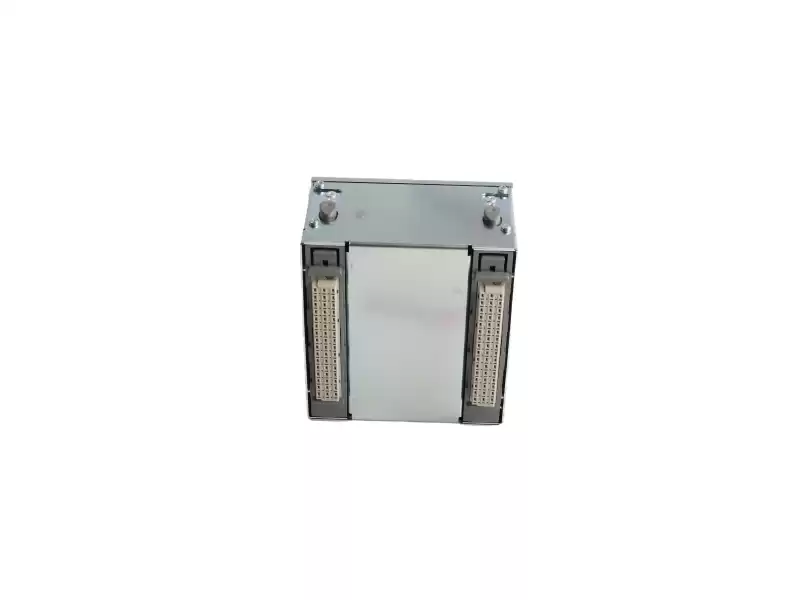

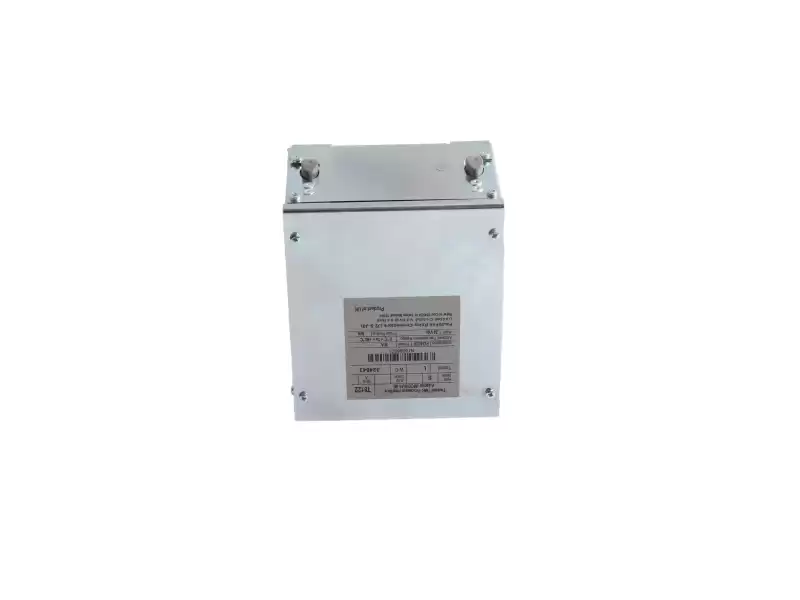

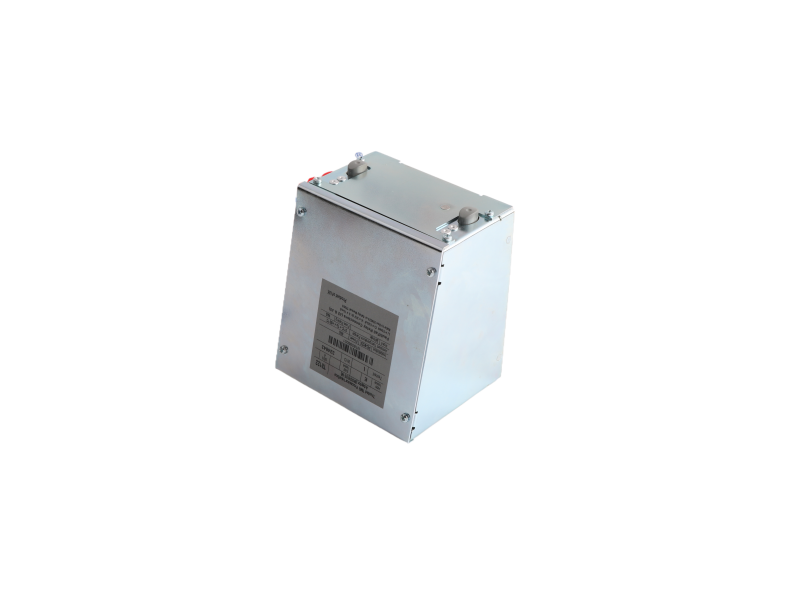

T8122 is a zero-slot, back-plate “protocol translator” that converts the Trusted® triple-redundant back-plane into three isolated serial highways. DCS, ESD or any third-party RTU can now chat Modbus RTU/ASCII straight to the TMR core—no extra cards, no loss of SIL.
1.Hardware at a glance
|
Item
|
Value
|
Note
|
|
Power draw
|
5 V from processor back-plane
|
< 0.1 W
|
|
Isolation
|
50 V working / 250 V basic fault
|
2 436 Vdc type-test, 60 s
|
|
Serial ports
|
3, individually isolated
|
Port 1 = RS-485; Port 2 & 3 = software-selectable RS-422/485 (2- or 4-wire)
|
|
Baud rate
|
300 – 115 200 bps
|
Set per port
|
|
Protocol
|
Modbus RTU/ASCII Master
|
Broadcast, poll, auto-retry
|
|
Size / mass
|
138 × 120 × 108 mm, 877 g
|
Rear-mounts without tools
|
|
Environment
|
0 – 60 °C, 10 – 95 % RH
|
Fan-free, no condensation
|
2.Site value
· Expand on the fly: plug, power, recognised instantly—no re-download of the Trusted application.
· Cut wiring cost: three isolated ports remove separate RS-485 isolators and marshalling blocks.
· See what happens: tri-colour LEDs show “Idle / Tx / Rx / Fault” per port; SOE time-stamps Modbus timeouts to the millisecond.
