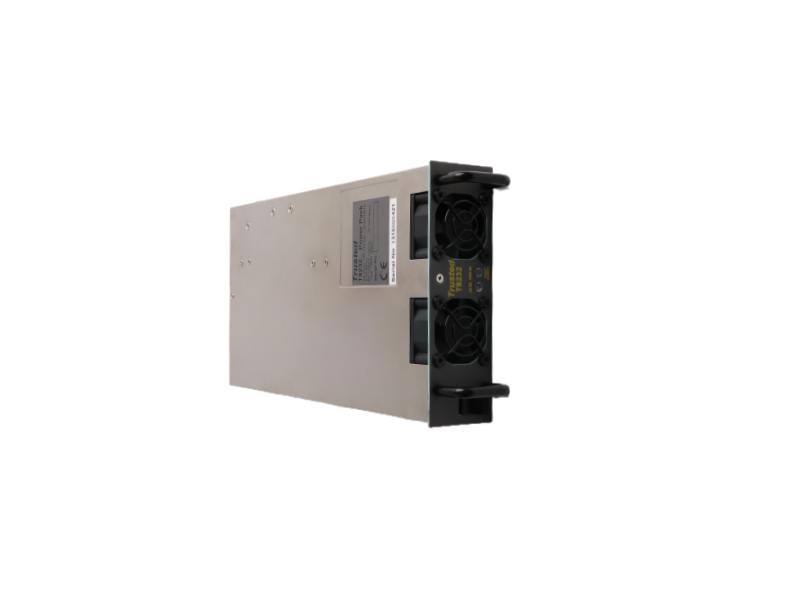

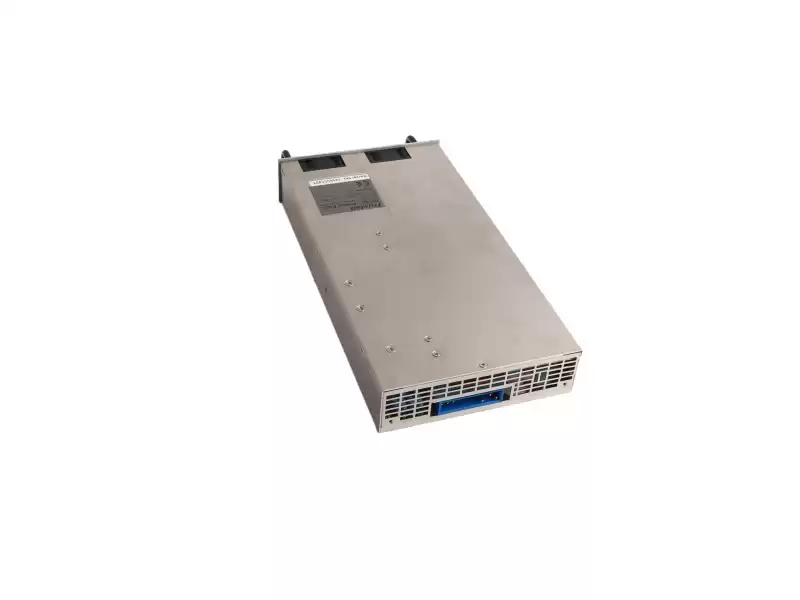

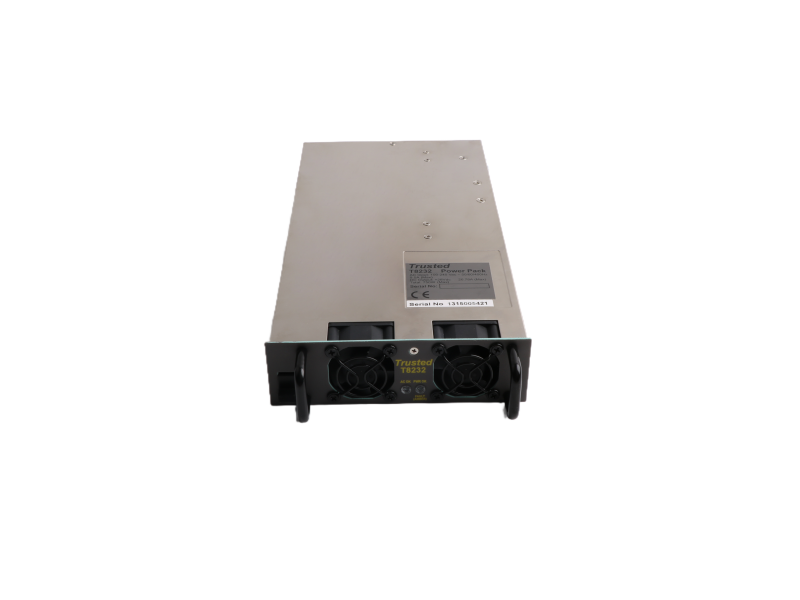

The T8232 Power Pack provides regulated and stable power to connected control modules within the ICS Triplex system. Its design follows stringent safety and redundancy standards, making it ideal for use in Triconex/Triplex fault-tolerant architectures.
Key benefits include:
1. Stable DC power output
2. High reliability in continuous operation
3. Hot-swappable design for minimal downtime
4. Built-in monitoring and fault detection
|
Electrical
|
Value
|
Mechanical / Env.
|
Value
|
|
Input range
|
90–264 V AC, 47–63 Hz
|
Size (H×W×D)
|
41 × 107 × 260 mm
|
|
Output
|
28 V DC @ 26.8 A (750 W)
|
Weight
|
0.92 kg
|
|
Hold-up time
|
> 20 ms @ 100 % load
|
Operating T
|
–20 … +60 °C
|
|
Efficiency
|
92 % @ 230 V AC
|
MTBF
|
> 200 000 h
|
|
Isolation
|
3 kV AC in / out
|
Cooling
|
Internal fan, auto-speed
|
Typical System Architecture
|
Component
|
Qty per shelf
|
Function
|
|
T8230 Power Shelf
|
1
|
1U rack, 3 slots, 2250 W total
|
|
T8232 Power Pack
|
1–3
|
28 V DC field supply (hot-swap)
|
|
T8233 Power Port
|
1
|
Diagnostic & relay contacts
|
|
T8234 Power Controller (optional)
|
1
|
Live voltage / current set-up for 12 packs
|
Why Choose PLC Autocontroller
20-year automation stockist in Xiamen – next-day dispatch for in-stock T8232 units.
1-year warranty, original factory seals
