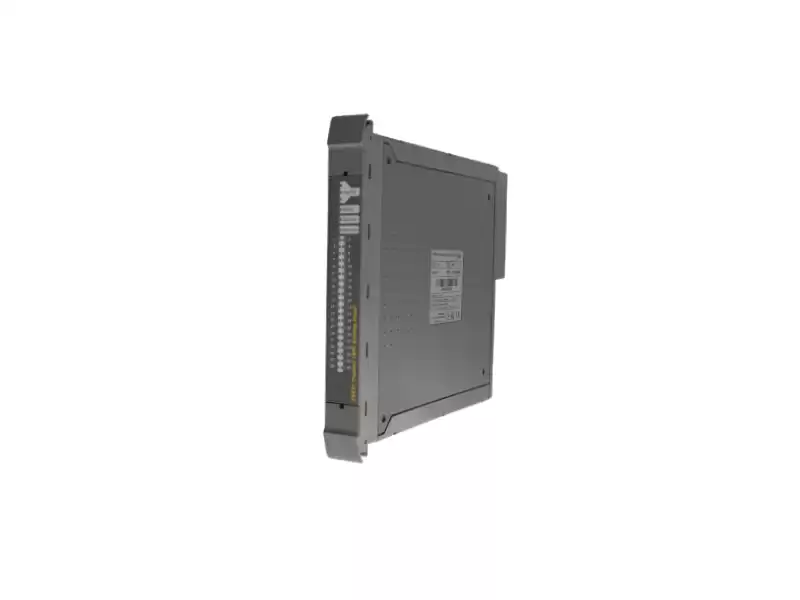

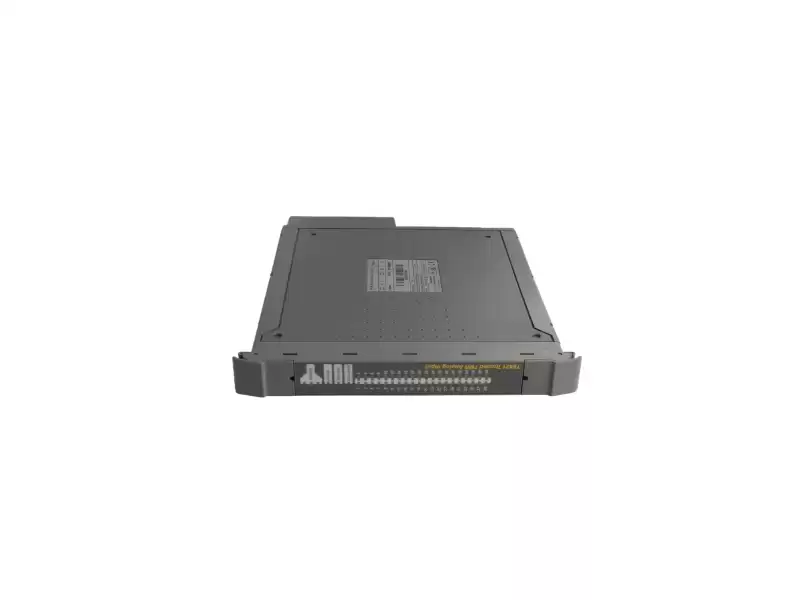

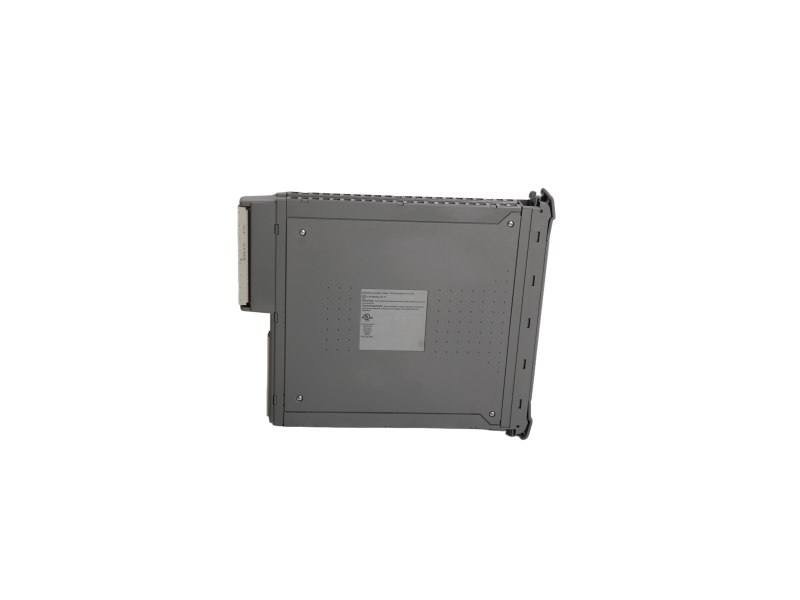

ICS triplex T8431 Analog Input Module

Parameter (per channel)

Guaranteed Range

Factory Calibration

Input type

4–20 mA / 0–5 V jumper-select

±0.05 % F.S.

Resolution

16-bit Σ-Δ, 2 ms scan

<0.005 %

Isolation

1 500 V RMS ch-to-bus

100 % hipot tested

CMR

120 dB @ 50 Hz

–

Temp. drift

±0.3 µA/°C

–40 … +70 °C

Part #

Description

Why Pair with T8431

T8451

40-ch digital input

Same back-plane, firmware

T8480

6-ch analog output

Close the loop seamlessly

TRICONEX 3625

24 Vdc digital output

Common safety architecture

ICS T8191

24 Vdc power adapter

Matched ripple spec

T940

CPU module

Upgrade legacy TRICON→TX
