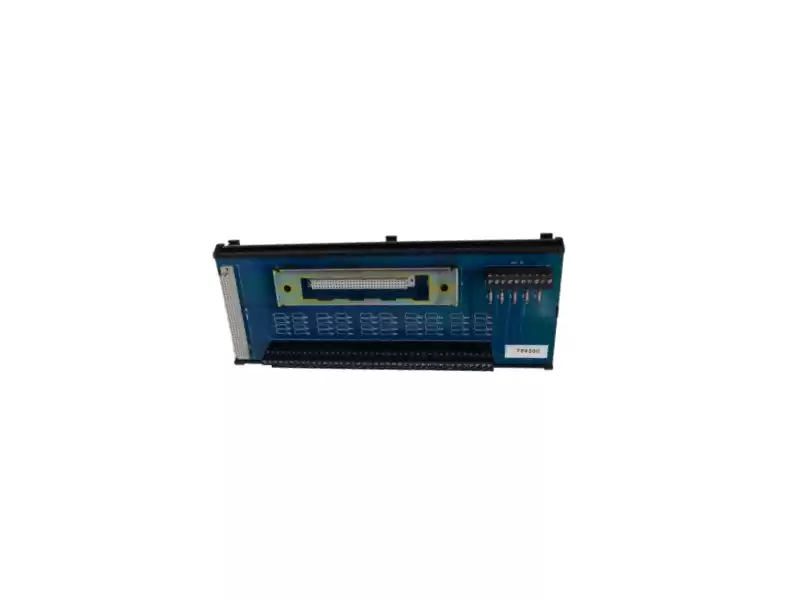

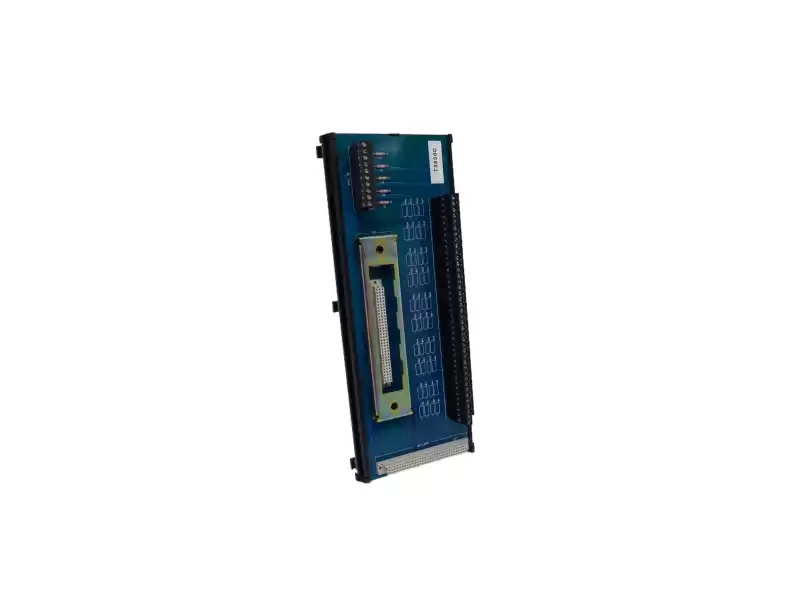

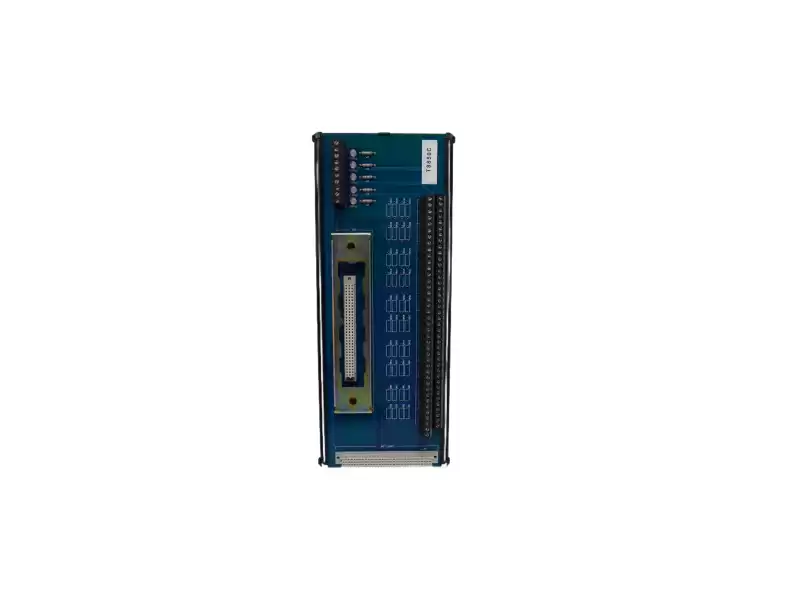

T8850C keeps the same 40-channel, software-selectable analog-or-digital soul as T8850, but adds: • Cold-start surge clamp – loop cards no longer dip when field power is re-applied
• Conformal-coated PCB (IPC-610-3C) – 5× salt-fog life, perfect for offshore or coastal skids
• Cable-saving “C-coded” spring terminals – accept 0.34 mm² up to 2.5 mm² without ferrules
• Configurable group-level OVP (Over-Voltage Protection) – 28 V, 32 V, 36 V trip via TriStation 1131 v4.9
• Certified for IEC 61326-3-2:2021 EMC – immunity to 30 V/m radiated field, 2 kV surge on signal lines
side-by-side table
|
Feature / Spec
|
T8850 (legacy)
|
T8850C (current)
|
|
PCB coating
|
None
|
Full conformal, 50 µm
|
|
Salt-fog endurance
|
96 h
|
500 h (ASTM B117)
|
|
Spring terminal range
|
12-28 AWG
|
0.34-2.5 mm² (22-14 AWG)
|
|
Max radiated immunity
|
10 V/m
|
30 V/m
|
|
Group OVP setting
|
Fixed 33 V
|
TriStation-selectable 28/32/36 V
|
|
Cold-start surge clamp
|
No
|
Yes (< 5 A inrush limit)
|
|
Housing color
|
Light gray
|
Anthracite gray
|
|
LED indication
|
Single color
|
Dual-color + flash code
|
|
TriStation minimal version
|
v4.6
|
v4.9
|
|
RoHS
|
RoHS 5/6
|
RoHS 10/10
|
|
Availability (PLC Autocontroller stock)
|
Last-buy phase
|
Active production
|
Where the “C” scores money Offshore platforms: coating + salt-fog = 8 extra years before first deck-box replacement.
OEM skid builders: selectable OVP lets you use the same FTA for 24 Vdc solenoids AND 28 Vdc sounder beacons—one SKU instead of two.
Retrofit jobs: anthracite color instantly tells technicians “new revision—check TS1131 version”, reducing mis-wiring tickets.
Quick-fit compatibility • Rack: same 110 × 360 mm DIN-rail cut-out – drop-in swap.
• Cable schedule: identical core numbers; only outer jacket diameter can increase by 0.2 mm due to C-coded key.
• Logic: TMR lane mapping unchanged; TriStation project needs v4.9+ to see OVP menu.
