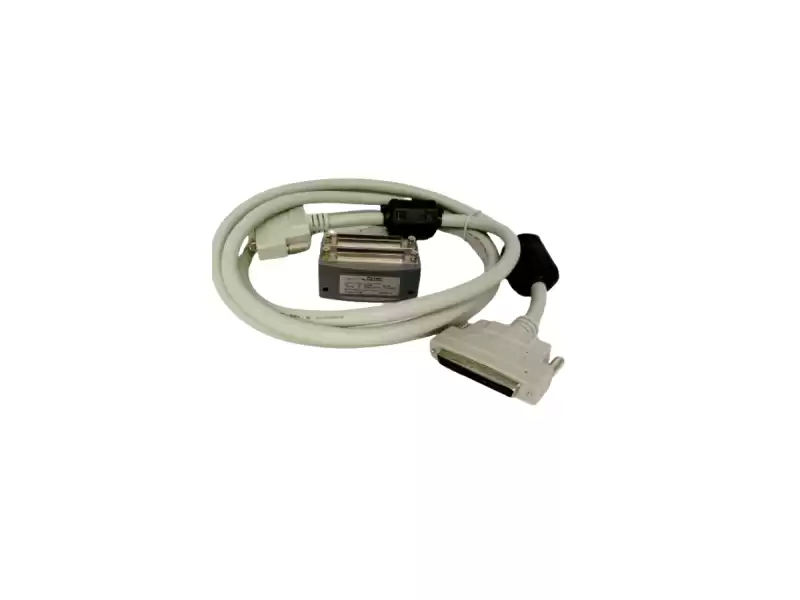

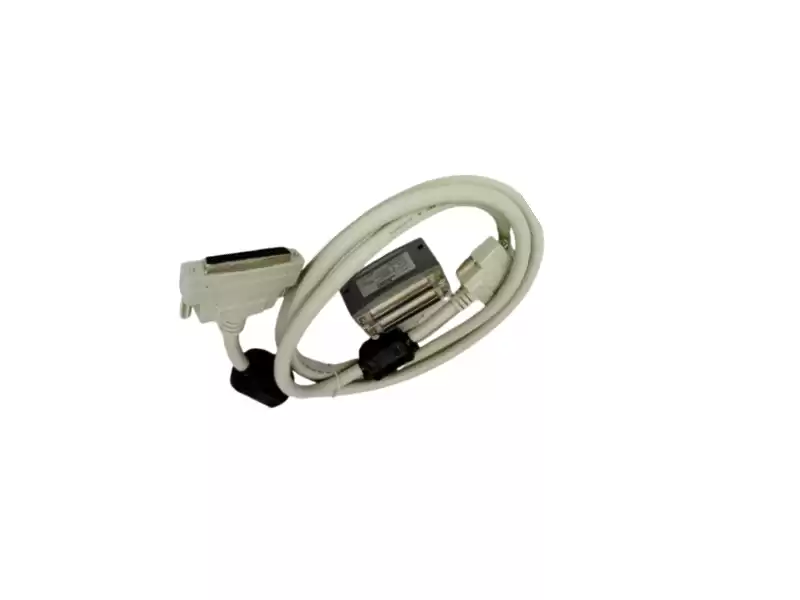

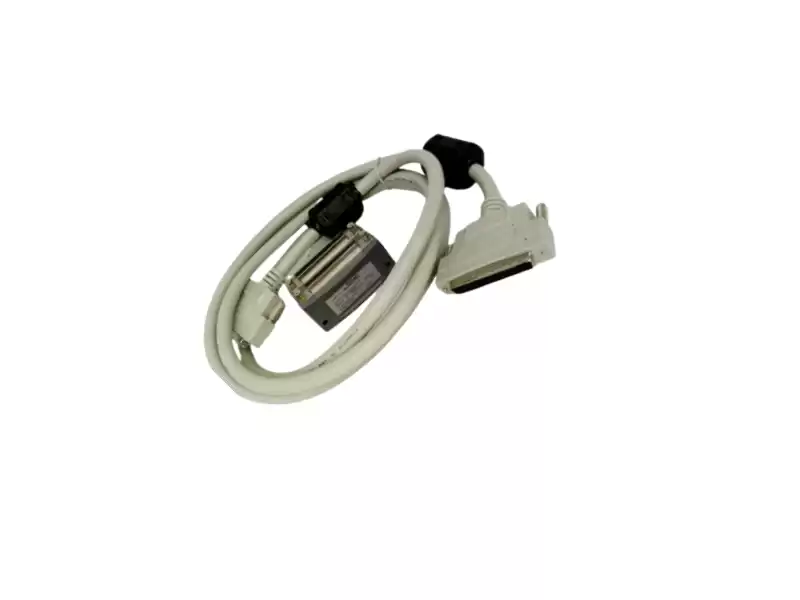

T9310-02 is a 2 m backplane extension cable kit that lengthens I/O Bus 1 / Bus 2 signals and power between AADvance T9300 base units. When cabinets must be split across rows, kept away from high-interference zones or given extra ventilation space, the cable extends the distance between adjacent bases up to 2 m without compromising SIL integrity.
Kit Contents & Mechanical Data
|
Item
|
Description
|
|
Cable length
|
2 m (6.56 ft)
|
|
Connector
|
50-pin D-Sub with locking screws on both ends
|
|
Adapters
|
2 metal-shell adapters, factory-fitted
|
|
Wire gauge
|
28 AWG multi-core, overall shield, flame-retardant PVC jacket
|
|
Bend radius
|
≥ 10 × OD (dynamic)
|
|
Weight
|
≈ 0.2 kg (with packaging)
|
Electrical / Environmental Ratings
|
Parameter
|
Value
|
|
Rated voltage
|
30 Vdc (same as backplane supply)
|
|
Operating temp.
|
–40 … +70 °C
|
|
Storage temp.
|
–40 … +85 °C
|
|
Humidity
|
5 … 95 % RH, non-condensing
|
|
Max. bus length*
|
8 m (including local base + all extension cables)
|
|
Compatibility
|
AADvance T9300 / T9310 full range
|
*Design tip: One T9310-02 consumes 2 m, leaving 6 m for additional cables or rack chaining.
Typical Topology
T9100 processor base ——(T9310-02 2 m)——> T9300 I/O base ——(further cascade or termination)
• Star, daisy-chain or tree layouts supported
• Cable and backplane connectors are keyed; hot-plugging does not affect SIL rating
