u Key Performance Data (25 °C)
|
Parameter
|
Value
|
|

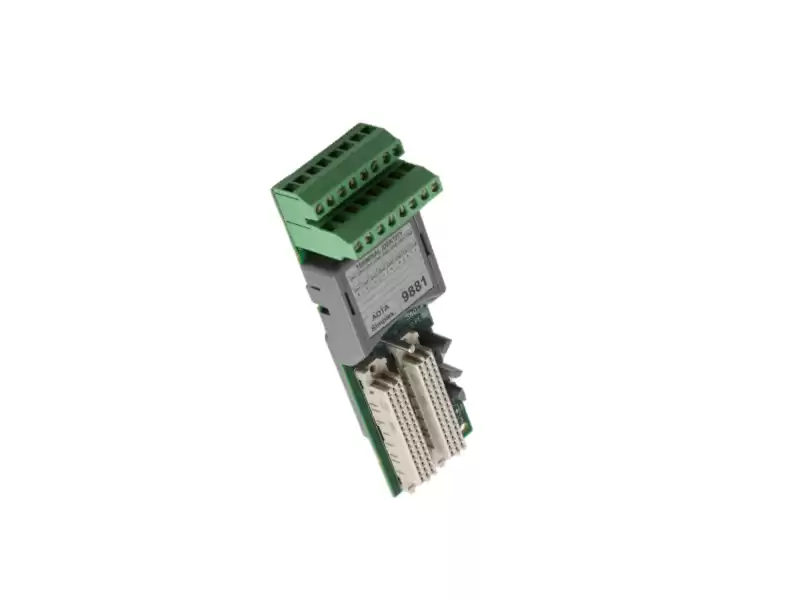

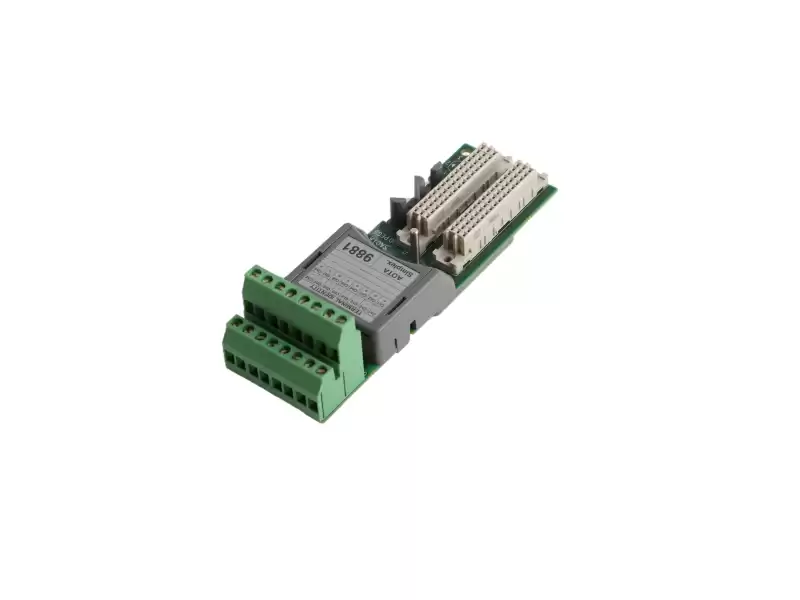

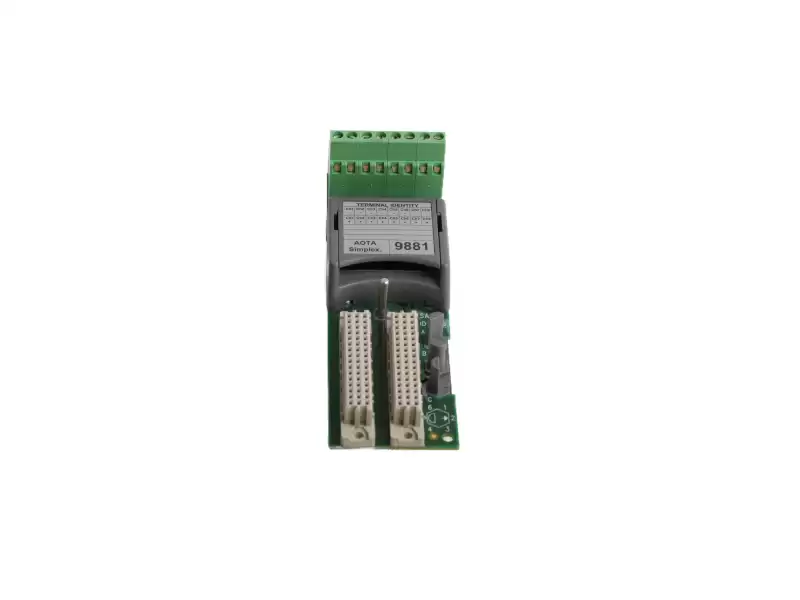

Part number
|
T9881
|
|
Function
|
Analogue output termination
|
|
Channels
|
6 independent
|
|
Output span
|
4–20 mA (user-configurable 0–20 mA)
|
|
Load capability
|
0–750 Ω (24 V loop supply)
|
|
Accuracy
|
±0.05 % of span
|
|
Temperature drift
|
±0.003 %/°C
|
|
Loop power
|
on-board 24 Vdc (short-proof)
|
|
Open-circuit detect
|
< 2 mA leakage, flag in 250 ms
|
|
Isolation
|
Ch-to-ch 250 V, ch-to-system 500 V
|
|
Connector
|
front 25-way D-sub, plug-gold
|
|
LED indicators
|
1 green per ch (loop OK)
|
|
Calibration
|
factory-trimmed, no pots
|
|
Certifications
|
SIL 3 IEC 61508, CE, ATEX nA, RoHS
|
|
Dimensions
|
105 × 84 × 28 mm
|
|
Weight
|
220 g
|
u What Ships with the Unit
1. T9881 assembly – sealed anti-static bag
2. 25-pin male D-sub – crimp pins included
3. Snap-in calibration label – traceability ID
4. Fold-out safety sheet – ATEX temp curve
u Why T9881 Scores for Process Plants
1. Active source design – loop drives up to 750 Ω without external supply
2. Hot-swap friendly – D-sub allows change-out in under 30 s
3. Cable savings – on-board 24 V removes marshalling rack PSU
4. Open-wire alarm – early warning prevents valve drift or analyzer fail
5. Narrow 105 mm width – six channels in half the space of legacy 4-ch blocks
u Typical Applications
1. Reactor jacket valve positioning
2. Compressor anti-surge throttle control
3. Custody-transfer flow-tube drive
4. Continuous emissions monitoring (CEMS) analyzer control
u Instant Quote & Delivery
PLC Autocontroller keeps genuine T9881 units on shelf in Xiamen: brand-new, factory-sealed, 12-month warranty. No MOQ, ship today via DHL/FedEx/UPS 2–4 days worldwide.
