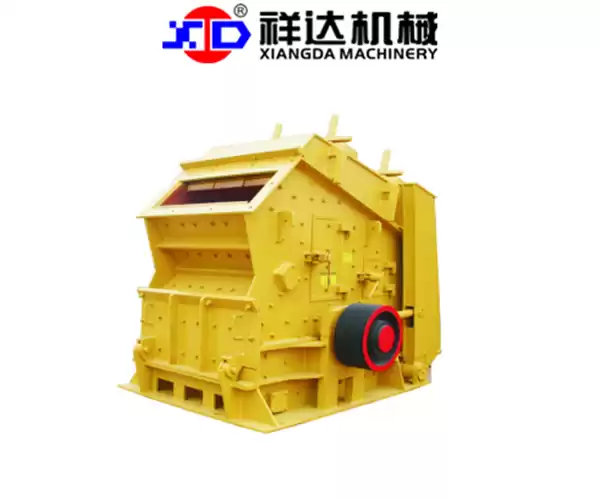

IMPACT CRUSHER
PRODUCT DESCRIPTION
PF series impact crusher uses impact energy to crush material. The electric motor drives the rotor to rotate fast where installed plate hammers impact materials with high speed. The materials are rebounded from the impact liner to the plate hammers to be crushed again, and then discharged from discharging outlet. The purpose is to change the size and shape of material by adjusting the gap between impact rack and rotor support.
PRODUCT FEATURES
IMPACT CRUSHER
◆High efficiency and energy saving, convenient maintenance, easy and reliable operation.
◆Stable rotor vibration, keyless connection with main shaft.
◆High-chromium plate hammer, unique counterattack lining, long service life.
◆Cubic finished product without tension cracks, good grain shape, adaptable granularity, and simple crushing circuit.
|
Model
|
Specification
|
Feed Opening
|
Max.Feed Size
|
Capacity
|
Power
|
Weight
|
Dimension
|
|
(mm)
|
(mm)
|
(mm)
|
(t/h)
|
(kw)
|
(t)
|
(L×W×H)(mm)
|
|
PF-1007
|
Φ1000×700
|
800×700
|
300
|
24-45
|
55
|
9.5
|
2400×1558×2200
|
|
PF-1010
|
Φ1000×1050
|
1170×720
|
350
|
50-80
|
75
|
10
|
2520×1900×2200
|
|
PF-1210
|
Φ1250×1050
|
1090×465
|
350
|
80-130
|
110
|
14
|
2638×2053×2810
|
|
PF-1214
|
Φ1250×1400
|
1440×465
|
350
|
100-160
|
132
|
18
|
2580×2400×2810
|
|
PF-1315
|
Φ1300×1500
|
1532×560
|
350
|
140-200
|
200
|
19.3
|
3007×2748×2556
|
|
PF-1316
|
Φ1300×1600
|
1690×859
|
350
|
150-220
|
200
|
19.5
|
3096×2850×2667
|
|
PF-1320
|
Φ1300×2000
|
2030x800
|
325
|
280-320
|
400
|
29.7
|
3280x3200×2613
|
|
PF-1515
|
Φ1450×1500
|
1580x850
|
350
|
220-280
|
315
|
28.3
|
3550×2835×3217
|

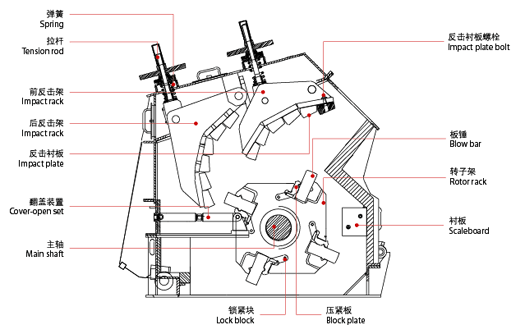

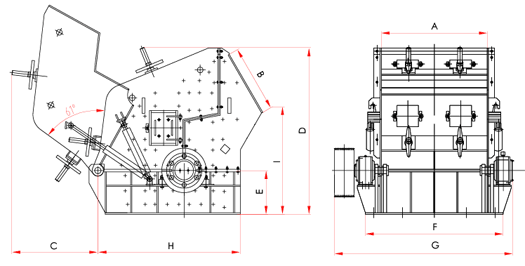

IMPACT CRUSHER STRUCTURE

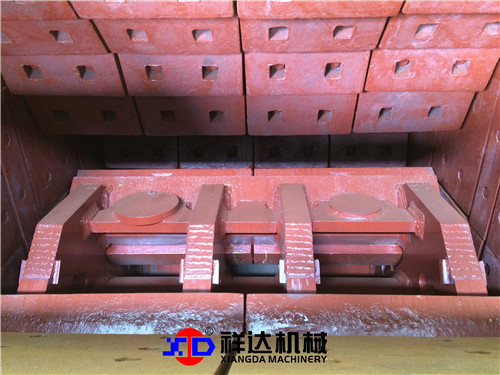

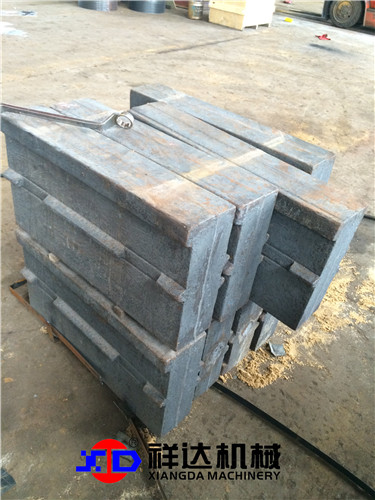

Inside impact bar and impact plate all used MN13Cr2 materials

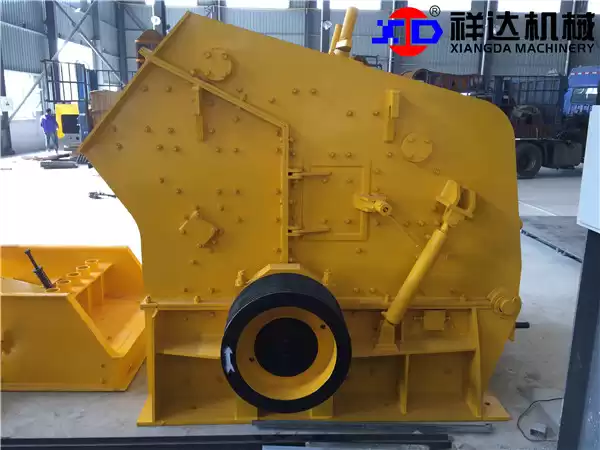

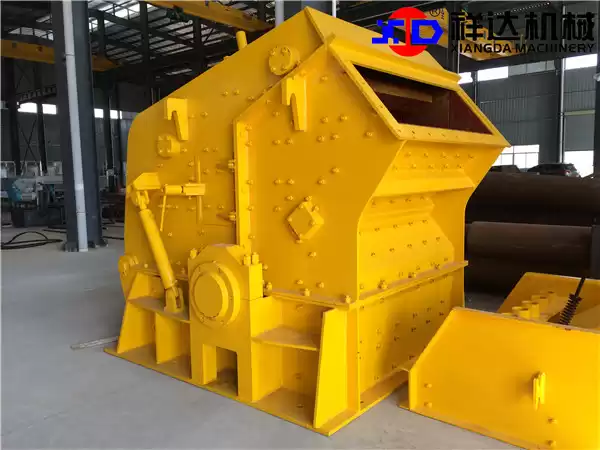

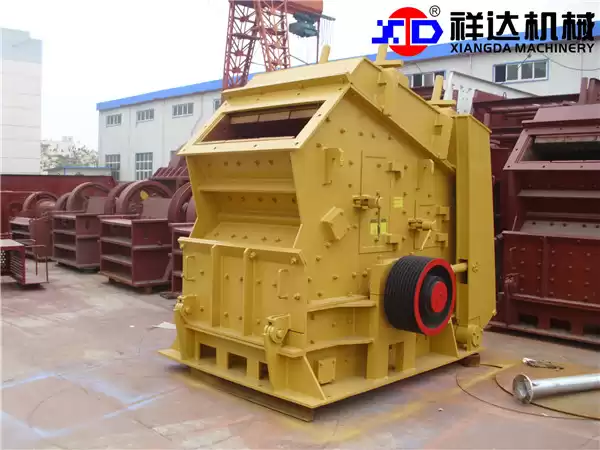

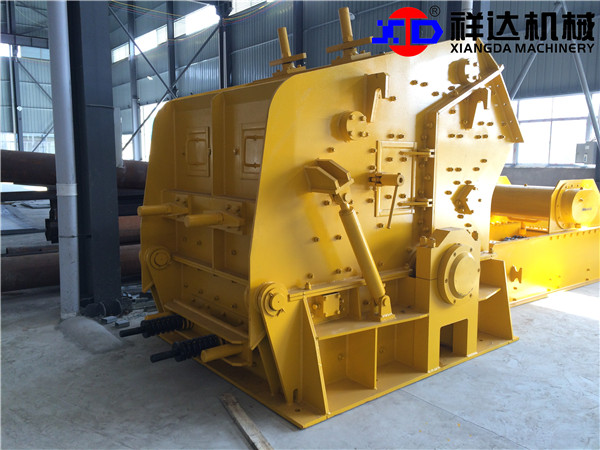

OUR FACTORY

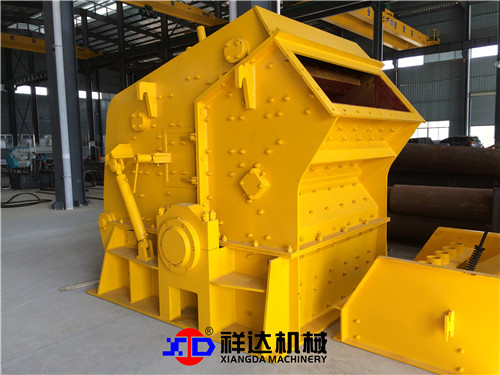

IMPACT CRUSHER

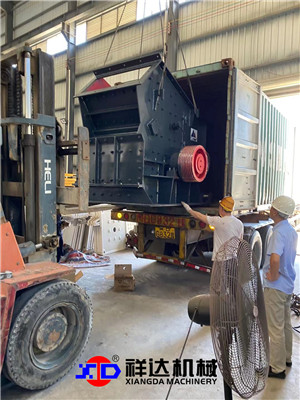

Packaging & Shipping
IMPACT CRUSHER

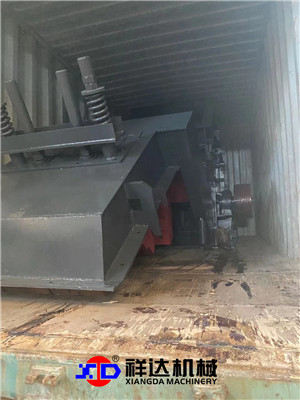

Packaging:standard Container, Nude Packs or in Bulk.The electrical motor or spare parts will be packed by wooden case or steel frame.Unique offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Unique workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.
Shipping:we deliver the cargo to China's main sea ports,like Xiamen port.And then the container will be transported to your country by sea.
Product Packing
Standard export packing, Spare parts are packed with wooden case, the large machines are loaded in container with nude packing, covered with plastic cloth. We export through Xiamen Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client with competitive price and secure transportation.
After-sales service support
Our Services
After-sales:
*Send the engineers to guide the installation.
*Install and adjust the equipment for customers.
*Train the operator for customers.
*We also provide the technical service for our customers after the installation.
*Solution for you choose as well as we will give lifetime free technical support and services.
