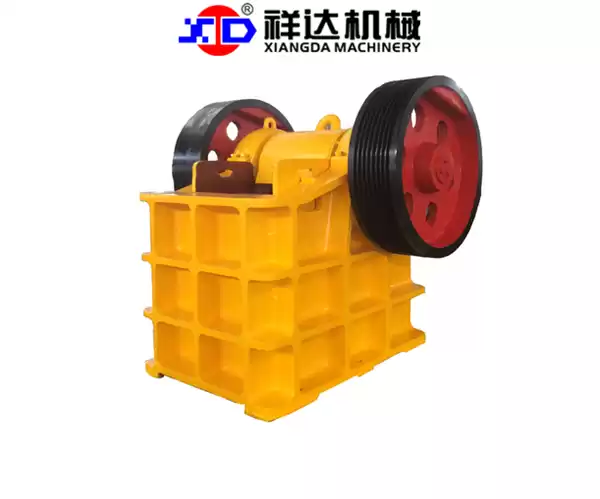

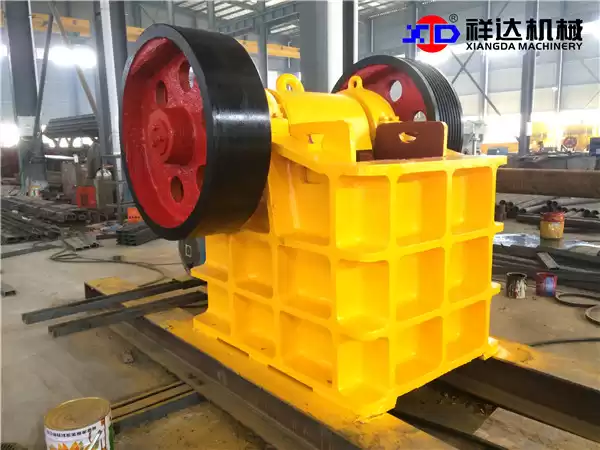

STONE CRUSHER MACHINE

◆Moveable jaw assembly adopts high quality casting steel, heavy eccentric shaft adopts forging steel processing, the machine with transcendental stability.
◆Comparing with the same size jaw crusher, we adopt more durable eccentric shaft bearing, so the bearing capacity is big.
◆While guarantee the performance improvement, we simplify the machine structure. Easy operation and maintenance, the downtime is greatly reduced.



STONE CRUSHER MACHINE

PRODUCT   DESCRIPTION

Widely used in Quarrying and Mining industries, the PE Series Jaw Crushers are single toggle roller bearing machines designed to operate as primary crushing units in medium to hard rock applications. The swing jaw is activated by an eccentric main shaft which lifts and thrusts the swing jaw towards the fixed jaw, thus creating the crushing action. The crusher discharge setting (CSS) is variable by mechanical shim adjustment of the swing jaw behind the toggle plate.


PRODUCT   FEATURES

STONE CRUSHER MACHINE


◆Moveable jaw assembly adopts high quality casting steel, heavy eccentric shaft adopts forging steel processing, the machine with transcendental stability.

◆Comparing with the same size jaw crusher, we adopt more durable eccentric shaft bearing, so the bearing capacity is big.

◆While guarantee the performance improvement, we simplify the machine structure. Easy operation and maintenance, the downtime is greatly reduced.



 TECHNICAL DATA

Model Max. feeding size Capacity Eccentric shaft speed Power Closed side setting Weight Dimension
(mm) (t/h) (r/min) (kw) (mm) (t) (L×W×H)(mm)
PE-150×250 125 1-5 250 5.5 10-40 0.8 875×758×850
PE-250×400 210 5-20 300 15 20-60 2.8 1450×1335×1310
PE-400×600 340 15-65 275 30 40-120 6.8 1565×1732×1586
PE-350×750 300 25-70 300 37 20-100 7.3 1810×1900×1730
PE-500×750 425 45-100 275 55 50-100 12.1 1980×1890×1860
PE-600×900 500 50-120 250 55 65-160 17 2290×2206×2370
PE-750×1060 630 100-208 250 110 80-140 30 2790×2450×2840
PE-900×1200 750 200-420 200 160 95-165 50 3335×3182×3040
PE-1000×1200 850 230-450 200 160 195-265 51 3435×3182×3050
PE-1200×1500 950 400-800 180 220 150-300 100 4587×3342×3553
PE-1500×1800 1200 530-1000 160 355 220-350 122 5160×3660×4248
PEX-150×750 125 10-30 320 15 10-40 3.5 1430×1635×1108
PEX-250×750 210 15-40 330 22 25-60 4.5 1667×1545×1020
PEX-250×1000 210 20-52 330 30 25-60 6.5 1580×1964×1380
PEX-250×1200 210 25-70 330 37 25-60 7.7 1580×2164×1430
PEX-300×1300 250 30-104 330 55 20-80 11

1750×2320×1730

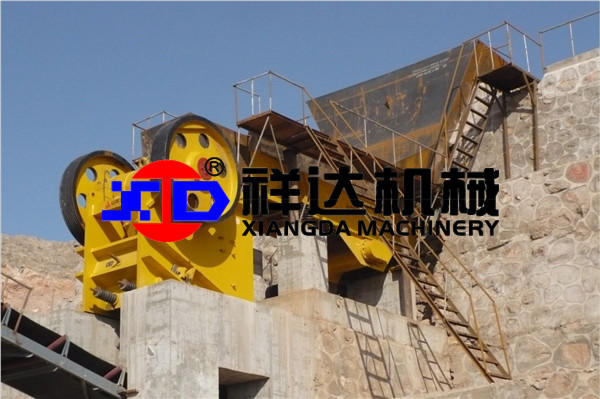

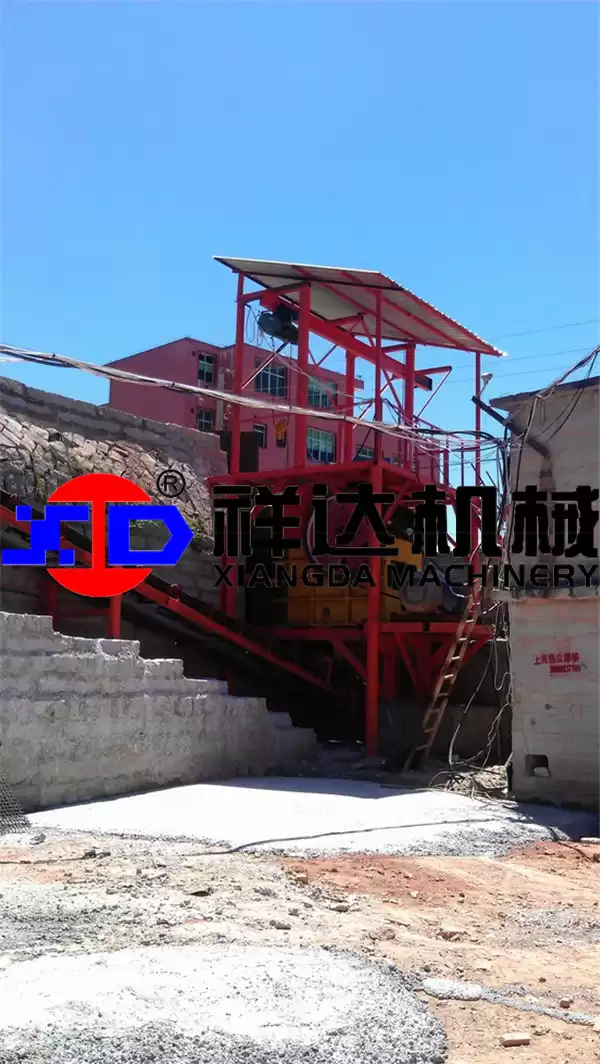

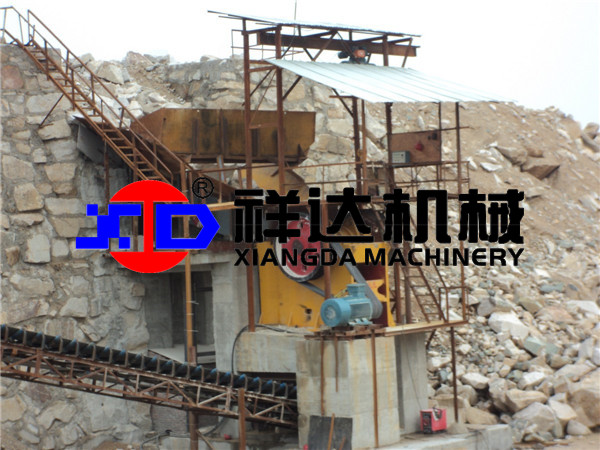

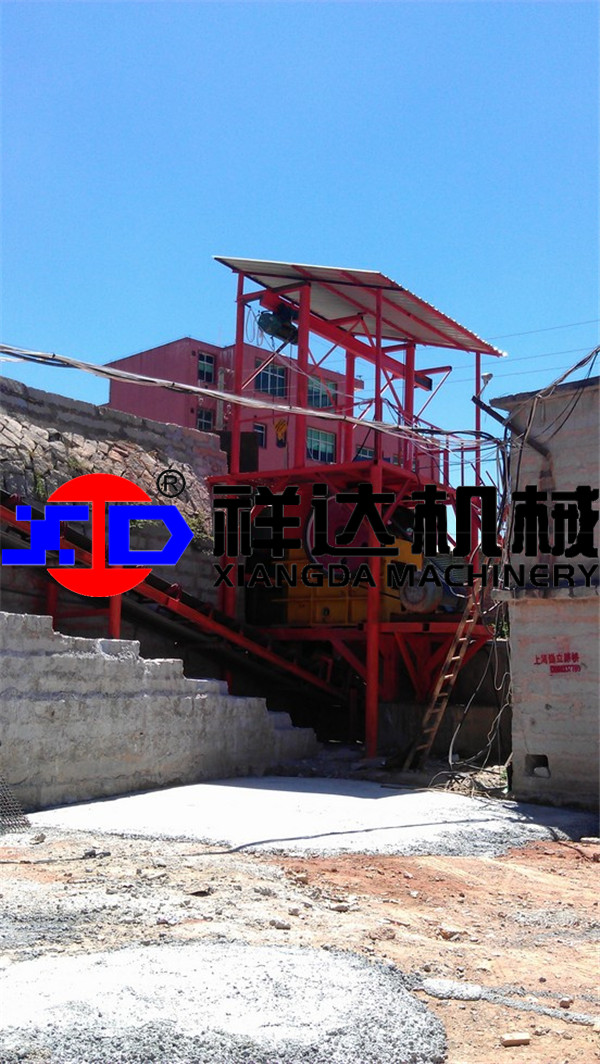

STONE CRUSHER WORKING SITE

STONE CRUSHER MACHINE

STONE CRUSHER MACHINESTONE CRUSHER MACHINE

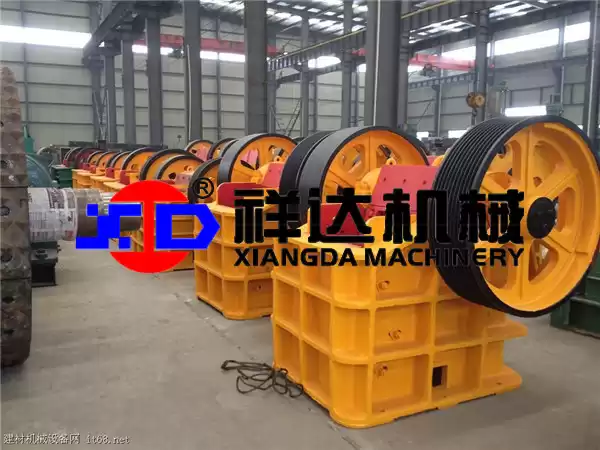

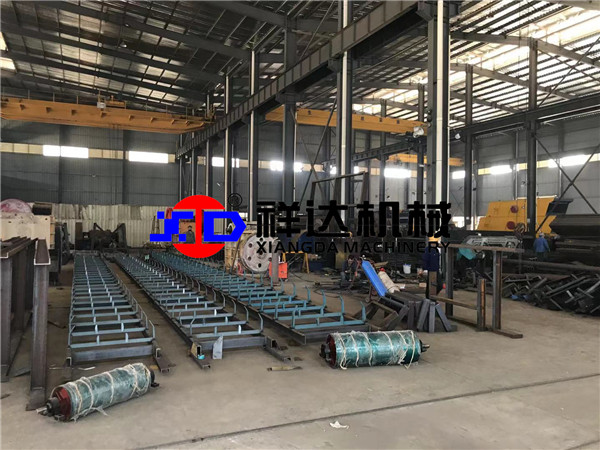

OUR FACTORY

STONE CRUSHER MACHINESTONE CRUSHER MACHINE

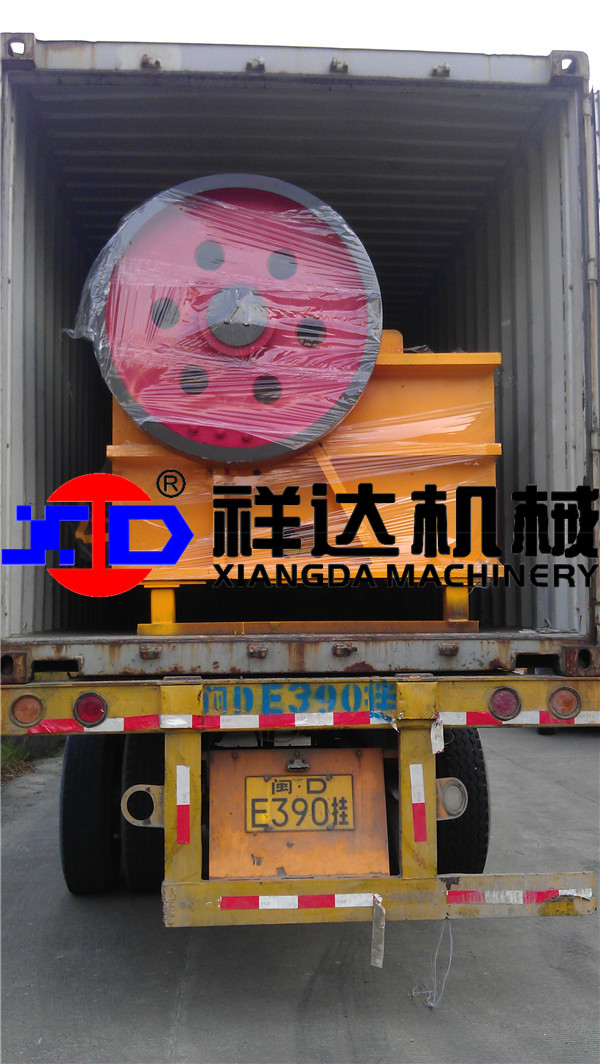

Packaging & Shipping


Packaging:standard Container, Nude Packs or in Bulk.The electrical motor or spare parts will be packed by wooden case or steel frame.Unique offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Unique workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.
Shipping:we deliver the cargo to China's main sea ports,like Xiamen port.And then the container will be transported to your country by sea.


Product Packing

Standard export packing, Spare parts are packed with wooden case, the large machines are loaded in container with nude packing, covered with plastic cloth. We export through Xiamen Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client with competitive price and secure transportation.


After-sales service support

Our Services


 Pre-sales:
*Help customers to choose product.
*Freely send engineers to the working field to plan the installation site and design the best technical production process.
*Design the special product according to the contract.
After-sales:
*Send the engineers to guide the installation.
*Install and adjust the equipment for customers.
*Train the operator for customers.
*We also provide the technical service for our customers after the installation.
*Solution for you choose as well as we will give lifetime free technical support and services.
