Features:
1. Plug and play or standalone operation mode;
2. 48V phantom power supply ensures stable performance;
3. 3-band EQ: low, medium and high;
4. Connect to phone/tablet to freely enjoy online karaoke;
5. High-resolution 48 KHz converters for high-end audio quality;

6. Onboard DSP mixer & five types of real time hardware reverb FX;

Specifications:
Dimension:173×122×60 mm
Net weight:480g
Channel:2 in/2 out
Playback:24bit/48khz,SNR 103dB(Max)
Recording:24bit/96khz,SNR 95dB(Max)
Power Consumption:≦0.05%(music);≦0.1%(record)
Max Power Output:600mW(headphone);300mW(earphone)

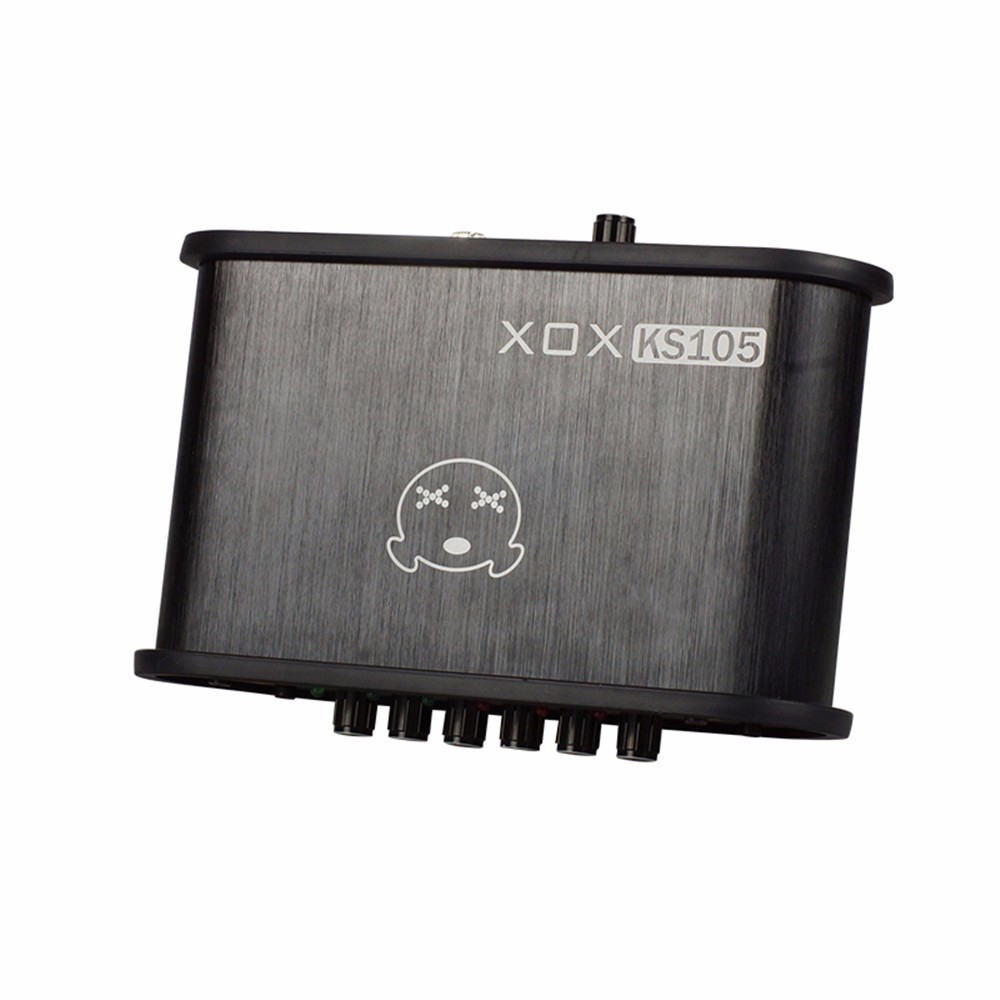

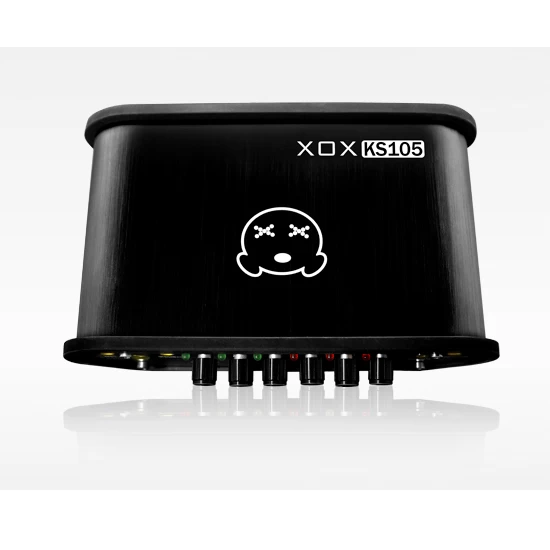

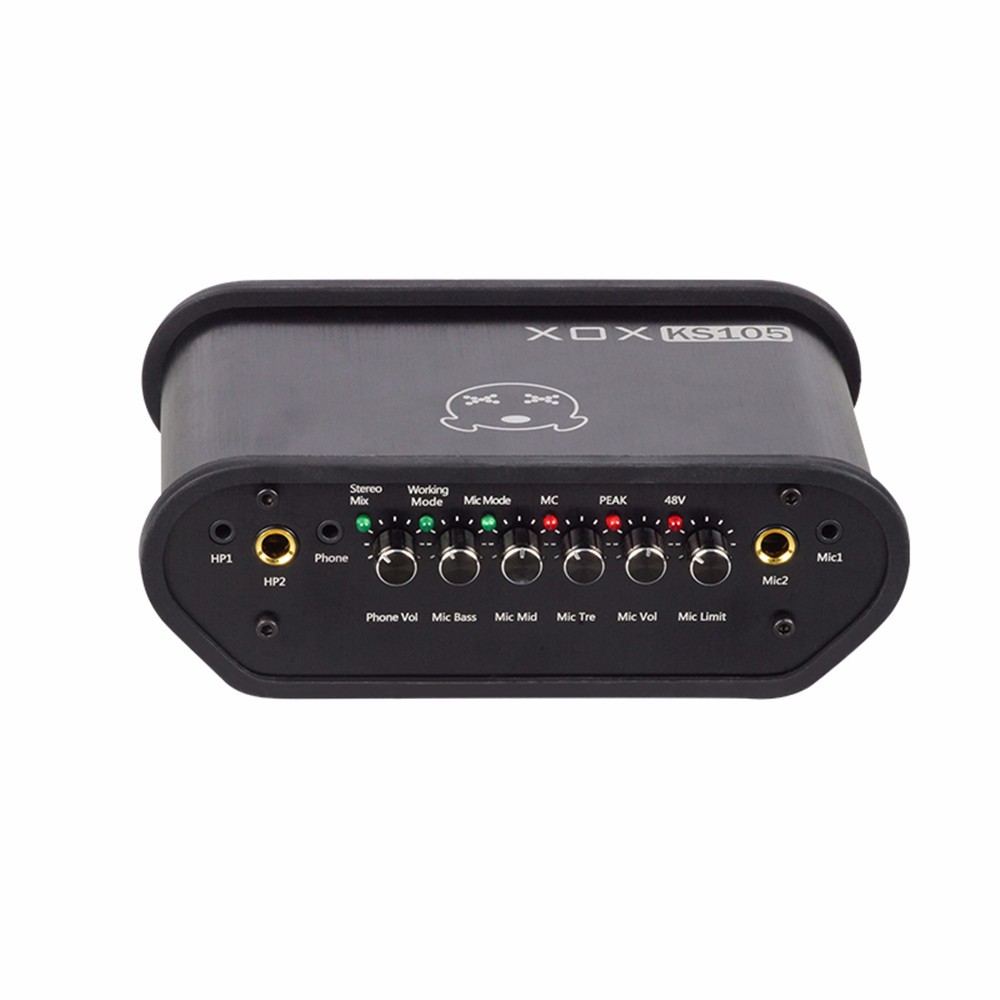

The KS105 is equipped with high-quality 48v phantom power supply, with which can help the device reach best performance while using condenser microphone. Therefore, this KS105 can not only apply to online singing but also professional recording.(XLR Port)

Moreover, it serves a wide variety jack, which provides you a richer experience. It also provides a PnP jack that can be run on many popular operating systems such as Windows, Linux and Mac without any installation of drive. And for better connection with mobile devices, we designed a jack to connect your smart phone and tablet with iOS/Android operating system, which allows you to sing directly on your mobile devices and upload your recording.

MOQ:20

Packaging & Delivery
Packaging Details Packaged in a box and then in a carton
Delivery Time Shipped in 20 days after paymentMOQ:20

FAQ:
Q1. What should I do if my computer cannot recognize the device?
Connect our device to another jack on your computer. If it still doesn’t work, update your computer’s drive checking or try to run it on another computer.

Q2.How can I avoid voice cracking at high notes and microphone screeching?
Step 1: turn down your Mic Vol and Mic Tre;
Step 2: try not to use your speaker and the device at the same time;
Step 3: try another microphone with better quality.

Q3.How can I reduce current sound and noise?
Step 1: try to connect another USB jack on your computer.
Step 2: if you’re using laptop, unplug the external power supply and then use the battery only.
Step 3: put several books under the sound card.

Step 4: use an iron wire to connect Ground Terminal to the ground or any metalwork. (this step only applies to KS105.)

KS105 Control Panel Download
