Indoor Optical Cable Simplex Duplex Singlemode Multimode

SZOPT provides indoor optical cables with fiber of SM(G652D/G657/G655) and MM(OM1/OM2/OM3/OM4/OM5),the outer sheath is PVC/LSZH or custom,the outer diameter can be custom,the cable can be tight buffered or loose biffered,please reach us with your detail requirement.



Indoor Optical Cable Simplex Duplex Singlemode Multimode

Our indoor cables are widely used in building wiring applications. Installed in walls, between floors, in plenum air handling ducts and under data center floors.


SZOPT's indoor cable that specifically used for patching applications is typically more robust in design, and capable of superior flex and crush requirements. High volume connectorization processes require cable diameter consistency, long continuous lengths, and outstanding appearance aesthetics. Our patch cable designs provide the assembler with interconnect solutions backed by years of proven performance.

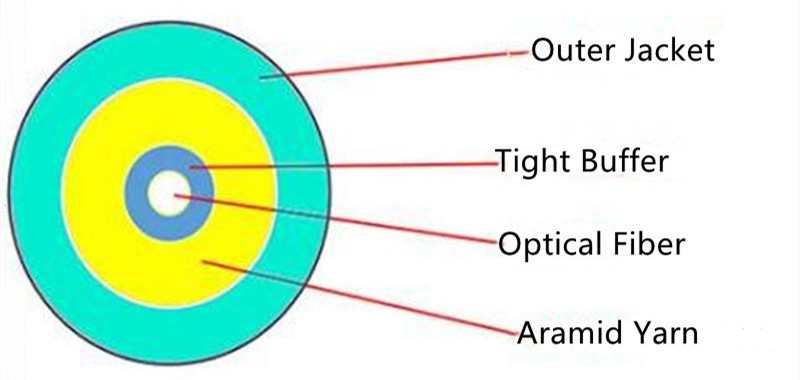

section view of simplex cable

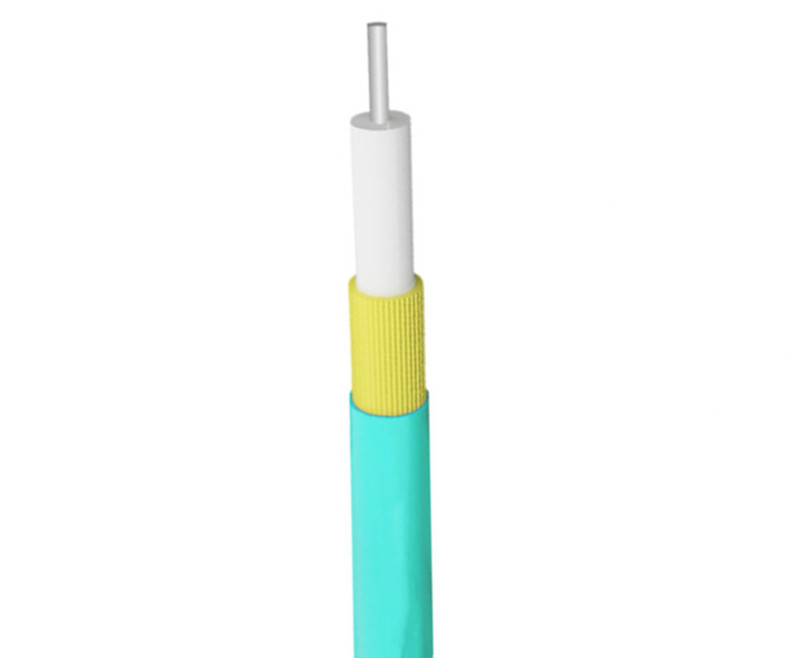

real picture of om3 om4 optical cable

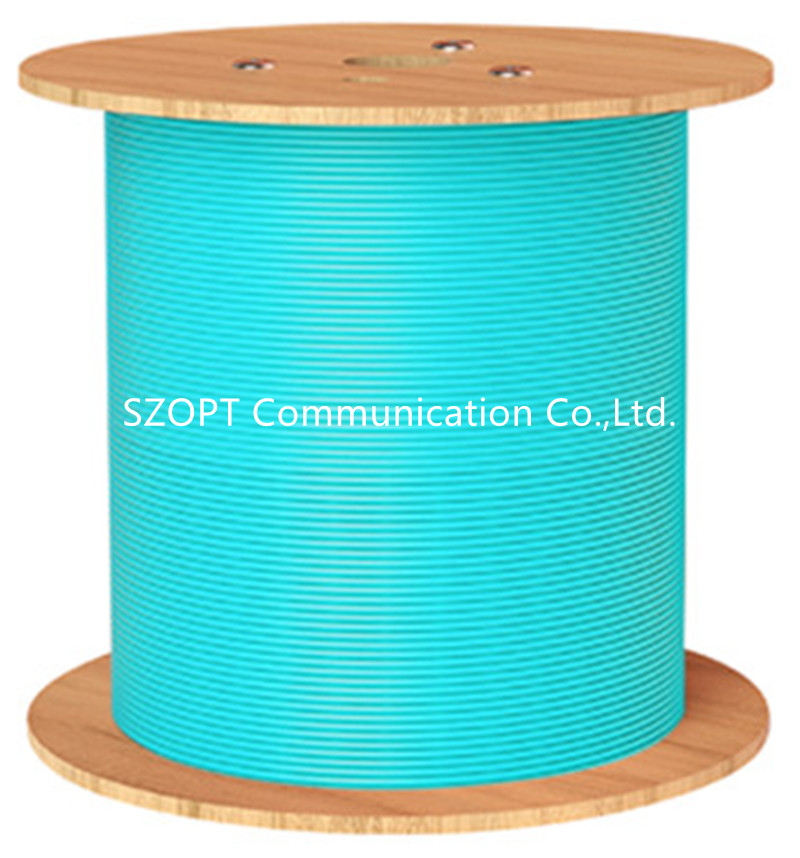

package drum of om3 om4 cables


workshop of the optical cables



Ready to shop the optical cables

Application:

Indoor FTTH;

For patch cords and pigtails;

For communication equipment.



Feature:

Good mechanical and environmental characteristics;

Flame retardant characteristics;

Cable jacket options:PVC,LSZH

Strength Member options:Steel,FRP,KFRP.



Package:

1km/2km/3km per roll or custom,then put into a carton box.


Mechanical Characteristics:

Tensile Strength

Long Term

60N

Short Term

100N

Crush Resistance

Long Term

100N/100mm

Short Term

500N/100mm

Bending Radius

Dynamic

20D

Static

10D

Optical Characteristics:





G652D

G657A1

G657A2

G657B3

G.655

62.5/125

50/125

Attenuation
(+20℃)

@850nm






≤3.5dB/km

@1300nm






≤1.5dB/km

@1310nm

≤0.45dB/km

≤0.40dB/km

≤0.45dB/km

≤0.50dB/km



@1550nm

≤0.30dB/km

≤0.50dB/km



Bandwidth
(Class A)

@850






≥200MHZ·km

≥500MHZ·km

@1300






≥500MHZ·km

≥500MHZ·km

Numerical Aperture







0.275±0.015NA

0.200±0.015NA

Cut-off Wavelength


≤1260nm


≤1480nm
