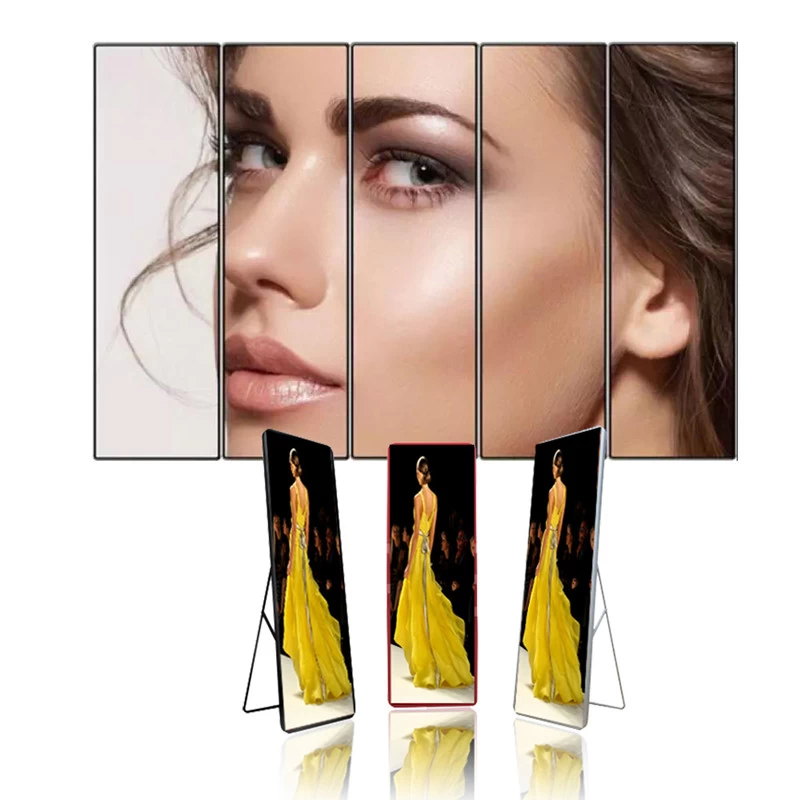

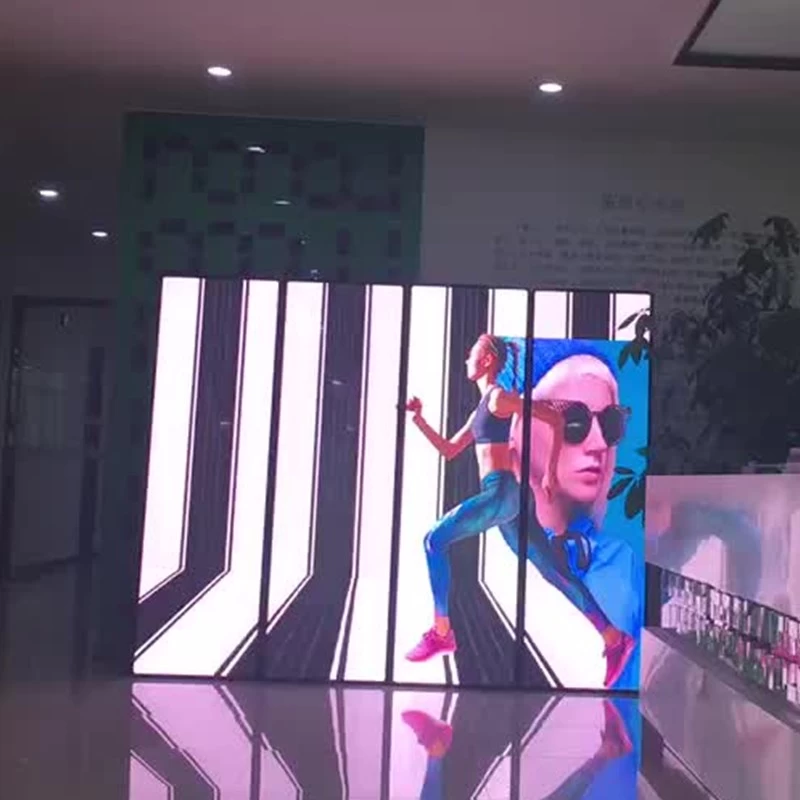

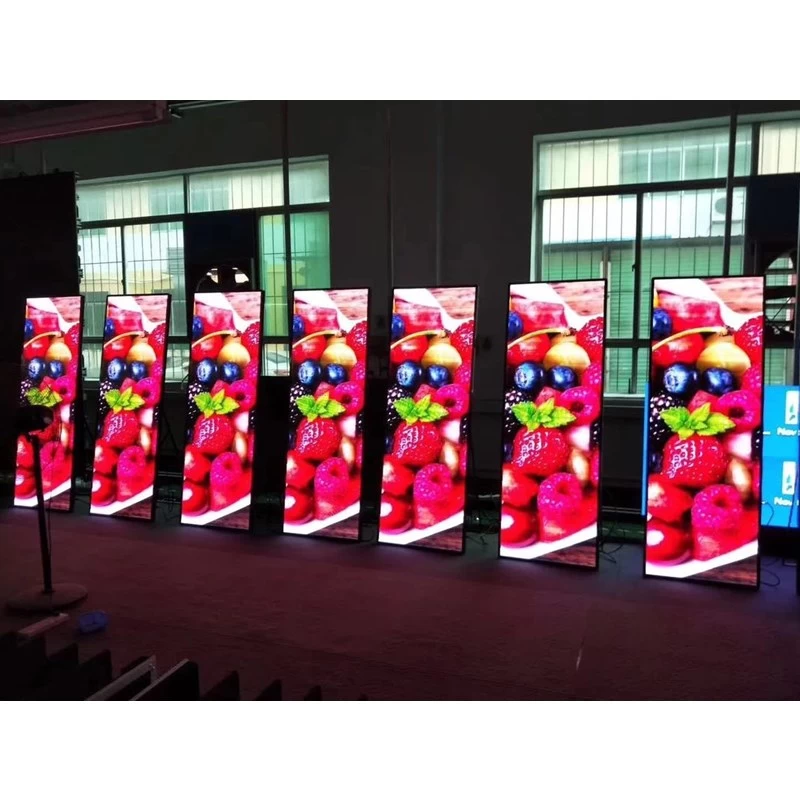

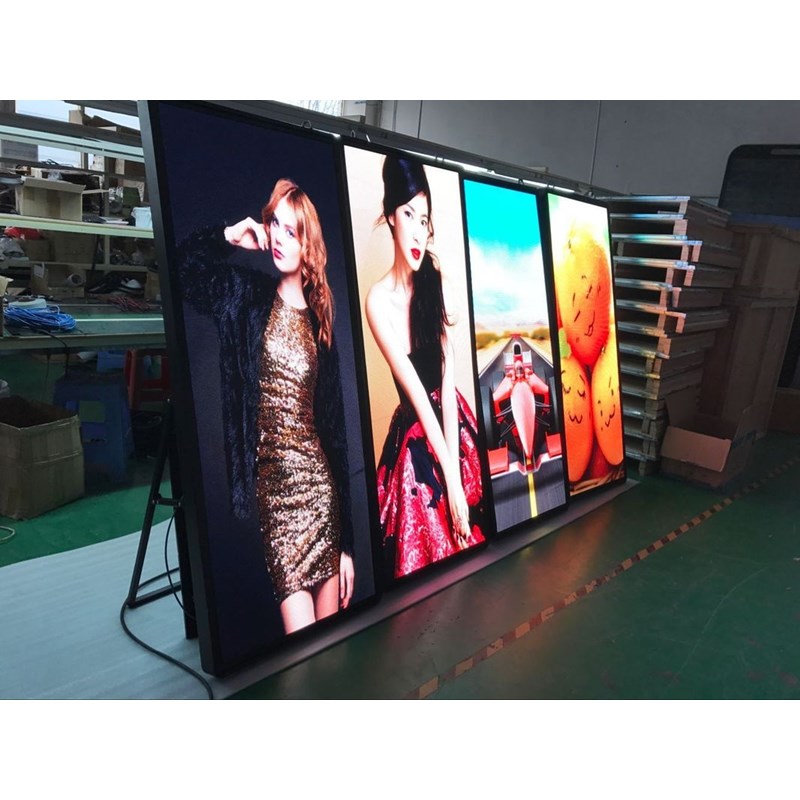

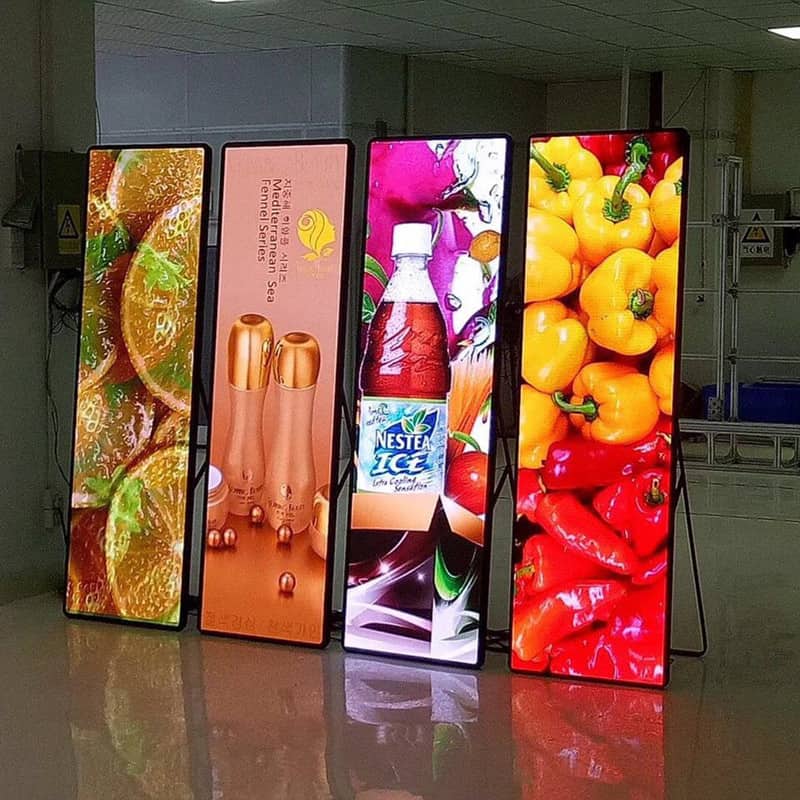

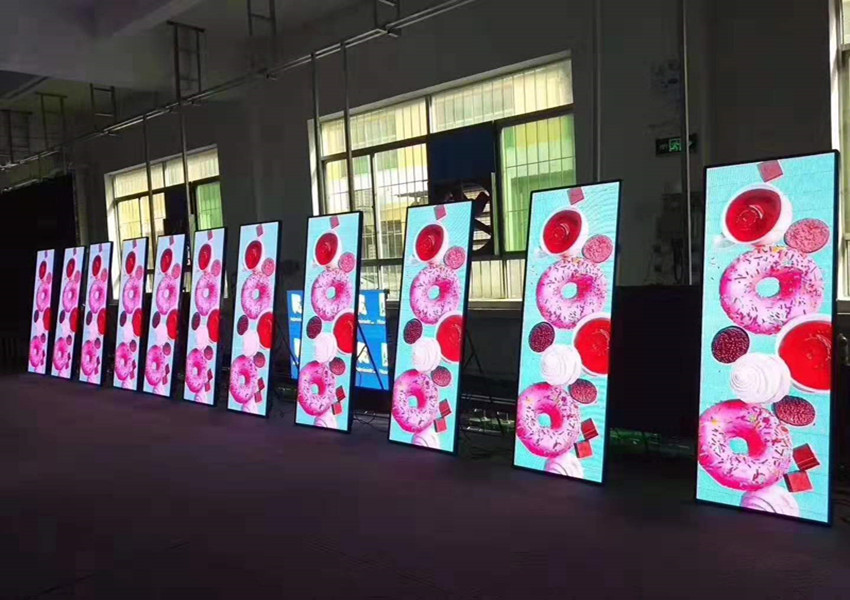

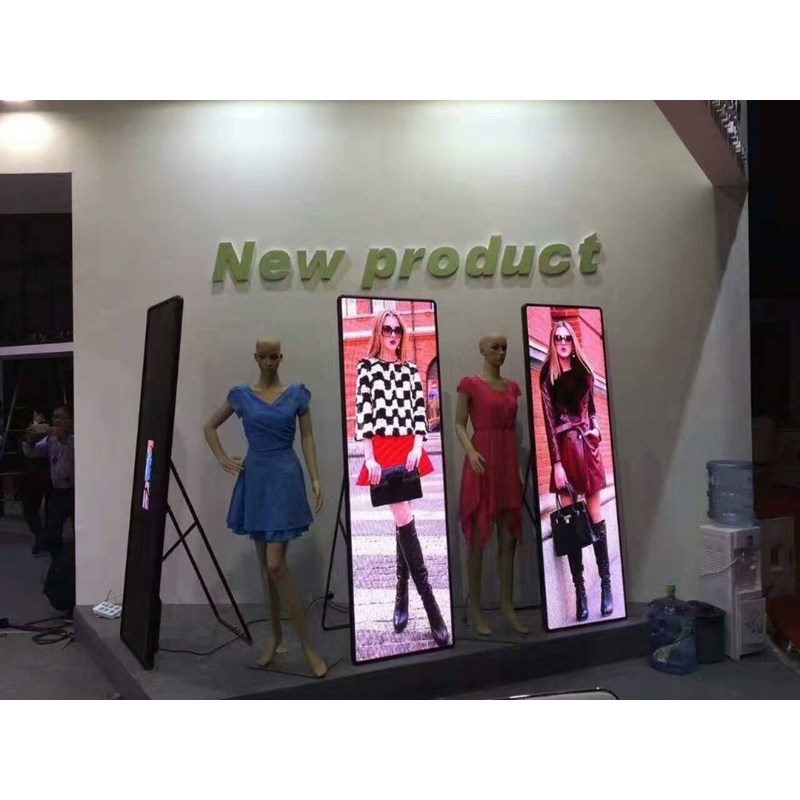

Indoor P2.5 P3 Full Color Poster LED Display
|
|
1
|
HD small pixel LED display
|
P1.5625 / P1.667/ P1.923/ P2
|
|
2
|
Hot rental LED display
|
P3 /P3.91 /P4 /P4.81 /P5.95
|
|
3
|
Outdoor fixed LED display
|
P4/P5 /P6 /P8 /P10 /P16 /P20
|
|
4
|
LED Control System
|
Nova Star / LINSN /Colorlight /Listen (3G / WIFI )
|
|
5
|
LED
|
Nation Star /Kinglight
|
|
6
|
IC
|
MBI5124/ MBI 5153 /ICN2038S /ICN2053
|
|
7
|
Power supply
|
Meanwell / G-energy
|
|
8
|
Cabinet kind
|
Iron /Aluminum /Die-casting /Fiber Aluminum
|
|
9
|
IP Grade
|
IP 43
|
|
10
|
Pixel Pitch
|
2.5 mm
|
3mm
|
|
11
|
Cabinet Size
|
640*1920 mm
|
576*1920mm
|
|
12
|
Pixel density
|
160,000 dots/m2
|
111,111 dots/m2
|
|
13
|
Color temperature
|
6000K--8000K
|
|
14
|
Viewing angle
|
H:140;V:140
|
|
15
|
Dead LED lamp rate
|
≤0.1‰
|
|
16
|
Non-Flatness
|
<0.2mm
|
|
17
|
Module interval
|
<0.2mm
|
|
18
|
Packaging Gross Weight(KG)
|
25kg/M2 (Estimated data)
|
|
19
|
Packaging dimension
|
customized size
|
|
20
|
Maximal power/m2
|
600 W/m2
|
|
21
|
Brightness adjusted
|
256 grade by auto-optic/color &8 grade by hand
|
|
22
|
Input signal
|
RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
|
|
23
|
Life-span
|
≥1 00,000 hours
|
|
24
|
MTBF
|
5,000 hours
|
|
25
|
Frame frequency
|
50 - 60 Hz / s
|
|
26
|
Refresh rate
|
≥1,920 Hz / s
|
|
27
|
Signal Input(with video processor)
|
HDMI, DVI, VGA, RF, S-Video, RGB,
RGBHV, YUV, YC&Composition, etc.
|
|
28
|
Control Distance
|
120 m (no repeating); Optical fiber
transmission: 0.5km- 10km
|
|
29
|
Systems Operating Platform
|
Windows XP, Win 7, Win8, Win8.1, Win10
|
Outstanding Features:
1.Slim thickness: only 33 mm thickness
2.Wide view angle: 140°/140° for horizontal and vertical
3.High definition and high contrast ratio 3000:1,support 720P and 1080P videos
4.Lightweight: 35kgs for weight,and less than 60kgs including the supporting bottom plate
5.Intelligent management:enable to connect with PC or Android devices from a single location via RJ45,WIFI,3G,USB and HDMI
6.High refresh rate: up 3840hz and brightness adjustable(800-1300 nits)
7.Front service ability:module can be replaced from front side with a handle magnet

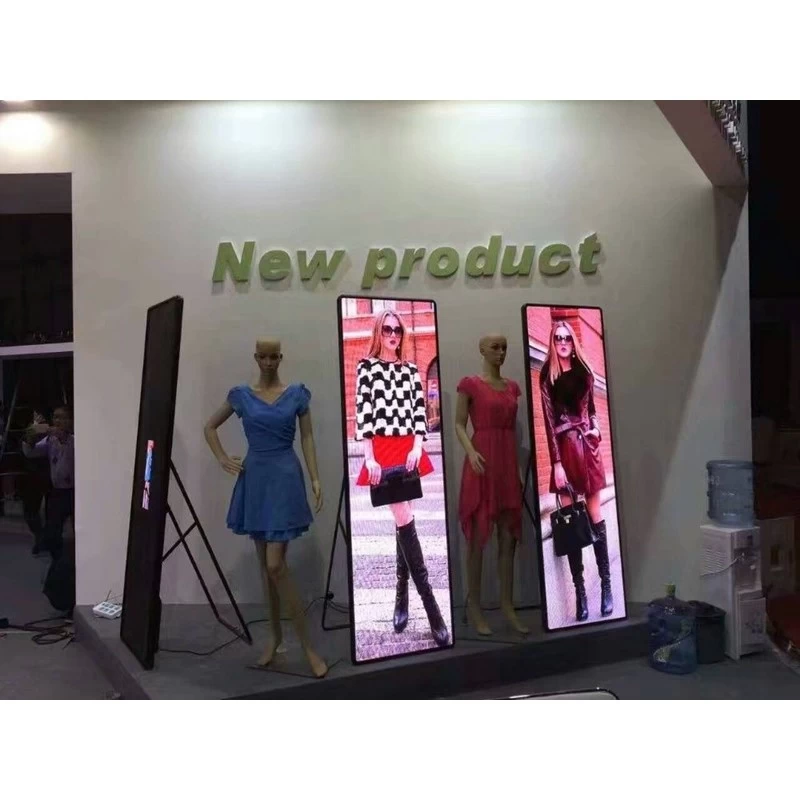

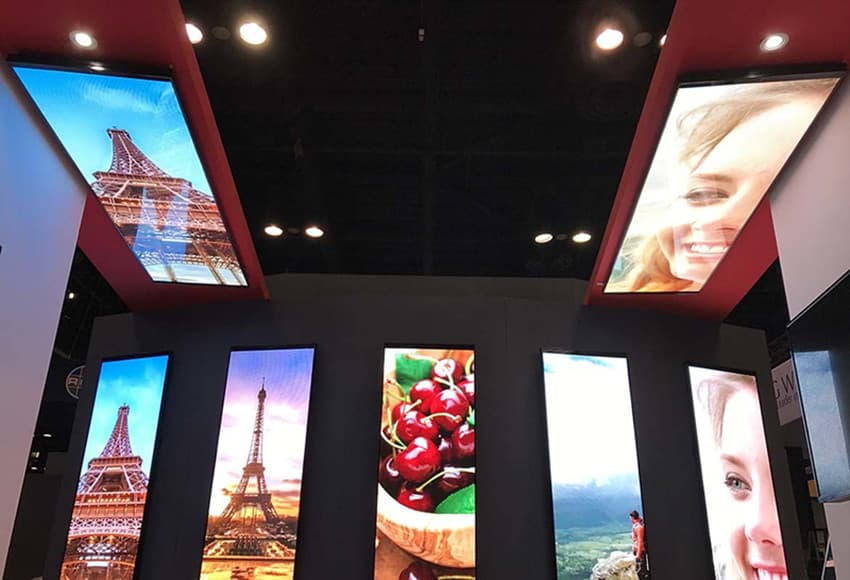

8.Widely usage:apply to shopping mall,cinema,bars,banks,luxury goods stores,airport,exhibition hall,conference room,hospitals,squares,concoures etc.
9.Large storage: 5GB of built-in storage supporting almost all video and image formates
10.Plug and play with zero configuration,update digital content at any time through wifi,USB.

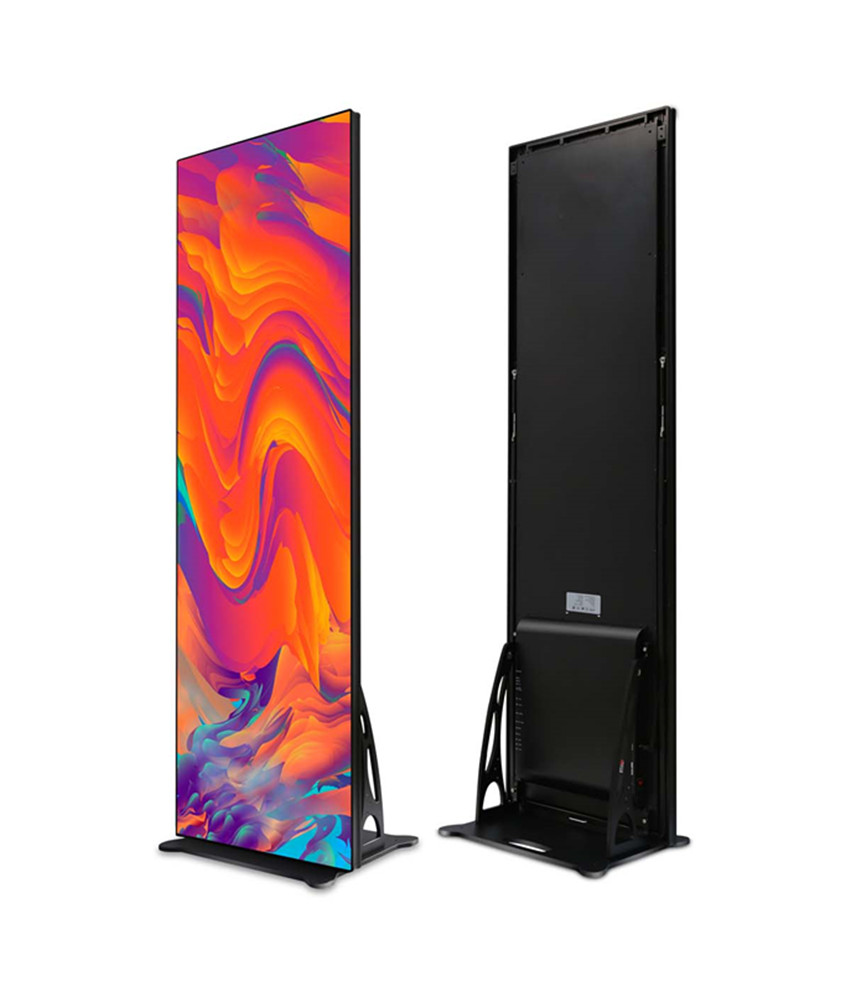

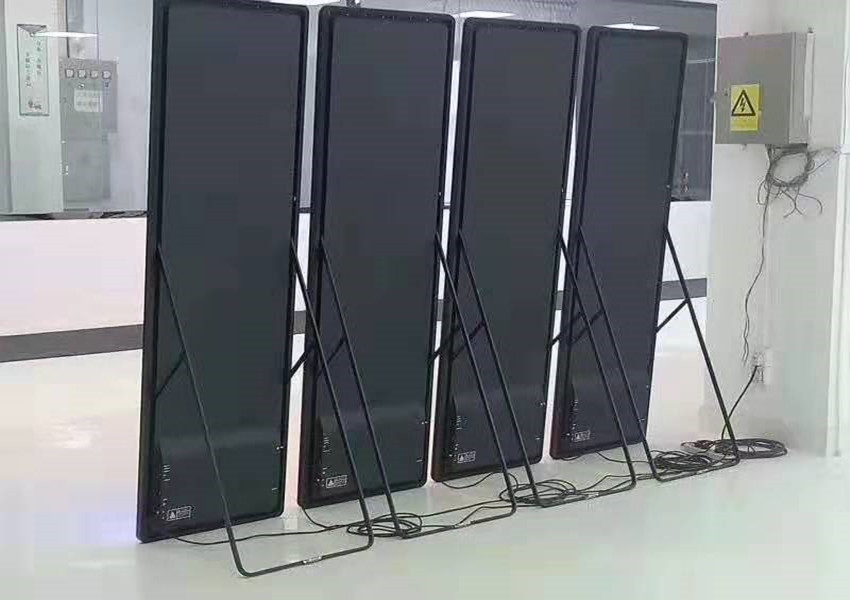

11.Multiple installation methods: fold-out stand and wall-mounting options
