I.LED Module Specification
|
|
1
|
Pixel pitch
|
5mm
|
|
2
|
Module resolution
|
64*32
|
|
3
|
Module size
|
320*160
|
|
4
|
Module quantity
|
3*2 =6 pcs
|
|
5
|
Resolution
|
40,000dots /m2
|
|
6
|
LED composition
|
1R 1G 1B
|
|
7
|
LED type
|
SMD2727
|
|
8
|
Driving method
|
1/8 scan constant current
|
|
II.LED Cabinet Specification
|
|
9
|
Cabinet size(mm)
|
W 1010× H 370 × T 230(with frame)
|
|
10
|
Cabinet resolution(dots)
|
W 192× H 64= 12,288dots
|
|
11
|
LED display
|
double side LED display
|
|
12
|
Cabinet material
|
Aluminum with stainless steel base
|
|
13
|
Cabinet color
|
Black（color can changed according to your request)
|
|
14
|
Cabinet weight
|
25KG/pcs
|
|
III.LED Display Specification
|
|
15
|
LED display size(m)
|
W 0.96 × H 0.32 =0.3072sqm (without frame, for each side)
|
|
16
|
Exact size(mm)
|
W 1010 × H 370 × T 230 (with frame)
|
|
17
|
Real or virtual pixel
|
Real
|
|
18
|
Brightness(cd)
|
≥5500
|
|
19
|
Display color grade
|
1024 × 1024 × 1024 = 1,073,741,824
|
|
20
|
Refresh rate (Hz)
|
≥400 -1000
|
|
21
|
Protection grade
|
IP65
|
|
22
|
Protection detail
|
waterproof and dust-proof, acrylic board outside protect
|
|
23
|
Work temperature(ºC）
|
-30 ~ +70
|
|
24
|
Humidity(RH)
|
Up to 95
|
|
25
|
Life span
|
≥100,000 hours
|
|
26
|
Out-of Control rate
|
＜0.0001
|
|
27
|
Display flatness
|
Less than 1mm juncture
|
|

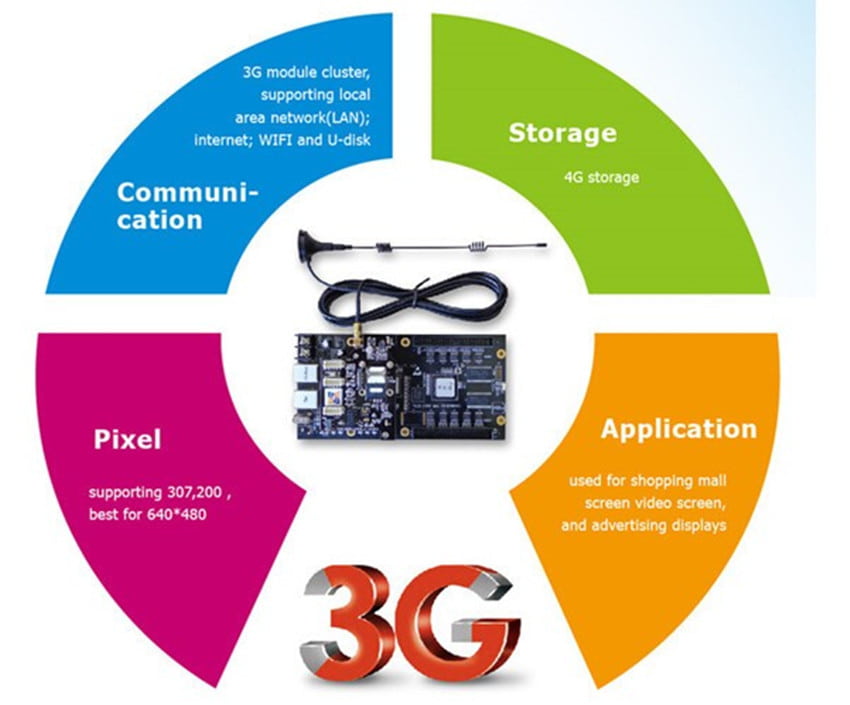

IV.Control System
|
|
28
|
Control system brand
|
Sheen Color
|
|
29
|
Control software
|
LEDGO
|
|
30
|
Memory of control card
|
512M
|
|
31
|
Memory amplify
|
Support USB flash disk to expand capacity of memory
|
|
32
|
Control method
|
Asynchronous control
|
|
33
|
Support video/picture format
|
AVI, WMV, MOV, MPG, DAT, VOB, MP4, FLV, MPEG, MPV, MPA, VCD, SWF, RM, RMJ, ASF, BMP, JPG, GIF, WMF, ICO, SWF,ect
|
|
V.LED power specification
|
|
34
|
Input Voltage
|
DC9~36V (or AC 110V/220V)
|
|
35
|
Output Voltage
|
DC5V
|
|
36
|
Power consumption(Average)
|
300W/m2
|
|
37
|
Power consumption(Max.)
|
550W/m2
|
|
38
|
LED Display screen project Power consumption(Max.)
|
550W
|

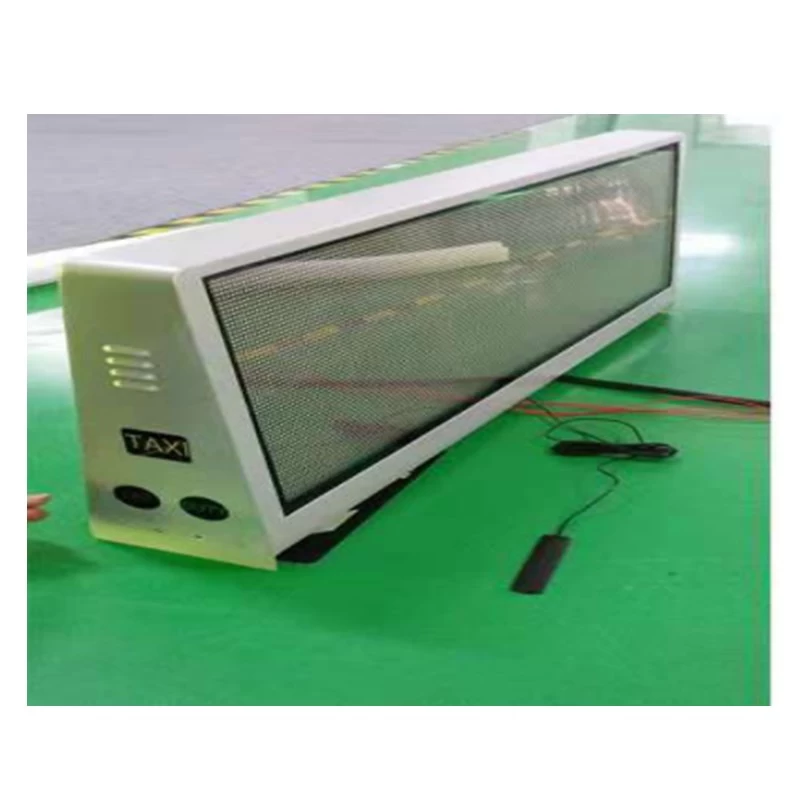

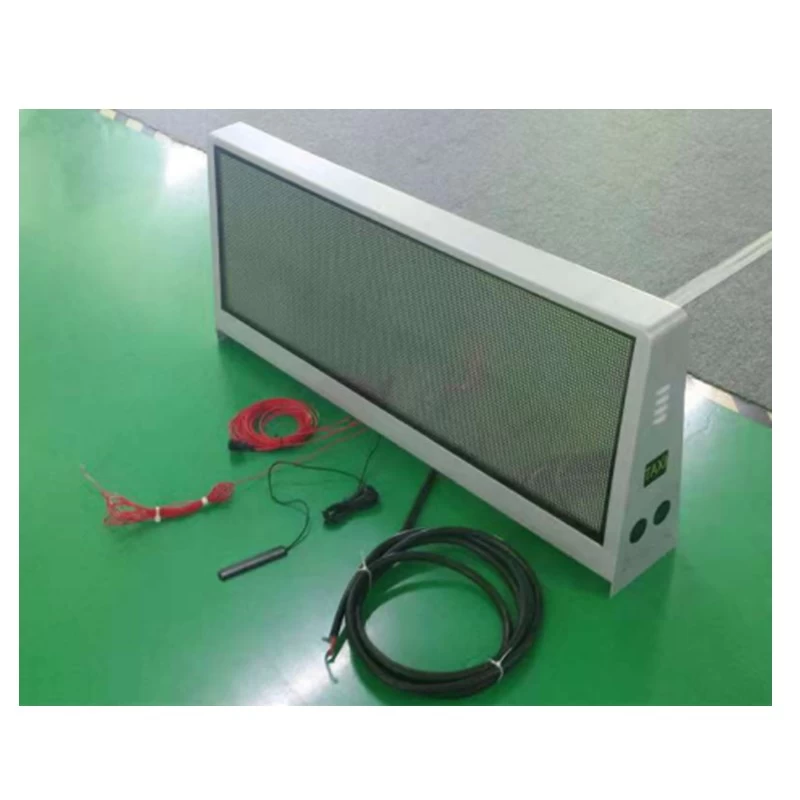

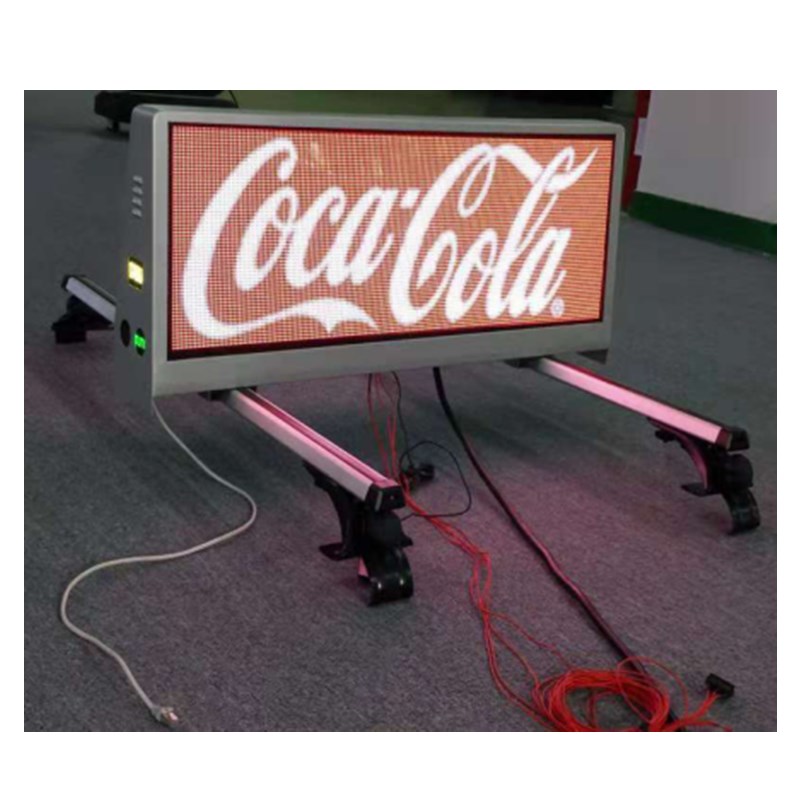

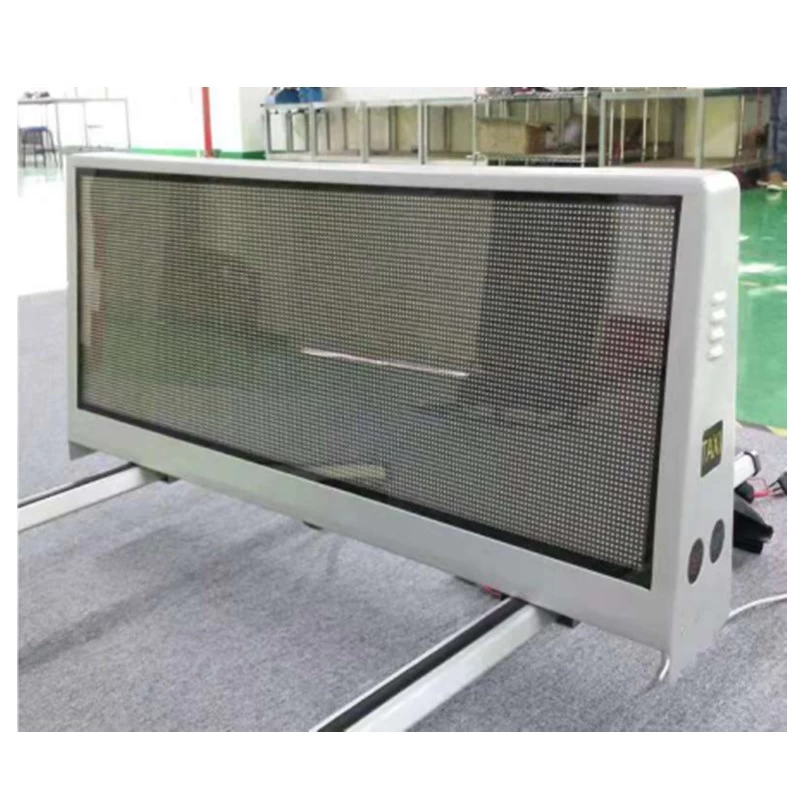

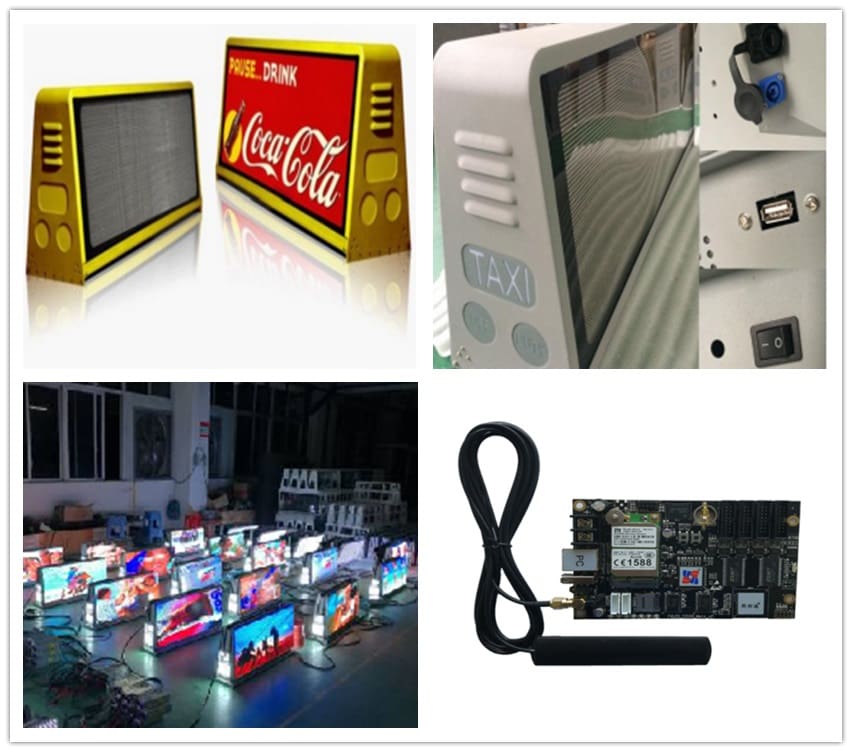

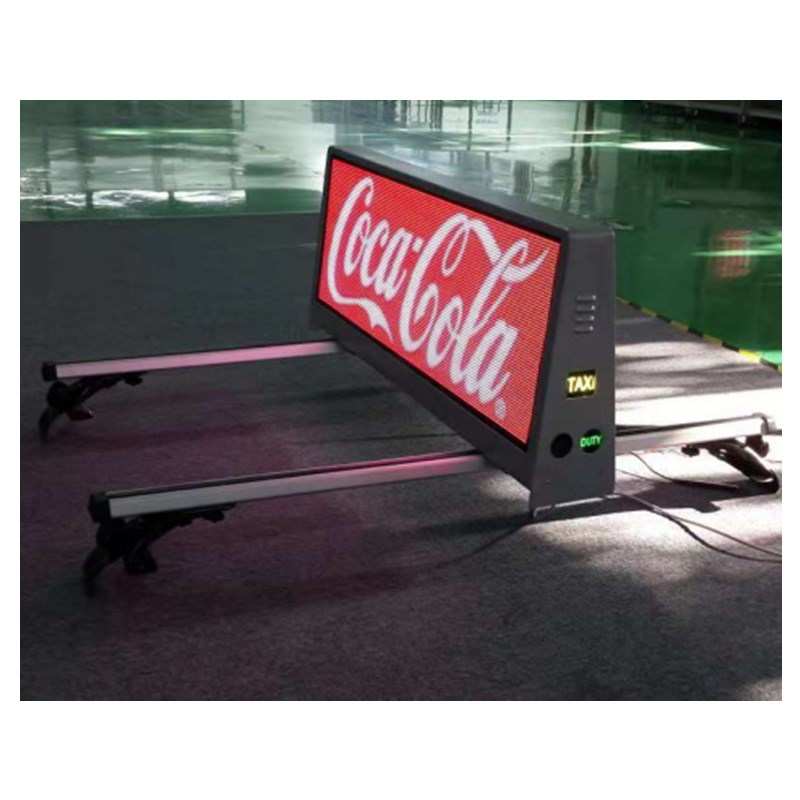

Outstanding Features :
1. Led advertising display is High reliability. 24h/7day advertising all the time and all weather conditions.
2.Outdoor video wall is Low power consumption.12V DC input.Vehicle battery is enough to make the taxi top LED sign work.
3. Exterior led panels is High brightness. Using P5 SMD LED display module, luminance reach 4300nit plus.Our taxi top LED sign can be seen very clearly in the sunlight.
4.Outdoor led sign panel with High resolution. Compared to the traditional taxi roof screen, screen resolution of ours reaches to 192px64p.
5. Outdoor led video screen can play a variety of media resources such as text, photos, animation, video and so on.

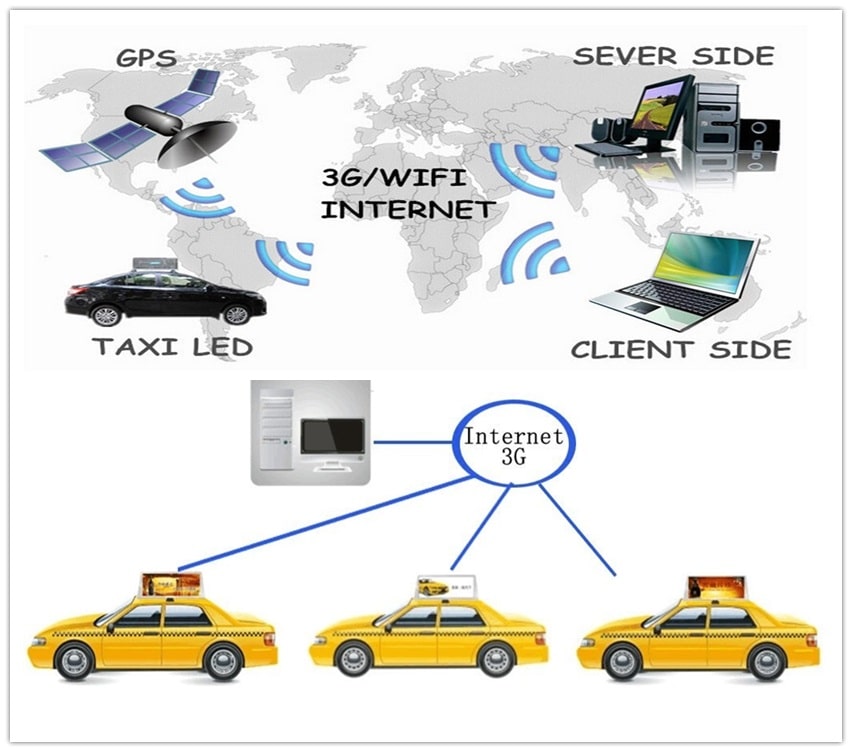

6. The controlling and editing of led digital display has never been as easy as now. Through 3G or 4G network, no matter where you are,as long as your device can access the Internet and open your browser, you can easily control the taxi top LED sign.
7. Outdoor electronic signs With GPS modules,the car can be tracked and located.
8.Full color led sign is High quality acrylic cover keep the surface of the taxi top LED sign always clean.
